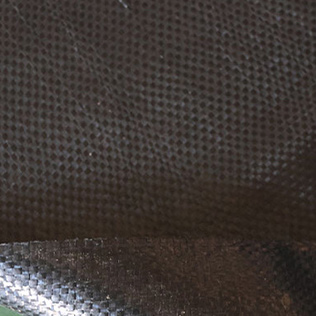

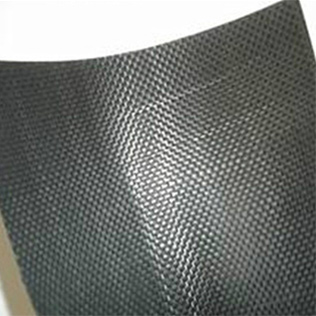

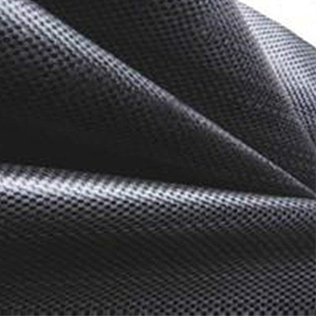

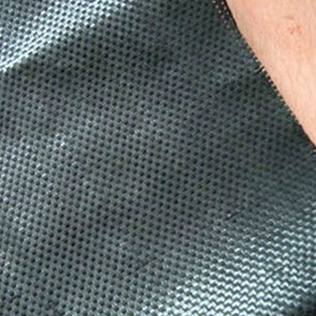

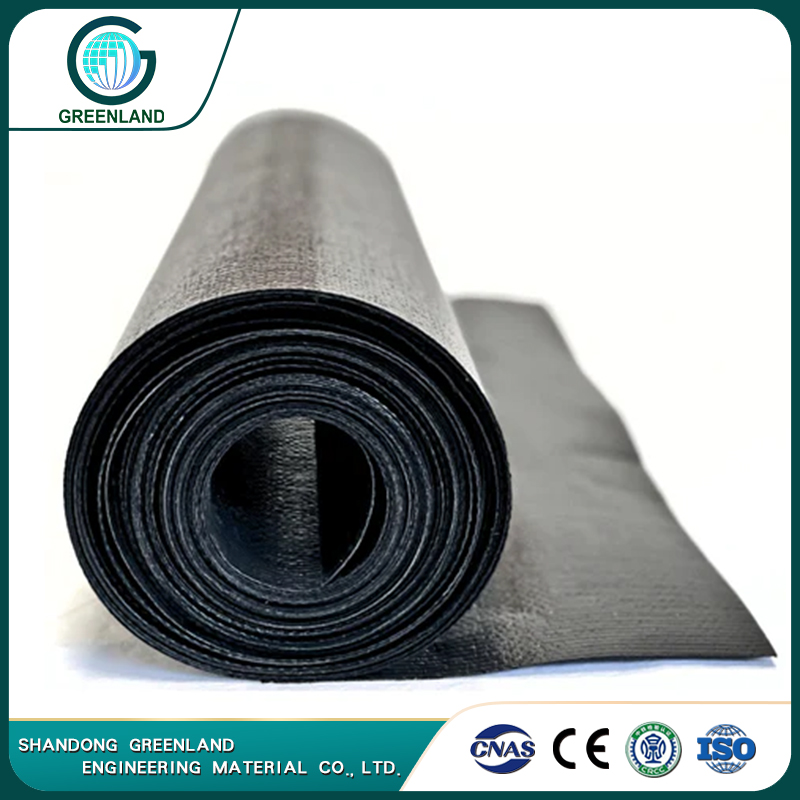

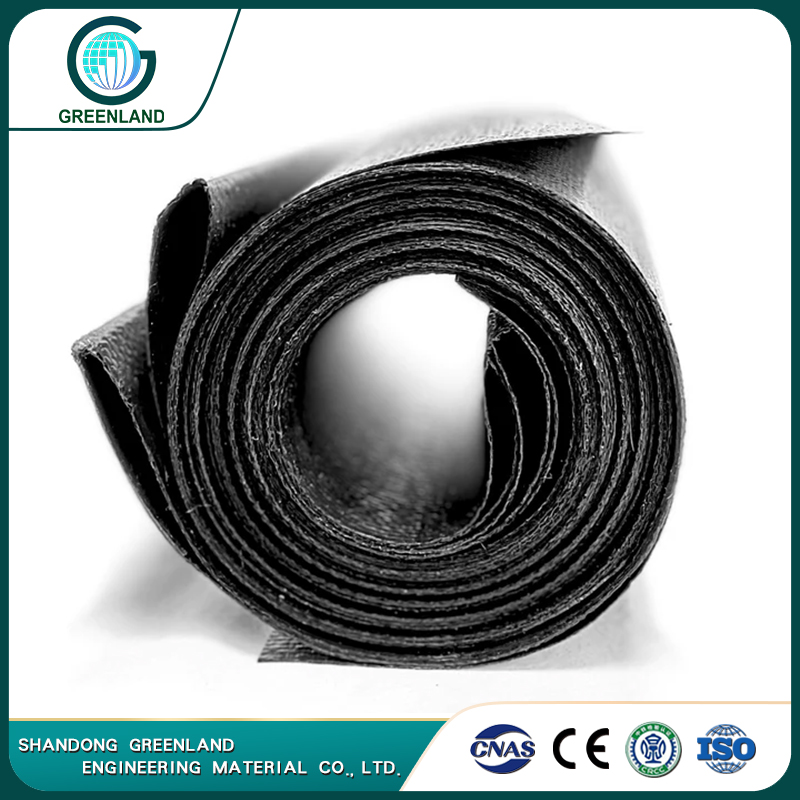

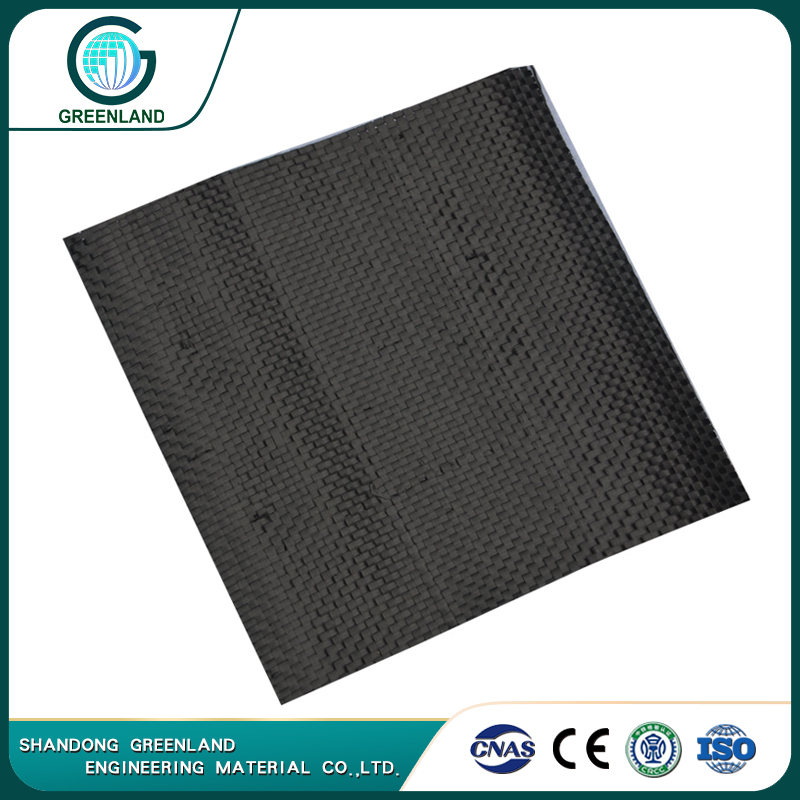

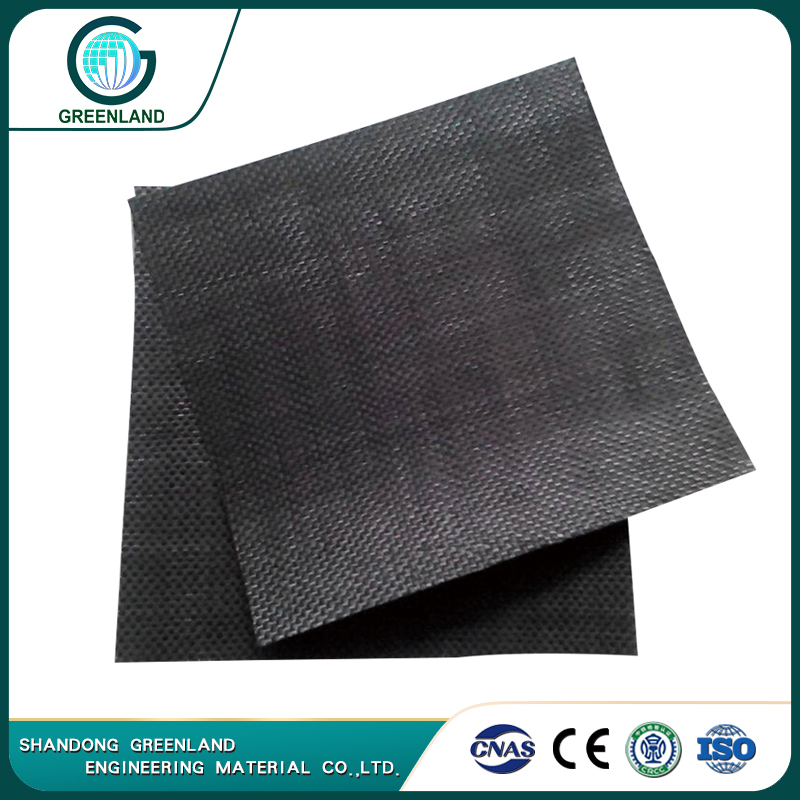

Woven Geotextile Composite Geomembrane
- 1. Dimensions: 300-1100g/m²
- 2. Width: Max.6M
- 3. Raw material: PP, PET/HDPE, LDPE, LLDPE, EVA, PVC…
- 4. Standards: GRI-GT12/GT13, ASTM, ISO, GB/T 17643
- 5. Delivery period: stock, 5-10 days production date

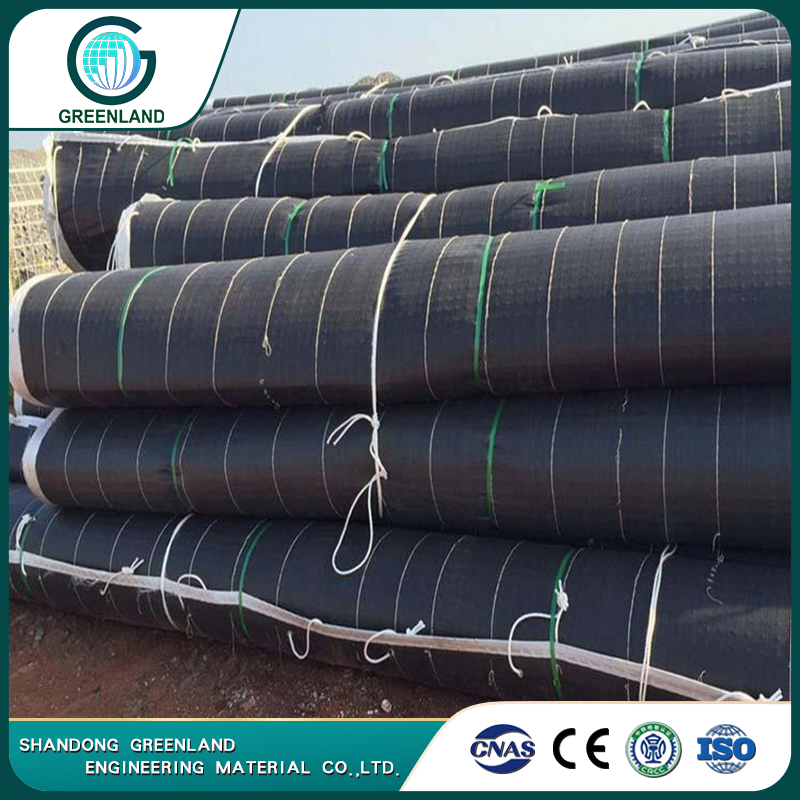

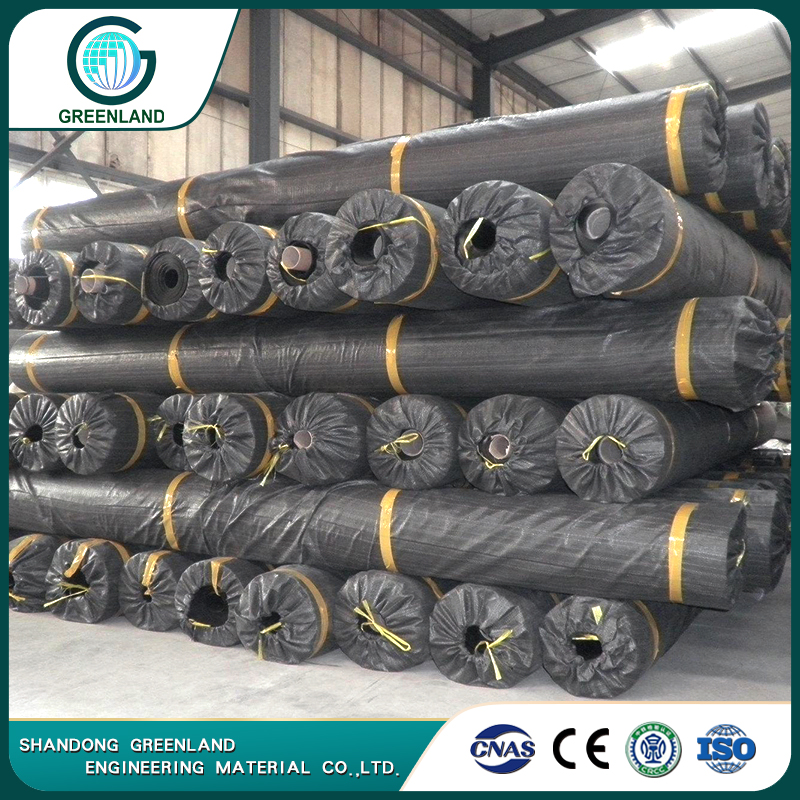

- 6. Packing: 50-100m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample
Woven geotextile composite geomembrane is a new type of geomembrane combined with geotextile and geomembrane. Woven geotextile is made of polypropylene materials and flat silk fibers. Warp and weft are interwoven with different weaving equipment and processes to form a stable fabric structure. Composite geomembrane is divided into two cloth a film, a cloth a film, the weight of 200-1500 g/m². High physical performance index, good tensile and tear resistance.
Composite geomembrane not only has the performance of anti-leakage, good sealing performance, anti-aging, anti-corrosion, acid and alkali resistance, but also has the protective performance of geotextile, waterproof performance, isolation and reinforcement function, in landfill, wastewater treatment, road construction, aquaculture, landscape and agriculture and other fields of seepage reinforcement engineering has a wide range of uses.
Quick Details of Woven Geotextile Composite Geomembrane
| Products details information | |
| Product name | Woven Geotextile Composite Geomembrane |
| Brand | Greenland (OEM is available) |
| Dimensions | 300-1100g/m² |
| Raw material | PP, PET/HDPE, LDPE, LLDPE, EVA, PVC... |
| Application | Landfill, wastewater treatment, road construction, aquaculture, landscape and agriculture and other fields of seepage reinforcement engineering has a wide range of uses. |
| Color | Black, White, other colors |
| Standards | GRI-GT12/GT13, ASTM, ISO, GB/T 17643 |
| Welding Tools | Hot wind welding, roller welding machine, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

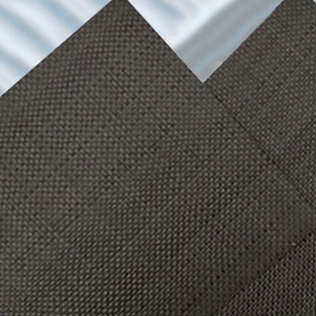

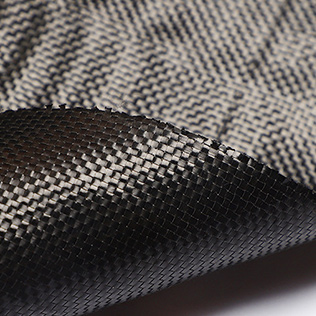

Description of Woven Geotextile Composite Geomembrane
Woven geotextile composite geomembrane is a new type of geotextile material that is composed of woven geotextiles made of polypropylene and polyester fibers and compounded with geomembrane. Woven composite geomembrane not only has the characteristics of high tensile strength and low elongation, but also has the waterproof performance of composite geomembrane. Therefore, woven composite geomembrane is an anti-seepage material with reinforcement, isolation, and protection functions.
 |
 |
 |
| High strength | Water permeability | Corrosion preventive |
 |
 |
 |
Benefits of Woven Geotextile Composite Geomembrane
Woven geotextile composite geomembrane in addition to geotextile isolation, drainage, reinforcement protection and other functions, but also has a closed (anti-seepage) function, can be widely used in water conservancy dam, road construction, airport, drainage, housing, environmental protection and many other fields, in the project mainly plays a role of anti-seepage, protection, reinforcement and so on.
(1) It integrates anti-seepage and drainage, and has the functions of isolation and reinforcement.
(2) High composite strength, high peel strength, high puncture resistance.
(3) Strong drainage capacity, large friction coefficient, small linear expansion coefficient.
(4) Good aging resistance, wide ambient temperature range, stable quality.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of Woven Geotextile Composite Geomembrane
New Standard for Woven Geotextile GB/T 17690-1999
| No | Item | Indicators | ||||||
| 1 | Specifications | 20-15 | 30-22 | 40-28 | 50-35 | 60-42 | 80-56 | 100-70 |
| 2 | Meridian breaking strength, KN/m ≥ | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 3 | Latitudinal fracture strength, KN/m ≥ | 15 | 22 | 28 | 35 | 42 | 56 | 70 |
| 4 | Longitude and latitude elongation % ≤ | 28 | ||||||
| 5 | Trapezoidal tear strength (longitudinal) KN ≥ | 0.3 | 0.45 | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 |
| 6 | Bursting Strength KN ≥ | 1.6 | 2.4 | 3.2 | 4.0 | 4.8 | 6.0 | 7.5 |
| 7 | Vertical permeability coefficient, cm/s | 10-1~10-4 | ||||||
| 8 | equivalent aperture O95, mm | 0.08~0.5 | ||||||
| 9 | Mass per unit, g/m2 | 120 | 160 | 200 | 240 | 280 | 340 | 400 |
| 10 | Allowable deviation value, % | ±10 | ||||||
| 11 | UV resistance strength retention rate%: as required by the contract; When requested by the user, the assessment will be based on the actual design value. | |||||||
Standard for PET Woven Geotextile Composite Geomembrane
| Properties | Test Method | Unit | WG100/100PET | WG200-200PET | WG300-100PET |
| Strength@ UItimate(MD) | ASTM D4595 | kN/m | 100 | 200 | 300 |
| Strength@ Ultimate(TD) | ASTM D4595 | kN/m | 100 | 200 | 100 |
| Elongation MD | ASTM D4595 | % | 10±2 | 10±2 | 10±2 |
| Strength@5% Strain(MD) | ASTM D4595 | kN/m | 42 | 85 | - |
| CBR Strength | EN ISO 12236 | kN | 7.5 | 10.6 | 8.9 |
| Drop Strength | EN 918 | mm | 11 | 10 | 11 |
| Creep Reduced Strength(MD) | ASTM D 5262 | kN/m | 69 | 140 | 205 |
| Long Term Design Strength(MD) | GR-GT7 | kN/m | 57 | 118 | 170 |
| Apparent Open Size | ASTM D4751 | mm | ≤0.55 | ≤0.55 | ≤0.55 |
| Flow Rate | ASTM D4491 | L/m2/s | 15-20 | 15 | 15 |
| Roll Width | / | M | 5.2 | 5.2 | 5.2 |
| Roll Length | / | m | 100 | 100 | 100 |
Standard for PP Woven Geotextile Composite Geomembrane
| Property | Test Method | Units | PPWG500 | PPWG1000 |
| Wide Width Tensile Strength | ||||
| MD @ Uitimate | ASTM D4595 | lbs/in(KN/m) | 450(78.8) | 1142(200) |
| CD @ Uitimate | ASTM D4595 | lbs/in(KN/m) | 625(109.4) | 1142(200) |
| Wide Width Tensile Elongation | ||||
| MD | ASTM D4595 | % | 20(max) | 20(max) |
| CD | ASTM D4595 | % | 20(max) | 20(max) |
| Factor Seam Strength | ASTM D4884 | Ibs/in(KN/m) | 400（70) | 913（160) |
| CBR Puncture | ASTM D6241 | Ibs(N) | 2000(8900) | 4000(17800) |
| Apparent Opening Size (AOS) | ASTM D4751 | mm(U.S.Sieve) | 0.43(40) | 0.6(30) |
| Water Flow Rate | ASTM D4491 | I/min/m2(gpm/ft2) | 813(20) | 815(20) |
| UV Resistance % Retained at 500 hrs | ASTM D4355 | % | 90 | 90 |
| Proysics | ||||
| Area | ASTM D5261 | g/m2(oz/yd2) | 585(17.3) | 1119(33) |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

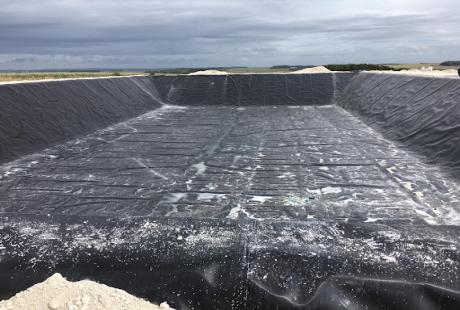

- Woven geotextile composite geomembrane is widely used in the integral and local anti-seepage reinforcement of reservoir area, dam body, cofferdam, channel, artificial lake, reservoir and other water conservancy buildings. At the same time, it is also widely used in anti-seepage strengthening projects in the fields of electric power, metallurgy, environmental protection, urban construction, railway, highway, military, agriculture and mining.

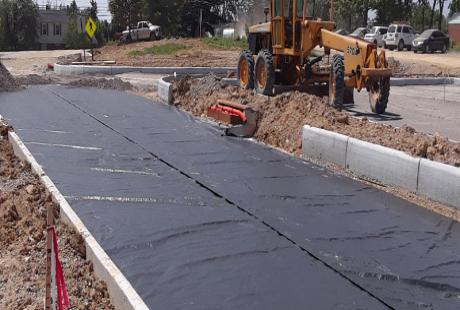

❖Woven Geotextile Composite Geomembrane for Highway & Water Conservancy

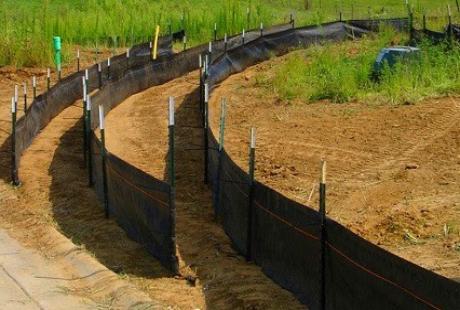

1.Diversion Irrigation
2.Reclamation Project

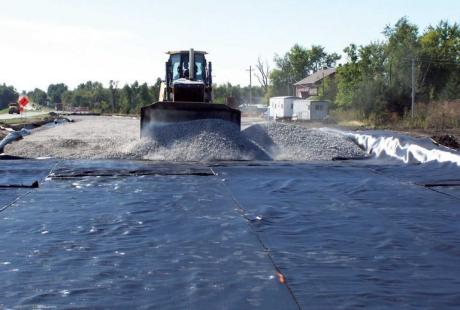

3.Roadbed Reinforcement Treatment
 |
 |
| Woven Geotextile Composite Geomembrane for Embankment Layering | Woven Geotextile Composite Geomembrane for Soft Foundation Consolidation |
 |
 |
| Woven Geotextile Composite Geomembrane for Agricultural Reclamation | Woven Geotextile Composite Geomembrane for Diversion Irrigation |
