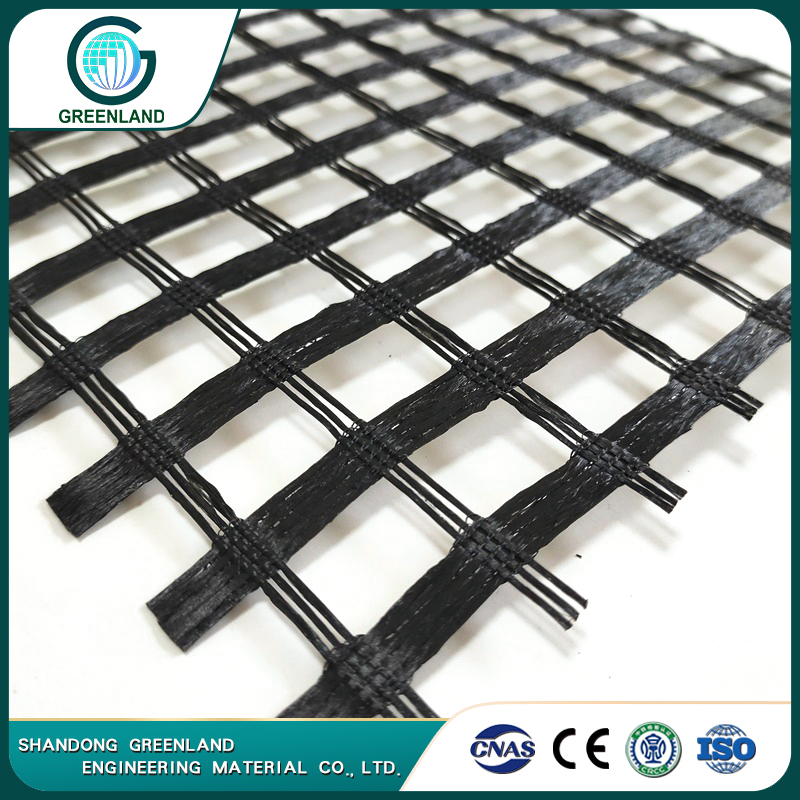

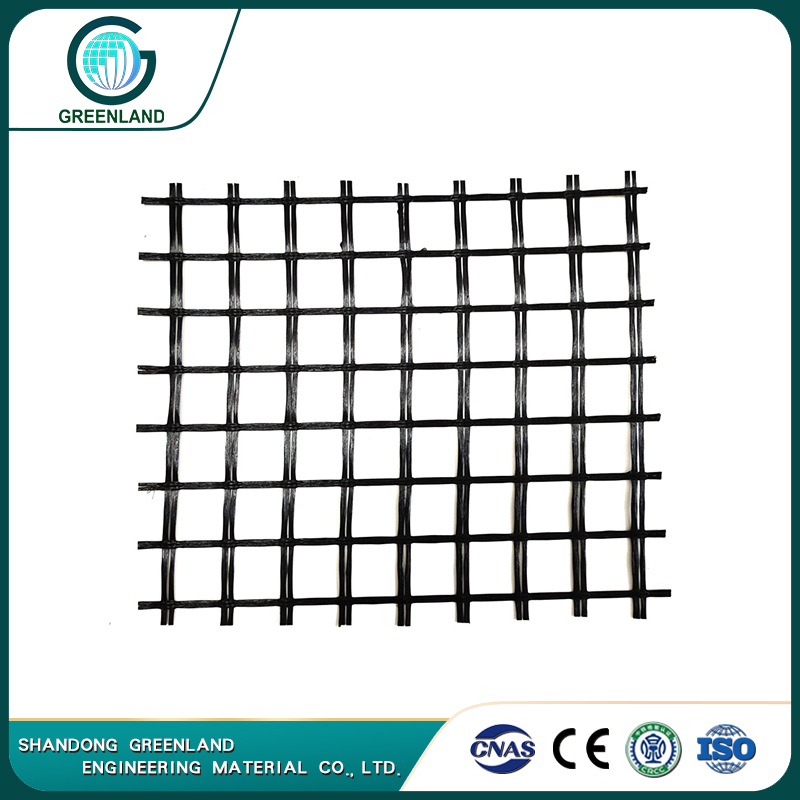

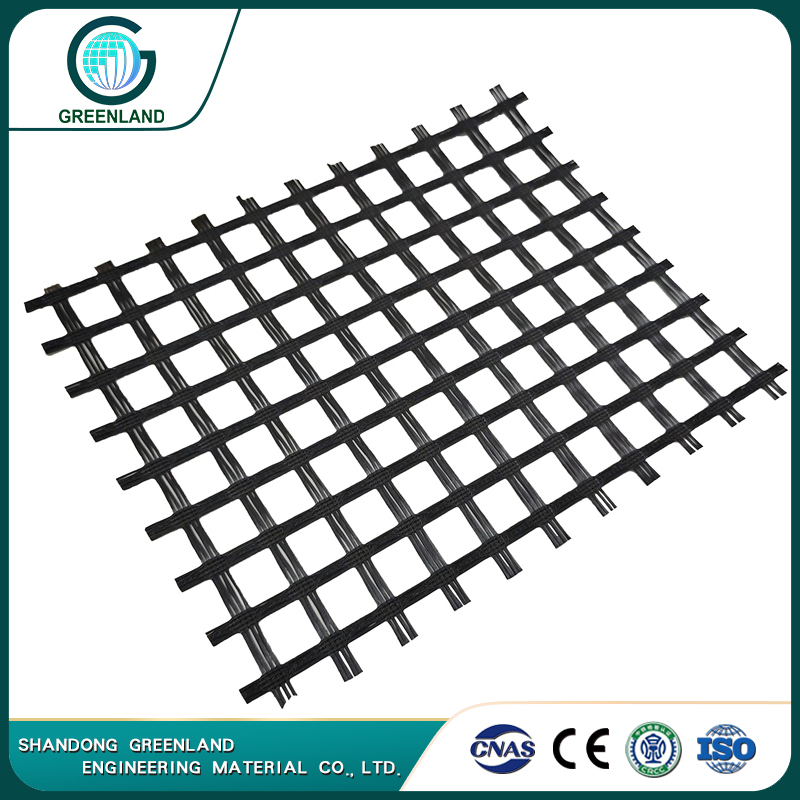

Warp-knitted Fiberglass Geogrid

  • 1.Width: 1-6m
  • 2.Length: 50-100m
  • 3.Material: HDPE ,Alkali-free glass fiber,PP
  • 4.Standards: ASTM,JT/T1432.1-2022
  • 5.Delivery time: Stock or 5-10 days after order confirmation
  • 6.Packing: Roll Package
  • 7.MOQ: Trial order is acceptable
  • 8.Free Sample
Send E-mail Get Price

Introduction

Specifications

Application

Download

Warp-knitted fiberglass geogrid is an excellent geosynthetic material made of high-quality reinforced alkali-free glass fiber yarn used for road reinforcement, old road reinforcement, roadbed and soft soil foundation reinforcement. It has become an irreplaceable material in the application of treating reflective cracks on asphalt pavement. This product is a semi-rigid product made of high-strength alkali-free glass fiber as a mesh base material through international warp knitting technology and surface-coated. It has high tensile strength and low elongation in both warp and weft directions, and has excellent properties such as high temperature resistance, low cold resistance, aging resistance, and corrosion resistance. It is widely used in the reinforcement of asphalt pavements, cement pavements, roadbeds, and railways. Roadbed, dam slope protection, airport runway, desertification prevention and control and other engineering projects.

Warp-knitted Fiberglass GeogridQuick Details of Warp-knitted Fiberglass Geogrid

Products details information
Product name Warp-knitted fiberglass geogrid
Brand Greenland (OEM is available)
Model No. Biaxial Geogrid
Raw material HDPE ,Alkali-free glass fiber,PP
Application Stabilisation and Reinforcement
Color Black and other colors
Standards ASTM
Welding Tools Hot air welding gun,roller welding machine
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50-70 years service life
Certificates ISO9001, OHSAS 18001, ISO14001,CE, CRCC
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection, Test Report
Service Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training
Management Effective 8S Management System
No. of employees More than 300 people

❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

Warp-knitted Fiberglass GeogridDescription of  Warp-knitted fiberglass geogrid

Warp-knitted fiberglass geogrid is a kind of plane network shape material that selects excellent reinforcement non-alkali fiberglass yarn.
It is weaven in to base material by using foreign advanced warp knitter and adopts warp knitted directional structure, It make full use if yarn strength in textile, improves its chemical performance and makes it have good tension resistance, tearing resistance and creep resistance and is formed by excellent modified asphalt coating treatment.

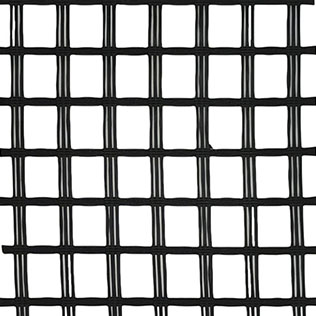

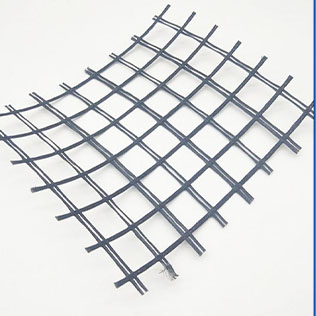

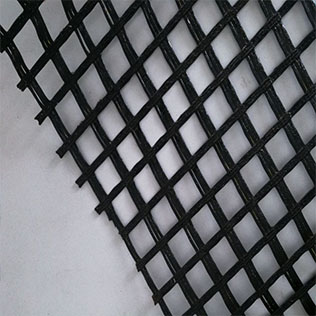

Warp-knitted Fiberglass Geogrid Warp-knitted Fiberglass Geogrid Warp-knitted Fiberglass Geogrid
High tensile force low elongation ratio Anti acid and alkali corrosion

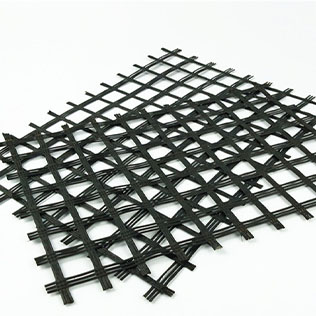

Warp-knitted Fiberglass Geogrid Warp-knitted Fiberglass Geogrid Warp-knitted Fiberglass Geogrid
Convenient construction Manufacturer's supply Support customization

Warp-knitted Fiberglass GeogridBenefits of  Warp-knitted Fiberglass Geogrid

Warp-knitted fiberglass geogrid is composed of a reticular structural material made of glass fiber filament with modified bitumen coating. It withstands high and low temperatures and can resist corrosion. FiberGlass geogrid is a stress relief asphalt reinforcement grid developed specifically for ashpalt overlays. Fiber Glass geogrid can not only decrease the cost of construction but also longer the service life of the pavement and road.

  • 1.Fiberglass geogrid have Light weight, high tensile strength, high modulus, low elongation and good toughness.
  • 2.Corrosion resistance, no long-term creep, long life span.
  • 3.Good physical and chemical stability and good thermal stability.
  • 4.Resistant to fatigue cracking, high-temperature track and low temperature shrinkage cracking.
  • 5.fiberglass geogrid can Delaying and decreasing crack reflection.

Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.

Warp-knitted fiberglass geogrid is composed of a reticular structural material made of glass fiber filament with modified bitumen coating. It withstands high and low temperatures and can resist corrosion. FiberGlass geogrid is a stress relief asphalt reinforcement grid developed specifically for ashpalt overlays. Fiber Glass geogrid can not only decrease the cost of construction but also longer the service life of the pavement and road.

ltem   FGG
30X30		 FGG
50X50		 FGG
80X80		 FGG
100X100		 FGG
120X120		 FGG
150X150		 FGG
200X200		 FGG
300X300
Mesh Size TD/MD,MM   12.7mmX12.7mm,25.4mmX25.4mm
Tensile Strength TD,KN/M Warp direction 30 50 80 100 120 150 200 300
Tensile Strength MD,KN/M Across Warp 30 50 80 100 120 150 200 300
Elongation TD,% Warp direction 4
Elongation MD,% Across Warp 4
Thermal tolerance (℃)   -100~280
Width,M   1M to 6M,normal is 3.95M and 5.8M
Length,M   Normal is 50M or 100M or as per your request
Note   1,All type fiberglass geogrid can composite 17g/m2 to 200g/m2 PET or PP Geotextile
2,All type fiberglass geogrid can self Adhesive

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

Warp-knitted fiberglass geogrid has high intensity, low elongation ratio, thermostable, high module, light weight, good toughness, anti-corrosive, long life and so on characteristics, and can be applied in the old cement road surface, runway's service, the dike, the river bank, the side slope protection, project domains and so on road bridge connection surface enhancement processing. It can reinforce the road surface and prevents the road surface rut fatigue cracking the hot-cold expansion crack and the following reflection crack, and can scatter the road surface bearing stress, extense road surface service life, the high tensile strength and the low elongation ratio, no long-term slow change. The physical chemistry stability and hot-stability are good, anti-weary dehiscence, anti-low temperature shrinkage crack and postpone reduction reflection crack.

❖Warp-knitted fiberglass geogrid For Stabilisation and Reinforcement

1. It reinforces old asphalt concrete road surface and asphalt surface layer, and prevents damage;

2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by lock contraction;

3. It is used in road expansion and improvement project and crack caused by old combination position and uneven sedimentation;

4. It is used in soft soil base reinforcement treatment, is favorable for soft soil water separation and concretion, restrains sedimentation effectively, distributes stress uniformly and improve overall strength.

5. It is used for prevention contraction crack caused by new rode semi-rigid base layer, and reinforcing and preventing road surface crack used by foundation crack reflection.

Warp-knitted Fiberglass Geogrid Warp-knitted Fiberglass Geogrid

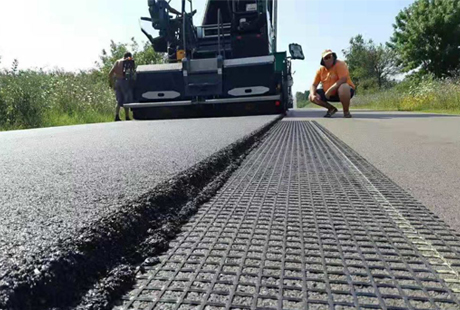

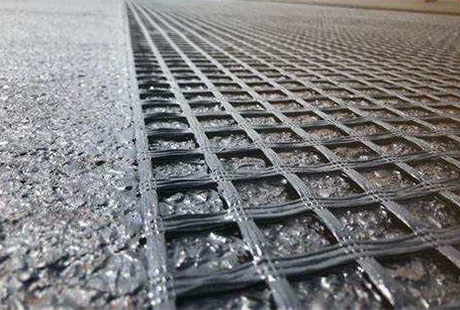

Geogrid for railway soft soil reinforcement Geogrid for Road expansion and renovation
Warp-knitted Fiberglass Geogrid Warp-knitted Fiberglass Geogrid

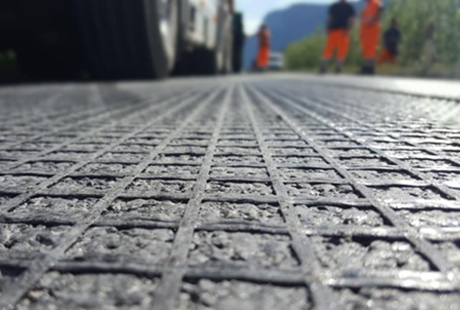

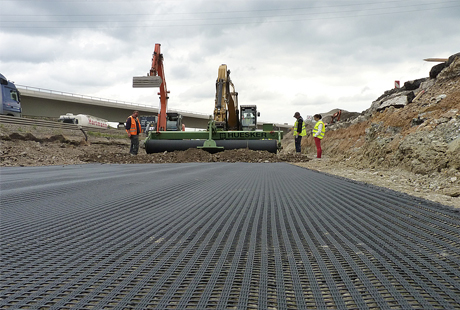

Geogrid For Reinforcement of soft soil foundation Geogrid For Parking lot foundation reinforcement

Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
