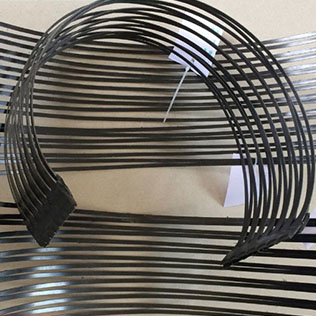

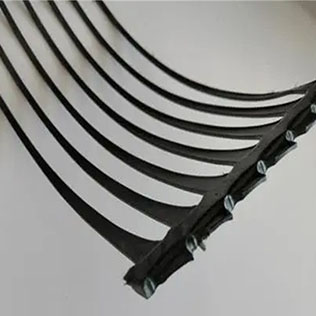

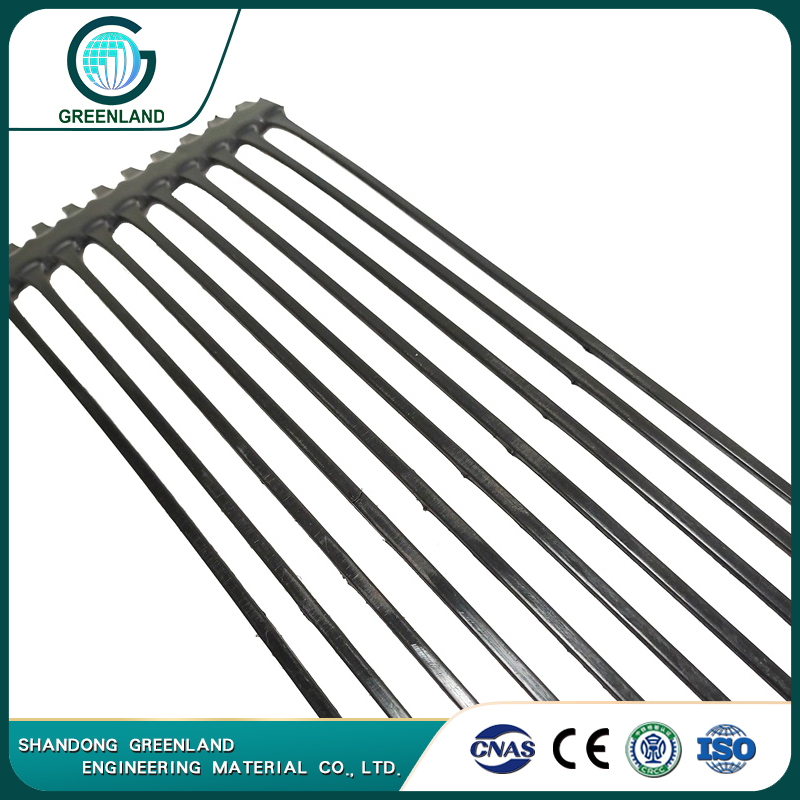

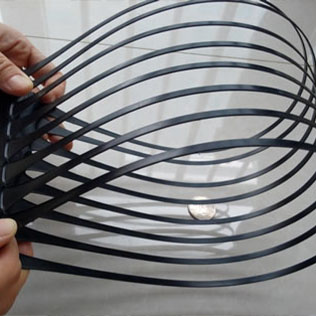

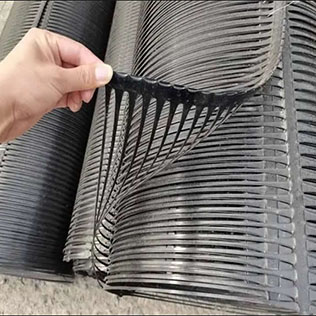

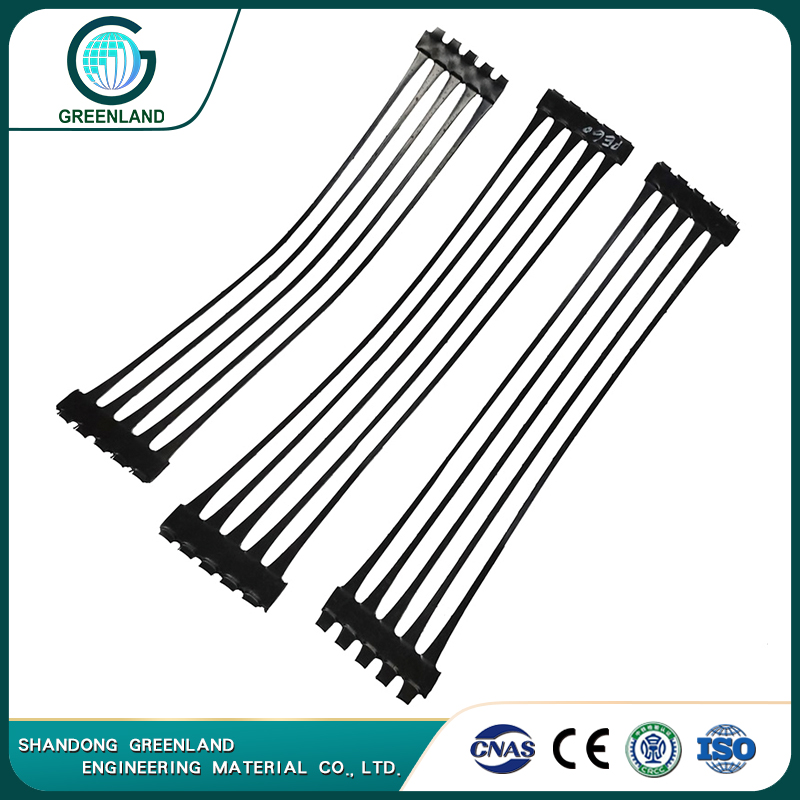

Uniaxial Stretched HDPE Geogrid
- 1.Model No.:Uniaxial Geogrid
- 2.Material:HDPE
- 3.Standards:ASTM,ISO,JT/T 1432.1-2022
- 4.Delivery period:stock, 5-10 days production date
- 5.Packing:50-100m length/roll
- 6.MOQ:Trial order is acceptable
- 7.Free Sample
Uniaxially stretched HDPE geogrid is made of high molecular polymer, which is plasticized and extruded into sheets, punched, heated and then stretched longitudinally. It is laid in the soil, and through the interlocking and interlocking effects between the grid mesh and the soil, an efficient stress transmission mechanism is formed, so that the local load can be quickly and effectively spread to a large area of soil. This reduces local damage stress and improves the service life of the project.
Quick Details of Uniaxially Stretched HDPE Geogrid
| Products details information | |
| Product name | Uniaxially Stretched HDPE Geogrid |
| Brand | Greenland (OEM is available) |
| Model No. | Uniaxial Geogrid |
| Raw material | HDPE |
| Application | Retaining Wall, Steep Slop, Dam, Road Base |
| Color | Black and other colors |
| Standards | :ASTM,ISO,JT/T 1432.1-2022 |
| Welding Tools | Hot air welding gun,roller welding machine |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | 120*40ft containers/month |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of Uniaxially Stretched HDPE Geogrid
Uniaxially stretched HDPE geogrid is made of high molecular polymer, which is plasticized and extruded into sheets, punched, heated and then stretched longitudinally. It is laid in the soil, and through the interlocking and interlocking effects between the grid mesh and the soil, an efficient stress transmission mechanism is formed, so that the local load can be quickly and effectively spread to a large area of soil. This reduces local damage stress and increases the service life of the project. Our company's products have tensile strength and tensile modulus that exceed international standards, provide ideal force-bearing and diffusion interlocking systems for the soil, are adaptable to various soils, and are widely used reinforcement materials.
 |
 |
 |
| Excellent Durability | Excellent Creep Strength | Long Elliptical Network Overall Structure |
 |
 |
 |
| High Tensile Strength | High Quality | Save Cost |
Benefits of Uniaxially Stretched HDPE Geogrid
Uniaxially stretched HDPE geogrid is a kind of high-strength geotextile, which is mainly made of high molecular polymer, added with certain anti ultraviolet and anti-aging additives, re oriented and arranged in a linear state through uniaxial stretching, extruded and pressed into thin plates, punched into regular pore networks, and then stretched longitudinally.In this process, the polymer is oriented in a linear state and forms a uniformly distributed, high node strength, long elliptical network overall structure. This structure has a relatively high tensile strength and modulus, reaching 100-200Mpa in tensile strength, which is close to the level of low-carbon steel and greatly superior to traditional or existing reinforced materials. It has a high early tensile strength and modulus (with an elongation of 2-5%) that exceeds international standards. A chain system that provides ideal force bearing and diffusion for the soil.
- ◆1.Uniaxially Stretched HDPE Geogrid has extremely high tensile strength and tensile modulus.
- ◆2.Polyethylene unidirectional geogrid has excellent creep strength and durability, is not eroded by harmful substances and microorganisms in the soil, and has a lifespan of up to 120 years when covered with vegetation or soil.
- ◆3.Reinforce the roadbed, which can effectively distribute the diffuse load, improve the stability and bearing capacity of the roadbed, and extend the service life.
- ◆4.Save investment and shorten the construction period.
- ◆5.Construction is simple and fast, reducing construction costs.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Uniaxially stretched HDPE geogrid is made of high molecular polymer, which is plasticized and extruded into sheets, punched, heated and then stretched longitudinally. It is laid in the soil, and through the interlocking and interlocking effects between the grid mesh and the soil, an efficient stress transmission mechanism is formed, so that the local load can be quickly and effectively spread to a large area of soil. This reduces local damage stress and increases the service life of the project. Our company's products have tensile strength and tensile modulus that exceed international standards, provide ideal force-bearing and diffusion interlocking systems for the soil, are adaptable to various soils, and are widely used reinforcement materials.
Uniaxial Stretched HDPE Geogrid(JT/T1432.1-2022 standard)
| Item | Unit | TGDG50 | TGDG65 | TGDG80 | TGDG90 | TGDG100 | TGDG110 | TGDG130 | TGDG150 | TGDG170 | TGDG200 | TGDG220 |
| Polymer | HDPE | |||||||||||
| Carbon Black |
% | 2 | ||||||||||
| Tenslle strength |
kN/m | 50 | 65 | 80 | 90 | 100 | 110 | 130 | 150 | 170 | 200 | 220 |
| Elongation | % | 11.5 | ||||||||||
| Tensile strength at 2%strain |
kN/m | 12 | 16 | 21 | 24 | 26 | 29 | 38 | 41 | 52.5 | 60 | 64 |
| Tensile strength at 5%strain |
kN/m | 23 | 31 | 40 | 45 | 50 | 55 | 75.5 | 81 | 103 | 110 | 127 |
| Width | m | 1 or 1.1 or 2.5 or 3 | ||||||||||
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
Uniaxially stretched HDPE geogrid is mainly applied in highway, railway, slope protecting projects, retaining wall, dam to strengthen land loading capacity and extend its service life. Features in reducing area, project cost and maintainance cost, convenient to construct.
❖Application of Uniaxially Stretched HDPE Geogrid
1.Used to strengthen weak foundation.
2.Uniaxially Stretched HDPE Geogrid is used to reinforce asphalt or cement pavement.
3.Used to reinforce embankments, slopes and retaining walls.
4. Used to reinforce river and sea dikes.
5. For disposal in landfills.
 |
 |

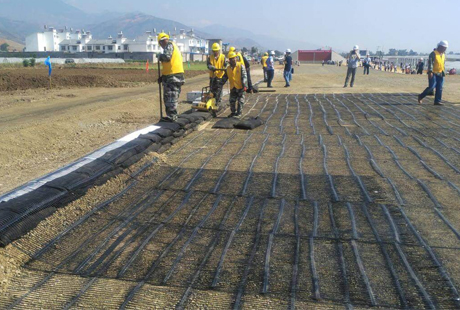

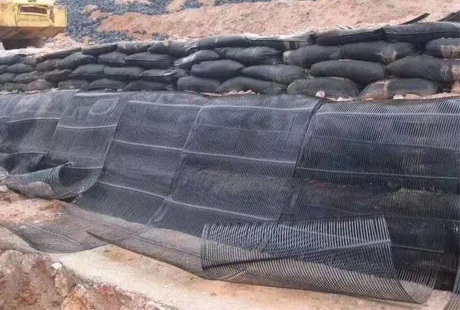

| Uniaxial Stretched HDPE Geogrid For Slop Reinforcement | Uniaxial Stretched HDPE Geogrid For Highway Reinforcement |
 |
 |

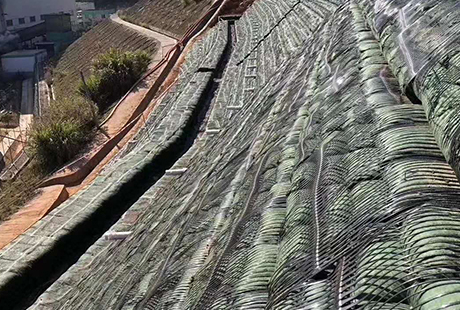

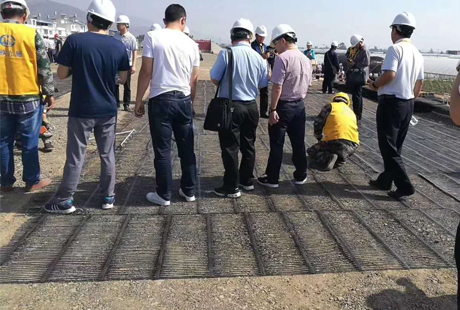

| Uniaxial Stretched HDPE Geogrid For Dam Reinforcement | Uniaxial Stretched HDPE Geogrid For Airport Pavement Reinforcement |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
-
- Below are the Uniaxial Stretched HDPE Geogrid specification for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WahtsApp): +86 155 15596408.
- 3.Uniaxial-stetched-HDPE-geogrid.pdf
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
