PVC (Polyvinyl Chloride) Geomembrane
- 1.Thickness: 0.2-3.0mm(0.008inch-0.118inch)
- 2.Width: Max. 8M
- 3.Raw material: PE100, PE80, HDPE, LDPE, LLDPE, ECB, PVC, EVA…
- 4.Standards: ASTM, ISO, GB/T 17688-1999
- 5.Delivery period: stock, 5-10 days production date
- 6.Packing: 50-100m length/roll
- 7.MOQ: Trial order is acceptable
- 8.Free Sample
PVC geomembrane is a high quality polymer waterproof sheet. By adding processing aids such as plasticizers, anti UV agents, anti-aging agents, and stabilizers to PVC resin, polymer waterproof membranes are produced by extrusion method.
PVC geomembrane joints have advantages such as high tensile strength, high and low temperature resistance, and good thermal performance. Cold bonding or hot air welding methods can be used to form a solid and tightly sealed overall waterproof layer. PVC geomembrane can meet the anti-seepage, isolation, reinforcement, and crack resistance conditions of civil engineering projects such as water conservancy, municipal engineering, construction, transportation, subway, and tunnel.
Quick Details of PVC (Polyvinyl Chloride) Geomembrane
| Products details information | |
| Product name | PVC (Polyvinyl Chloride) Geomembrane |
| Brand | Greenland (OEM is available) |
| Thickness | 0.1-5.0mm (0.004inch-0.197inch) |
| Raw material | HDPE, LDPE, LLDPE, EVA, PVC, ECB... |
| Application | Reservoir, pool, dam and sewage treatment for anti-seepage, tunnel, expressway, bridge, landfill and artificial lake, ground engineering that needs certain corrosion resistance requirements, sewage treatment system, basement or underground works waterproof and moisture proof, water conservancy, municipal, construction, traffic, subway, tunnel engineering for anti seepage, isolation, reinforcement and anti crack. |

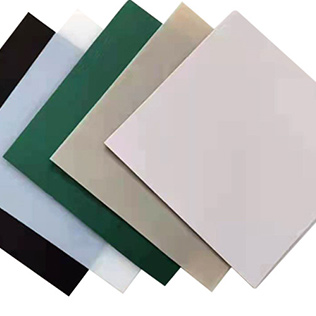

| Color | Black, White, other colors |
| Standards | ASTM, ISO, GB/T 17688-1999 |
| Welding Tools | Hot wind welding, roller welding machine, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of PVC (Polyvinyl Chloride) Geomembrane

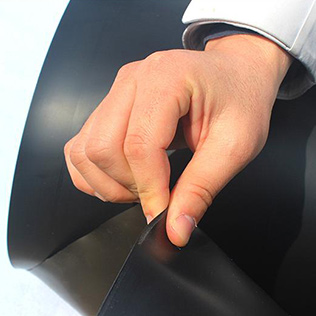

PVC geomembrane, also known as PVC liner, is an essentially impermeable membrane used in conjunction with foundations, soil, rocks, or any other geotechnical materials. PVC geomembrane has good flexibility, excellent resistance to environmental stress cracking, low temperature resistance, and is suitable for landfill sites, sewage and sewage treatment sites, tailings storage sites, and underground construction projects.
 |
 |
 |
| Good ductility | Strong heat resistance | Customizable size |
 |
 |
 |
| Good mechanical strength | Aggregated from high-quality ingredients | Beware of water seepage and aging |
Benefits of PVC (Polyvinyl Chloride) Geomembrane
- 1. Convenient maintenance and low cost.
- 2. Convenient construction and easy welding.
- 3. Aging resistance and good wear resistance.
- 4. Firm, reliable and no environmental pollution.
- 5. Anti puncture ability is strong, can be used in planting roof.
- 6. Bear chemical erosion, UV radiation resistance, suitable for special occasions.
- 7. With high tensile strength, excellent elongation, heat treatment size change is small.
- 8. Good low temperature flexibility, adapt to the environment temperature differences well.
- 9. Good high and low temperature resistance performance, excellent hot melt performance.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of PVC (Polyvinyl Chloride) Geomembrane
| Number | Item | Index | |
| 1 | Density g/cm3 | 1.25~1.35 | |
| 2 | Tensile strength (vertical and horizontal), MPa | ≥15/13 | |
| 3 | Elongation at break (vertical and horizontal), % | ≥220/200 | |
| 4 | Tear strength (vertical and horizontal), N/mm | ≥40 | |
| 5 | Low temperature bending (-20℃) | No cracks | |
| 6 | Dimensional change rate (vertical and horizontal), % | ≤5 | |
| 7 | Permeability coefficient, cm/s | ≤10-11 | |
| 8 | Permeability coefficient (cm3*cm) | By design or contract | |
| 9 | Heat aging treatment | Exterior | No bubbles, no adhesion, no holes |
| Relative change in tensile strength, % | ≤25 | ||
| Relative elongation at break, % | ≤25 | ||
| Low temperature bending (-20℃) | No crack | ||
PVC Geomembrane Technical Parameters (GB Standard)
| Specification Attributes |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
| Stretch (Various directions) (≥) Yield Strength Breaking strength Symbol extension Broken Elimination rate |
7KN/m 10KN/m - 600% |
10KN/m 15KN/m - 600% |
13KN/m 20KN/m 11% 600% |
16KN/m 25KN/m 11% 600% |
20KN/m 30KN/m 11% 600% |
26KN/m 40KN/m 11% 600% |
33KN/m 50KN/m 11% 600% |
| Density (≥) | 0.940g/cm3 | 0.940g/cm3 | 0.940g/cm3 | 0.940g/cm3 | 0.940g/cm3 | 0.940g/cm3 | 0.940g/cm3 |
| Puncture resistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
| Carbon black content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon black scattered body | Already noticed(1) | Already noticed(1) | Already noticed(1) | Already noticed(1) | Already noticed(1) | Already noticed(1) | Already noticed(1) |
| Tear strength (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
| Oxidation induction time(OIT) standardOIT (≥) |
60minute | 60minute | 60minute | 60minute | 60minute | 60minute | 60minute |
PVC Geomembrane Technical Parameters (ASTM Standard)
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cm3) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
PVC geomembrane with excellent easy welding and good hot melt performance is widely used in various building engineering.
- 1. Reservoir, pool, dam and sewage treatment for anti-seepage.
- 2. Tunnel, expressway, bridge, landfill and artificial lake.
- 3. Ground engineering that needs certain corrosion resistance requirements.
- 4. Sewage treatment system, basement or underground works waterproof and moisture proof.
- 5. Water conservancy, municipal, construction, traffic, subway, tunnel engineering for anti seepage, isolation, reinforcement and anti crack.
❖PVC (Polyvinyl Chloride) Geomembrane for Road Surface & Tunnel
1.Agricultural irrigation system
2.Dam slope protection
3.Road and subgrade reinforcement
 |
 |

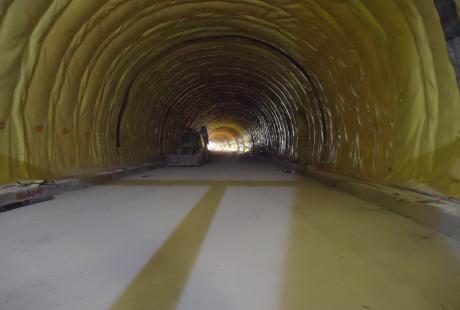

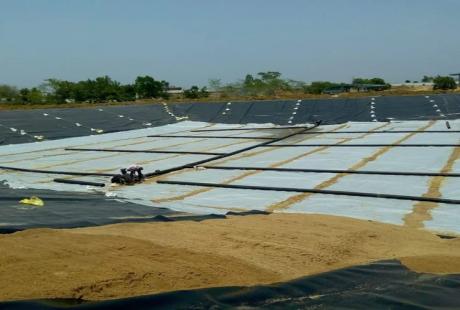

| PVC Geomembranes for Tunnel | PVC Geomembrane for Agriculture |
 |
 |

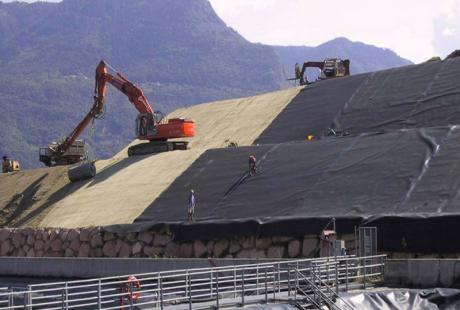

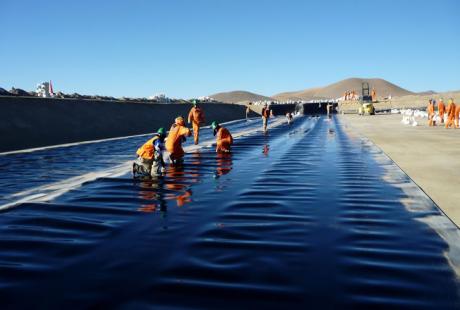

| PVC Geomembrane for Expressway Bed Reinforcement | PVC Geomembrane for Dam Protection |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
PVC (Polyvinyl Chloride) Geomembrane
- Below are the detailed information on PVC geomembrane for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- PVC Geomembrane
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
