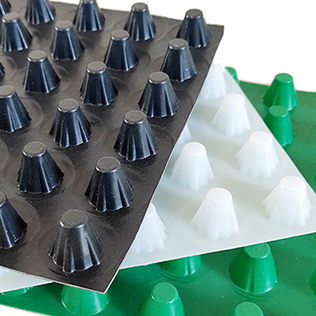

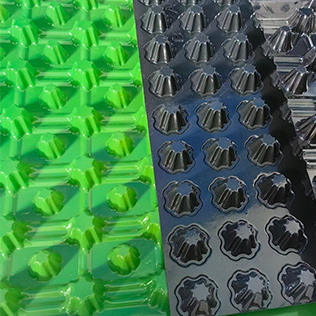

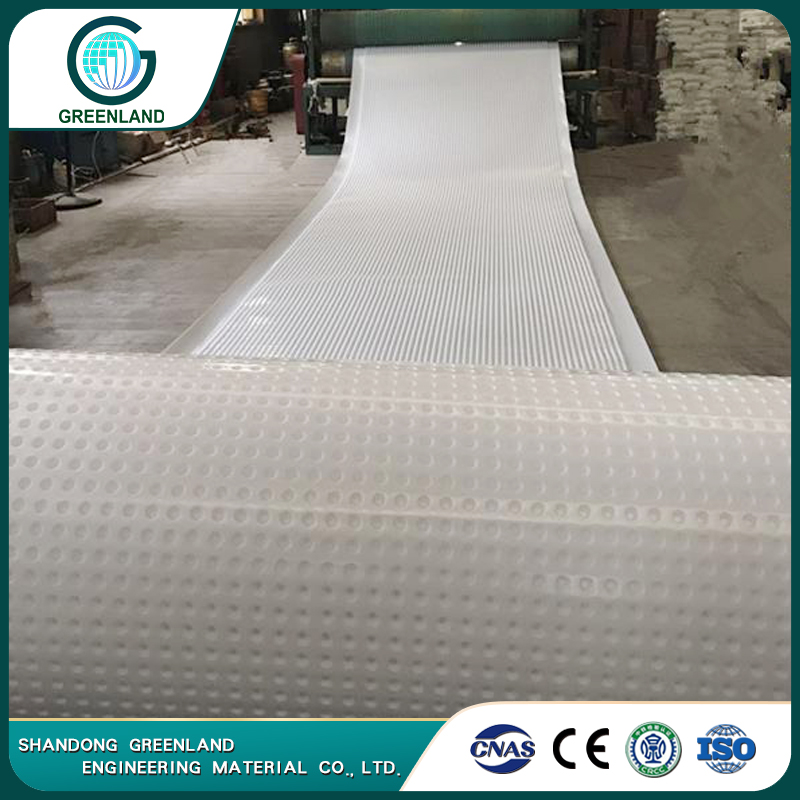

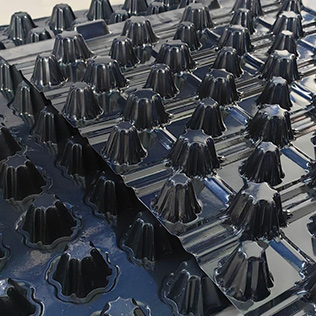

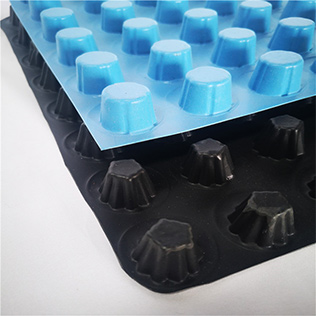

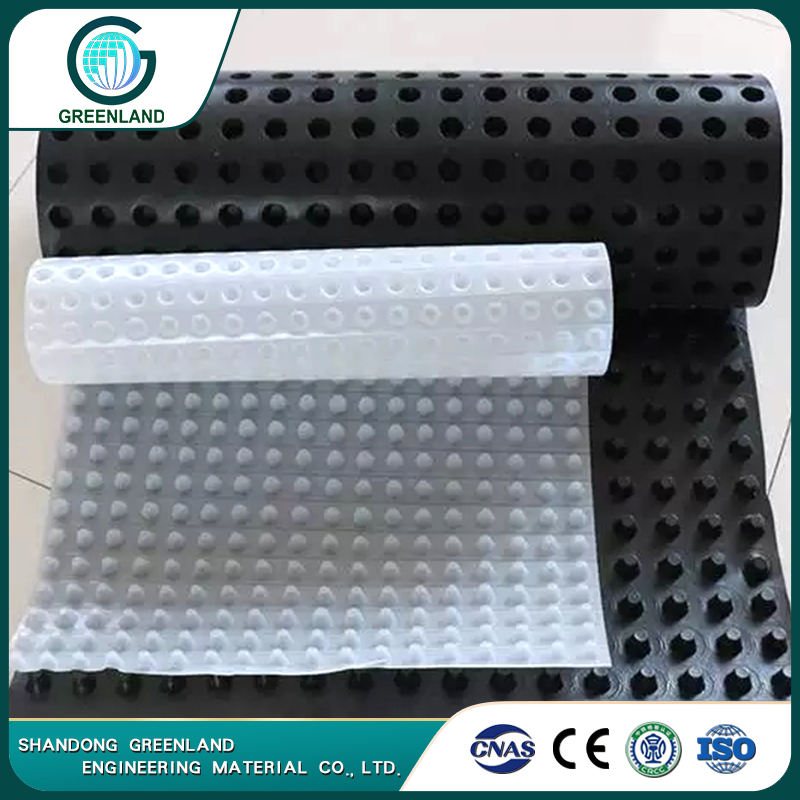

PVC (Polyvinyl Chloride) Drainage Board
- 1. Thickness: 0.7-2mm(0.028inch-0.079inch)
- 2. Width: Max.3M
- 3. Raw material: HDPE. HIPS. PP. PVC…
- 4. Standards: CE, ISO, ASTM, TB/T 3354-2014
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 10-50m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample
PVC drainage board is the use of high density polyvinyl chloride material extrusion molding, it makes full use of PVC material density, strength, amorphous structure and other material characteristics made of cross drainage board. PVC drainage board is a multi-functional material, can be easily used for water and gas, with sound insulation and vibration isolation function, can be widely used in building roof system layer overhead, planting roof drainage ventilation, basement waterproof, road and track tunnel drainage protection.
Quick Details of PVC (Polyvinyl Chloride) Drainage Board
| Products details information | |
| Product name | PVC (Polyvinyl Chloride) Drainage Board |
| Brand | Greenland (OEM is available) |
| Thickness | 0.7-2mm (0.028inch-0.079inch) |
| Raw material | HDPE. PP. HIPS. PVC... |
| Application | Building roof system layer overhead, planting roof drainage ventilation, basement waterproof, road and track tunnel drainage protection. |

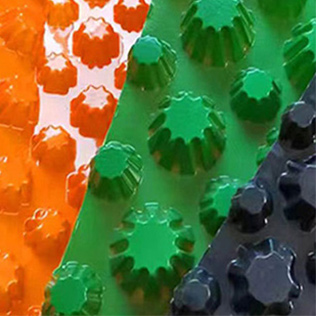

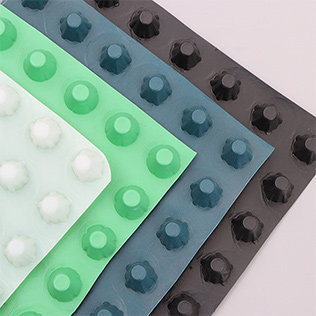

| Color | Black, White, other colors |
| Standards | CE, ISO, ASTM, TB/T 3354-2014 |
| Welding Tools | Docking machine, Hinge car, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

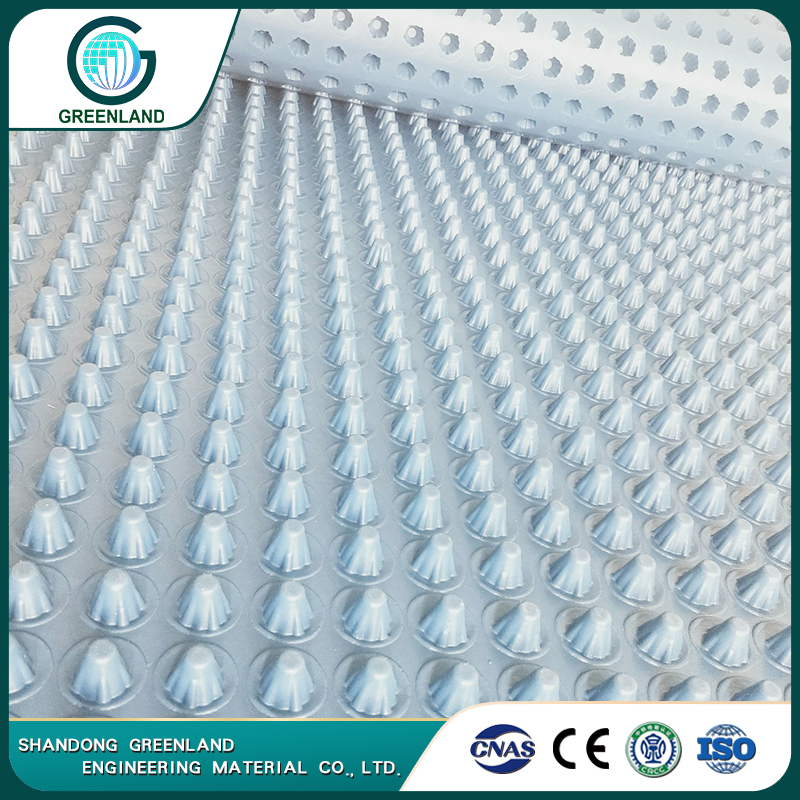

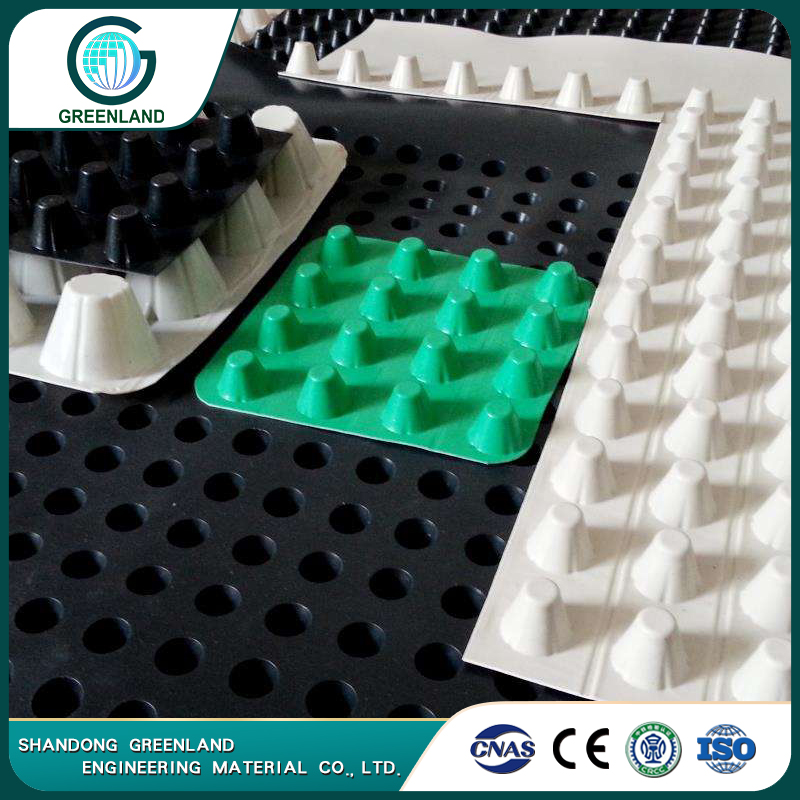

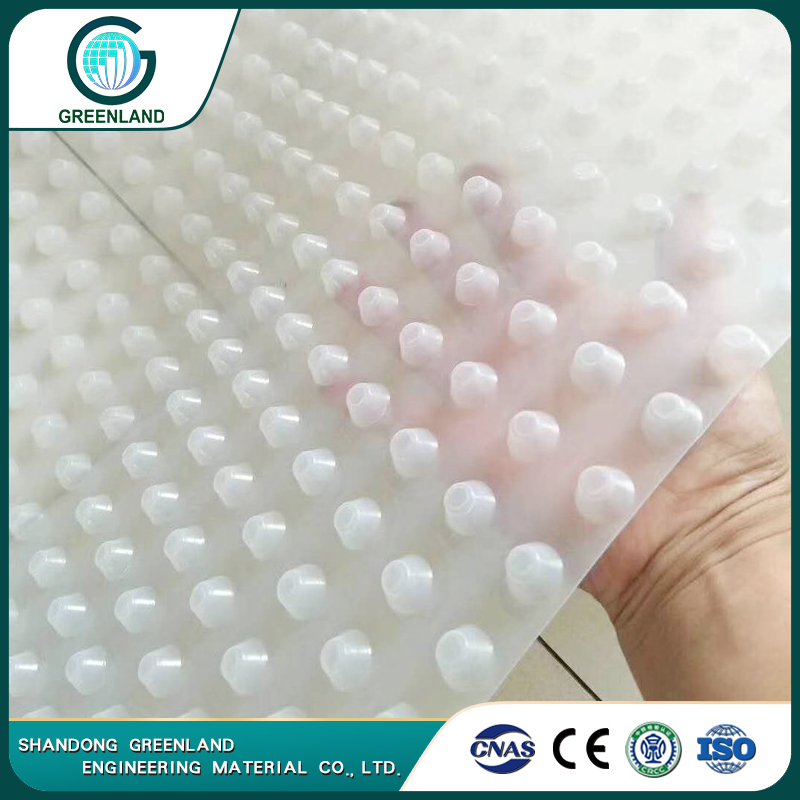

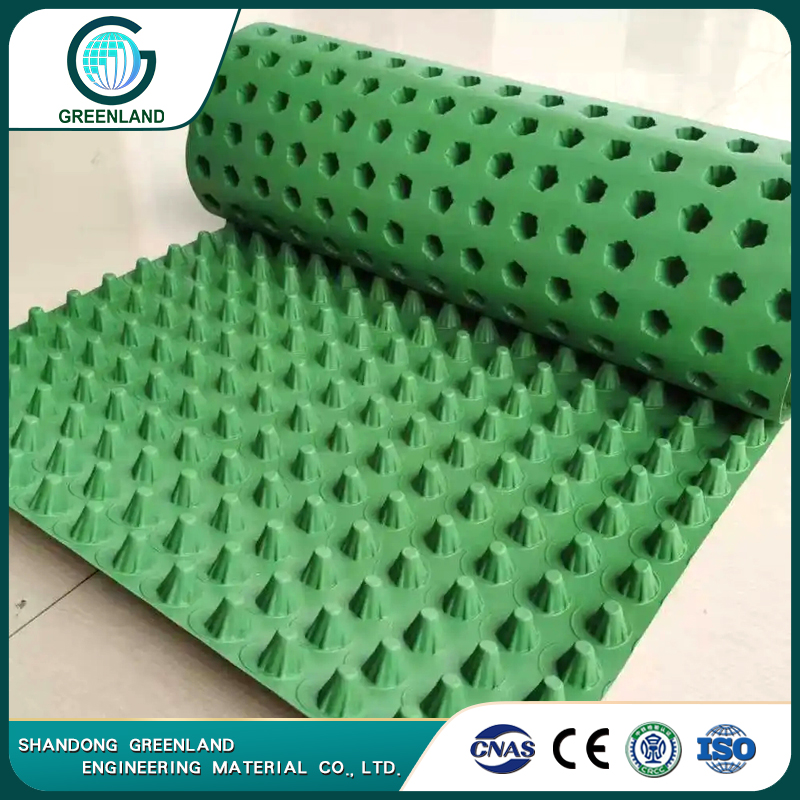

Description of PVC (Polyvinyl Chloride) Drainage Board
PVC drainage boards are made of PVC high-density polymer materials, which have good toughness. When buried in the soil, they can play a role in pulling the soil. The compressive strength and overall flatness of PVC drainage boards are greatly improved, with a width of 1-3M and a length of 4-10 meters or more.
 |
 |
 |
| Good water conductivity | Good waterproof performance | Noise reduction and sound insulation |
 |
 |
 |
Benefits of PVC (Polyvinyl Chloride) Drainage Board
1. Auxiliary waterproof function
After the PVC drainage board is laid, a new waterproof layer is formed due to the adhesive type hot bonding form, which has the drainage function and the secondary waterproof function.
2. Root partition function
Due to the high density of PVC drainage board, it has a strong root separation, and the thickness of the film can be adjusted according to the requirements of the root separation to achieve the root separation effect.
3. Can be bonded and scalded
Because the PVC material is an amorphous structure, the use of special glue can effectively destroy the surface structure of the material so that the two layers can effectively dissolve together and play a waterproof root separation function. PVC drainage board can be used in the form of mechanical stamping.
4. High strength
The compressive strength of PVC drainage plate is large, and its compressive strength is 1.5 times that of HIPS material of the same thickness and 2.5 times that of HDPE material.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of PVC (Polyvinyl Chloride) Drainage Board
| No | Item | Index | |
| 1 | Tensile force at 10% elongation /(N/100mm)> | 350 | |
| 2 | Maximum tensile force /(N/100mm)> | 600 | |
| 3 | elongation at break /%> | 25 | |
| 4 | Tear resistance /N> | 100 | |
| 5 | Compression performance | Maximum strength at a compression rate of 20% /kpa > | 150 |
| Extreme compression phenomenon | No rupture | ||
| 6 | Low temperature flexibility | -10℃ No rupture | |
| 7 | Thermal ageing (80.168h) |
Tensile retention rate at 10% elongation /%> | 80 |
| Maximum tensile retention rate /% > | 90 | ||
| Breaking elongation retention rate /% > | 70 | ||
| Maximum strength retention rate at a compression rate of 20% /%> | 90 | ||
| Extreme compression phenomenon | No rupture | ||
| Low temperature flexibility | -10℃ No rupture | ||
| 8 | Vertical permeability (Pressure measurement 150kpa) /(cm/s)> | 10 | |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
1. Greening project: garage roof greening, Roof garden, vertical greening, sloping roof greening, football field, golf course.
2. Municipal Engineering: airport, road subgrade, subway, tunnel, landfill.
3. Construction Engineering: the upper or lower floor of the building foundation, the wall of the underground indoor and outside, the seepage prevention and insulation layer of the roof, etc.
4. Traffic engineering: highway, railway subgrade, embankment and slope protection layer.
5. Water conservancy project: reservoir seepage prevention, reservoir, artificial lake to prevent water seepage.
❖PVC (Polyvinyl Chloride) Drainage Board for Drain & Anti seepage insulation layer

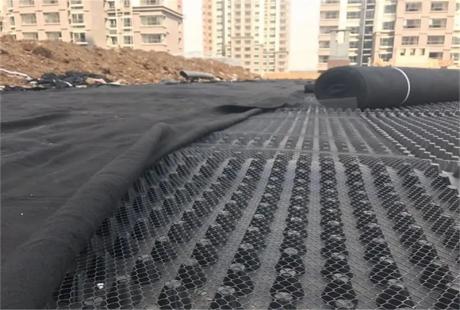

1. Landscape Engineering
2. Construction Engineering
3. Municipal Engineering
 |
 |

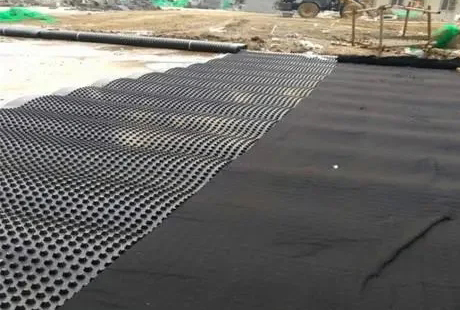

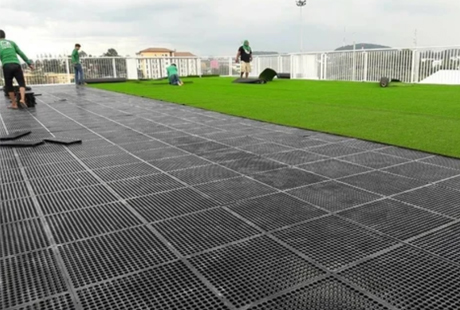

| PVC Drainage Board for Roadbed Drainage | PVC Drainage Board for Roof Garden Drainage |
 |
 |

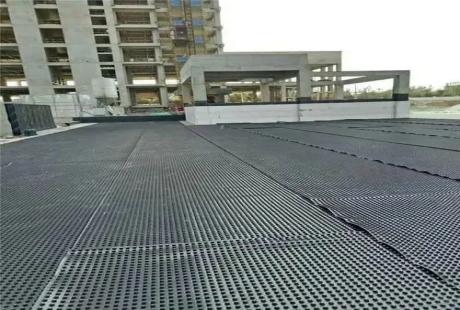

| PVC Drainage Board for Earthwork Dimple Drainage | PVC Drainage Board for Building Greening Drainage |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
PVC (Polyvinyl Chloride) Drainage Board
- Below are the detailed information on PVC drainage board for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- PVC (Polyvinyl Chloride) Drainage Board
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
