PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile
- 1. Tensile strength: 6.0-56.0kN/m
- 2. Width: Max.8M
- 3. Raw material: PP. PET
- 4. Standards: GRI-GT12/GT13, ASTM, ISO, GB/T 17639-2008
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 50-100m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample
Polypropylene filament spunbond needle punched nonwoven geotextile is made of polypropylene as the raw material. Through the needle punching process, different fibers are interwoven, entangled, and fixed to standardize the fabric.
Polypropylene filament spunbond needle punched nonwoven geotextile, abbreviated as “PP filament spunbond needle punched nonwoven geotextile”. Its physical and mechanical properties such as fracture strength and puncture resistance have obvious advantages, which are 2-3 times higher than conventional products. It has good acid and alkali resistance and good hot melt adhesion, and is used for reverse filtration, reinforcement, isolation, and drainage in highways, railways, landfill sites, embankments, coastal engineering, and other projects.
Quick Details of PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile
| Products details information | |
| Product name | PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile |
| Brand | Greenland (OEM is available) |
| Tensile strength | 6.0-56.0kN/m |
| Raw material | PP, PET |
| Application | Highways, railways, embankments, coastal engineering, garbage disposal sites, river treatment, slope protection, road maintenance, artificial lake bottom waterproof layer, etc. |
| Color | Black, White, Green, other colors |
| Standards | GRI-GT12/GT13, ASTM, ISO, GB/T 17639-2008 |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile
PP filament spunbond needle punched nonwoven geotextile is made from polypropylene as raw material through processes such as spinning, air flow net laying, and needle punching. High strength, aging resistance, acid and alkali resistance, abrasion resistance, good flexibility, easy construction, widely used in garbage disposal sites, river treatment, slope protection, road maintenance, artificial lake bottom waterproof layer, etc.
 |
 |
 |
| High strength | Good permeability | Stable performance |
 |
 |
 |
| Corrosion preventive | Backflow filtration and anti-seepage | Convenient construction |
Benefits of PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile
PP filament spunbond needle punched nonwoven geotextile has the advantages of high strength, strong resistance to piercing, strong resistance, corrosion resistance, anti-microorganism, aging resistance, high temperature resistance, superior water permeability, filtering, soil preservation and other advantages. Compared with polyester filament geotextile, it has higher strength, stronger tear and puncture resistance, especially acid and alkali resistance. It can be in long-term contact with alkaline materials such as cement, fly ash, and lime, and can maintain stable performance in alkaline environments without hydrolysis.
- ◆ PP filament spunbond needle punched nonwoven geotextile is a permeable material, so it has good filtration and isolation function;
- ◆ PP filament spunbond needle punched nonwoven geotextile has good drainage performance due to its fluffy structure;
- ◆ PP filament spunbond needle punched nonwoven geotextile has good puncture resistance, so it has good protective performance;
- ◆ PP filament spunbond needle punched nonwoven geotextile has good friction coefficient and tensile strength, and has geotextile reinforcement protection and filtration performance.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile
Polypropylene filament spunbond needle punched nonwoven geotextile is made of polypropylene as the raw material. Through the needle punching process, different fibers are interwoven, entangled, and fixed to standardize the fabric.
| Nominal strength (kN/m) | 7 | 9 | 11 | 15 | 19 | 22 | 25 | 28 | 34 | 40 | 45 | 56 |
| Longitudinal and transverse tensile breaking strength ≥(kN/m) | 7.0 | 9.0 | 11.0 | 15.0 | 19.0 | 22.0 | 25.0 | 28.0 | 34.0 | 40.0 | 45.0 | 56.0 |
| Longitudinal and transverse elongation at break (%) | 40-100 | |||||||||||
| Longitudinal and transverse tearing strength ≥(kN) | 0.21 | 0.25 | 0.31 | 0.40 | 0.50 | 0.58 | 0.67 | 0.75 | 0.85 | 1.00 | 1.30 | 1.50 |
| CBR bursting strength ≥(kN) | 1.1 | 1.4 | 1.7 | 2.3 | 2.9 | 3.3 | 3.8 | 4.2 | 5.4 | 6.2 | 7.8 | 8.7 |
| Thickness ≥(mm) | 1.0 | 1.2 | 1.5 | 1.9 | 2.2 | 2.6 | 3.0 | 3.3 | 4.0 | 4.5 | 6.0 | 6.5 |
| Equivalent aperture O95 (mm) | 0.07~0.3 | |||||||||||
| Vertical permeability coefficient (cm/s) | 1.0 ×（100~10-2) | |||||||||||
| Anti-acid and alkali resistance retention ≥(%) | 90 | |||||||||||
| UV resistance retention ≥(%) | 80 | |||||||||||
| Width (m) | 1-6.2 | |||||||||||
PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile New Standard (GB/T 17639-2008)
| Item | Values | ||||||||||
| Specifications | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Thickness ≥(mm) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 |
| Breaking strengt ≥(kN/m) | 4.5 | 7.5 | 10.0 | 12.5 | 15.0 | 17.5 | 20.5 | 22.5 | 25.0 | 30.0 | 40.0 |
| Elongation at break (%) | 40-80 | ||||||||||
| CBR puncture resistance ≥(kN) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3.0 | 3.5 | 4.0 | 4.7 | 5.5 | 7.0 |
| Tearing strength ≥(kN) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.70 | 0.82 | 1.10 |
| Equivalent Pore size 090(095) (mm) | 0.05-0.2 | ||||||||||
| Vertical permeability coefficient | K×(10-1-10-3)cm/s (K=1.0~9.9) | ||||||||||
| Width deviation % | -0.5 | ||||||||||
| Mass deviation per unit area % | -5 | ||||||||||
PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile ASTM Standard
| Index Properties |
Test Method |
Unit | Values | |||||||||||
| Weight | ASTM D5261 |
g/m2 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Ultimate Tensile Strength |
ASTM D4595 |
≥kN/m | 3.5 | 5.0 | 6.0 | 8.5 | 11 | 13 | 15 | 18.5 | 21 | 23 | 26 | 28 |
| Tensile Elongation |
ASTM D4595 |
% | 50 | |||||||||||
| Grab Tensile Strength |
ASTM D4632 |
≥N | 270 | 360 | 460 | 550 | 750 | 930 | 1040 | 1180 | 1350 | 1400 | 1560 | 1720 |
| Grab Elongatior | ASTM D4632 |
% | 50 | - | - | |||||||||
| Trapezoid Tear Strength |
ASTM D4533 |
≥N | 110 | 140 | 165 | 220 | 275 | 330 | 385 | 445 | 505 | 560 | 616 | 640 |
| CBR Puncture Strength |
ASTM D6241 |
≥N | 500 | 770 | 1120 | 1600 | 2150 | 2430 | 2920 | 3390 | 3700 | 4110 | 5300 | 5500 |
| Puncture Resistance |
ASTM D4833 |
≥N | 141 | 201 | 261 | 382 | 454 | 565 | 726 | 817 | 931 | 970 | 1028 | 1130 |
| Drop Cone Resistance(hole-φ) |
BS EN 918 |
mm | 39 | 36 | 33 | 30 | 27 | 24 | 20 | 16 | 15 | 15 | 14 | 13 |
| Hydraulic Properties | ||||||||||||||
| Apparent Opening Size O90 |
ASTM D4751 |
≤mm | 0.13 | 0.12 | 0.12 | 0.12 | 0.12 | 0.11 | 0.10 | 0.09 | 0.08 | 0.08 | 0.08 | 0.08 |
| Permeability | ASTM D4491 |
cm/s | 0.41 | 0.41 | 0.41 | 0.41 | 0.40 | 0.40 | 0.39 | 0.39 | 0.39 | 0.39 | 0.39 | 0.39 |
| Physical Identification Properties | ||||||||||||||
| Thickness | ASTM D5199 |
mm | 1.0 | 1.3 | 1.7 | 2.1 | 2.4 | 2.5 | 2.8 | 3.0 | 3.2 | 3.5 | 3.6 | 3.8 |
| Roll Width | - | m | 4-6 | |||||||||||
| Approx Load Qty per 40HQ | M2 | 72000 | 57600 | 48000 | 36000 | 28800 | 24000 | 20400 | 18000 | 15600 | 14000 | 13200 | 12000 | |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
- 1. Reinforcement of the pavement, repair the cracks on the road, and prevent reflection of cracks on the road;
- 2. Filter layer of the dam surface of the trimal dam, the filter layer of the drainage system in the soil back to fill the soil;
- 3. Filter layer around the drainage dark pipe or crushed drainage drainage ditch;
- 4. Filter layer of water, pressure-degraded or oblique pressure tube in water conservancy projects;
- 5. The isolation layer between highways, airports, railway scum and artificial stacks and the foundation;
- 6. Highways (including temporary roads) railways, embankments, earth rock dams, airports, sports fields and other projects are used to strengthen the weak foundation.
❖PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile for Natural Road Administration & Water Conservancy
1.Slope Protection
2.Road Reinforcement
3.Drainage Filter Layer
 |
 |

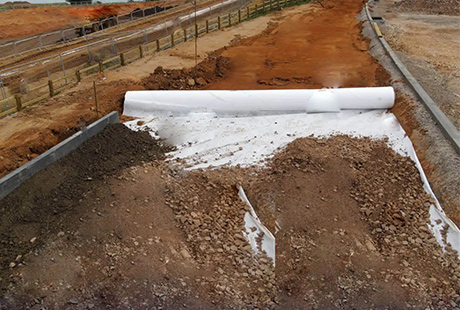

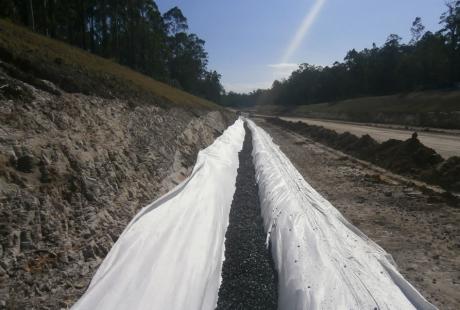

| PP Filament Spunbond Needle Punched Nonwoven Geotextile for Drainage Groove | PP Filament Spunbond Needle Punched Nonwoven Geotextile for Highway |
 |
 |

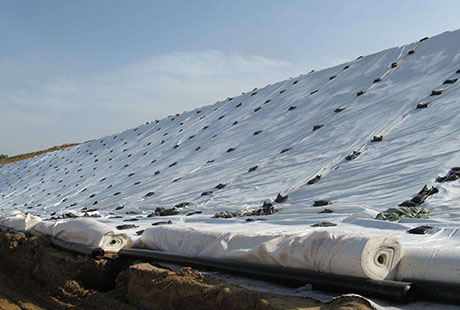

| PP Filament Spunbond Needle Punched Nonwoven Geotextile for Railway | PP Filament Spunbond Needle Punched Nonwoven Geotextile for Slope Protection |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
PP (Polypropylene) Filament Spunbond Needle Punched Nonwoven Geotextile
- Below are the detailed information on PP filament spunbond needle punched nonwoven geotextile for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- PP Filament Spunbond Needle Punched Nonwoven Geotextile
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
