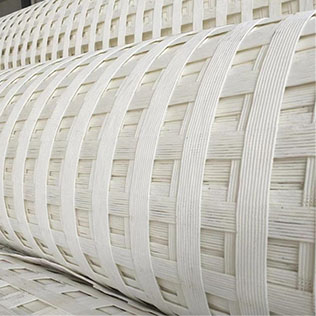

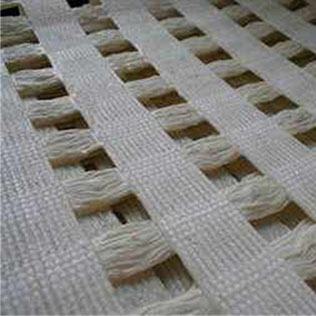

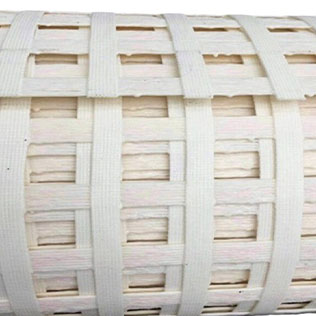

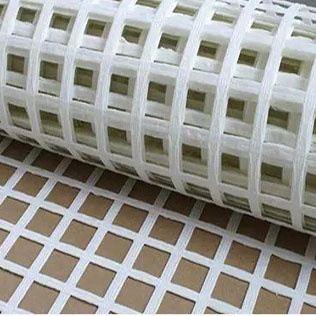

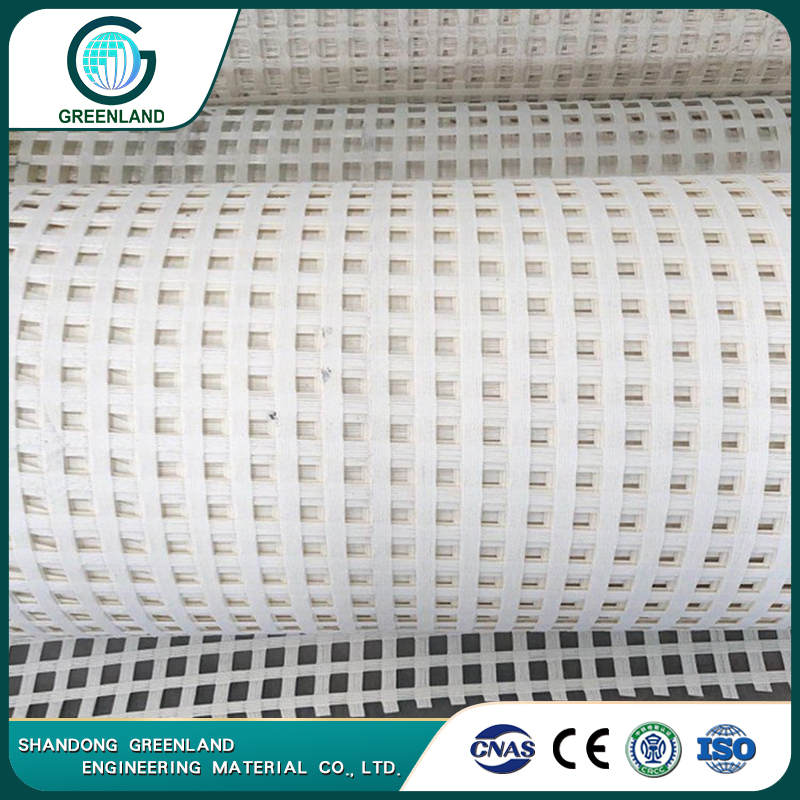

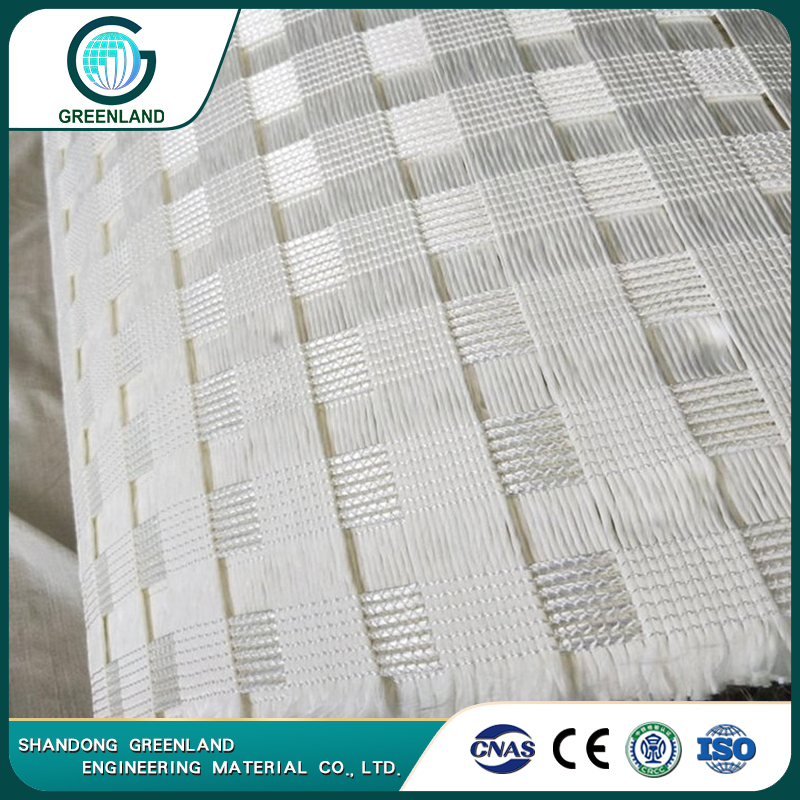

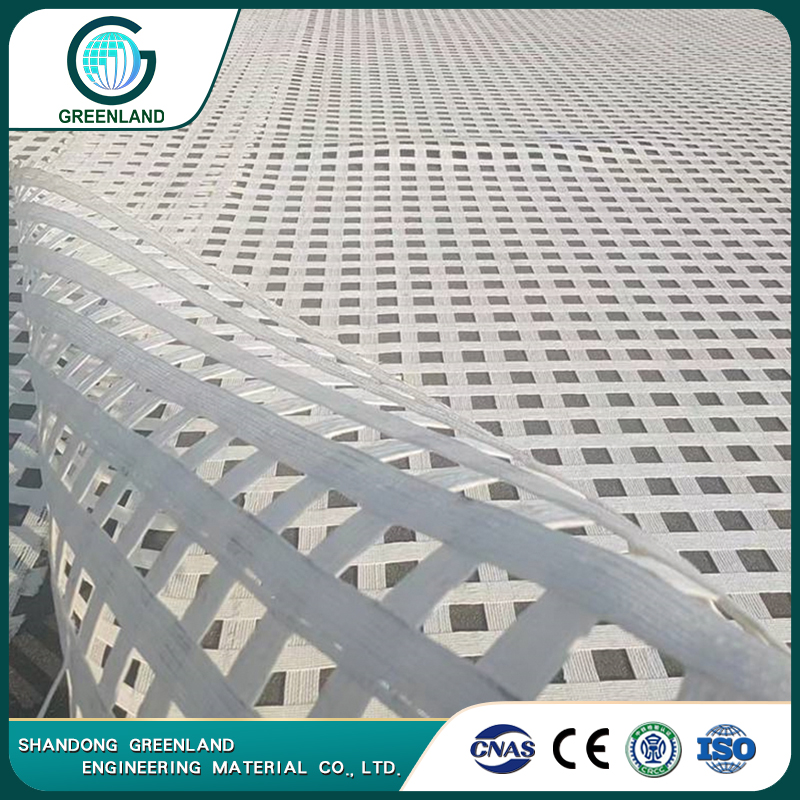

Mining High-strength Flame-retardant Polyester Fiber Mesh
- 1.Width:1-6m
- 2.Length:50m,100m or as your request
- 3.Material:Polyester Yarns
- 4.Standards:ASTM
- 5.Delivery time:stock or 5-10 days after order confirmation
- 6.Packing:Roll Package
- 7.MOQ: Trial order is acceptable
- 8.Free Sample
High-strength flame-retardant polyester fiber mesh for mining is made of high-strength polyester yarns and is knitted and coated. It is widely used in false roof support of underground coal mines, tunnel protection and tunnel support reinforcement. Compared with metal mesh, it has the characteristics of light weight, high strength, flame retardant, antistatic, corrosion resistance, etc. It is easy to install and use, and is the best substitute for metal mesh. In addition to the above advantages, more importantly, it has good gangue blocking effect, high withdrawal speed, safety and reliability, and also saves valuable time for construction.
Quick Details of High-strength Flame-retardant Polyester Fiber Mesh
| Products details information | |
| Product name | High-strength flame-retardant polyester fiber mesh |
| Brand | Greenland (OEM is available) |
| Model No. | Biaxial Geogrid |
| Raw material | Polyester Yarns |
| Application | Stabilisation and Reinforcement |
| Color | Black and other colors |
| Standards | ASTM,ISO,GB/T |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

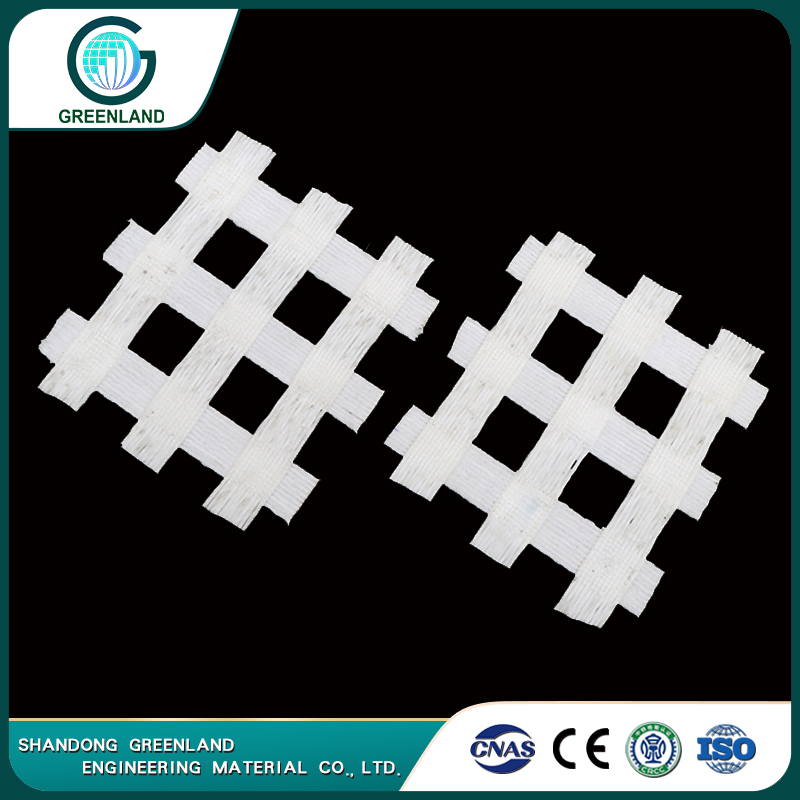

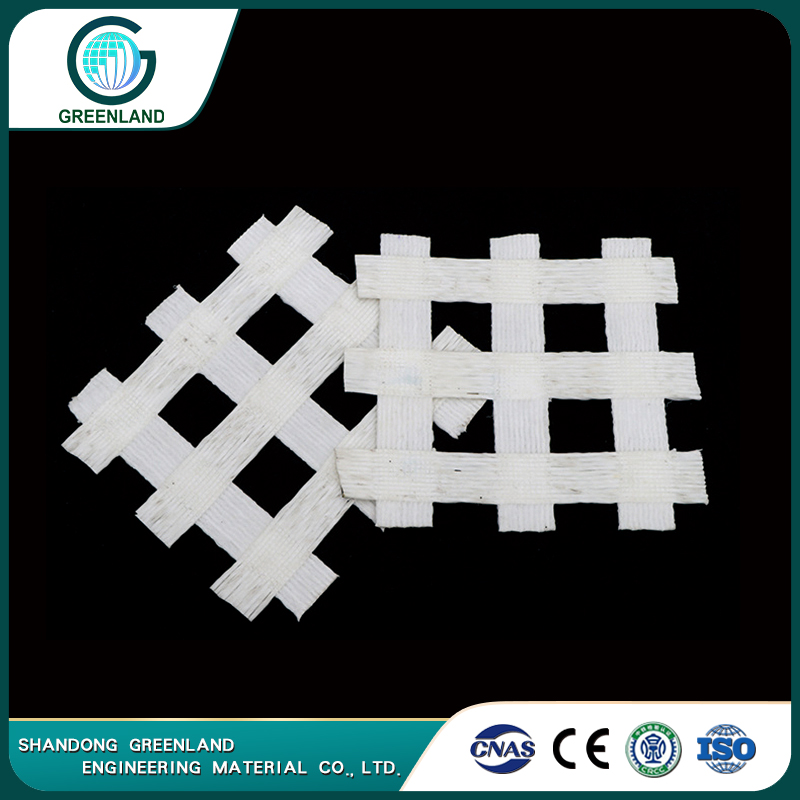

Description of High-strength flame-retardant polyester fiber mesh
High-strength flame-retardant polyester fiber mesh has the characteristics of high strength, light weight, easy construction, acid and alkali resistance, corrosion resistance, high and low temperature resistance, anti-aging, long service life, flame retardant, and anti-aging. It can be widely used in coal mine unmined moving face removal, coal mining face false roof support engineering, tunneling face protection and roof protection engineering, end-to-end end-end support, coal mine anchor shot blasting tunnels, temporary and permanent support of tunnels, etc. The product is strong and soft, light in weight, easy to lay and has high tensile strength.
 |
 |
 |
| Flexible and light | High tensile strength | Flame retardant and antistatic |
 |
 |
 |
| Convenient for construction | Strong anti-corrosion ability | Strong load-bearing capacity |

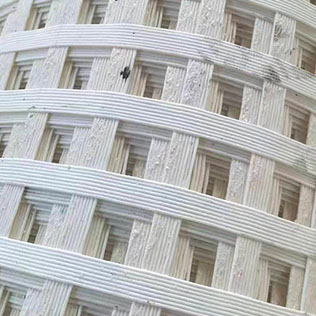

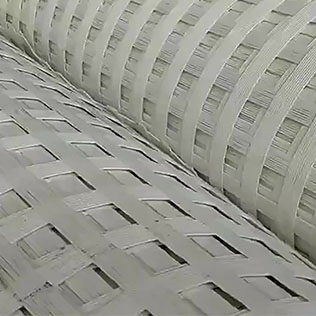

Benefits of High-strength Flame-retardant Polyester Fiber Mesh
High-strength flame-retardant polyester fiber mesh has the characteristics of high strength, light weight, easy construction, acid and alkali resistance, corrosion resistance, high and low temperature resistance, anti-aging, long service life, flame retardant, and anti-aging.
- ◆1:Large area, good integrity, flexible and light, high tensile strength, flame retardant and antistatic, strong acid and alkali corrosion resistance, good gangue blocking effect, and high safety;
- ◆2:The production and operation process is simple, meshes of different strengths and specifications can be customized, and the flexibility is high;
- ◆3:Convenient for construction and transportation;
- ◆4:In the environment of coal mines, it has good flame retardant properties. It only melts but does not burn in an open flame environment. Even if it burns, it will extinguish within 10 seconds from the fire;
- ◆5:Strong anti-corrosion ability, resistant to oil stains, acid, alkali and sulfide corrosion, long service life;
- ◆6:It has strong load-bearing capacity in both vertical and horizontal directions. The warps and wefts formed by bidirectional weaving are perpendicular to each other. This structure allows the pressure exerted on the mesh surface to be effectively transmitted to the surrounding ribs through the nodes, thereby greatly improving the overall pressure-bearing capacity of the mesh surface.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Mining high-strength flame-retardantpolyester fiber mesh has the characteristics of high strength, light weight, easy construction, acid and alkali resistance, corrosion resistance, high and low temperature resistance, anti-aging, long service life, flame retardant, and anti-aging. Static electricity and other properties. It can be widely used in coal mine unmined moving face removal, coal mining face false roof support engineering, tunneling face protection and roof protection engineering, end-to-end end-end support, coal mine anchor shot blasting tunnels, temporary and permanent support of tunnels, etc. The product is strong and soft, light in weight, easy to lay and has high tensile strength.
|
Item |
PET 50- 50 |
PET 100- 100 |
PET 200- 200 |
PET 600- 600 |
PET 800- 800 |
PET 1000- 1000 |
PET 1100- 1100 |
PET 1200- 1200 |
|
| Grid size(mm) | 25.4*25.4 50.8X50.8 ,76.2X76.2 | ||||||||
| Mesh size(mm) | 20X20 40X40 50X50 | ||||||||
| breaking strength≥(kN/ M) |
Warp direction | 50 | 100 | 200 | 600 | 800 | 1000 | 1100 | 1200 |
| Across warp | 50 | 100 | 200 | 600 | 800 | 1000 | 1100 | 1200 | |
| Elongation at break≤ (%) | 25 | ||||||||
| Resistance of the product's surface<(Ω) |
1.0X10^9 | ||||||||
| Flameless Quenching time (≤s) | 10 s | ||||||||
| Width(m | 1-6 | ||||||||
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
It is widely used in hypothetical support of underground working faces in coal mines and metal mines, mutual support of tunnels and permanent tunnel support reinforcement.
❖High-strength Flame-retardant Polyester Fiber Mesh for Tunnel Support and Mining
1.Slope Reinforcement- embankments over soft soils, extra-steep earthwork slopes, landfill liner systems, and industrial and contaminated land reclamation.
2.Base Reinforcement- foundations of roadbeds, parking lots, railroad tracks beds, airports runways, permanent unpaved roads, construction haul roads.
3.Wall Reinforcement- retaining walls, sea walls, airport noise barriers, and bridge supports.
4.Berm Reinforcement - spillway channels for earthen dams, levees, and waste contaminated ponds, banks for earthen canals and waterways.
 |
 |

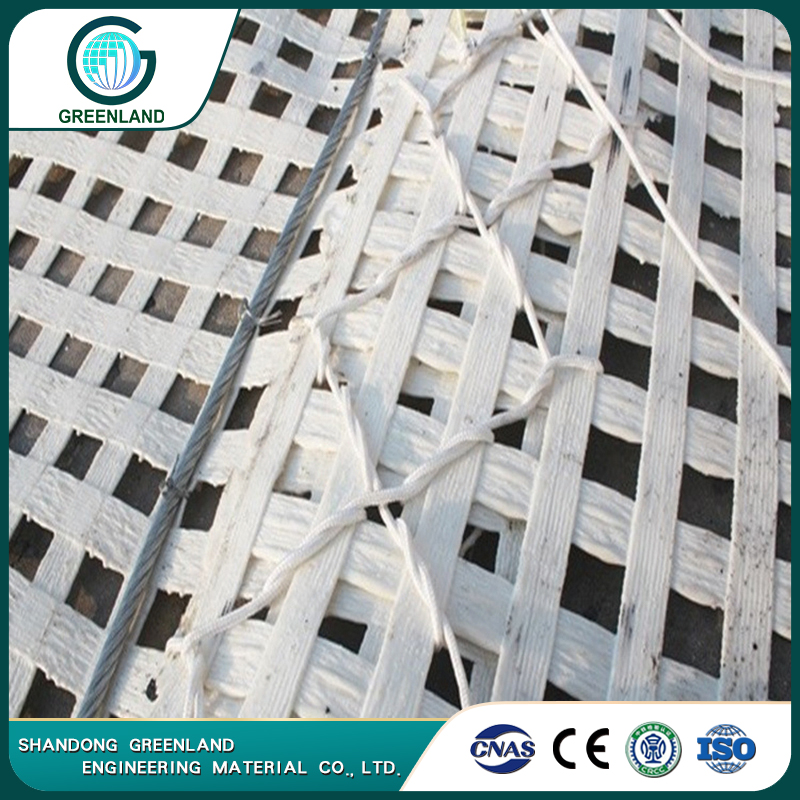

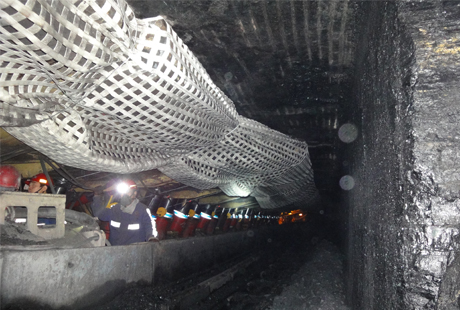

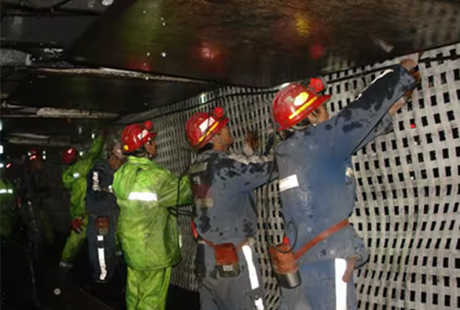

| Permanent tunnel support and reinforcement | False roof support for metal mine working face |
 |
 |

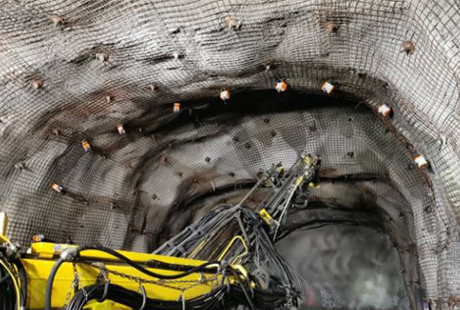

| False roof support for coal mine working face | Tunnel protection and reinforcement |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
- Below are the High-strength Flame-retardant Polyester Fiber Mesh specification for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- 11.High-strength Flame-retardant Polyester Fiber Mesh
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
