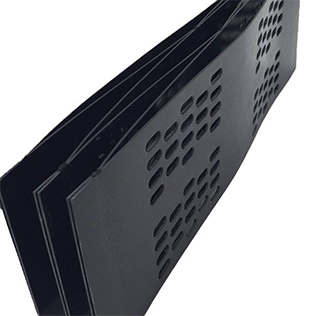

High-strength Integrally Welded Geocell
- 1.Sheet Thickness: 0.2-4.0mm
- 2.Height: 50mm~250mm(1.96 inch-9.8inch)
- 3.Raw material: HDPE
- 4.Standards: ASTM
- 5.Delivery period: Stock, 5-10 days production date

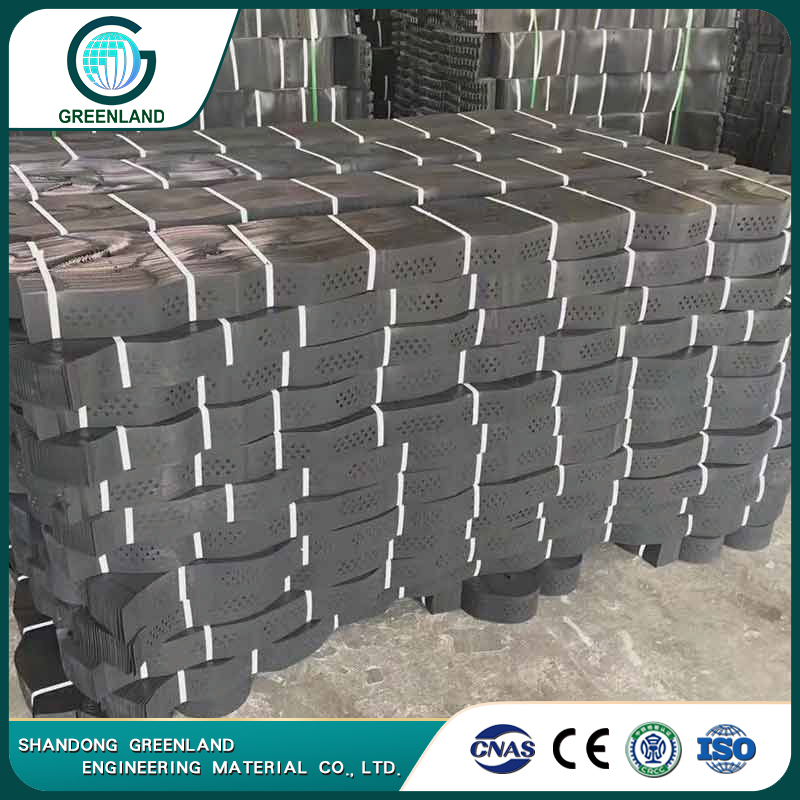

- 6.Packing: 50-100m length/roll
- 7.MOQ: Trial order is acceptable
- Free Sample
High-strength integrally welded geocell is a three-dimensional honeycomb cell structure made of high-molecular polymers that are strongly stretched into sheets with high tensile strength and low elongation, and then processed by hot-melt strong welding. It is flexible and can be folded up during transportation. When used, it can be opened and filled with fillers such as earth, stone or concrete to form a structure with strong lateral restriction and high stiffness.
Quick Details of High-strength Integrally Welded Geocell
| Products details information | |
| Product name | High-strength Integrally Welded Geocell |
| Brand | Greenland (OEM is available) |
| Height | 50mm~250mm(1.96 inch-9.8inch) |
| Sheet Thickness | 0.9mm-2.0mm(0.03inch-0.08inch) |
| Raw material | HDPE |
| Application | Reinforced soft ground foundation, steep slope protection, |
| Color | Black and other colors |
| Standards | ASTM |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of High-strength Integrally Welded Geocell
High-strength Integrally Weided Geocell is made from a lightweight and wear-resistant material that boasts stable chemical properties. It is resistant to aging caused by light and oxygen, as well as acid and alkali. This makes it suitable for various soil conditions, including deserts and deserts.
With its high lateral limit and anti-skid, anti-deformation properties, our geocell significantly enhances the roadbed's bearing capacity and effectively disperses the load. Additionally, its adjustable height, welding distance, and other geometric dimensions allow it to meet different engineering needs.
 |
 |
 |

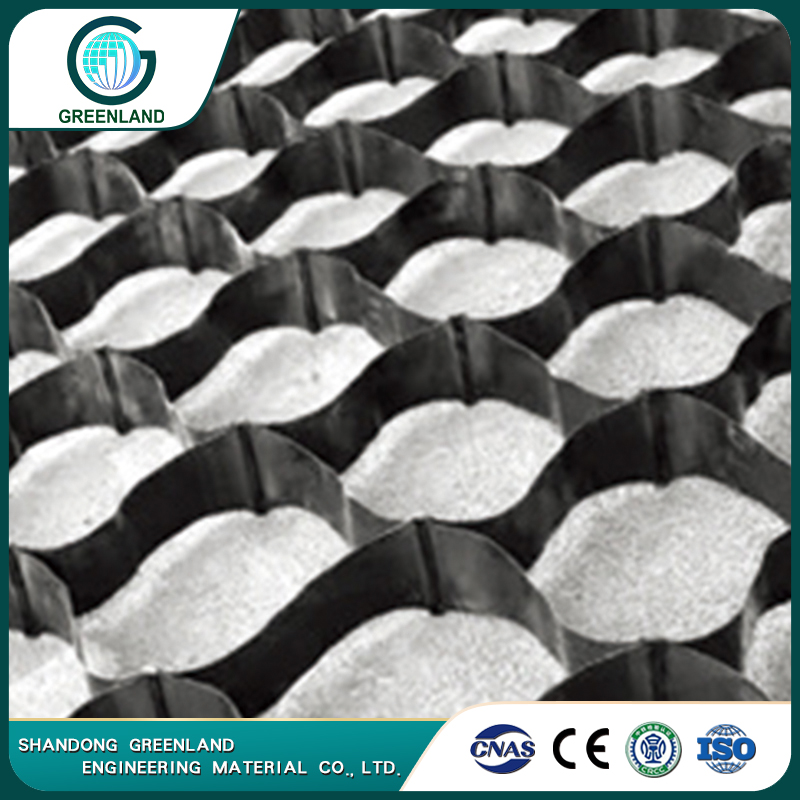

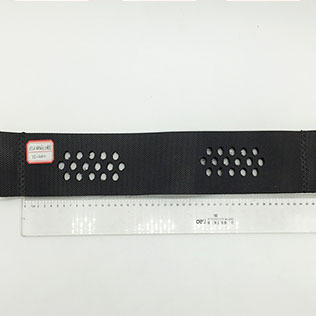

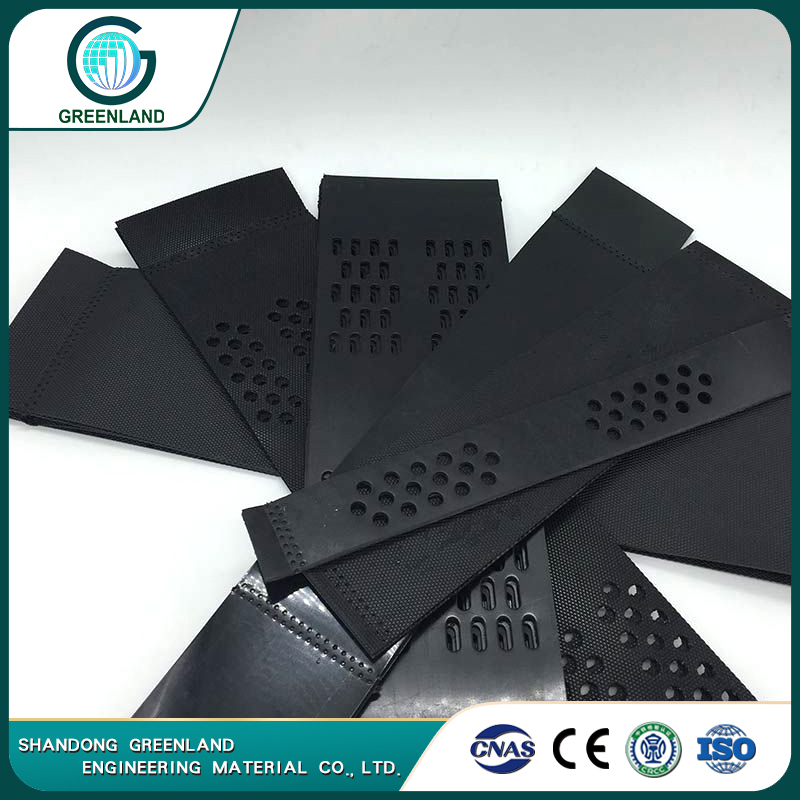

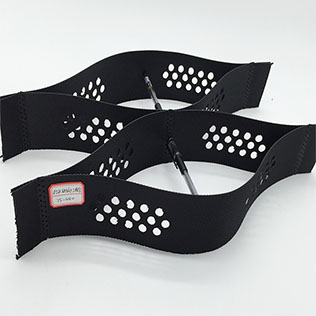

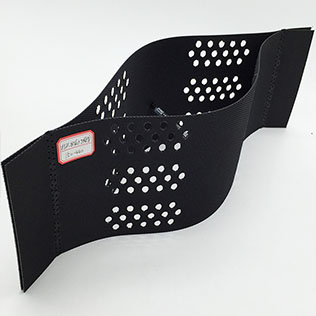

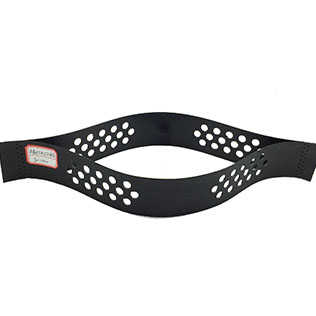

| High quality geocell | High-strength Integrally Welded Geocell | customized Geocell |
 |
 |
 |

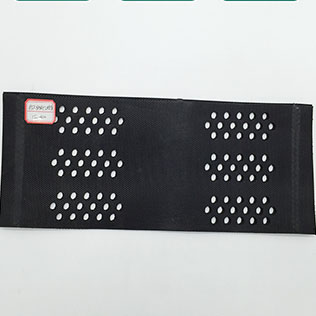

| Geocell Application | Smooth Geocell | Smooth and Punched Geocell |
Benefits of High-strength Integrally Welded Geocell
High-strength Integrally Welded Geocell, is an array of containment cells resembling a "honeycomb" structure that is filled with granular infill, which can be cohesionless soil, sand, gravel, ballast, crushed stone, or any other type of granular aggregate. Also known as geocells, CCSs are mainly used in civil engineering applications that require little mechanical strength and stiffness, such as slope protection (to prevent erosion) or providing lateral support for slopes.
- 1)The nominal tensile strength of the geocell is high and its nominal elongation is low;
- 2)The node connection is stable and will not move;
- 3)The connection strength at the node connection is high;
- 4)The traditional plane reinforcement is transformed into three-dimensional reinforcement, which has better reinforcement effect;
- 5)There are no metal connectors at the cell node connections, and the long-term connection strength at the node connections is high;
- 6)Resistant to acid and alkali corrosion, salt corrosion, and can adapt to strong acid or strong alkali engineering environments; no hydrolysis reaction will occur when used in a water environment for a long time, and the strength of the cell will not decrease.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
High-strength Integrally Welded Geocell, also known as a cellular confinement system (CCS )which is suitable for use in supporting loads, such as those present on roads, railways, parking areas, and pavements. In particular, the geocells also retain their dimensions after large numbers of load cycles and temperature cycles; thus the required confinement of the infill is retained throughout the design life cycle of the geocell
| Specification of High-strength Integrally Welded Geocell | ||||||
| Material Properties | unit | Tested Method | ||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | |
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | |||
| Enviroment Stress Crack Resistance | Hours | >400 | ASTM D 5397 | |||
| Enviroment Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | |||
| Carbon Black Content | % | 1.5%-2.0% | ASTM D 1603 | |||
| Nominal Sheet Thickness Before Texturing | mm | 1.27-5%,+10% | ASTM D 5199 | |||
| Nominal Sheet Thickness After Texturing | mm | 1.27-5%,+10% | ASTM D 5199 | |||
| Strip Puncture Resistance | N | 450 | ASTM D 4833 | |||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO 13426-1B |
| Seam Efficiency | % | GRI100 | GRI-GS13 | |||
| Norminal Expanded Cell Size(width x length) | mm | 320x287,475x508 etc | ||||
| Norminal Expanded Panel Size(width x length | M | 2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44 | ||||
| Specification of High-strength Integrally Welded Geocell | |||||||
| Product Type | Height (mm) | Welding Distance (mm) | Thickness(mm) | Tensile Strength of Welding Points (N/cm) | Tensile Strength of Connection of Cells (N/cm ) | Tensile Strength at Yield of Each Sheet (MPa) | |
| Smooth and Not Perforated | 50≤H≤300 | 300≤A≤1000 | 1.0 —1.5 | ≥100 | ≥120 | ≥20 | |
| Smooth and Perforated | 50≤H≤300 | 300≤A≤1000 | 1.0 —1.5 | ≥100 | ≥120 | ≥20 | |
| Textured and Not Perforated | 50≤H≤300 | 300≤A≤1000 | 1.3 —1.5 | ≥100 | ≥120 | ≥20 | |
| Textured and Perforated | 50≤H≤300 | 300≤A≤1000 | 1.3 —1.5 | ≥100 | ≥120 | ≥20 | |
| Remarks: | |||||||
| 1. This is a basic technical specification. | |||||||
| 2. All of the technical indexes can be reached according to the customers’demand, and the other special standards will be carried out by agreement or contact. | |||||||
| Geocell Mesh Size and Unfolded Area Calculation | |||||||
| Geogrid Model | Sheet material | Weld spacing(mm) | Sheet thickness(mm) | Peeling strength ≥(N) | Expanded panel size (mm) | Section expanded panel size | |
| Height(mm) | Smooth surface | Perforated | |||||
| TGLG-50-330 | 50 | 330 | 1.1 | 1.5 | 500 | 244X203 | 2.44X6.15 |
| TGLG-75-330 | 75 | 750 | 244X203 | 2.44X6.15 | |||
| TGLG-100-330 | 100 | 1000 | 244X203 | 2.44X6.15 | |||
| TGLG-150-330 | 150 | 1500 | 244X203 | 2.44X6.15 | |||
| TGLG-200-330 | 200 | 2000 | 244X203 | 2.44X6.15 | |||
| TGLG-100-356 | 100 | 356 | 1.1 | 1.5 | 1000 | 259X224 | 2.56X6.52 |
| TGLG-100-400 | 100 | 400 | 1.1 | 1.5 | 1000 | 295X250 | 4X5 5x6 |
| TGLG-100-445 | 100 | 445 | 1.1 | 1.5 | 1000 | 320X287 | 2.56X8.35 |
| TGLG-100-500 | 100 | 500 | 1.1 | 1.5 | 1000 | 370X310 | 3.7X6.2 |
| TGLG-100-660 | 100 | 660 | 1.1 | 1.5 | 1000 | 488X406 | 2.44X12.24 |
| TGLG-100-712 | 100 | 712 | 1.1 | 1.5 | 1000 | 508X475 | 2.56X13.72 |
| TGLG-100-800 | 100 | 800 | 1.1 | 1.5 | 1000 | 590X500 | 4X10 |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
☎Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
It can be used for soft foundation treatment in civil engineering fields such as highways, railways, deserts, swamps, tidal flats, airports, ports, etc.

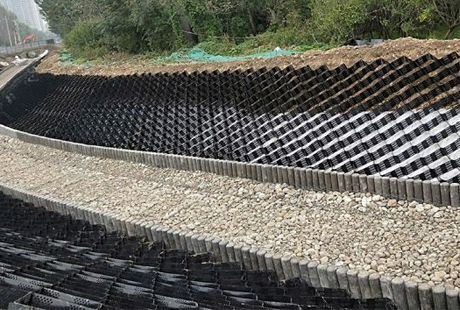

❖Geocell for steep slope protection
1.Used for all kinds of road building , driveways , soil stabilization and embankment stabilization.
2.Used to stabilize river embankments .
3.Used to prevent landslides .
4.Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .
 |
 |

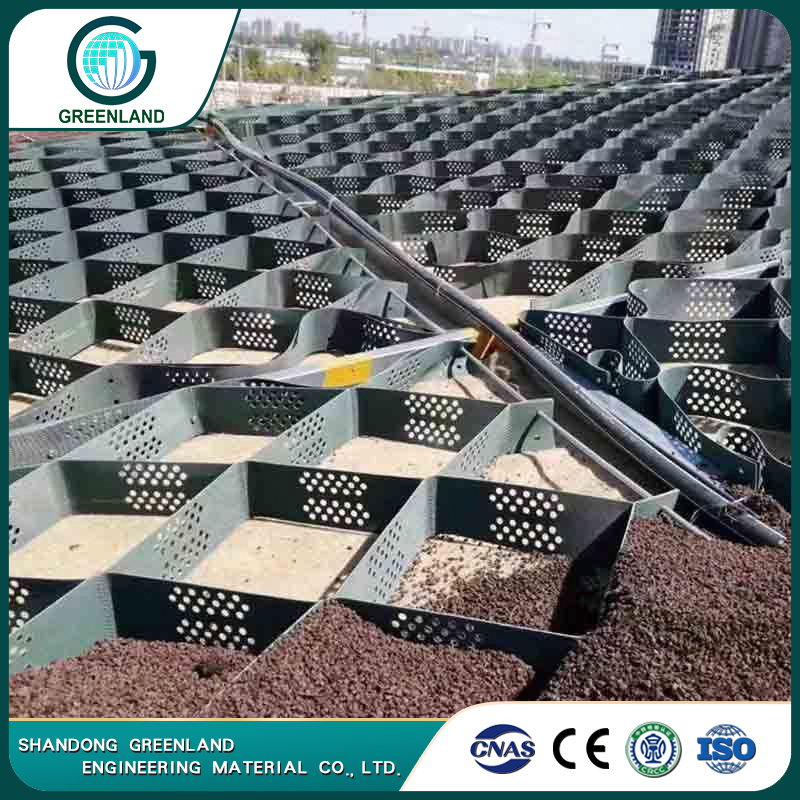

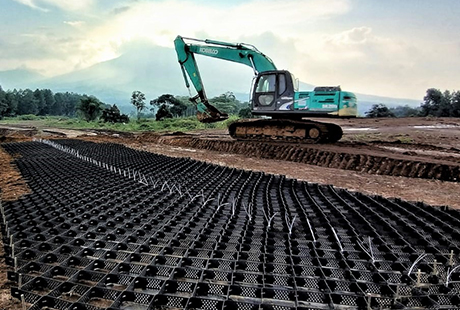

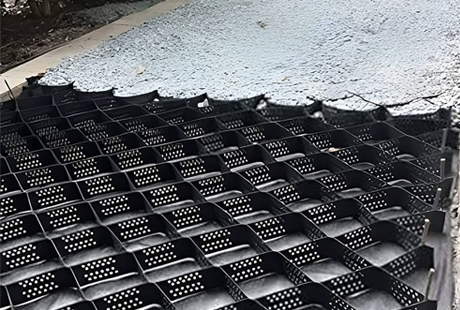

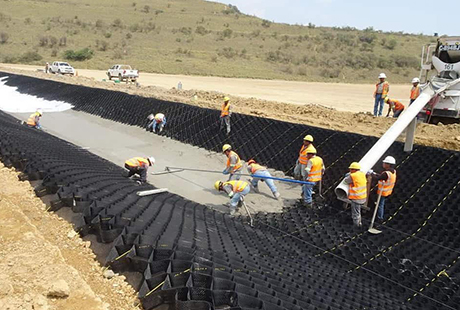

| High-strength Integrally Welded Geocell for Slope Protection | High-strength Integrally Welded Geocell for Road support |
 |
 |
| High-strength Integrally Welded Geocell for Slope protection | High-strength Integrally Welded Geocell For Embankment Stabilization |
☎Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
- Below are the High-strength Integrally Welded Geocell specification,for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- High strength integrally welded geocell
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
☎Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
