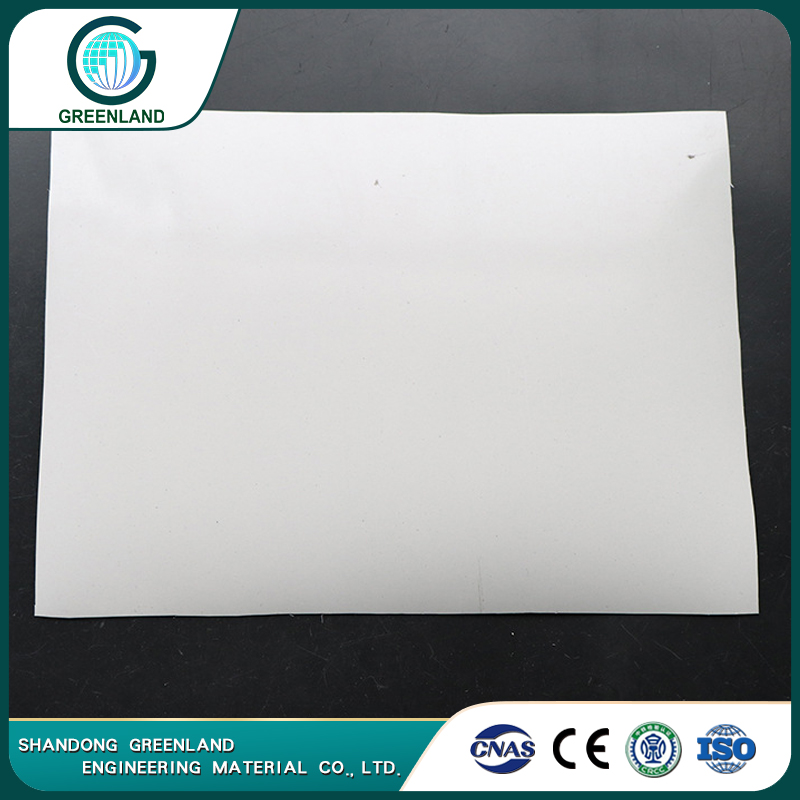

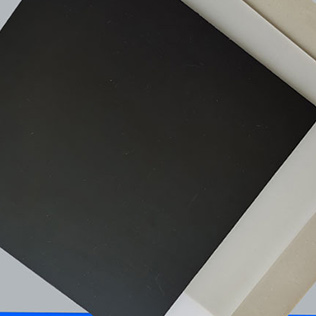

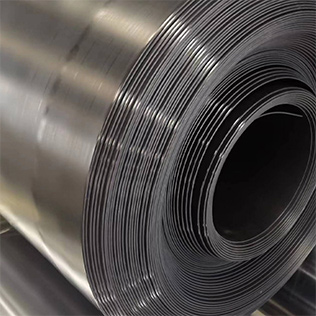

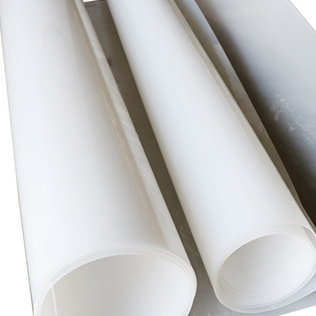

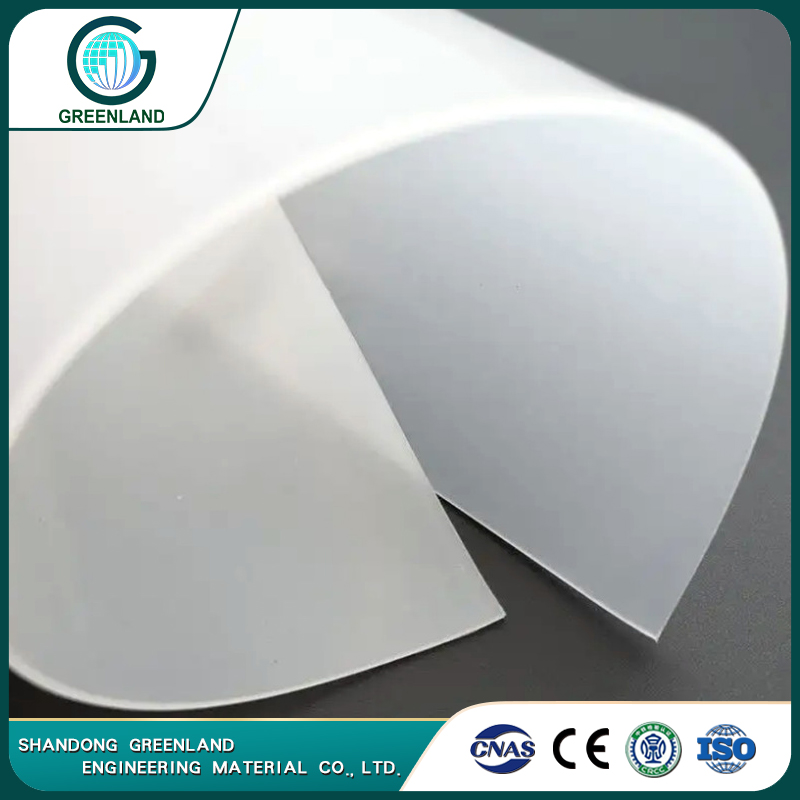

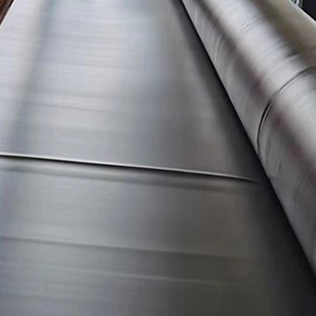

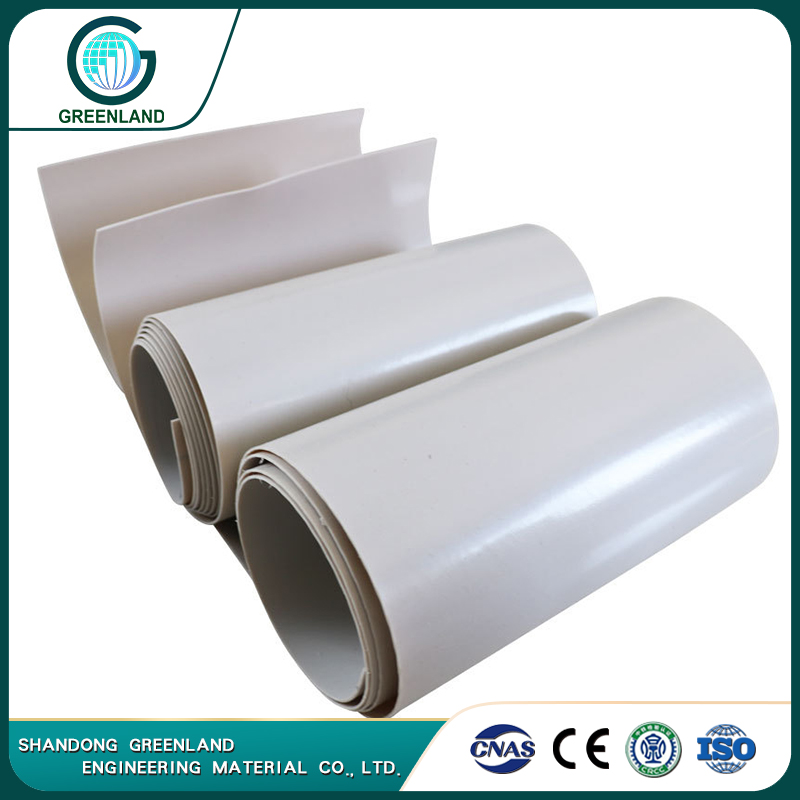

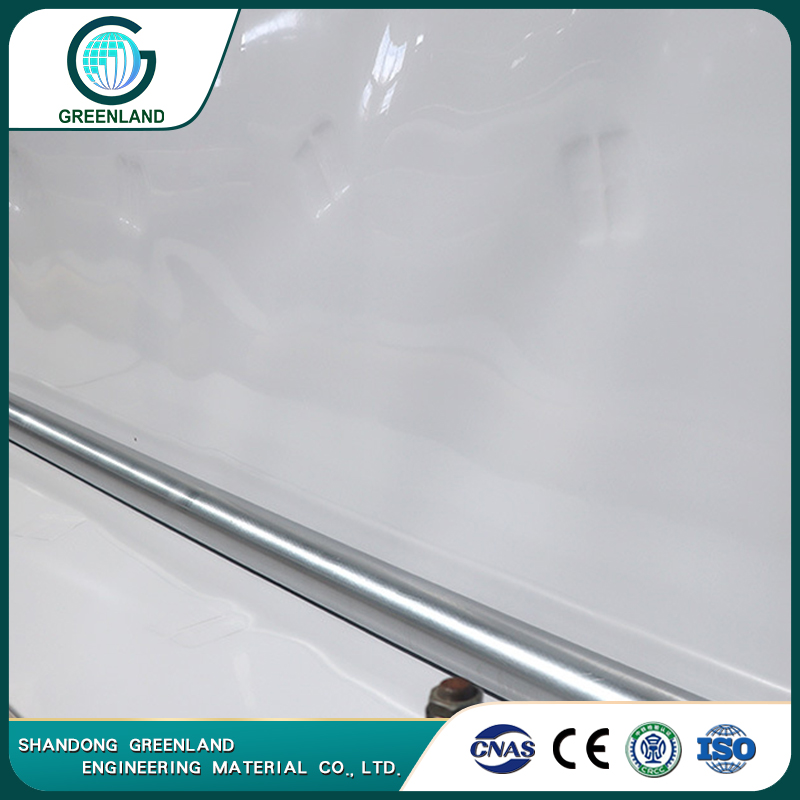

HDPE (High Density Polyethylene) Waterproof Board
- 1. Thickness: 1.0-2mm(0.039inch-0.079inch)
- 2. Width: Max.8M
- 3. Raw material: HDPE. EVA. ECB. PVC…
- 4. Standards: ASTM, CE, ISO
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 10-50m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample

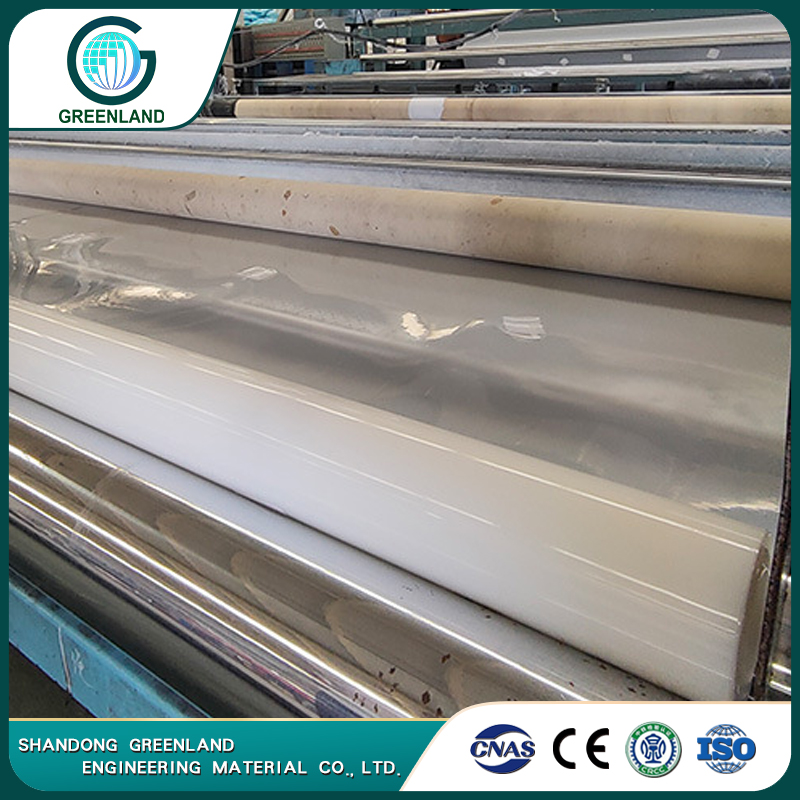

HDPE waterproof board (New HDPE waterproof board) is based on the ordinary waterproof board after formula recombination, the selection of high quality low-pressure high density polyethylene raw materials, and scientific proportion of carbon black, anti-aging agent, antioxidant, ultraviolet absorber, stabilizer and other auxiliary materials, with the world's most advanced automatic earth production equipment, made of three-layer co-extrusion technology.
Quick Details of HDPE (High Density Polyethylene) Waterproof Board
| Products details information | |
| Product name | HDPE (High Density Polyethylene) Waterproof Board |
| Brand | Greenland (OEM is available) |
| Thickness | 1.0-2mm (0.039inch-0.079inch) |
| Raw material | HDPE, EVA, ECB, PVC... |
| Application | Seepage prevention of earth-rock dam, rockfill dam, masonry dam, concrete dam, tailings dam, sewage reservoir dam, channel, liquid storage tank and other projects, anti-seepage lining of subway, basement and tunnel, seepage prevention of highway and railway foundation, sanitary waste landfill |

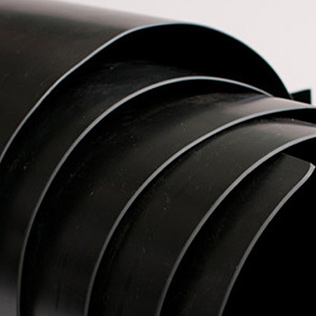

| Color | Black, White, other colors |
| Standards | CE, ASTM, ISO |
| Welding Tools | Heat sealing welding machine, Hot air welding gun,etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of HDPE (High Density Polyethylene) Waterproof Board

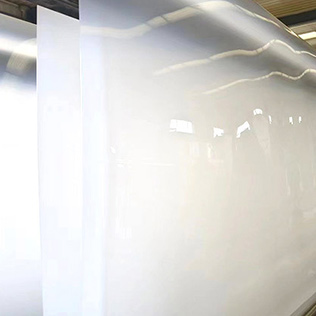

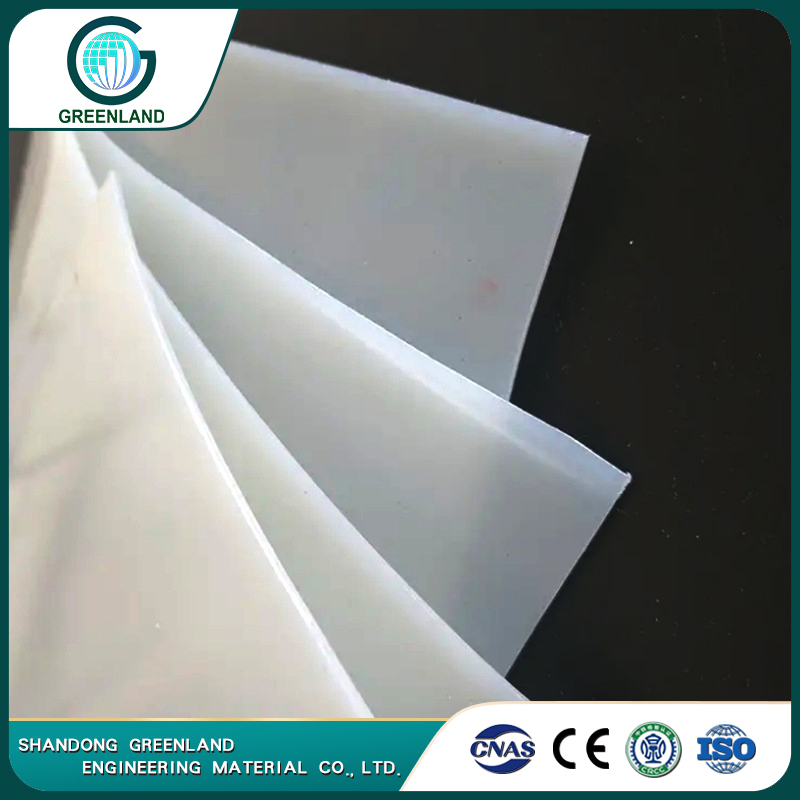

HDPE waterproof board is made of high density polyethylene material, the surface is smooth, no impurities, no bubbles, high toughness, high tensile strength, not easy to wear, not easy to break, can adapt to high and low temperature and certain acid and alkali, to meet the impervious and anti-corrosion requirements of artificial lake impervious, sewage tank impervious, reservoir impervious, environmental protection, mining and chemical engineering projects, etc. But it also serves to strengthen and protect.
 |
 |
 |
| UV resistance | High strength | Permeability and planar drainage |
 |
 |
 |
Benefits of HDPE (High Density Polyethylene) Waterproof Board
1. Excellent flexibility, impermeability, elongation and wear resistance;
2. Good isolation and puncture resistance;
3. No chemical pollution;
4. Acid and alkali resistance and a variety of chemical substances, good dimensional stability, good adhesion, easy to construction.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of HDPE (High Density Polyethylene) Waterproof Board
| No | Item | Index | |||
| 1 | / | LDPE | LLDPE | EVA | HDPE |
| 2 | Thickness mm | 0.2-3.0 | 0.2-3.0 | 0.2-4.0 | 0.2-4.0 |
| 3 | Width m | 2.5-9.0 | 2.5-9.0 | 2.5-8.0 | 2.5-8.0 |
| 4 | Tensile strength (longitudinal and transverse) Mpa | ≥14 | 216 | 216 | 217 |
| 5 | Breaking elongation (longitudinal and transverse) % | 2400 | ≥700 | £550 | ≥450 |
| 6 | Right angle tear strength N/mm | ≥50 | ≥60 | ≥60 | >80 |
| 7 | Water vapor permeability coefficient | <1.0x10 | <1.0x10 | <1.0x10 | - |
| 8 | Operating temperature range | +70℃~-70°℃ | +70℃~-70℃ | +70℃~-70°℃ | - |
| 9 | Carbon black content % | - | - | - | 2.0-3.0 |
| 10 | Environmental stress crack resistance F | - | - | - | ≥1500 |
| 11 | -70℃ low-temperature impact embrittlement performance | - | - | - | pass |
| 12 | 200℃ oxidation induction time | - | - | - | >20 |
Performance Parameter Table for HDPE (High Density Polyethylene) Waterproof Board (ASTM Standard)
| Nominal Physical Properties | ASTM | Unit | Value |
| Density | D1505 | g/cm³ | 0.96 |
| Melt Index | D1238 | g/10 min | 0.5 |
| HLMI | D1238 | g/10 min | --- |
| Condition A, F50 (100% Igepal) | D1693 | h | >500 |
| Condition B, F50 (100% Igepal) | D1693 | h | --- |
| Tensile Yield Strength, 50mm/min | D638 Type IV | Mpa | 26 |
| Elongation at Break, 50mm/min | D638 Type IV | % | >300 |
| Brittleness Temperature | D746 | ºC | ≤40 |
| Flexural Modulus, Tangent | D790 | Mpa | 950 |
| Shore D Hardness | D2240 | - | 65 |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
☎Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

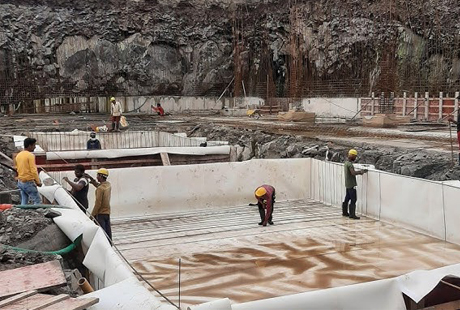

HDPE waterproof board is mainly used in the seepage prevention of earth-rock dam, rockfill dam, masonry dam, concrete dam, tailings dam, sewage reservoir dam, channel, liquid storage tank and other projects, anti-seepage lining of subway, basement and tunnel, seepage prevention of highway and railway foundation, sanitary waste landfill with the use of geotextiles, bentonite waterproof blanket and other geomaterials.
❖HDPE (High Density Polyethylene) Waterproof Board for Waterproof & Anti-infiltration
1. Light Rail Traffic Facilities Waterproof

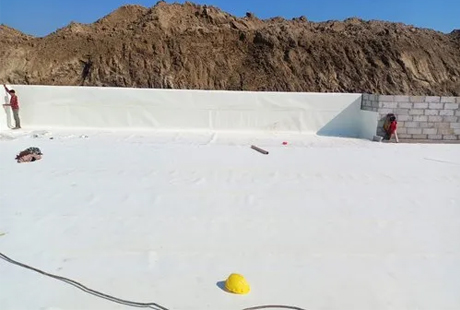

2. Road Waterproof
3. Construction Facility Waterproof
 |
 |

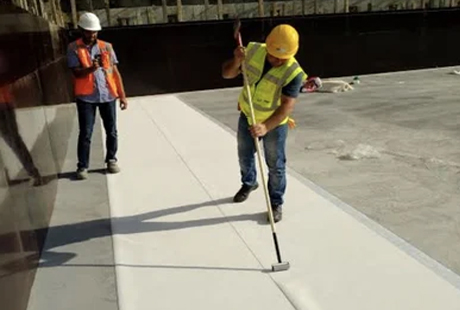

| HDPE Waterproof Board for Highway | HDPE Waterproof Board for Railway |
 |
 |

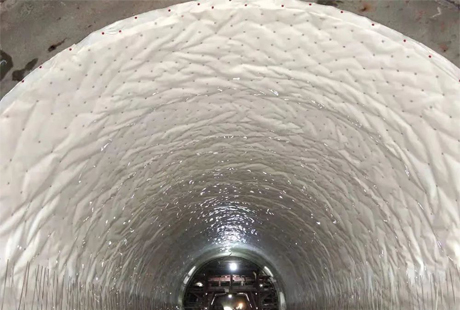

| HDPE Waterproof Board for Tunnel | HDPE Waterproof Board for Basement |
☎Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
HDPE (High Density Polyethylene) Waterproof Board
- Below are the detailed information on HDPE waterproof board for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- HDPE (High Density Polyethylene) Waterproof Board
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
