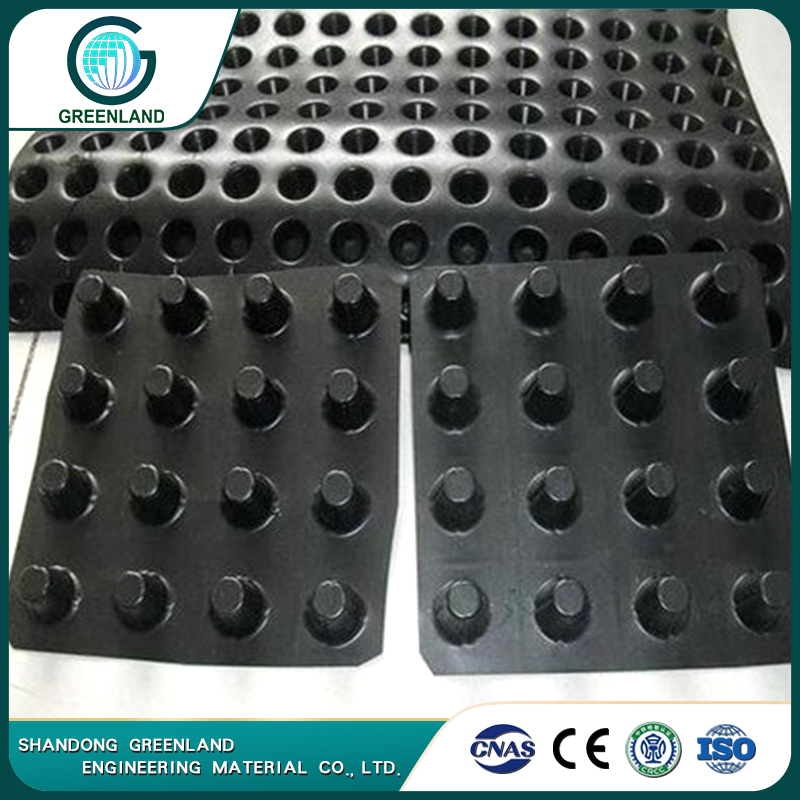

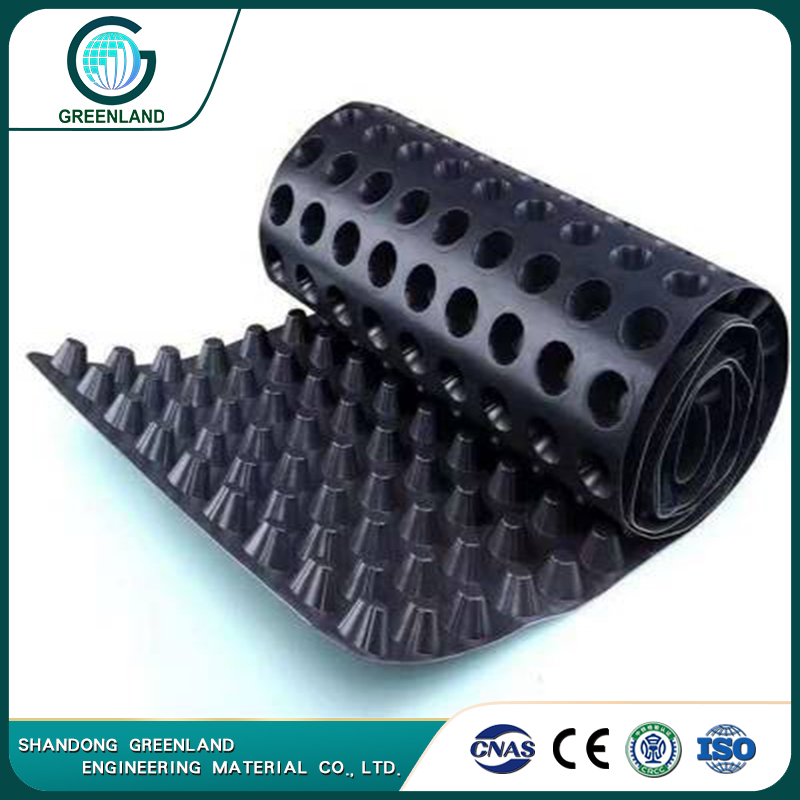

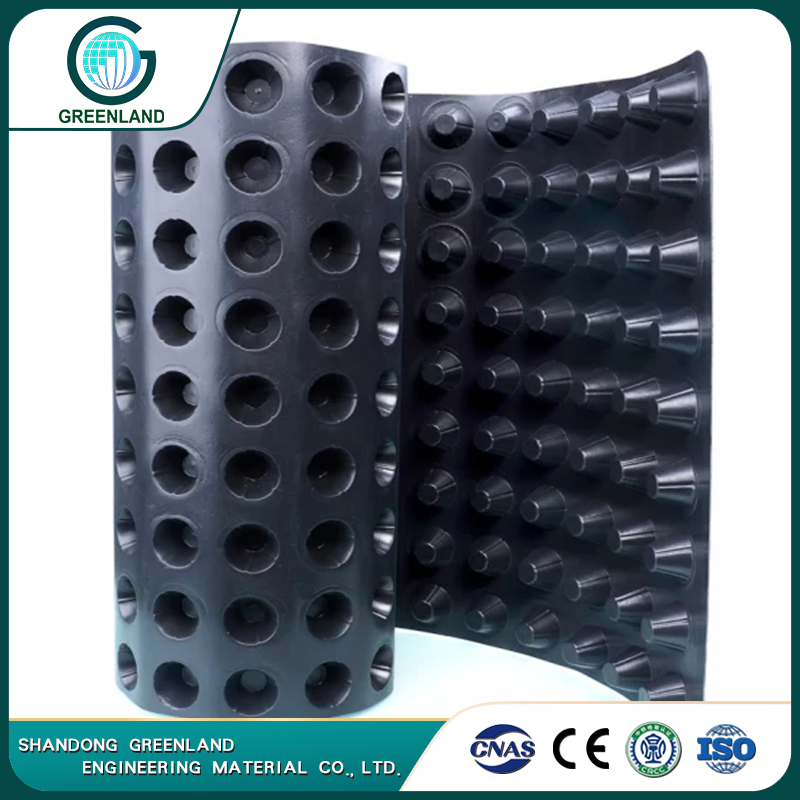

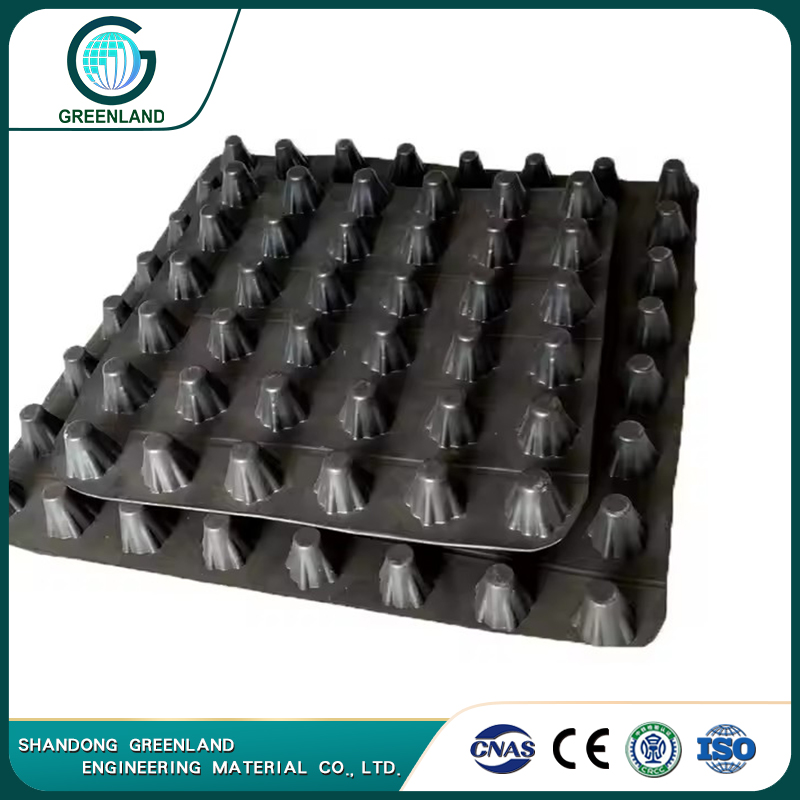

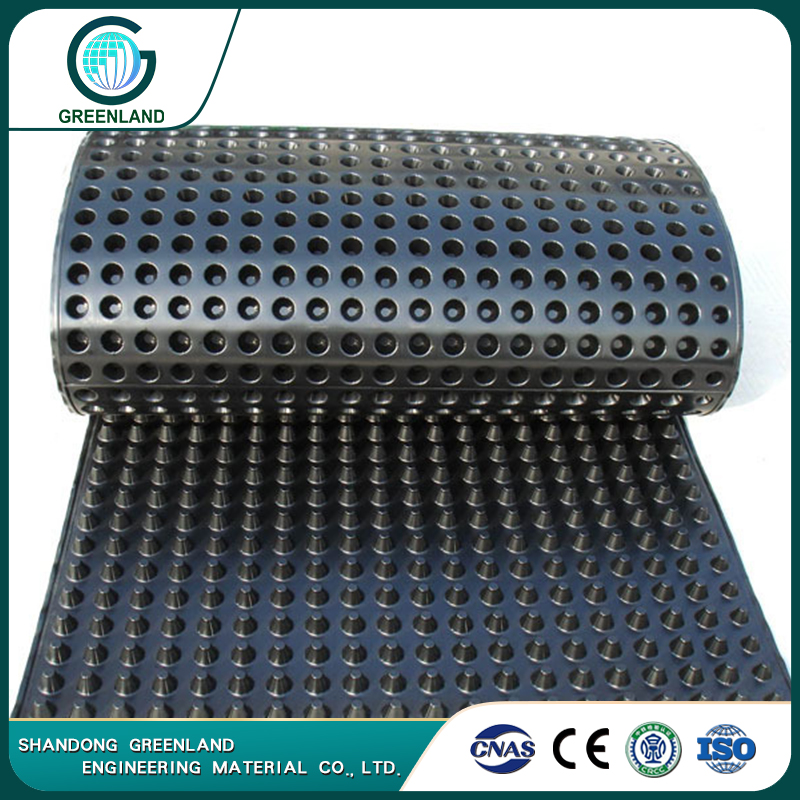

HDPE (High Density Polyethylene) Drainage Board
- 1. Thickness: 0.75-1.5mm(0.029inch-0.059inch)
- 2. Width: Max.3M
- 3. Raw material: HDPE. HIPS. PP. PVC…
- 4. Standards: CE, ISO, ASTM, JC/T 2289-2014
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 10-50m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample

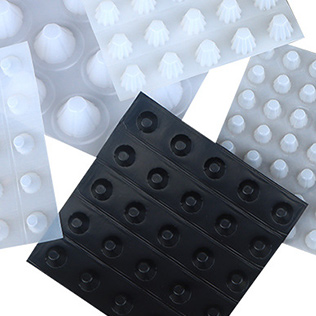

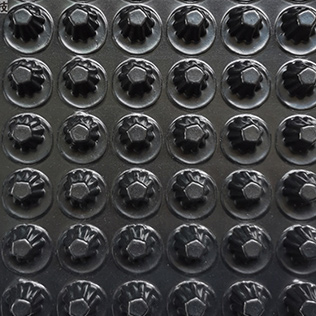

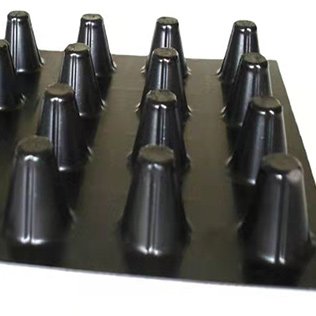

Plastic drainage plate, also known as plastic drainage belt, has a variety of shapes such as wave type and harmonica type. HDPE plastic drainage board is made of high density polyethylene as raw material, and the plastic bottom plate is pressed into a convex point (or hollow cylindrical porous) structure of a conical protruded platform or stiffener.
HDPE drainage board, also known as plastic drainage board, is a green roof and foundation drainage system that drains through a specially formed plastic board. Water is retained and discharged in a pit on the upper side of the drainage plate; Excess water spills over the edge of the board and is carried away from the roof or foundation.
Quick Details of HDPE (High Density Polyethylene) Drainage Board
| Products details information | |
| Product name | HDPE (High Density Polyethylene) Drainage Board |
| Brand | Greenland (OEM is available) |
| Thickness | 0.75-1.5mm (0.029inch-0.059inch) |
| Raw material | HDPE. PP. HIPS. PVC... |
| Application | Garage roof greening, roof garden, vertical greening, roof greening, football field, golf course, airports, roads, embankments, subways, tunnels, landfills, upper or lower building foundation, basement interior and exterior walls, floor and roof, roof seepage insulation layer, reservoir seepage, reservoir, lake seepage prevention, highway, railway basement, roadbed, dam, slope protection layer, etc. |

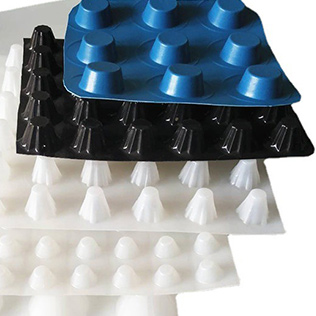

| Color | Black, White, other colors |
| Standards | CE, ISO, ASTM, JC/T 2289-2014 |
| Welding Tools | Docking machine, Hinge car, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of HDPE (High Density Polyethylene) Drainage Board

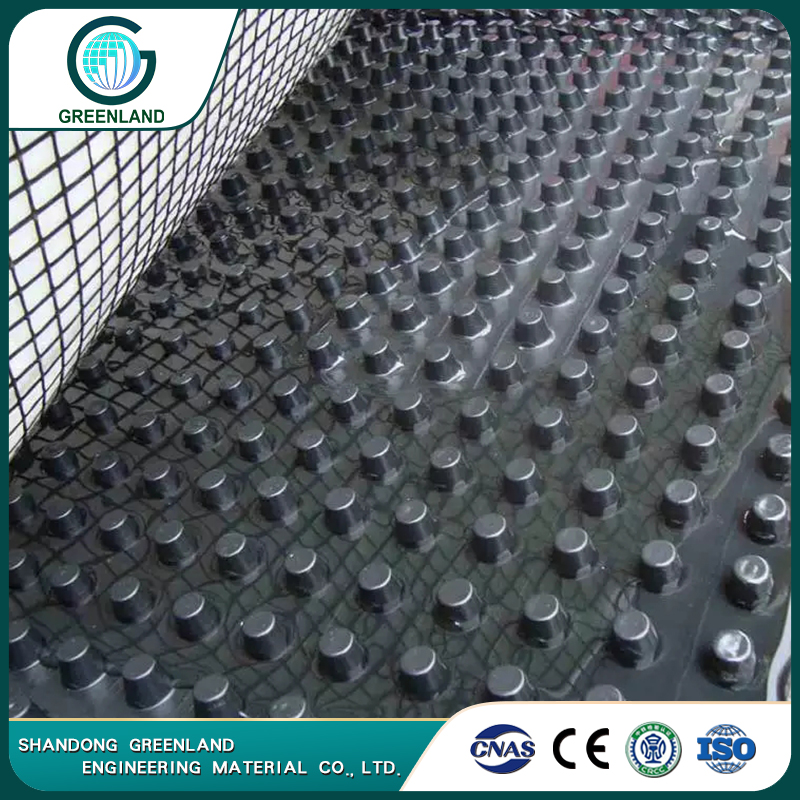

HDPE drainage board is made of HDPE (high density polyethylene), using high pressure injection molding hole block shell, with three-dimensional space and support level; At the top of the shell, nonwoven geotextile is covered as a filter layer for water seepage, storage and drainage.
 |
 |
 |

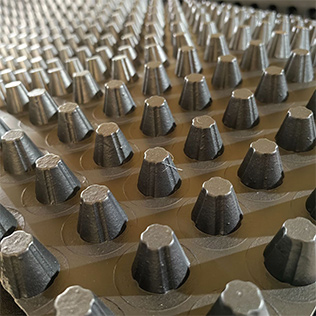

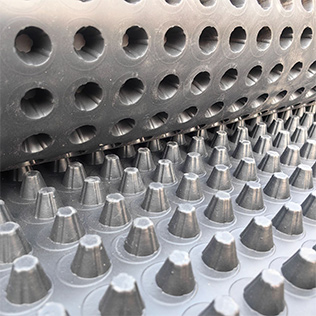

| Strong compressive strength | The supporting surface is relatively large | The convex side wall is thicker |
 |
 |
 |
Benefits of HDPE (High Density Polyethylene) Drainage Board
The raw material used in the HDPE drainage board is PE thermoplastic resin, which has good heat resistance and cold resistance, high rigidity and toughness, good mechanical strength, environmental stress cracking resistance and tear resistance, and also has the characteristics of non-degradation in soil and water, anti-aging, anti-ultraviolet, high temperature resistance, corrosion resistance, and keeping the material unchanged.
1. Good water filtration, smooth drainage, drainage effect is guaranteed.
2. The material has good strength and ductility, and can be suitable for foundation deformation without affecting drainage performance.
3. The section size of the drainage plate is small, and the disturbance to the foundation is small in the process of installing the drainage plate.
4. Insert plate construction can be carried out on ultra-soft foundation.
5. The construction is fast and the construction period is short, each board inserting machine can insert the board more than 5000m per day, and the cost is lower than that of the bag sand well.
6. Low cost, durable, chemical corrosion resistance, plant root puncture resistance, diversified application functions.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of HDPE (High Density Polyethylene) Drainage Board
| No | Item | Index | |
| 1 | Tensile force at 10% elongation /(N/100mm)> | 350 | |
| 2 | Maximum tensile force /(N/100mm)> | 600 | |
| 3 | elongation at break /%> | 25 | |
| 4 | Tear resistance /N> | 100 | |
| 5 | Compression performance | Maximum strength at a compression rate of 20% /kpa > | 150 |
| Extreme compression phenomenon | No rupture | ||
| 6 | Low temperature flexibility | -10℃ no rupture | |
| 7 | Thermal ageing (80.168h) |
Tensile retention rate at 10% elongation /%> | 80 |
| Maximum tensile retention rate /% > | 90 | ||
| Breaking elongation retention rate /% > | 70 | ||
| Maximum strength retention rate at a compression rate of 20% /%> | 90 | ||
| Extreme compression phenomenon | No rupture | ||
| Low temperature flexibility | -10℃ no rupture | ||
| 8 | Vertical permeability (Pressure measurement 150kpa) /(cm/s)> | 10 | |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
HDPE drainage board can be widely used for the drainage and ventilation of indoor overhead and planting roofs in building roof systems, drainage protection of basement waterproofing systems, moisture-proof and thermal insulation protection of indoor floors, and drainage protection of highway and railway tunnels. It is a functional material with many potential functions, and it is very convenient to construct overhead layers during use, forming drainage and exhaust channels to achieve sound insulation and vibration isolation functions.
1. Greening projects
Garage roof greening, roof garden, vertical greening, roof greening, football field, golf course, etc.
2. Municipal engineering
Airports, roads, embankments, subways, tunnels, landfills, etc.
3. Building construction
Upper or lower building foundation, basement interior and exterior walls, floor and roof, roof seepage insulation layer, etc.
4. Water conservancy projects
Reservoir seepage, reservoir, lake seepage prevention, etc.
5. Traffic engineering
Highway, railway basement, roadbed, dam, slope protection layer, etc.
❖HDPE (High Density Polyethylene) Drainage Board for Drain & Moisture-proof heat insulation
1. Drainage and ventilation of planting roofs
2. Drainage protection of basement waterproofing system
3. Drainage protection of highway and railway tunnels
 |
 |

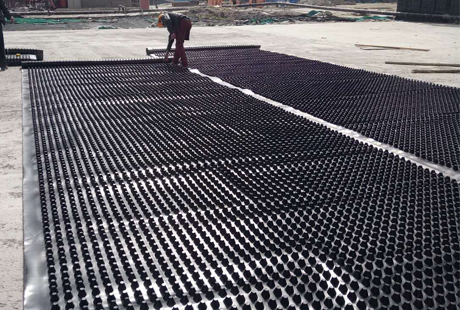

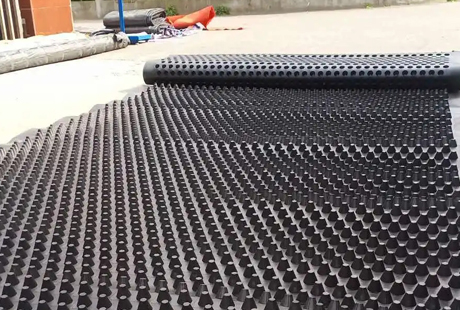

| HDPE Drainage Board for Garage Roof | HDPE Drainage Board for Road Subgrade |
 |
 |

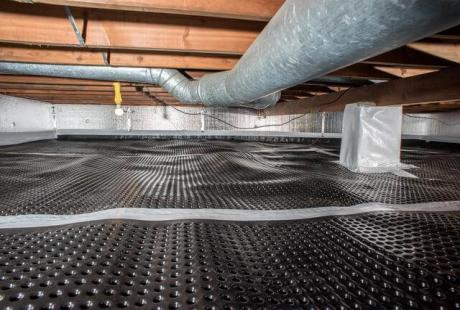

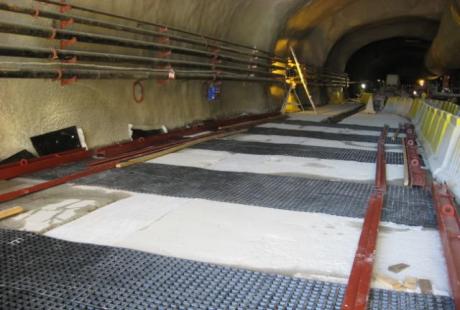

| HDPE Drainage Board for Tunnel | HDPE Drainage Board for Basement |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
HDPE (High Density Polyethylene) Drainage Board
- Below are the detailed information on HDPE drainage board for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- HDPE Drainage Board
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
