Filament Geotextile Composite Geomembrane
- 1. Dimensions: 80-1000g/m²
- 2. Width: Max.6M
- 3. Raw material: PP, PET/HDPE, LDPE, LLDPE, EVA, PVC…
- 4. Standards: GRI-GT12/GT13, ASTM, ISO, GB/T 17639-2023
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 50-100m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample
Composite geomembrane is a new type of geotechnical material that combines geotextiles and geomembranes. Filament composite geomembrane has high physical and mechanical performance indicators such as tensile strength, tearing and top breaking, far exceeding products such as geotextiles and geomembranes. Filament composite geomembrane can meet the application of civil engineering such as water conservancy, municipal, dam, tunnels, and culverts.
Quick Details of Filament Geotextile Composite Geomembrane
| Products details information | |
| Product name | Filament Geotextile Composite Geomembrane |
| Brand | Greenland (OEM is available) |
| Dimensions | 80-1000g/m² |
| Raw material | PP, PET/HDPE, LDPE, LLDPE, EVA, PVC... |
| Application | Water conservancy engineering, municipal engineering, engineering construction, traffic travel, subway station, tunnel construction, construction of waterproof layer, protection, reinforcement, anti-rust structure reinforcement and river embankment, drainage pipeline water channel waterproof layer solution, and waste field pollution resistance solution. |
| Color | Black, White, Green, other colors |
| Standards | GRI-GT12/GT13, ASTM, ISO, GB/T 17639, GB/T 17643 |
| Welding Tools | Hot wind welding, roller welding machine, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of Filament Geotextile Composite Geomembrane

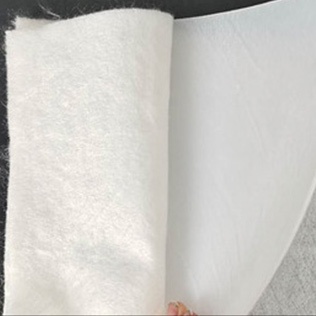

Filament geotextile composite membrane made of geotextile (the bottom fabric can be filament needle punched geotextile or woven geotextile) and polymer materials through rolling and hot melt technology is an impermeable material mainly used for anti-seepage. Filament geotextile composite geomembrane retains the mechanical properties of the geotextile and the uniformity of the geomembrane, improving the impermeability of the composite. Composite geomembranes are divided into one fabric one membrane and two fabrics one membrane.
 |
 |
 |
| Good compressive strength | Good chemical stability | Good extensibility |
 |
 |
 |
Benefits of Filament Geotextile Composite Geomembrane
Filament geotextile composite geomembrane has the characteristics of tensile strength, tear resistance, high physical and mechanical performance indicators, high strength, good elongation performance, acid and alkali resistance, corrosion resistance, aging resistance, and good anti-seepage performance. Due to the use of polymer materials and the addition of anti-aging agents in the production process, it can be used in unconventional temperature environments.
- 1. A cloth and a film is a synthetic material composed of a layer of geotextile and a layer of high molecular material by calendering process and thermal composite; It is characterized by strong strain capacity and excellent anti-aging performance, which reduces the maintenance of the project. One cloth and one film is suitable for the environment with a little debris on the base surface, and the geotextile replaces the grain material as the geomembrane protective layer to protect the geomembrane impermeable layer from damage and can play the role of drainage.
- 2. Two cloth and one film is based on polymer plastic film as the substrate, and geotextile is composite on both sides to achieve the purpose of protective film material. Compared with one cloth and one film, it can adapt to more complex environments and has higher tensile strength and extensibility. It is easy to lay, reduce the amount of transportation, reduce the project cost and shorten the construction period.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of Filament Geotextile Composite Geomembrane
| Item | Index | ||||||||
| Nominal fracture intensity/(kN/m) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
| 1 | Vertical and horizontal fracture intensity/(kN/m) ≥ | 5.0 | 7.5 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | 20.0 |
| 2 | Poor and horizontal standard strength corresponding to extension rate/% | 30~100 | |||||||
| 3 | CBR top is broken/kN ≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | 3.2 |
| 4 | Poor and horizontal tearing strong/kN ≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | 0.70 |
| Peeling strength/(N/cm) ≥ | 6 | ||||||||
| f | Vertical osmotic coefficient/(cm/s) | According to design or contract requirements | |||||||
| 7 | Width deviation/% | -1.0 | |||||||
ASTM Standard for Filament Geotextile Composite Geomembrane
| Properties | Test Method | GMSH050 | GMSH075 | GMSH100 | GMSH150 | GMSH200 |
| Thickness | ASTM D5199 | 0.50 mm | 0.75 mm | 1.00 mm | 1.50 mm | 2.00 mm |
| Density | ASTM D1505 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc |
| Tensile Properties | ||||||
| Yield strength | ASTM D6693 | 7 kN/m | 11 kN/m | 15 kN/m | 22 kN/m | 29 kN/m |
| Break strength | Type IV | 13 kN/m | 20 kN/m | 27 kN/m | 40 kN/m | 53 kN/m |
| Yield elongation | - | 12% | 12% | 12% | 12% | 12% |
| Break elongation | - | 700% | 700% | 700% | 700% | 700% |
| Tear Resistance | ASTM D1004 | 62 N | 93 N | 125 N | 187 N | 249 N |
| Puncture Resistance | ASTM D4833 | 160 N | 240 N | 320 N | 480 N | 640 N |
| Stress Crack Resistance | ASTM D5397 | 500 hrs | 500 hrs | 500 hrs | 500 hrs | 500 hrs |
| Carbon Black Content | ASTM D1603 | 2.0% | 2.0% | 2.0% | 2.0% | 2.0% |
| Carbon Black Dispersion | ASTM D5596 | For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 | ||||
| Oxidative Induction Time (OIT) | ASTM D3895 | 100 min. | 100 min. | 100 min. | 100 min, | 100 min, |
| UV Resistance High Pressure OIT retained after 1600hrs |
ASTM D5885 | 50% | 50% | 50% | 50% | 50% |
| Dimensions | ||||||
| Roll Width (m) | - | 7 | 7 | 7 | 7 | 7 |
| Roll Length (m) | - | 420 | 280 | 210 | 140 | 105 |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
- Filament geotextile composite geomembrane is widely used in water conservancy engineering, municipal engineering, engineering construction, traffic travel, subway station, tunnel construction, construction of waterproof layer, protection, reinforcement, anti-rust structure reinforcement and river embankment, drainage pipeline water channel waterproof layer solution, and waste field pollution resistance solution.
❖Filament Geotextile Composite Geomembrane for Municipal & Environmental Project
1.Fish Ponds, Shrimp Ponds And Other Aquaculture
2.Mining, Landfill Project
3.Protaction Project
 |
 |

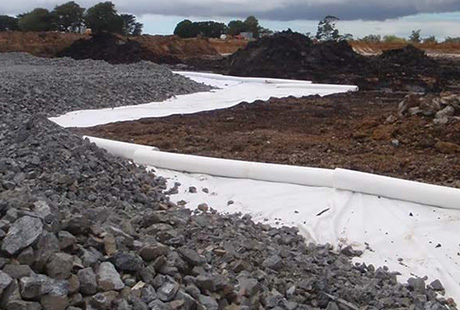

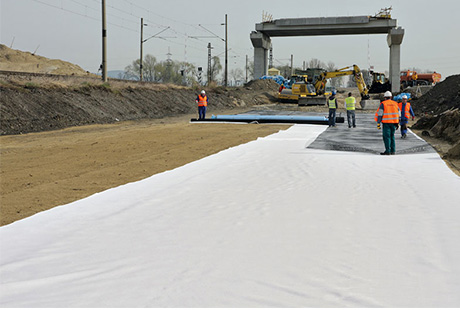

| Filament Geotextile Composite Geomembrane for Municipal Engineering | Filament Geotextile Composite Geomembrane for Protaction Project |
 |
 |

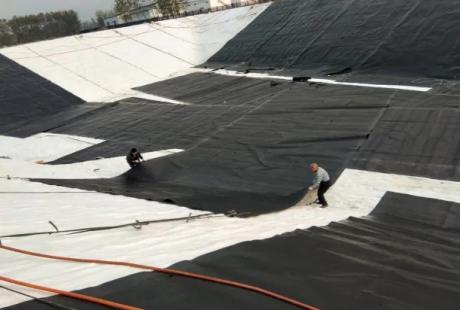

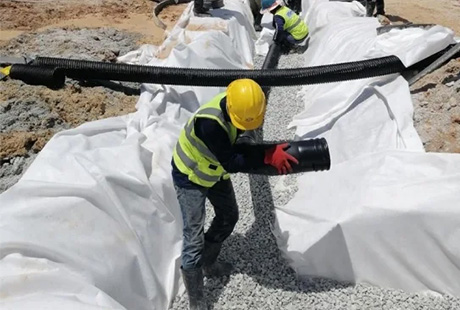

| Filament Geotextile Composite Geomembrane for Drainage Pipeline | Filament Geotextile Composite Geomembrane for Fish Pond Liner |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
