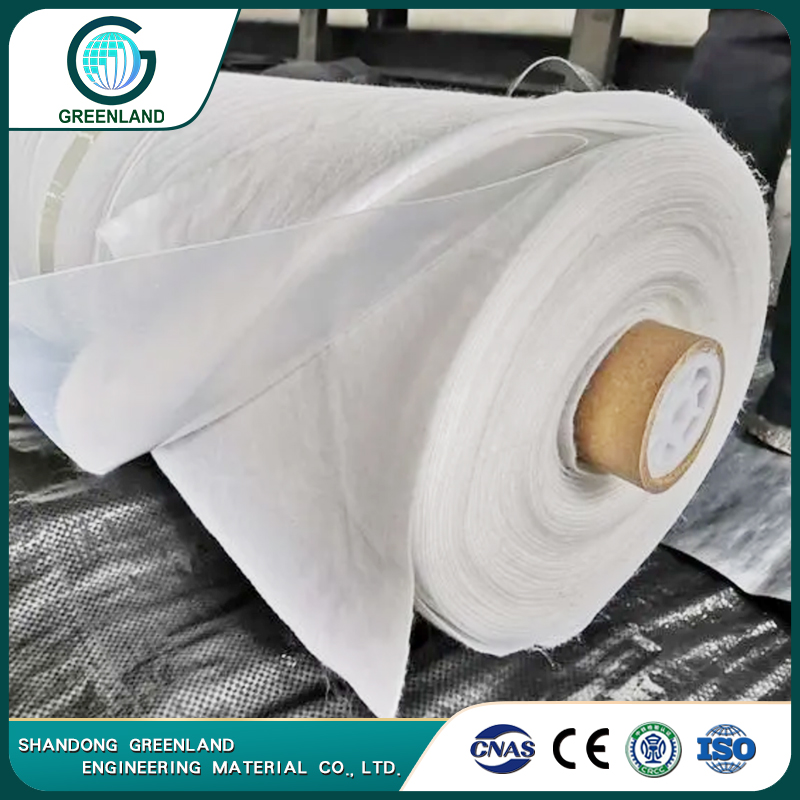

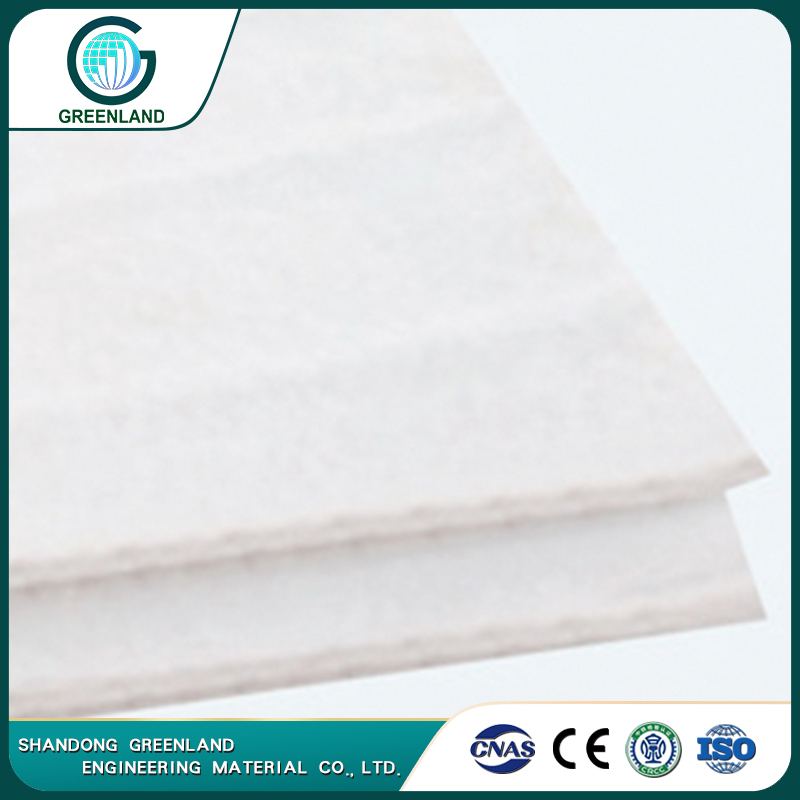

Composite High Efficiency Suction and Drainage Geomembrane
- 1. Thickness: 0.8-2.0mm(0.03inch-0.08inch)
- 2. Width: Max.3M
- 3. Raw material: PP, PET/HDPE, LDPE, LLDPE, EVA, PVC…
- 4. Standards: GRI-GT12/GT13, ASTM, ISO, GB/T 17643, Q/CR549.6-2017
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 10-30m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample

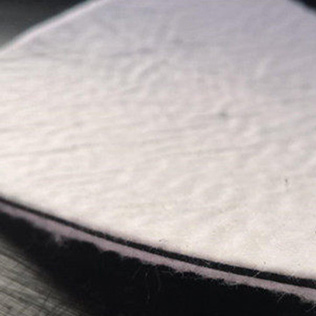

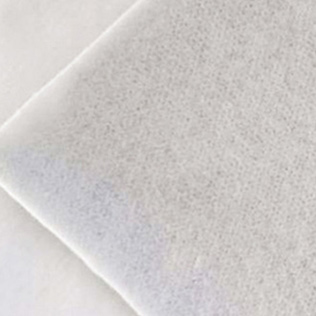

Composite high efficiency suction and drainage geomembrane is composed of high strength coarse denier non-woven fabric, multi channel high efficiency suction and drainage belt, and high strength geomembrane, which are compounded together through special composite equipment to form a composite drainage material with efficient and fast suction and drainage functions. The composite high efficiency suction and drainage geomembrane is suitable for highway and railway roadbed engineering. It is laid in multiple layers during roadbed construction. By utilizing the rapid suction and drainage function of this product, directional water diversion and drainage can be achieved, and the moisture in the roadbed can be discharged to protect it from rainwater erosion, greatly improving construction efficiency and effectively extending the service life of the roadbed.
Quick Details of Composite High Efficiency Suction and Drainage Geomembrane
| Products details information | |
| Product name | Composite High Efficiency Suction and Drainage Geomembrane |
| Brand | Greenland (OEM is available) |
| Thickness | 0.8-2.0mm (0.03inch-0.08inch) |
| Raw material | PP, PET/HDPE, LDPE, LLDPE, EVA, PVC... |
| Application | Building roof systems, insulation and moisture-proof inner surfaces, and drainage protection of roads and track tunnels. |
| Color | Black, White, Green, other colors |
| Standards | GRI-GT12/GT13, ASTM, ISO, GB/T 17643, Q/CR549.6-2017 |
| Welding Tools | Hot wind welding, roller welding machine, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of Composite High Efficiency Suction and Drainage Geomembrane

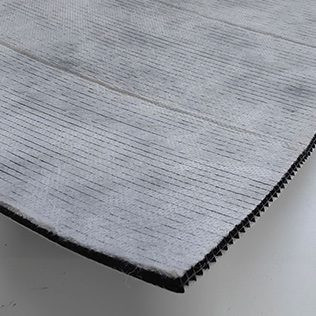

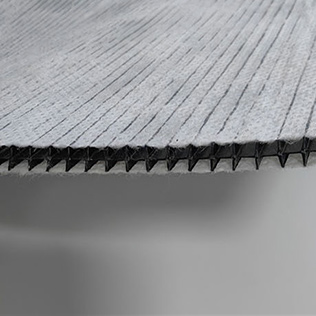

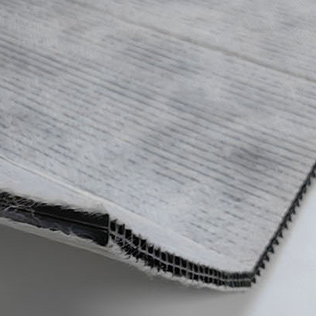

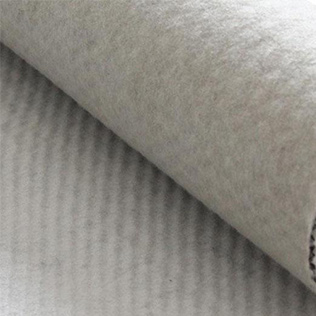

The drainage board in the composite high efficiency suction and drainage geomembrane is made of high density polyethylene resin as raw material, and is made by squeezing the film into a groove shape. At the top of the groove, filter geotextile is placed to ensure unobstructed drainage channels without blocking any objects. It can be widely used for the protection of building roof systems, insulation and moisture-proof inner surfaces, and drainage protection of roads and track tunnels.
 |
 |
 |
| High suction and drainage efficiency | Stretch Resistance | Durable to bursting |
 |
 |
 |
Benefits of Composite High Efficiency Suction and Drainage Geomembrane
The composite high efficiency suction and drainage geomembrane has the advantages of low cost, high efficiency, durability, chemical corrosion resistance, plant root puncture resistance, various applications, simple installation and guaranteed quality.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of Composite High Efficiency Suction and Drainage Geomembrane
| Item | Numerical value | Project | Numerical value |
| Specifications | 16kN-2mm | Specifications | 16kN-2mm |
| Width (m) | ≥6 | Width (m) | ≥6 |
| Length (m) | ≥50 | Length (m) | ≥50 |
| Longitudinal and transverse tensile strength (kN/m) | =16 | Longitudinal and transverse tensile strength (kN/m) | =16 |
| Eelongation at break (%) | 30-50 | Eelongation at break (%) | 30-50 |
| CBR Bursting Strength (N） | ≥3000 | CBR Bursting Strength (N） | ≥3000 |
| Longitudinal and transverse tear strength (N) | ≥600 | Longitudinal and transverse tear strength (N) | ≥600 |
| Spacing between suction and drainage strips (mm) | 50≤C<100 | Spacing between suction and drainage strips (mm) | 50≤C<100 |
| Height of suction and drainage strips (mm) | =2 | Height of suction and drainage strips (mm) | =2 |
| Peel Strength (N/cm) | ≥6 | Peel Strength (N/cm) | ≥6 |
| Suction and drainage efficiency (L/H) | ≥16 | Suction and drainage efficiency (L/H) | ≥16 |
| Explanation: 1. The testing method for suction and drainage efficiency refers to Q/CR 549.6-2017 Geosynthetic Materials for Railway Engineering Part 6: Drainage Materials. 2. The suction and drainage efficiency of this product is about 1.5 times that of ordinary drainage composite film products. 3. The use of polypropylene filament geotextile drainage composite film with the same weight is about three times that of short fiber polyester geotextile drainage composite film. |
|||
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

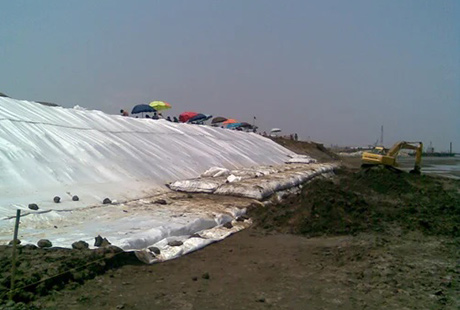

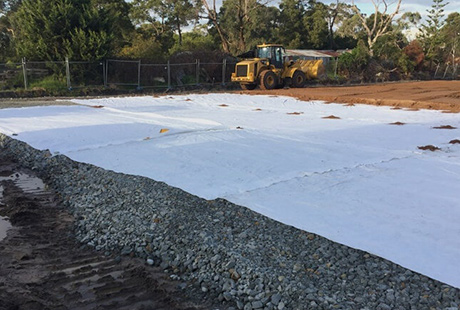

Composite high efficiency suction drainage geomemes are widely used in waterproofing and drainage construction projects such as roads, railway tunnels and underground, building basements and roof gardens.
❖Composite High Efficiency Suction and Drainage Geomembrane for Road Administration & Greening Project
1.Landscape greening and roof garden

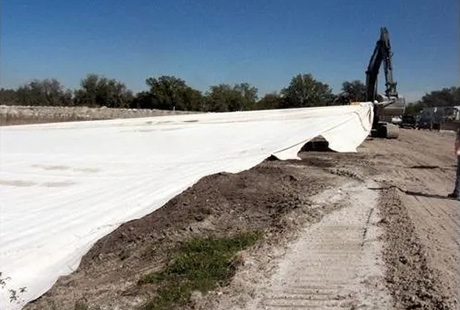

2.Railway subgrade drainage

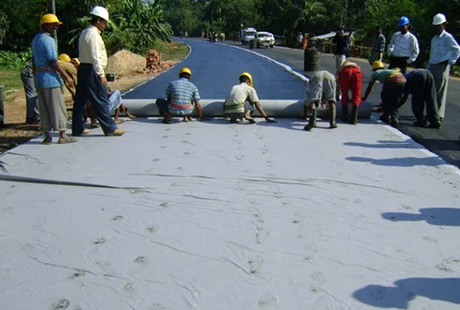

3.Highway subgrade drainage
 |
 |
| Composite High Efficiency Suction and Drainage Geomembrane for Rialway | Composite High Efficiency Suction and Drainage Geomembrane for Highway |
 |
 |
| Composite High Efficiency Suction and Drainage Geomembrane for Road bed | Composite High Efficiency Suction and Drainage Geomembrane for Slope surface |
