Bentonite Geosynthetic Clay Liner(GCL)

  • 1.Width: 1-6m or As your Requirement
  • 2.Length: 25m,30m,35m,or following your Requirement
  • 3.Material: Geotextile + Bentonite + non woven fabric
  • 4.Color: White or As your request
  • 5.Standards: ASTM,ISO,JG/T193-2006
  • 6.Delivery time: stock or 5-10 days after order confirmation
  • 7.Packing: Roll Package
  • 8.MOQ: Trial order is acceptable
  • 9.Free Sample
Send E-mail Get Price

Introduction

Specifications

Application

Download

Bentonite Geosynthetic Clay Liner(GCL) is a new type of geosynthetic material. It is a blanket-like waterproof membrane made of graded natural sodium bentonite particles and corresponding additives mixed as raw materials. The bentonite particles are fixed between geotextiles and plastic woven fabrics through a needle punching process. Bentonite waterproof blanket not only has all the characteristics of geotechnical materials, but also has excellent waterproof (seepage) performance.

Bentonite Geosynthetic Clay Liner(GCL)Quick Details of Bentonite Waterproof Blanket (GCL)

Products details information
Brand Greenland (OEM is available)
Color White or As your Requirement
Raw material Geotextile + Bentonite + non woven fabric
Application lake waterscapes/ landfills/underground garages
Length 25m,30m,35m,or following your Requirement
Standards ASTM,ISO,JG/T193-2006
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty More than 5 years service life
Certificates ISO9001, OHSAS 18001, ISO14001,CE, CRCC
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection, Test Report
Service Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training
Management Effective 8S Management System
No. of employees More than 300 people

❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

Bentonite Geosynthetic Clay Liner(GCL)Description of Bentonite Geosynthetic Clay Liner(GCL)

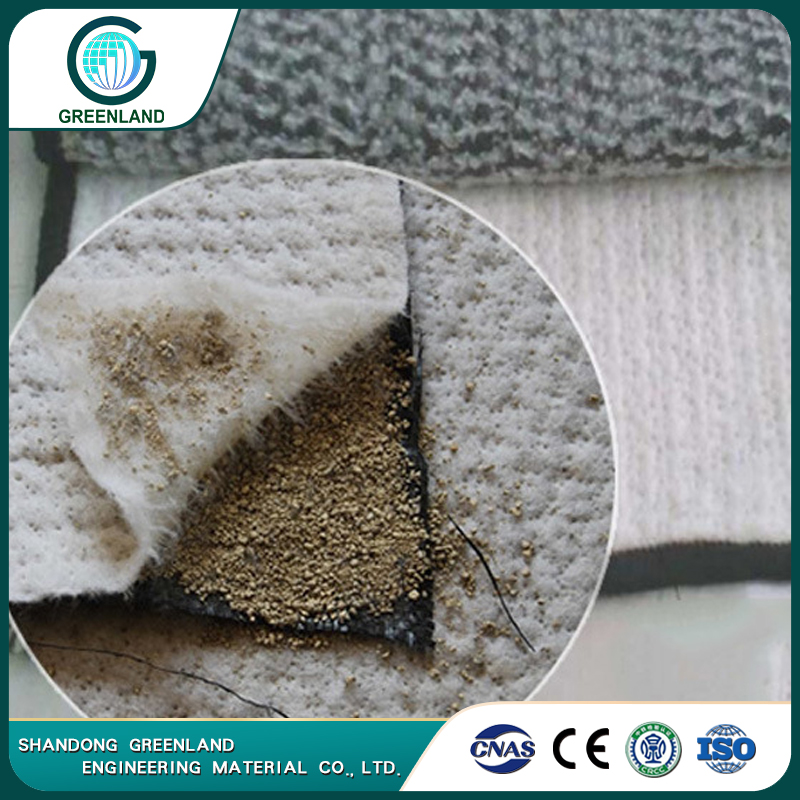

Bentonite Geosynthetic Clay Liner(GCL) is filled with highly expandable bentonite inside non-woven fabric, which is used to waterproof and prevent leakage in some occasions. It is filled with highly expandable sodium bentonite between a special composite geotextile and non-woven fabric. The bentonite anti-seepage mat made by acupuncture method can form many small fiber spaces so that the bentonite particles cannot flow in one direction. When exposed to water, a uniform and high-density gel-like waterproof layer is formed inside the pad, effectively preventing water leakage. Bentonite waterproof blanket is a new type of waterproof material, which is more environmentally friendly than other waterproof materials.

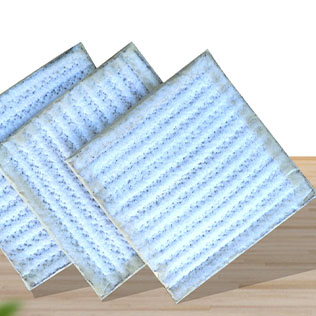

Bentonite Geosynthetic Clay Liner(GCL) Bentonite Geosynthetic Clay Liner(GCL) Bentonite Geosynthetic Clay Liner(GCL)
permanent waterproof performance High quality Product diversity
Bentonite Geosynthetic Clay Liner(GCL) Bentonite Geosynthetic Clay Liner(GCL) Bentonite Geosynthetic Clay Liner(GCL)

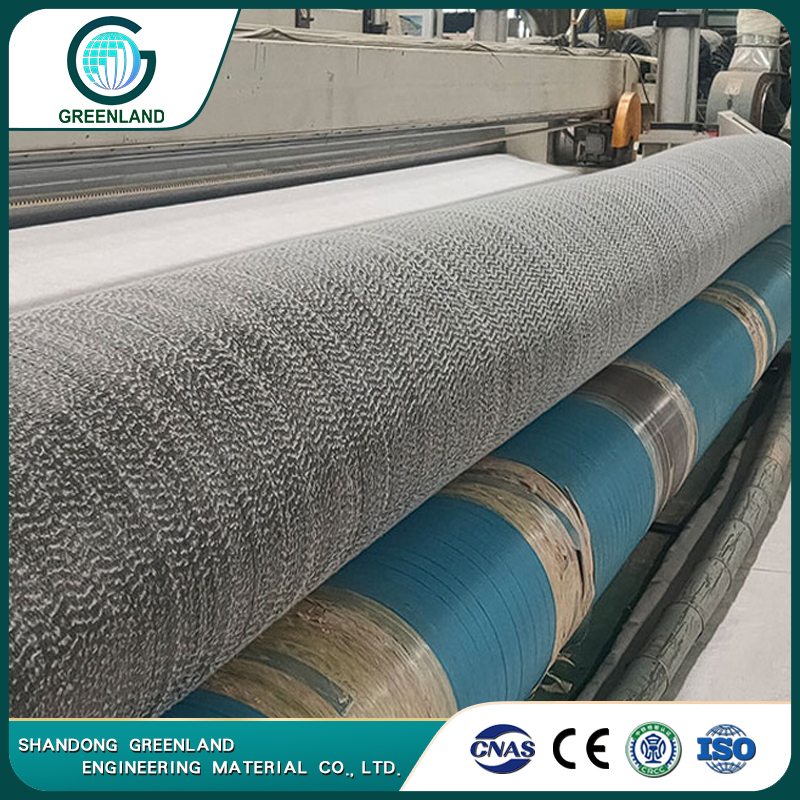

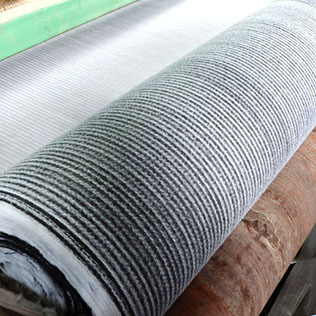

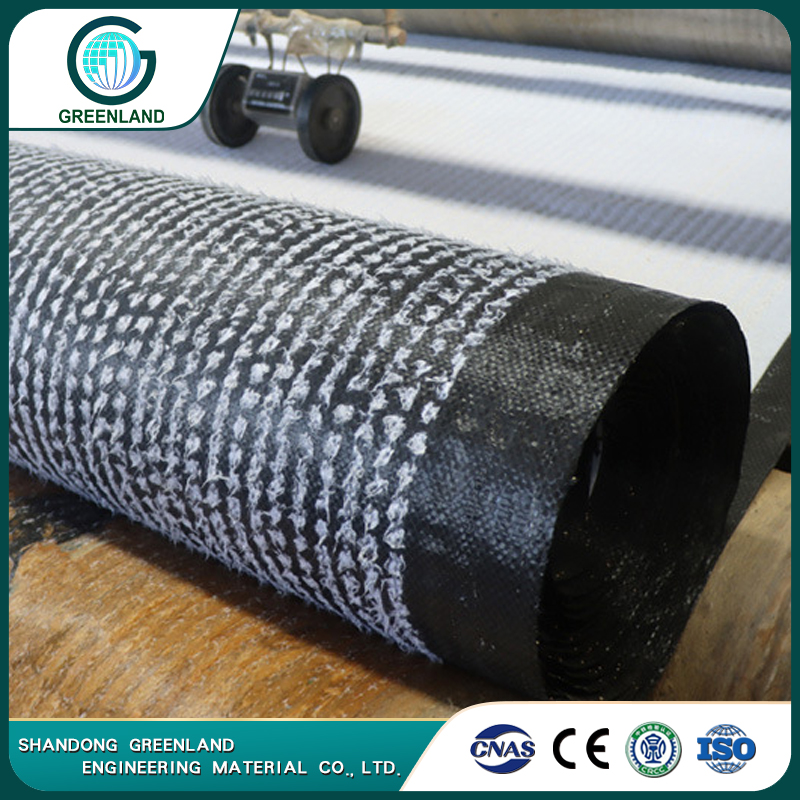

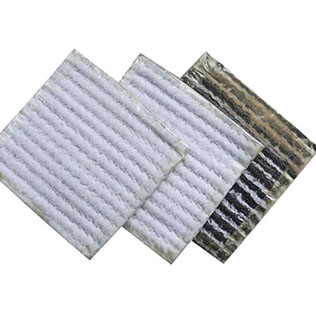

Needle punched process GCL Viscose process GCL Viscose process GCL

Bentonite Geosynthetic Clay Liner(GCL)Benefits of Bentonite Geosynthetic Clay Liner(GCL)

Bentonite Geosynthetic Clay Liner(GCL) consist of clay material and geotextile.About the clay material, it is usually bentonite, which sandwiched between two layers geotextiles. This lining mechanism is mechanically bonded by needle punching from one nonwoven geotextile through the bentonite to the other nonwoven or woven geotextile. The bentonite swells and extrudes through the geotextile fabric at the overlap, forming a seal by producing a dense and uniform clay barrier with the same hydraulic qualities in all parts of the clay liner.Therefore, bentonite waterproof blankets usually have the following characteristics:

  • ◆1.Compactness: Sodium bentonite forms a high-density diaphragm under water pressure and has strong self-retaining water properties.
  • ◆2.Has permanent waterproof performance.
  • ◆3.Easy construction and short construction period: Compared with other waterproof materials, construction is relatively simple. GCL has the shortest construction period among existing waterproof materials.
  • ◆4.Not affected by temperature: It will not break brittlely in cold climate conditions.
  • ◆5.Integration: Integration of waterproof materials and objects.
  • ◆6.Green and environmentally friendly: Bentonite is a natural inorganic material that is harmless to the human body and has no special impact on the environment. It has good environmental performance.

Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.

Bentonite Geosynthetic Clay Liner(GCL) consist of clay material and geotextile.About the clay material, it is usually bentonite, which sandwiched between two layers geotextiles. This lining mechanism is mechanically bonded by needle punching from one nonwoven geotextile through the bentonite to the other nonwoven or woven geotextile. The bentonite swells and extrudes through the geotextile fabric at the overlap, forming a seal by producing a dense and uniform clay barrier with the same hydraulic qualities in all parts of the clay liner.
Bentonite is a natural clay formed by weathering of volcanic ash. Its chief constituent is the clay mineral montmorillonite.
Bentonite is distinguished from other clays by its extreme fineness, highly absorbent nature and curious property of swelling in water.

Bentonite Geosynthetic Clay Liner(GCL) Specifications
Item Technical Parameters
GCL-NP GCL-OF GCL-AH
GCL,Mass/Unit area (g/m²) ≥4000 ≥4000 ≥4000
Swell Index (ml/2g) ≥24 ≥24 ≥24
Absorb Blue Quantity(g/100g) ≥30 ≥30 ≥30
Tensile Strength (KN/m) ≥600 ≥700 ≥600
Elongation at Max load % ≥10 ≥10 ≥8
Peel Strength Non-woven geotextile ≥40 ≥40 -
(N/100mm) PE geotextile and - ≥30 -
Pesitance Hydaulic Pressure (m/s) ≤5.0×10-11) ≤5.0×10-12) ≤1.0×10-12)
Resistance Hydraulic Pressure 0.4 MPa,1h,no leakage 0.6 MPa,1h,no leakage 0.6 MPa,1h,no leakage
Fluid Loss (ml) ≤18 ≤18 ≤18
Durability of Bentonite (ml/2g) ≥20 ≥20 ≥20
Note:
GCL- NP means Needle punched process GCL
GCL-OF means Needle punched and cocoon process GCL
GCL-AH means Viscose process GCL

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

Bentonite waterproof blanket (GCL)is specially used for artificial lake features, landfills, underground garages, roof gardens, pools, oil depots and chemical storage yards.

❖Bentonite Geosynthetic Clay Liner(GCL) for Anti-seepage and protection of infrastructure projects

1.Used in back-filtration protection of retaining walls, road slopes, reservoir dams, earth-rock cofferdams, tunnels, and drainage ditches.

2.It is used for drainage between road slopes, roadbeds, the backside of mountain retaining walls on Yanshan Road, the lower layer of railway ballast, and highway roadbeds and roads.

3.Used in the isolation of soft soil and rocks in building cofferdams, wharves, and embankments, the isolation and protection of landfill bottoms and anti-seepage layers, the isolation between landfill filter materials and garbage, asphalt pavements and Isolation and pavement reinforcement of roadbed.

4.Used in layered reinforcement and drainage of slopes such as highways and railways, and drainage reinforcement of backfill roadbeds and dams.

5.Used in the protection of anti-seepage layers in artificial lakes, rivers, reservoirs and other anti-seepage projects.

6.Used in landscape greening projects to isolate the grassroots layer from the green planting layer.

7.Used for drainage and reinforcement of soft foundation to enhance the bearing capacity of the roadbed.

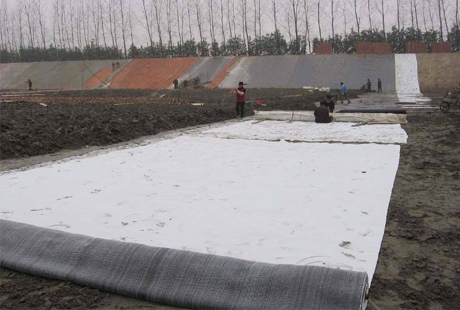

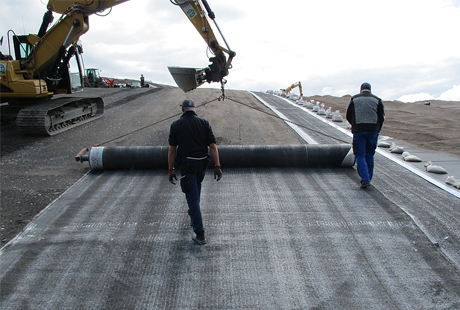

Bentonite Geosynthetic Clay Liner(GCL) For Municipal engineering seepage prevention Bentonite Geosynthetic Clay Liner(GCL) For Artificial lake seepage prevention
Bentonite Geosynthetic Clay Liner(GCL) Bentonite Geosynthetic Clay Liner(GCL)

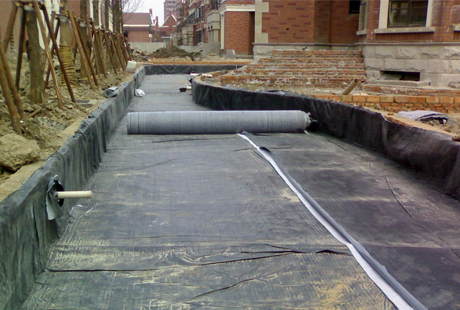

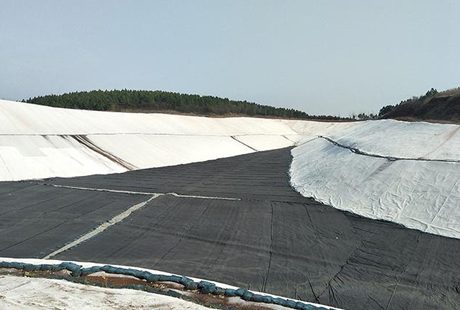

Bentonite Geosynthetic Clay Liner(GCL) For Anti-seepage of roof water tank Bentonite Geosynthetic Clay Liner(GCL) For Anti-seepage and reinforcement

Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
