Warp Knitted Polyester Geogrid

  • 1.Width:1-6m
  • 2.Length:50-100m
  • 3.Material:PP
  • 4.Standards:ASTM,ISO,JT/T 1432.1-2022
  • 5.Delivery time:Stock or 5-10 days after order confirmation
  • 6.Packing:Roll Package
  • 7.MOQ:Trial order is acceptable
  • 8.Free Sample
Send E-mail Get Price

Introduction

Specifications

Application

Download

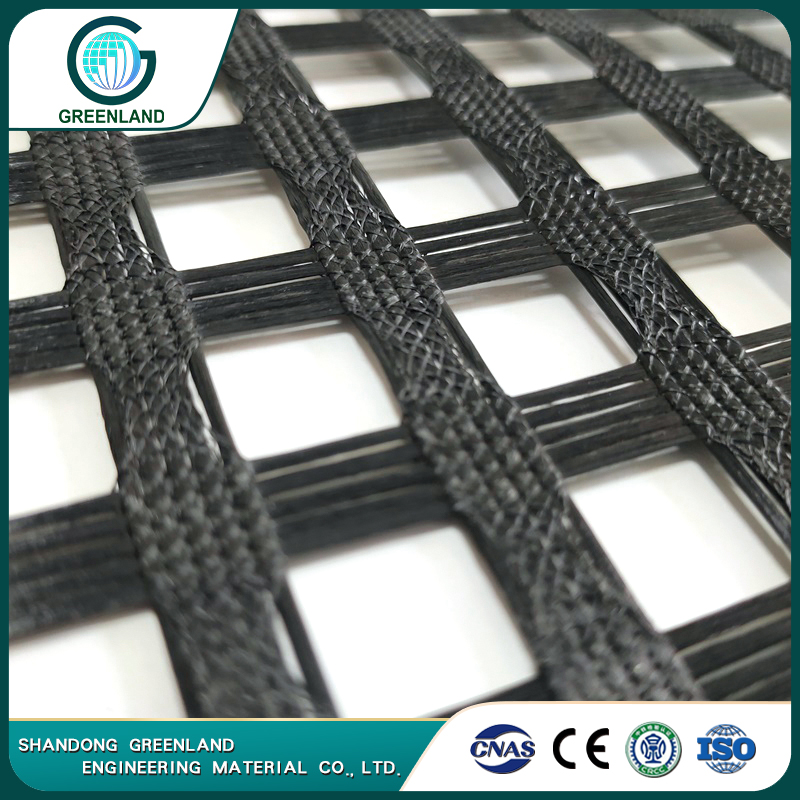

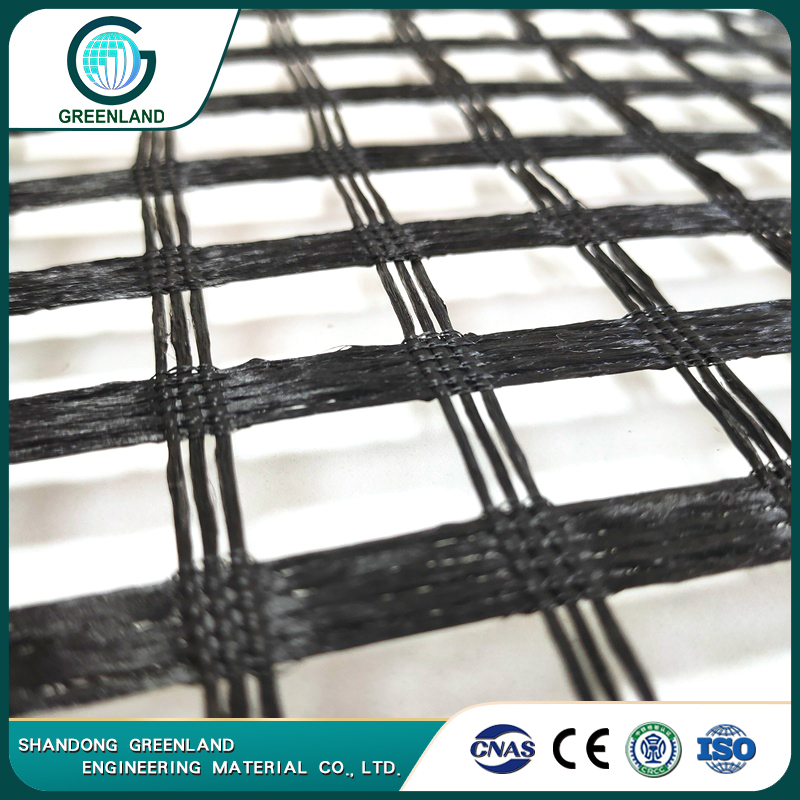

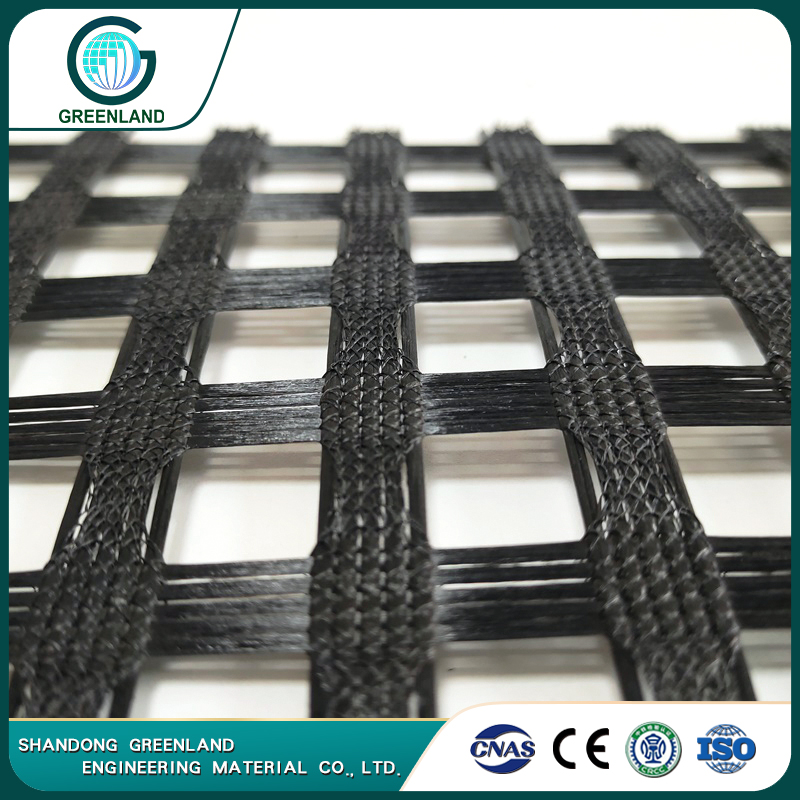

Warp-knitted polyester geogrid is made of high-strength and high-tensile modulus industrial polyester filament, which is oriented warp-knitted to form a grid fabric. The geogrid formed by coating is known as "fiber soft steel bar".

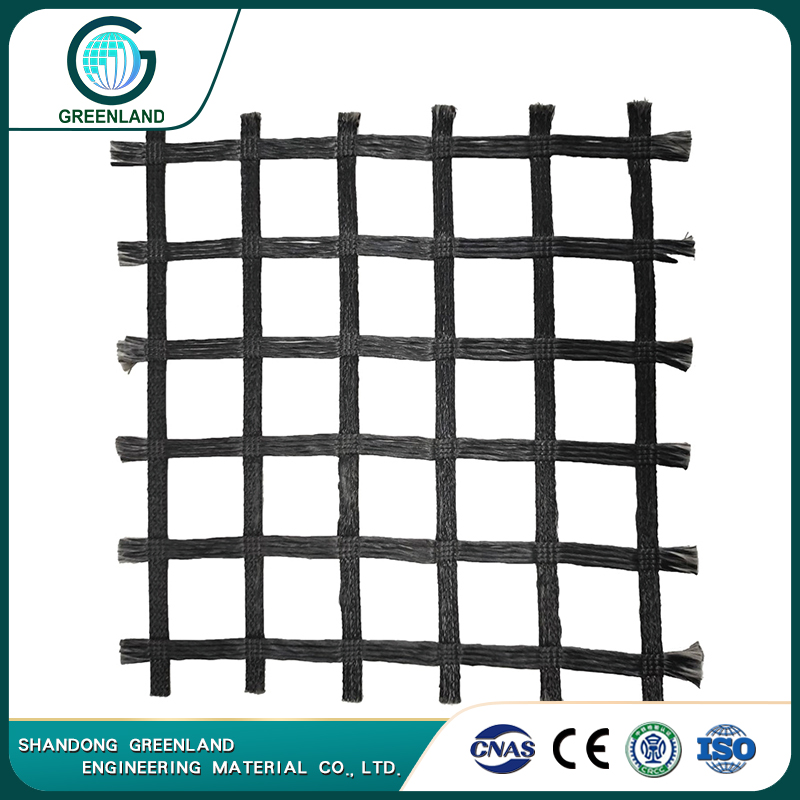

Warp Knitted Polyester GeogridQuick Details of  Warp Knitted Polyester Geogrid

Products details information
Product name Warp Knitted Polyester Geogrid
Brand Greenland (OEM is available)
Model No. Biaxial Geogrid
Raw material PET,PP
Application Stabilisation and Reinforcement
Color Black and other colors
Standards ASTM,ISO,JT/T 1432.1-2022
Welding Tools Hot air welding gun,roller welding machine
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50-70 years service life
Certificates ISO9001, OHSAS 18001, ISO14001,CE, CRCC
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection, Test Report
Service Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training
Management Effective 8S Management System
No. of employees More than 300 people

❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

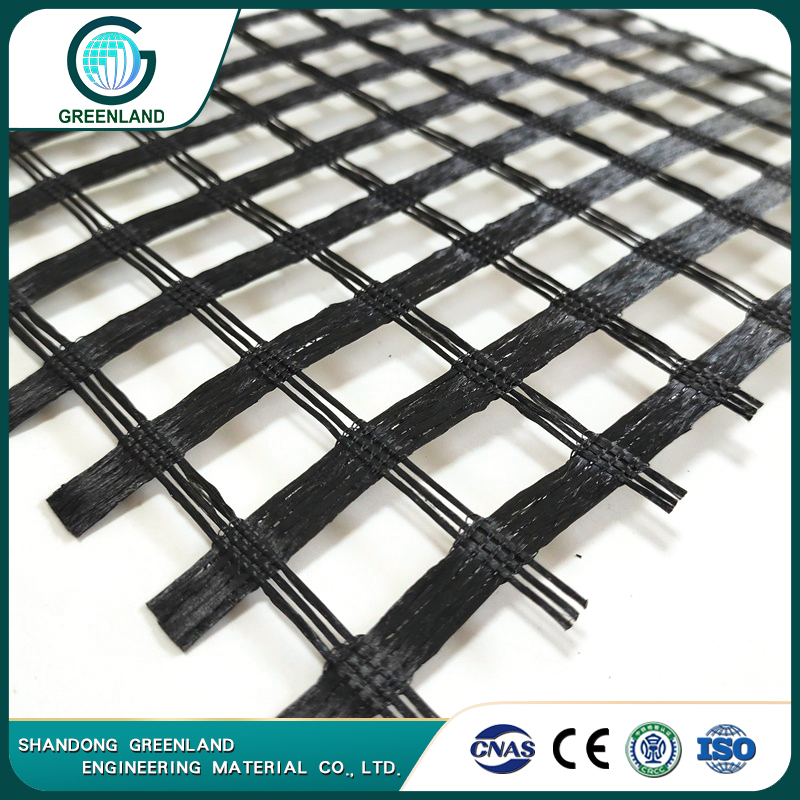

Warp Knitted Polyester GeogridDescription of Warp Knitted Polyester Geogrid

Warp Knitted Polyester geogrid is a type of geosynthetic material that is made from high-strength polyester fibers. These fibers are knitted or woven together to form a grid-like structure that provides reinforcement and stabilization to soil, rock, or other materials. Polyester geogrids are commonly used in construction and civil engineering projects to improve the strength and stability of roads, retaining walls, slopes, and other structures. They are resistant to chemical and biological degradation, making them durable and long-lasting. Additionally, polyester geogrids have high tensile strength and low elongation, allowing them to effectively distribute loads and reduce deformation in the soil.

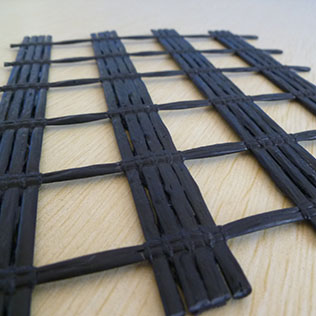

Warp Knitted Polyester Geogrid Warp Knitted Polyester Geogrid Warp Knitted Polyester Geogrid

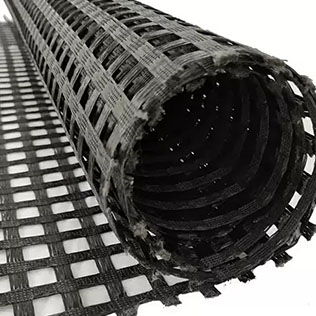

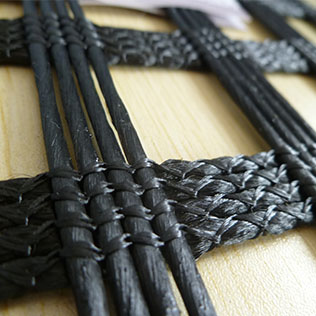

High strength small creep High tensile strength

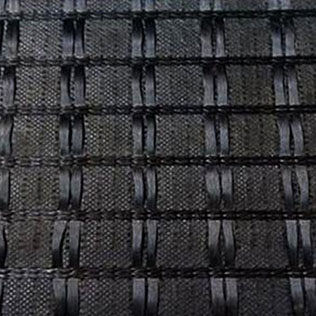

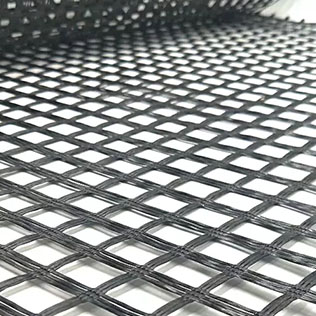

Warp Knitted Polyester Geogrid Warp Knitted Polyester Geogrid Warp Knitted Polyester Geogrid

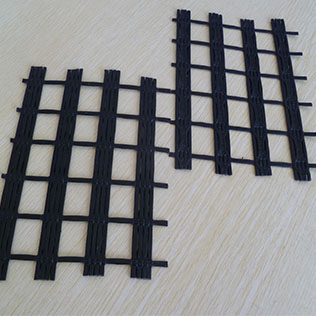

High tear resistance Aging resistance and corrosion resistance Source factory

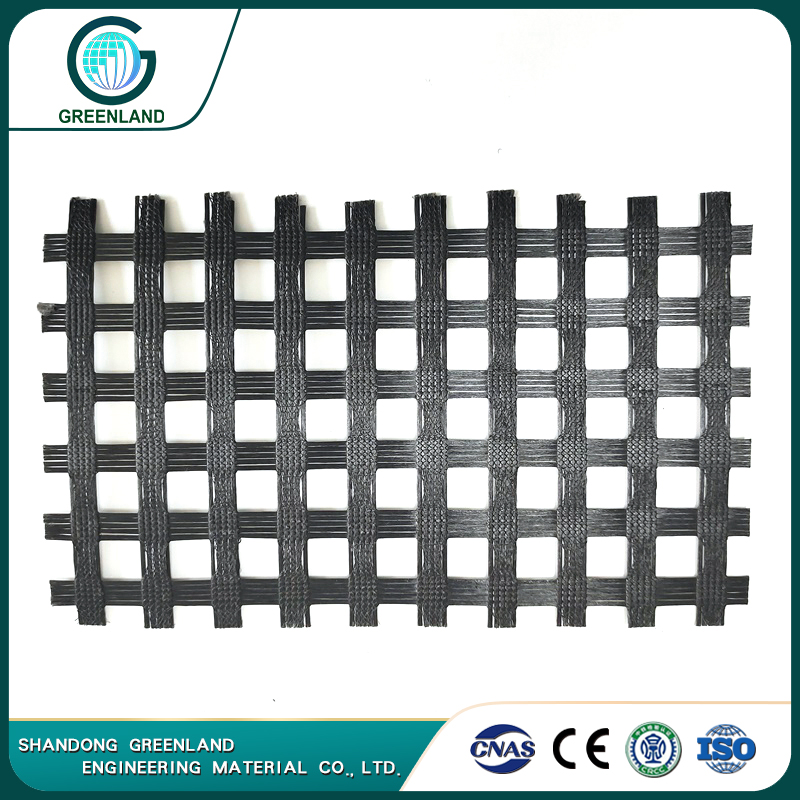

Warp Knitted Polyester GeogridBenefits of Warp Knitted Polyester Geogrid

Polyester geogrid is a new kind of earthwork base material;which is used to strengthen the road surface and roadbed. Composing of high-strength polyester yarns,coated with an inorganic sizing agent
  • 1.High tensile strength: Warp-knitted polyester geogrid has high tensile strength, can withstand large loads, and is not prone to deformation, ensuring the stability of the project.
  • 2.Small elongation rate: A small elongation rate means that the length of the geogrid changes very little when it is subjected to tension, which is beneficial to maintaining its original shape and structure and improving its load-bearing capacity.
  • 3.High tear resistance: High tear resistance makes the geogrid less likely to be torn when subjected to tearing force, ensuring its integrity.
  • 4.Strong interlocking force with soil or gravel: Geogrid has strong interlocking force with soil or gravel, and can be closely combined with the soil to improve the integrity and stability of the soil.
  • 5.Aging resistance and corrosion resistance: Warp-knitted polyester geogrid has good aging resistance and corrosion resistance, and can be used for a long time in various environments to maintain stable performance.
  • 6.Enhance soil shear resistance and reinforcement: Geogrids can increase the shear strength and reinforcement effect of soil, improve the mechanical properties of soil, and improve the stability of the project.

Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WahtsApp): +86 155 15596408.

Warp knitted polyester geogrid is woven by high strength polymer yarns. The polyester geogrid is created  through  interlacing, usually at right angles, two or more yarns or filaments. PET geogrid is coated with polymer or nontoxic substance material for uv ,acid and alkali resistance and prevents the bio-decomposition.. It is applied to the treatment of soft soil foundation and reinforcement of subgrade, dyke and other projects, so as to improve the quality of the project and reduce the cost of the project.

 Index Properties Test Method Unit 30-30 50-50 80-80 100-100 200-200
 Polymer   -   High strength polyester yarn coated with PVC
 Ultimate Tensile Strength, MD ASTM D6637 kN/m 30 50 80 100 200
 Ultimate Tensile Strength, TD ASTM D6637 kN/m 30 50 80 100 200
 Strain @ Ultimate Strength, MD ASTM D6637 % 13
 Mesh size, MD - mm 25.4 25.4 25.4 25.4 25.4
 Mesh size, TD - mm 25.4 25.4 25.4 25.4 25.4
 Roll Width - m 3.95 or 5.0 or 5.2 or 5.95
 Roll Length - m 100
warp knitted polyester geogrid
Property Test Method PET
30-30		 PET
80-80		 PET
120-120		 PET
200-200
Ulimate tensile
strength(kn/m)		 MD EN ISO 10319 30 80 120 200
CD 30 80 120 200
Elongation at max load (%) MD 13
CD 13
Mesh Size (mm) 12-50
Roll width(m) 1-6
Roll length(m) 50-200

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@glgeosynthetics.com or Mobile:(WahtsApp): +86 155 15596408.

Polyester warp knitted geogrid adopts high strength polyester industrial filament, weaving warp mesh fabric through warp knitting, and processing it into geogrid by PVC coating. It is applied to the treatment of soft soil foundation and reinforcement of subgrade, dyke and other projects, so as to improve the quality of the project and reduce the cost of the project.

❖Warp knitted polyester geogrid for stabilisation and reinforcement

1. warp knitted polyester geogrid is used in highway, railway, municipal road and other road soft roadbed reinforcement, can effectively improve the roadbed strength and delay the reflection cracks of the road.

2. the reinforcement and isolation of dam and river in hydraulic engineering of warp knitted polyester geogrid, reinforce the soft soil foundation, strengthen its protection ability, and improve the bearing capacity and stability of the foundation.

3. warp knitted polyester geogrid reinforced embankment slope, retaining wall reinforcement, enhance the overall strength, highway, railway, water conservancy and other soft soil foundation reinforcement.

4. warp knitted polyester geogrid for railway ballast protection: because the train vibration and wind and rain, causing loss of ballast, with geogrid encased ballast, ballast to prevent the loss, improve the stability of the roadbed;

5.warp knitted polyester geogrid for Railway Retaining Wall: the geogrid reinforced retaining wall of Railway on the train station, for example with Taiwan and Taiwan goods, can prolong the service life, reduce maintenance costs.

6.warp knitted polyester geogrid reinforced retaining wall in highway side and vertical retaining wall with geogrid, can improve the bearing capacity of the retaining wall.

Warp Knitted Polyester Geogrid Warp Knitted Polyester Geogrid

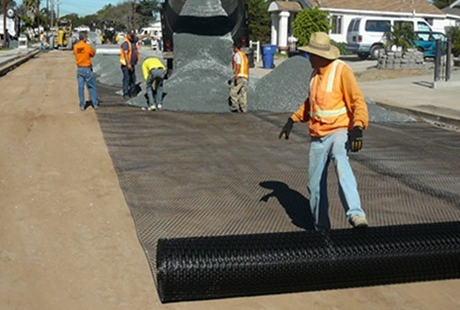

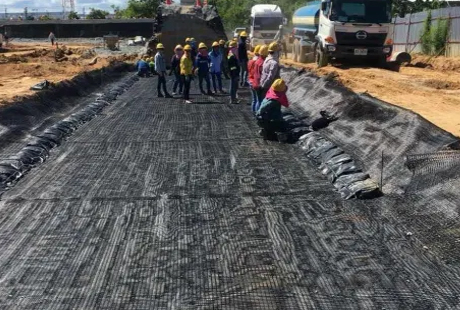

 Reinforcement of bridge abutment foundation Reinforcement of  bridge abutment foundation
Warp Knitted Polyester Geogrid Warp Knitted Polyester Geogrid

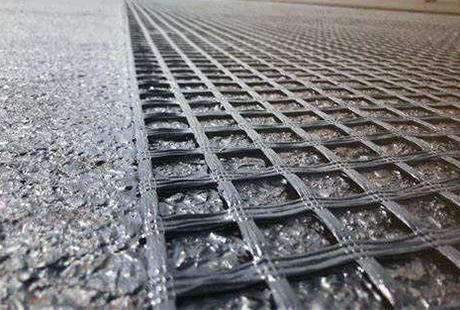

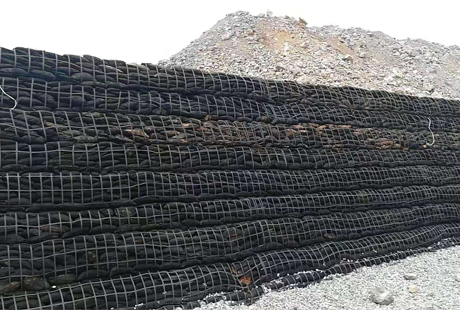

Railway ballast protection  Railway soft soil Reinforcement

Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
