The Plastic Blind Ditch

  • 1.Width: Customizable
  • 2.Length: 25m,30m,35m,or following your Requirement
  • 3.Material: PP
  • 4.Color: White,Black or as your request
  • 5.Standards: CE/ISO/ASTM
  • 6.Delivery time: stock or 5-10 days after order confirmation
  • 7.Packing: Roll Package
  • 8.MOQ: Trial order is acceptable
  • 9.Free Sample
Send E-mail Get Price

Introduction

Specifications

Application

Download

The plastic blind ditch is composed of a plastic core body wrapped with filter cloth. The plastic core is made of thermoplastic synthetic resin as the main raw material. After modification, in the hot melt state, thin plastic filaments are extruded through the nozzle, and then the extruded plastic filaments are welded at the nodes through the forming device , Forming a three-dimensional three-dimensional network structure. The plastic core has a variety of structural forms such as rectangle, hollow matrix, circular hollow circle and so on. This material overcomes the shortcomings of traditional blind ditch. It has high surface opening rate, good water collection, large porosity, good drainage, strong pressure resistance, good pressure resistance, good flexibility, adapt to soil deformation, and good durability. , Light weight, convenient construction, greatly reduced labor intensity of workers, and high construction efficiency. Therefore, it is generally welcomed by the Engineering Bureau and is widely used.

The Plastic Blind DitchQuick Details of Plastic Blind Ditch

Products details information
Product name Plastic Blind Ditch
Brand Greenland (OEM is available)
Color Black or As your Requirement
Raw material PP
Application Hydraulic Project, Geotechnical Project, Environmental Project
Length 50m,100m,or following your Requirement
Standards ASTM/ISO
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty More than 5 years service life
Certificates ISO9001, OHSAS 18001, ISO14001,CE, CRCC
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection, Test Report
Service Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training
Management Effective 8S Management System
No. of employees More than 300 people

❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

The Plastic Blind DitchDescription of Plastic Blind Ditch

The plastic blind ditch is composed of a plastic core body wrapped with filter cloth. The plastic core is made of thermoplastic synthetic resin as the main raw material. After modification, in the hot melt state, thin plastic filaments are extruded through the nozzle, and then the extruded plastic filaments are welded at the nodes through the forming device. , Forming a three-dimensional three-dimensional network structure. The plastic core has a variety of structural forms such as rectangle, hollow matrix, circular hollow circle and so on. This material overcomes the shortcomings of traditional blind ditch. It has high surface opening rate, good water collection, large porosity, good drainage, strong pressure resistance, good pressure resistance, good flexibility, adapt to soil deformation, and good durability. , Light weight, convenient construction, greatly reduced labor intensity of workers, and high construction efficiency. Therefore, it is generally welcomed by the Engineering Bureau and is widely used.

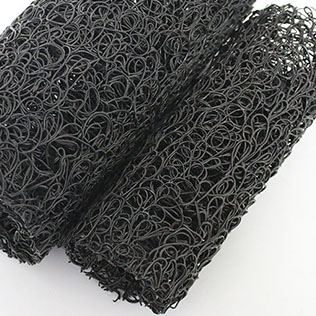

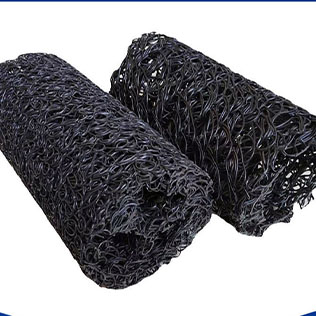

The Plastic Blind Ditch The Plastic Blind Ditch The Plastic Blind Ditch
high pressure resistance large opening density horizontal drainage function

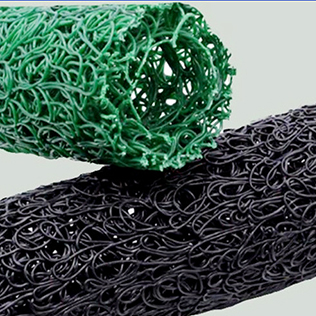

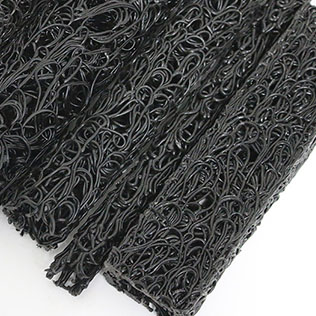

The Plastic Blind Ditch The Plastic Blind Ditch The Plastic Blind Ditch
all-round water collection High quality Long service life

The Plastic Blind DitchBenefits of Plastic Blind Ditch

The plastic blind ditch is used in railway construction, highway construction, airport runway, golf course, football field, large lawn, landscaping, expressway, landfill, slope retaining wall, tunnel and other large-scale drainage projects

  • ◆1.Drainage blind plate is a new type of geosynthetic material. It has high pressure resistance, large opening density, and has all-round water collection and horizontal drainage functions.
  • ◆2.After the drainage blind plate is combined with the non-woven geotextile, it can avoid possible sliding problems caused by the water saturation of the soil covering layer.
  • ◆3.Drainage blind plates are especially suitable for use in landfills.
  • ◆4.When the drainage blind plate is used in combination with HDPE, it can also effectively protect the HDPE film from being punctured.

Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.

The plastic blind ditch is composed of a plastic core wrapped with filter cloth. The plastic core is made of thermoplastic synthetic resin as the main raw material. Whose main function is to sieve sand and clay so as to avoid blockage.

Plastic Blind Ditch
Model Rectangular section
MF7030 MF1230 MF1550 MF1235
Dimensions (widthxthickness)mm 70*30 120*30 150*50 120*35
Hollow size(widthxthickness)mm 40*10 40*10*2 40*20*2 40*10*2
Weight≥g/m 350 650 750 600
Void ratio % 82 82 85 82
Compressive strength Flat rate 5%≥KPa 60 80 50 70
Flat rate 10%≥KPa 110 120 70 110
Flat rate 15%≥KPa 150 160 125 130
Flat rate 20%≥KPa 190 190 160 180
Model Circular section
MY60 MY80 MY100 MY150 MY200
Dimensions (width*thickness) mm φ60 φ80 φ100 φ150 φ200
Hollow size (width*thickness) mm φ25 φ45 φ55 φ80 φ120
Weight≥g/m 400 750 1000 1800 2900
Void ratio % 82 82 84 85 85
Compressive strength flat rate 5%≥KPa 80 85 80 40 50
flatrate 10%≥KPa 160 170 140 75 70
flat rate 15%≥KPa 200 220 180 100 90
flatrate 20%≥KPa 250 280 220 125 120D

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

The plastic blind ditch is composed of a plastic core wrapped with filter cloth. The plastic core is made of thermoplastic synthetic resin as the main raw material. Whose main function is to sieve sand and clay so as to avoid blockage.

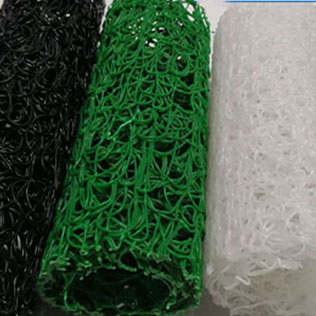

This product has four shapes, including rectangular shape with many holes, rectangular shape with empty center, round shape with many holes, round shape with empty center.

The products are used in railway construction, highway construction, airport runway, golf course, football field, large lawn, landscaping, expressway, landfill, slope retaining wall, tunnel and other large-scale drainage projects.

❖Plastic Blind Ditch for drainage projects

1.Reinforcement and drainage of road and railway subgrade shoulders.

2.Drainage of tunnels, subway underground passages, and underground cargo yards.

3.Soil and water conservation for hillside land and side slope development.

4.Vertical and horizontal drainage of various retaining walls.

5.Drainage of slippery ground.

6.Drainage of ash pile in thermal power plant. Waste landfill project drainage.

7.ports grounds, golf courses, baseball fields, football fields, parks and other rest and green space drainage.

8.Drainage of roof garden and flower stand.

The Plastic Blind Ditch The Plastic Blind Ditch

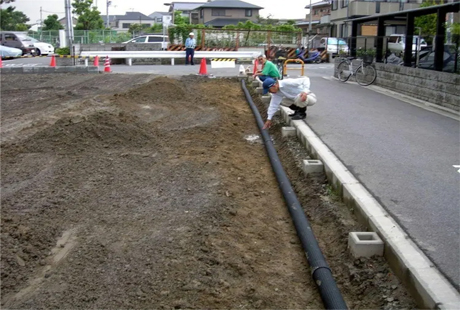

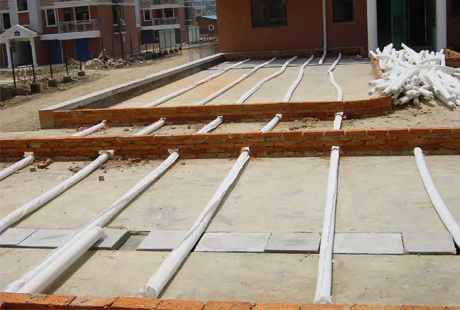

The plastic blind ditch for construction drainage The plastic blind ditch for Highway subgrade drainage
The Plastic Blind Ditch The Plastic Blind Ditch

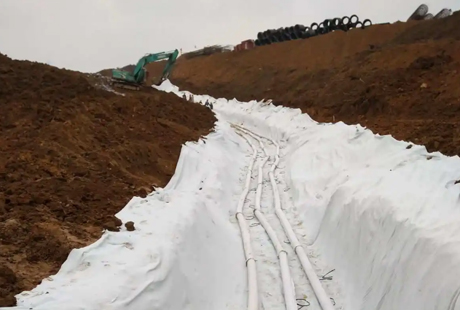

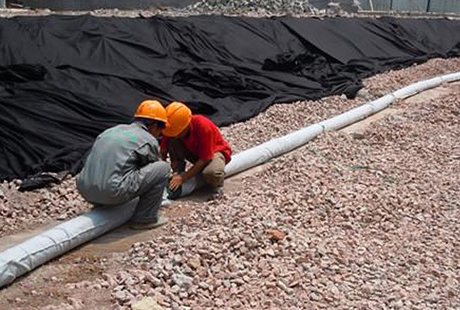

The plastic blind ditch  for Landfill project drainage The plastic blind ditch for slope land development

Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
