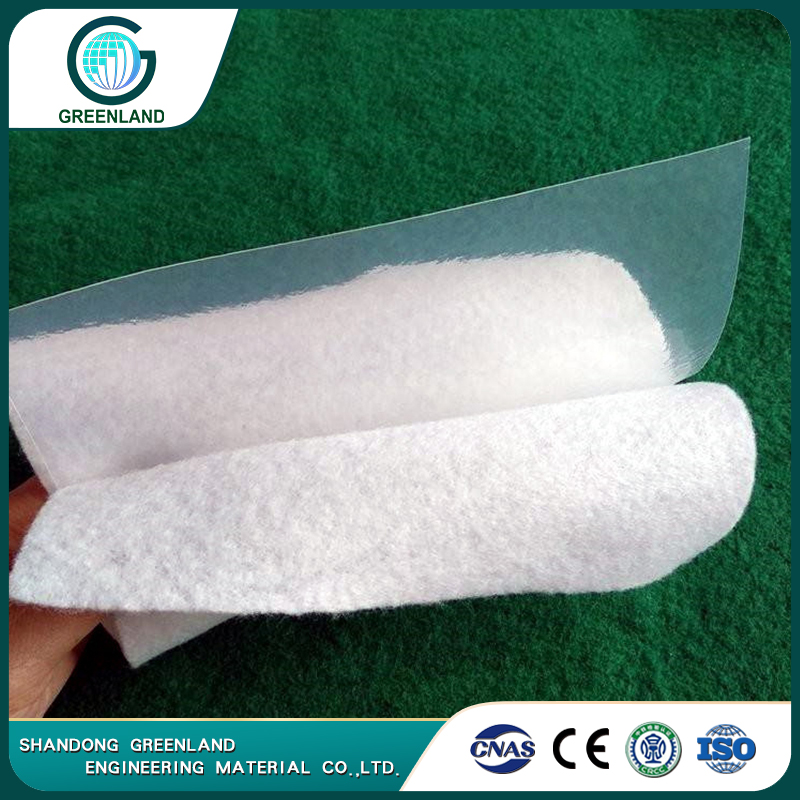

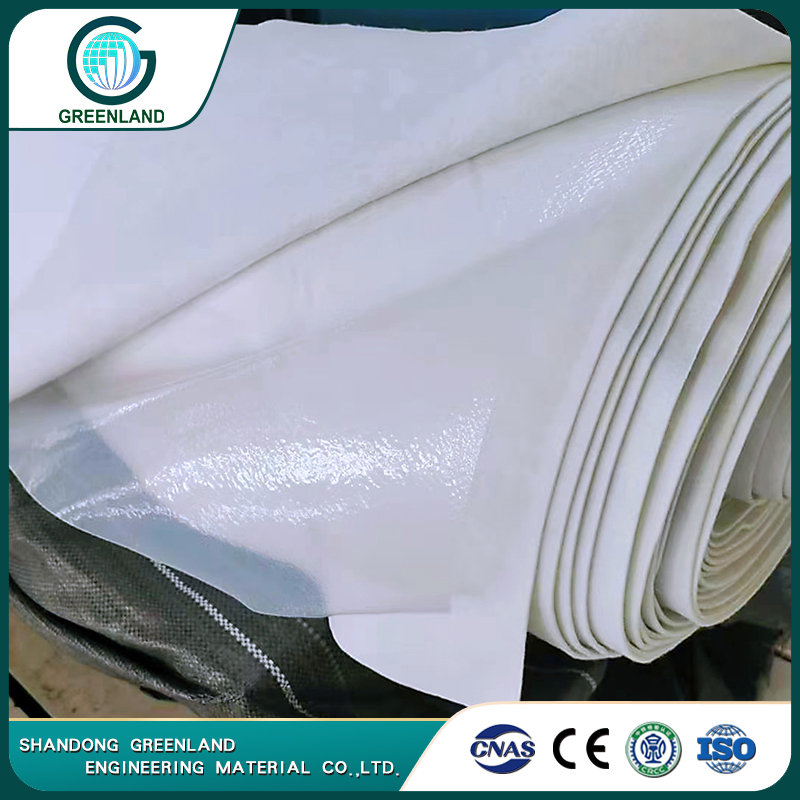

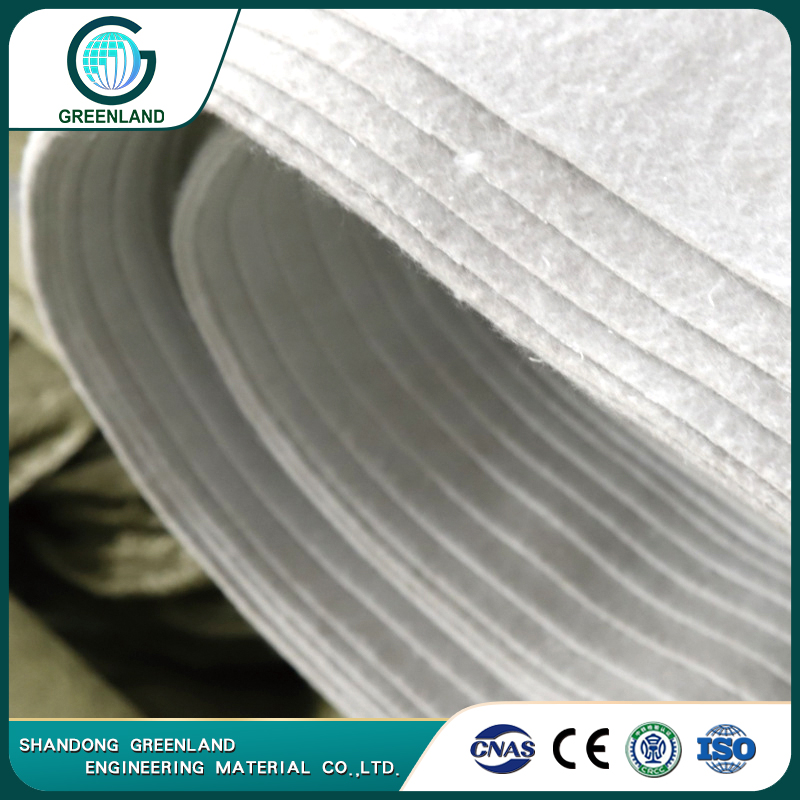

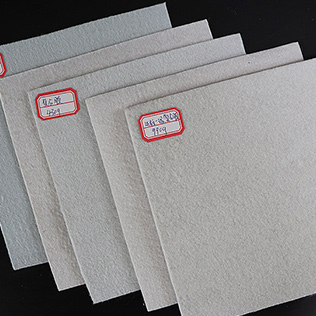

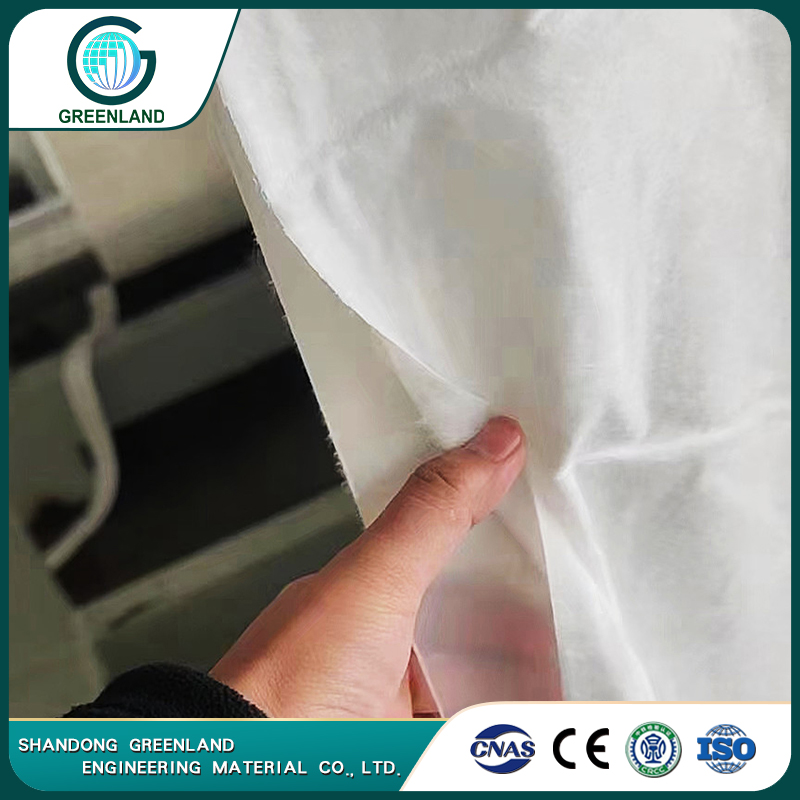

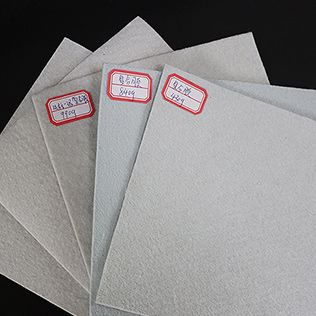

Staple Fiber Geotextile Composite Geomembrane
- 1. Dimensions: 80-1000g/m²
- 2. Width: Max.6M
- 3. Raw material: PP, PET/HDPE, LDPE, LLDPE, EVA, PVC…
- 4. Standards: GRI-GT12/GT13, ASTM, ISO, GB/T 17642-2008
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 50-100m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample
Composite geomembrane is a geosynthetic anti-seepage material composed of plastic film as the anti-seepage substrate and nonwoven fabric. Its anti-seepage performance mainly depends on the anti-seepage performance of the plastic film.The plastic films used for anti-seepage applications both domestically and internationally mainly include polyvinyl chloride (PVC), polyethylene (HDPE, LDPE, LLDPE), and ethylene/vinyl acetate copolymer (EVA). They are polymer chemical flexible materials with small specific gravity, strong extensibility, high adaptability to deformation, corrosion resistance, low temperature resistance, and good frost resistance.
Staple fiber geotextile composite geomembrane is composed of short fiber needled geotextile and impermeable geomembrane by thermal bonding together, widely used in water conservancy dam, road construction, airport, drainage, housing, environmental protection and many other fields, in the project mainly plays the role of seepage prevention, protection, reinforcement and so on.
Quick Details of Staple Fiber Geotextile Composite Geomembrane
| Products details information | |
| Product name | Staple Fiber Geotextile Composite Geomembrane |
| Brand | Greenland (OEM is available) |
| Dimensions | 80-1000g/m² |
| Raw material | PP, PET/HDPE, LDPE, LLDPE, EVA, PVC... |
| Application | Water conservancy dam, road construction, airport, drainage, housing, environmental protection and many other fields, in the project mainly plays the role of seepage prevention, protection, reinforcement and so on. |
| Color | Black, White, Green, other colors |
| Standards | GRI-GT12/GT13, ASTM, ISO, GB/T 17642-2008 |
| Welding Tools | Hot wind welding, roller welding machine, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of Staple Fiber Geotextile Composite Geomembrane

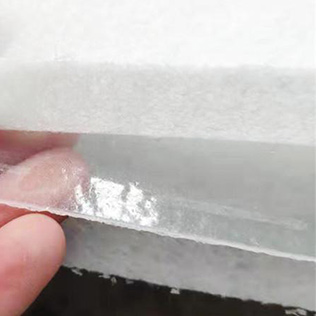

Staple fiber geotextile composite geomembrane is an impervious material composed of short fiber nonwoven geotextile and geomembrane composite, divided into a cloth a film and two cloth a film, a wide width commonly used 4-6 meters, weight of 200-1500 g/m2. Staple fiber geotextile composite geomembrane is generally used in highway/railway projects, artificial lake landscape lake projects, engineering sewage ponds, lotus shrimp and fish breeding projects, reservoir water conservancy projects, etc.
 |
 |
 |
| Good ductility | Soft and wear-resistant | Good permeability |
 |
 |
 |
Benefits of Staple Fiber Geotextile Composite Geomembrane
Staple fiber nonwoven geotextile composite geomembrane not only has the functions of geotextile isolation, drainage, reinforcement protection, but also has the function of sealing (anti-seepage). High puncture resistance, large friction coefficient, good aging resistance, adapt to the environment temperature range, excellent drainage resistance, suitable for water conservancy, chemical industry, construction, transportation, subway, tunnel, garbage disposal and other projects.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of Staple Fiber Geotextile Composite Geomembrane
Technical Specifications of Staple Fiber Geotextile Composite Geomembrane (GB/T17642-2008)
| Item | Indicators | ||||||||
| Specifications | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | Notes | |
| Breaking strength kN/m | 5.0 | 7.5 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | Vertical and horizontal | |
| Elongation at break % | 30~100 | Vertical and horizontal | |||||||
| CBR Bursting strength kN ≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | ||
| Tearing strength kN ≥ | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 | Vertical and horizontal | |
| Peel strength N/cm | 6 | ||||||||
| Vertical permeability coefficient | According to the design contract requirements | ||||||||
| Item | Film thickness/mm | ||||||||
| 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | ||
| Resistance to static water pressure /Mpa≥ | One cloth one film | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 |
| Two cloths one film | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
- Staple fiber geotextile composite geomembrane can be used in water conservancy, municipal, construction, transportation, subway, tunnel, engineering construction in the seepage prevention, isolation, reinforcement, crack reinforcement and other civil engineering needs; It is often used for anti-seepage treatment of dams, drainage ditches, and anti-pollution treatment of waste yards. In the aquaculture industry, the use of composite geomembrane is also quite large, and many farms use composite geomembrane to do pond slope protection.
❖Staple Fiber Geotextile Composite Geomembrane for Municipal & Environmental Project
1.Fish Ponds, Shrimp Ponds And Other Aquaculture
2.Environmental Protection
3.Protaction Project
 |
 |

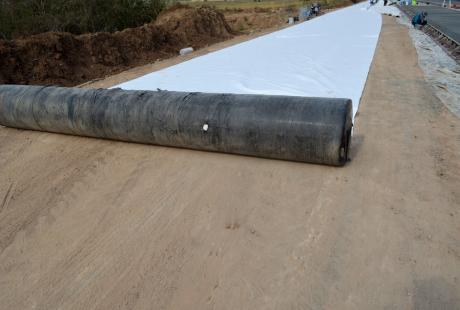

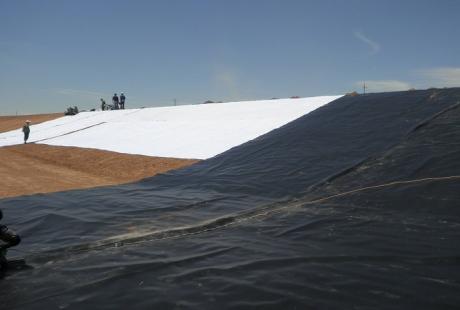

| Staple Fiber Geotextile Composite Geomembrane for Ack Proof | Staple Fiber Geotextile Composite Geomembrane for Ewage Treatment Plant |
 |
 |

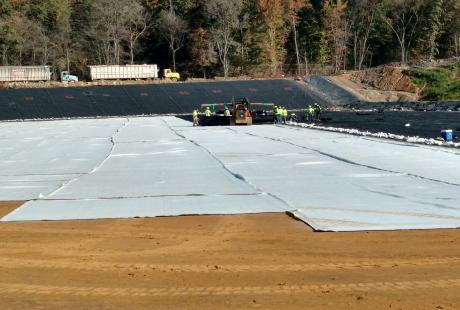

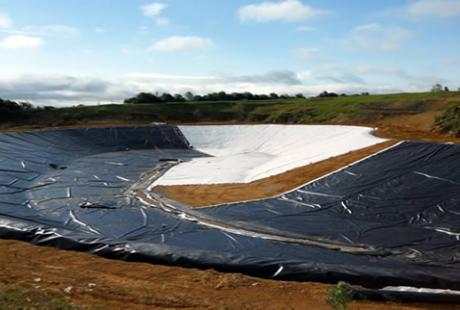

| Staple Fiber Geotextile Composite Geomembrane for Irrigation | Staple Fiber Geotextile Composite Geomembrane for Landfill |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Staple Fiber Geotextile Composite Geomembrane
- Below are the detailed information on Short Fiber Geotextile Composite Geomembrane for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- Short Fiber Geotextile Composite Geomembrane
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
