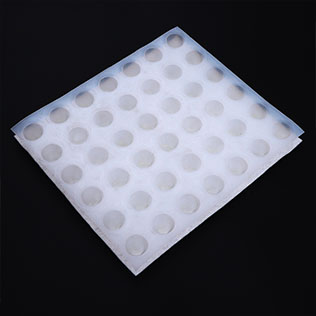

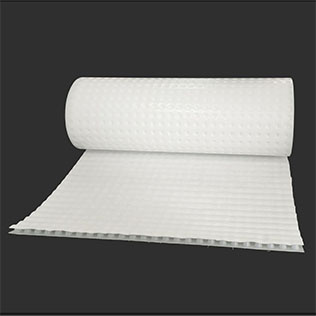

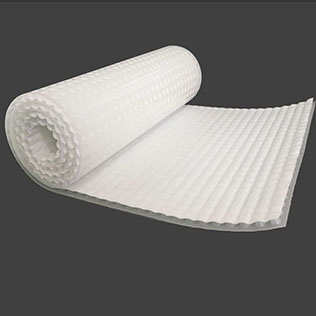

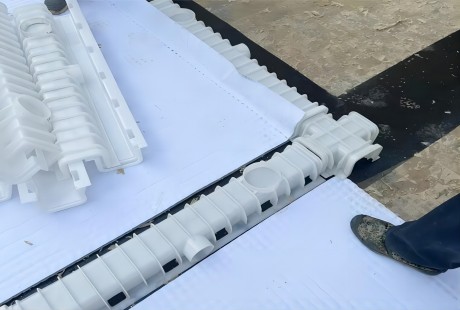

Siphon Composite Drainage Board

  • 1. Thickness: 1.0-1.5mm
  • 2. Whole thickness(single or double side): 10mm—-40mm
  • 3. Raw material: HDPE heat bonded with Non woven fabric
  • 4. Color: Black or white
  • 5. Standards: ASTM, ISO, GB/T17690
  • 6. Delivery period: stock, 5-10 days production date
  • 7. Packing: 50-100m length/roll
  • 8. MOQ: Trial order is acceptable
  • 9. Free Sample
Send E-mail Get Price

Introduction

Specifications

Application

Download

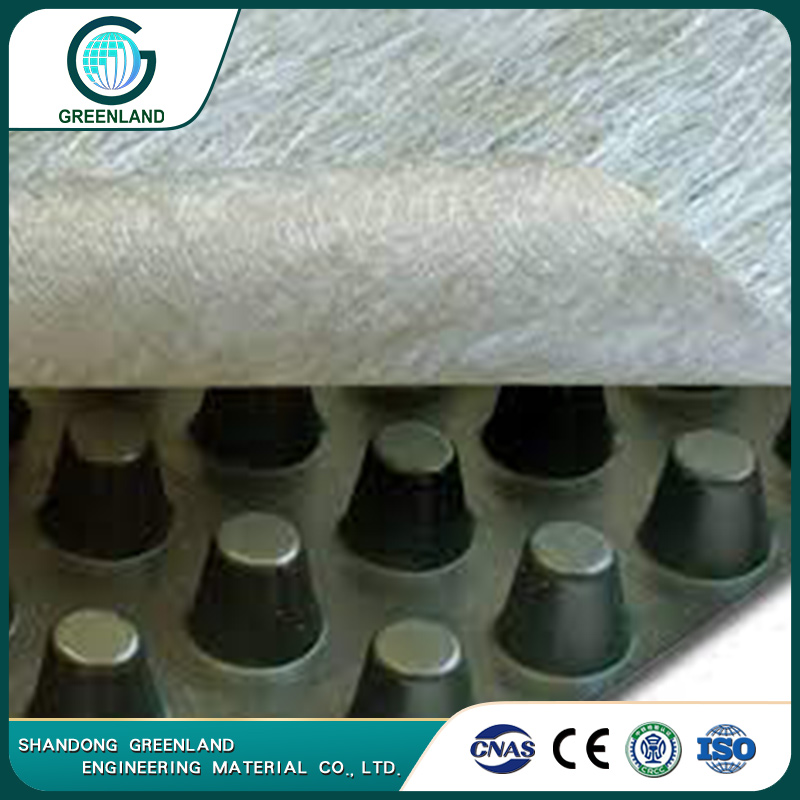

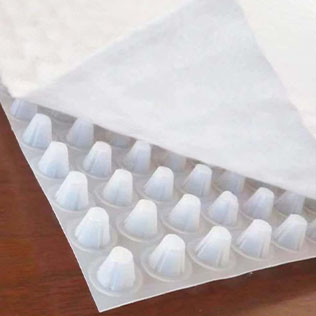

Siphon composite drainage board is a new type of drainage geotechnical material. It is made of high-density polyethylene (HDPE) as raw material and processed through a special extrusion molding process. It has two layers of special structure. The middle ribs are highly rigid, arranged longitudinally, and form a drainage channel. The ribs arranged crosswise up and down form a support to prevent the geotextile from being embedded in the drainage channel, and can maintain high drainage performance even under high loads. The combination of water-permeable geotextile bonded on top has the comprehensive performance of "reverse filtration-drainage-breathability-protection" and is currently the most ideal drainage material. The siphon drainage system is an important part of the building's water supply and drainage system.

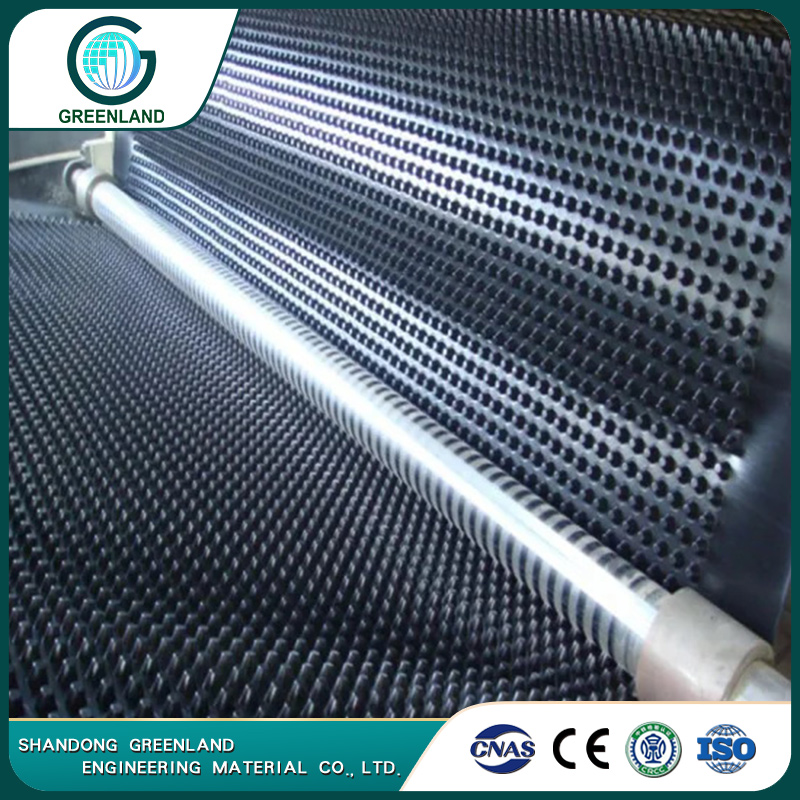

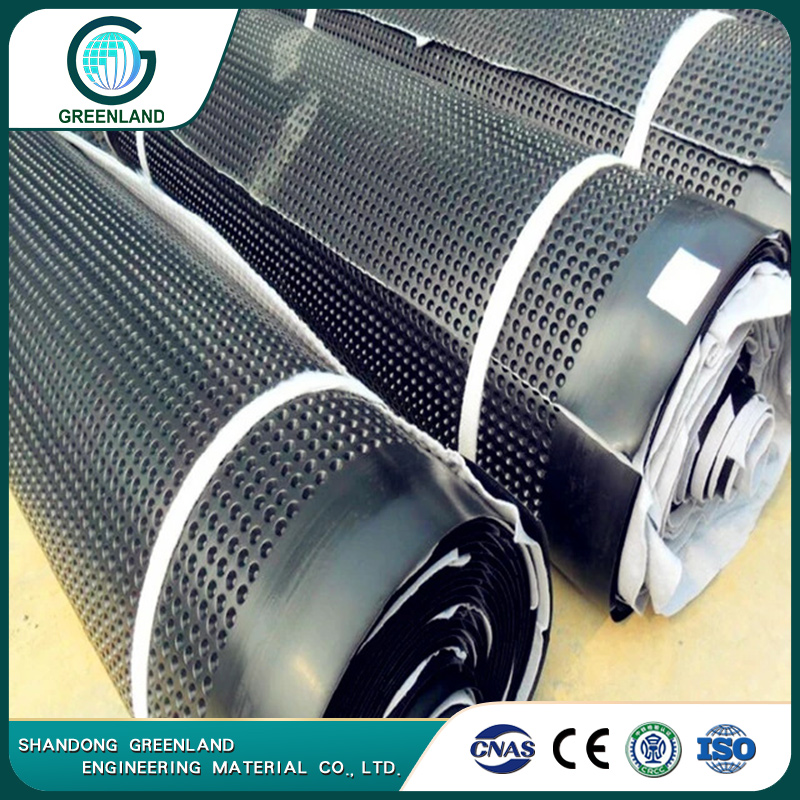

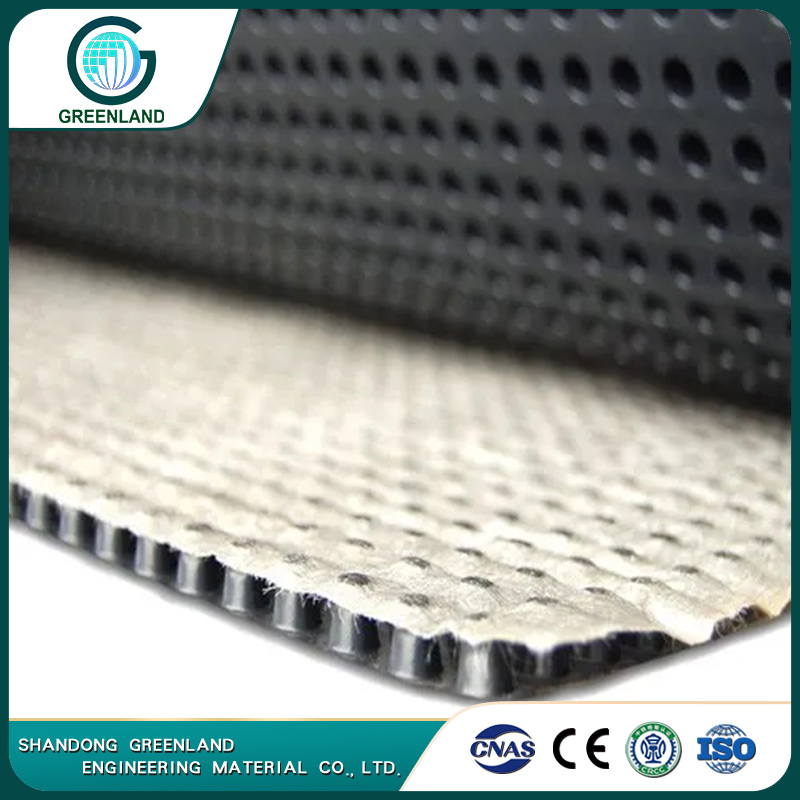

3D Composite Drainage NetworkQuick Details of Siphon composite drainage board

Products details information
Product name 3D Composite Drainage Network
Brand Greenland (OEM is available)
Thickness 5.0-8mm (0.197inch-0.315inch)
Raw material HDPE
Application Railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage works
Color Black, White, other colors
Standards ASTM, ISO, GB/T 17690
Welding Tools Hot air welding gun, geomembrane welding machine, etc
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50-70 years service life
Certificates ISO9001, OHSAS 18001, ISO14001,CE, CRCC
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection, Test Report
Service Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training
Management Effective 8S Management System
No. of employees More than 300 people

❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

3D Composite Drainage NetworkDescription of Siphon composite drainage board

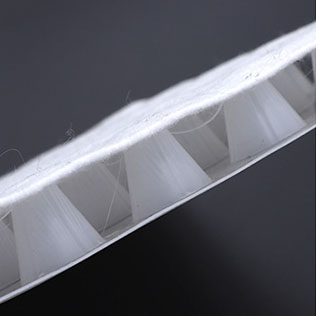

The siphon drainage system is composed of a three-layer combination of waterproof and root resistant puncture layer, waterproof drainage board, and waterproof filter layer, with one layer of material achieving three effects; This material is made of HDPE polymer material. When produced, the filter non-woven fabric is combined into a whole, eliminating the need to lay the filter fabric during construction. This saves time and ensures that the fabric and board will not be misaligned due to the movement or backfilling of construction personnel, resulting in a stable effect; The specifications of the entire sheet metal roll can be customized according to on-site needs, reducing overlap and nodes; The important effect of the board is its resistance to root thorns. Through testing by professional landscaping departments, it can prevent damage to the board in later use and ensure long-term stability of the collection effect.

High tensile strength Withstand high pressure loads Corrosion preventive

3D Composite Drainage NetworkBenefits of  Siphon Composite Drainage Board

The application function of composite drainage boards can be bent and constructed at will, quickly draining the static water of the waterproof layer and HDPE geotextile water accumulation, timely reducing the load on the main structure, protecting the waterproof layer and structure, and avoiding damage to the waterproof layer by soil backfilling, plant root thorns, acid and alkali, underground insects, and microorganisms. Combined with the use of waterproof layer, it plays a dual waterproof and anti-seepage role, isolating gas and preventing oxidation, greatly improving the service life of the waterproof system. Flexible materials with high compressive and tensile strength, meeting the required elongation for cracking and road facilities.

(1) Good drainage and good filtration effect, allowing organized water inflow without slope.

(2) Large bearing capacity, not easily deformed, resistant to moisture, and long use time.

(3) High surface flatness, integrated glue brushing and integrated process, good adhesive force.

(4) Convenient construction, shortening the construction period and reducing costs.

(5) Reasonable design: collect the infiltrated water and use it as water for garden irrigation to save water resources.

(6) Wide range of applications: It is suitable for deep-sea operations and solves the problem of low strength of gabions made of other materials due to long-term erosion by sea water.

3D Composite Drainage NetworkOur Business Scope and What We Could Provide to You

3D Composite Drainage Network 3D Composite Drainage Network 3D Composite Drainage Network
R&D and Design Solutions Provider Production and Delivery
3D Composite Drainage Network 3D Composite Drainage Network 3D Composite Drainage Network
Geosynthetics Testing Industry Training Construction Guidance

Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.

3D Composite Drainage NetworkSpecifications of Siphon Composite Drainage Board

1. Technical Specifications of 3D Composite Drainage Network (GB/T17690)
No. Item Unit Spec./Standard value
      1200g/m2 1400g/m2 1600g/m2 1800g/m2 2000g/m2
1 Unit weight of compond production g/m2 ≥1200 ≥1400 ≥1600 ≥1800 ≥2000
2 Thickness of compond production mm ≥6.0 ≥7.0 ≥8.0 ≥9.0 ≥10.0
3 Longitudinal tensile strength of KN/m ≥16.0
compond productiong
4 water diversion ration of compond production m2/s ≥1.2×10-4
5 peel strength of network core and geotextile KN/m ≥0.3
6 Thickness of network core mm ≥5.0 ≥5.0 ≥6.0 ≥7.0 ≥8.0
7 Tensile strength of network core KN/m ≥13.0 ≥15.0 ≥15.0 ≥15.0 ≥15.0
8 Unit weight of geotextile g/m2 ≥200
9 Seepage coefficient of geotextile cm/s ≥0.3
10 Width m 2.1
11 Length of one roll m 30
2. Technical Specifications of 3D Composite Drainage Network (ASTM)
Property Unit BC50/D200 BC63/D200 BC70/D200 BC80/D200 Test Standard
Geocomposite Specification
Hydraulic
conductivity (MD)		 M²/s 2.8×10-3 3.2×10-3 4.0×10² 5×10-3 ASTM D4716
Puncture KN/m 0.17 0.17 0.17 0.17 ASTM D7005
Resistance
Core Material Geonet Specification
Thickness mm 6.3 7 8 9 ASTM D5199
Density g/cm³ 0.94 0.94 0.94 0.94 ASTM D1505
Carbon Black Content % 2 2 2 2 ASTM D1603
Tensile strength (MD) KN/m 8 10 12 14 ASTM D7179
Geotextile Specification
Unit weight g/m2 200 200 200 200 200
Geotextile type    Continuous filament non-woven geotextile

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

☎Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

3D Composite Drainage NetworkApplications of Siphon Composite Drainage Board

Siphon Composite Drainage Board (also known as three-dimensional composite drainage network or drainage grid) is a new type of drainage geotextile. Made from high-density polyethylene (HDPE) as raw material and processed through a special extrusion molding process, it has a three-layer special structure.

Water conductivity and drainage performance: Siphon Composite Drainage Board all have concave convex hollow vertical reinforcement structures, which can quickly and effectively drain rainwater, greatly reducing or even eliminating the static water pressure of the waterproof layer. Through this active water guiding principle, the effect of active waterproofing can be achieved.

Protection: Siphon Composite Drainage Board can effectively protect structures and waterproof layers, and resist various acids and alkalis in the soil and root thorns of plants. When filling the exterior walls of the basement with soil, it can protect the building and waterproof layer from damage.

Sound insulation and ventilation moisture-proof function: Laboratory data shows that polyethylene (HDPE) and polyvinyl chloride (PVC) waterproof and drainage protection boards can effectively reduce indoor noise levels of 14 decibels and 500Hz, and have significant noise reduction and sound insulation functions. When using waterproof water guide plates on the ground or walls, they can also play a good role in ventilation and moisture prevention.

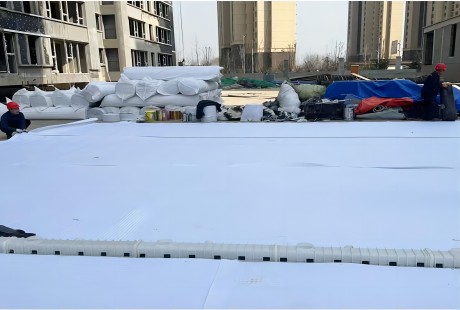

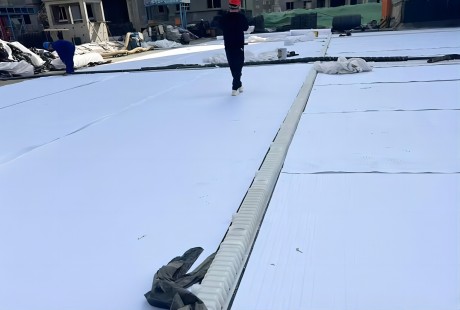

Siphon Composite Drainage Board for Playgroud

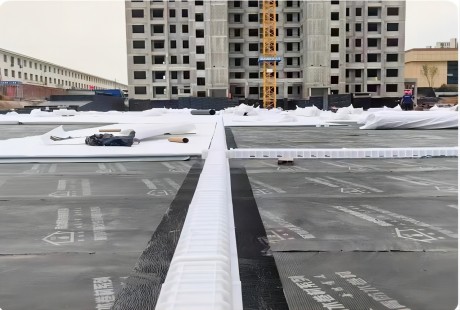

 Siphon Composite Drainage Board for Highway

Siphon Composite Drainage Board for Roadway

 Siphon Composite Drainage Board for Slope

☎Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
