Rubber Waterstop
- 1. Thickness: 3-20mm(0.12inch-0.79inch)
- 2. Width: Max.10M
- 3. Raw material: HDPE, EVA, Rubber, PVC…
- 4. Standards: ASTM, CE, ISO, GB/T18173.2-2014, GB 18173.2-2000
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 10-50m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample
Rubber waterstop is made by adding various additives and fillers to synthetic rubber with good weather resistance and corrosion resistance, and undergoing processes such as plasticization, mixing, pressing, and molding. Rubber waterstop is a waterproof material used in buildings, water conservancy, tunnels, underground engineering, etc. It can be classified into buried rubber waterstop, back attached rubber waterstop, and steel edge rubber waterstop.
Quick Details of Rubber Waterstop
| Products details information | |
| Product name | Rubber Waterstop |
| Brand | Greenland (OEM is available) |
| Thickness | 3-20mm (0.12inch-0.79inch) |
| Raw material | HDPE, EVA, Rubber, PVC... |
| Application | Waterproof treatment in roads, bridges and other projects, which can prevent water leakage and extend the life of roads and bridges. |
| Color | Black, White, Blue, Green, Yellow, other colors |
| Standards | ASTM, CE, ISO, GB/T18173.2-2014, GB 18173.2-2000 |
| Welding Tools | Hot vulcanization welding machine |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of Rubber Waterstop
Rubber waterstop is made of synthetic rubber, which has good elasticity and tear resistance. Under various loads, elastic deformation will occur to adapt to the ability of concrete telescopic joints to deform, and it is suitable for the construction joints, complete shrinking joints, incomplete contraction joints, telescopic joints, etc. Rubber waterstop is widely used in waterproof treatment in roads, bridges and other projects, which can prevent water leakage and extend the life of roads and bridges.
 |
 |
 |

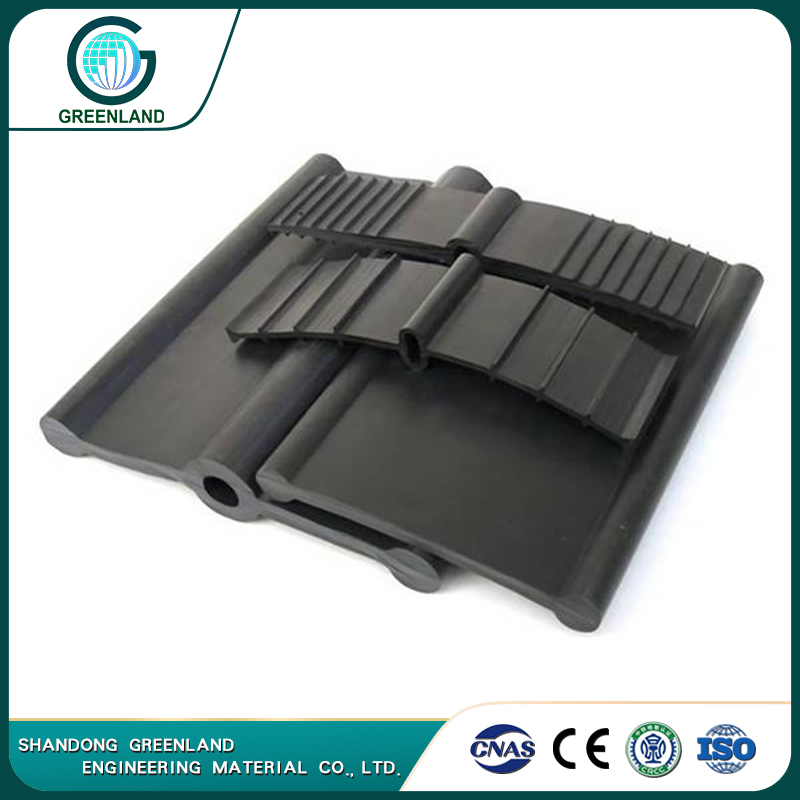

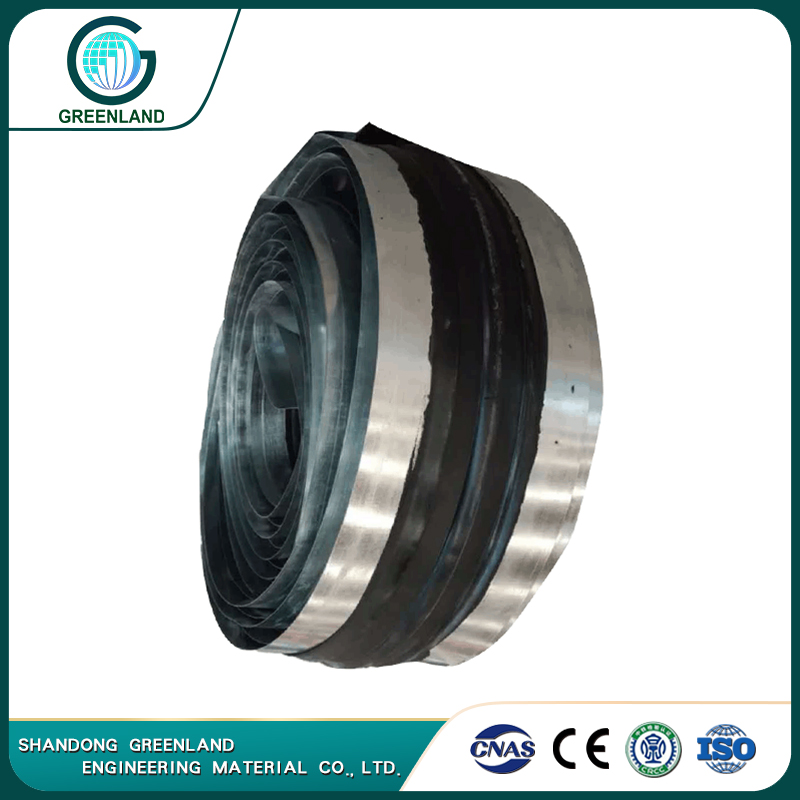

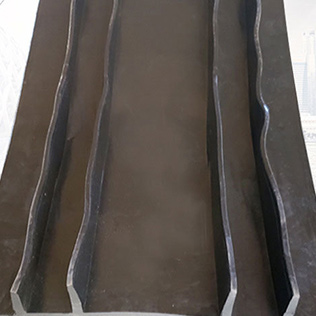

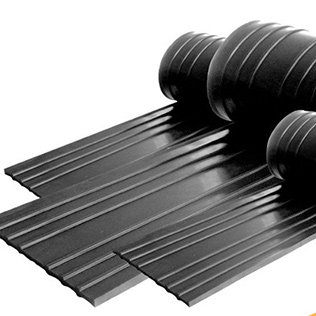

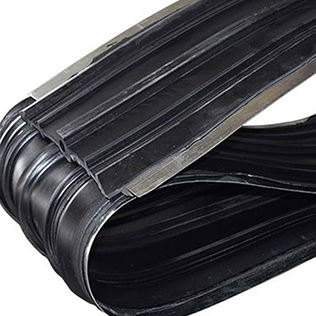

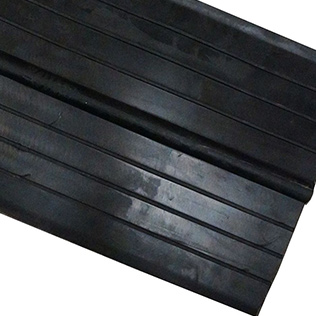

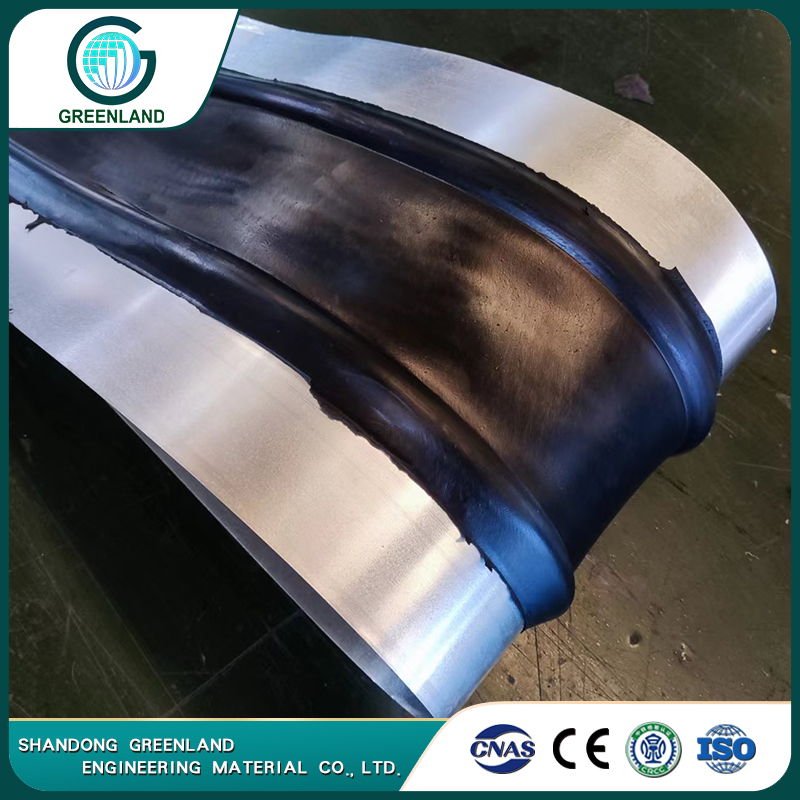

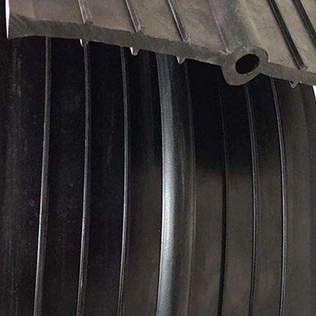

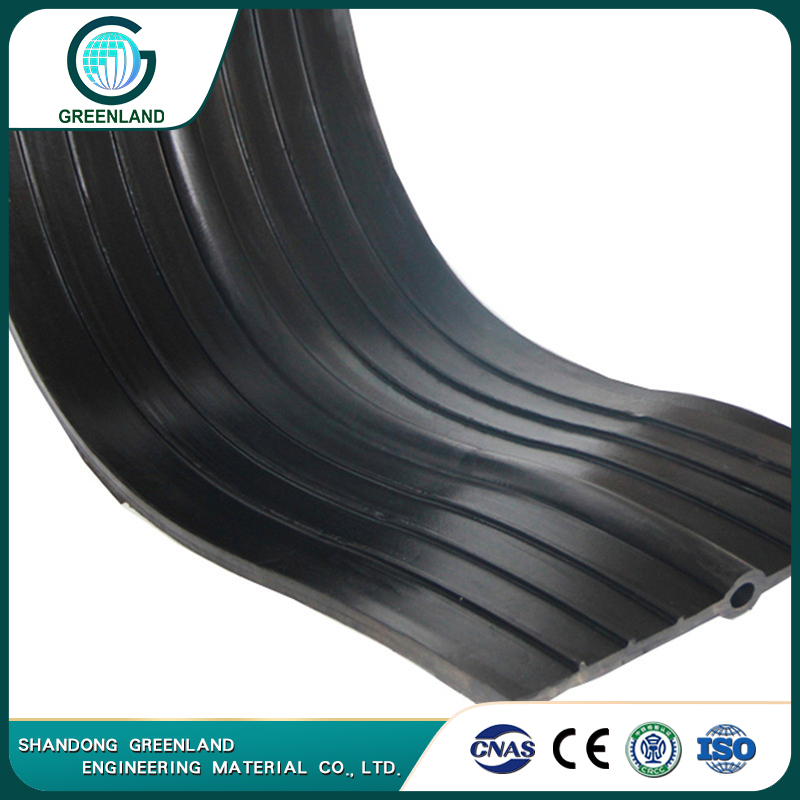

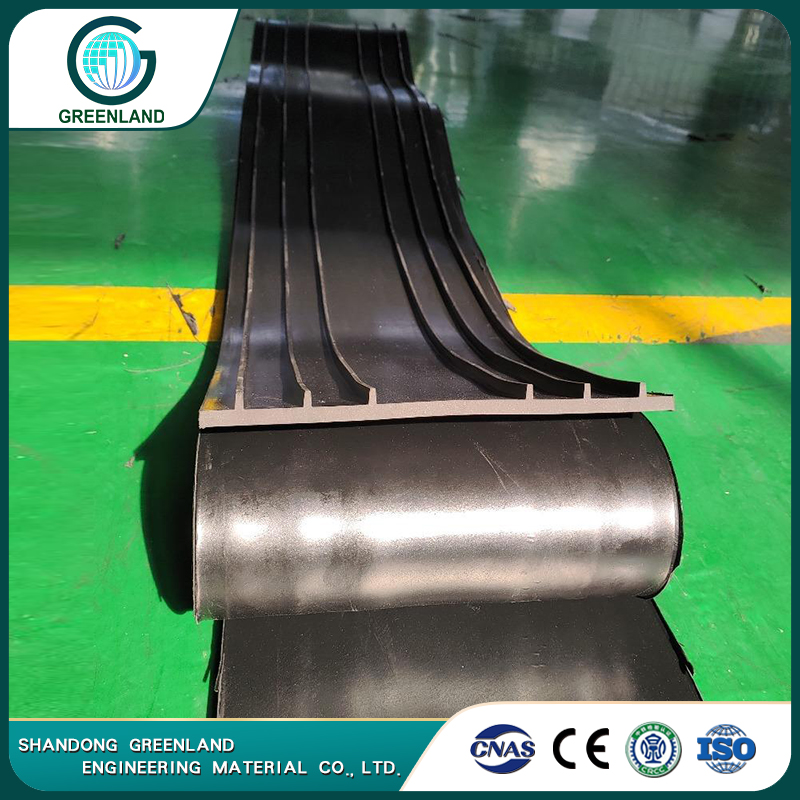

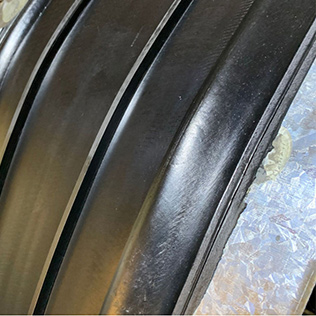

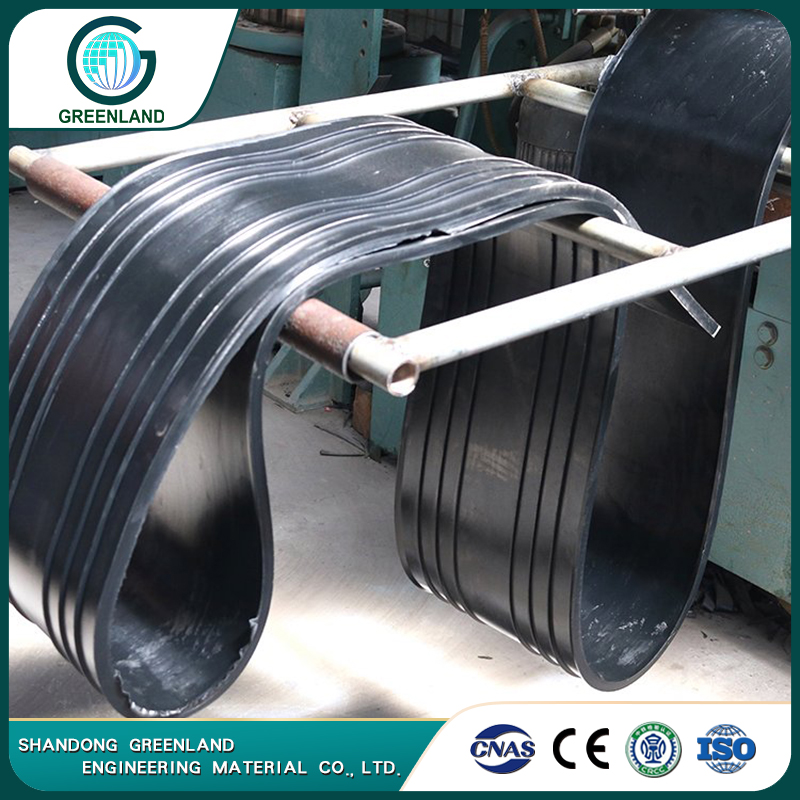

| External rubber waterstop | Middle buried rubber waterstop | Steel edge rubber waterstop |
 |
 |
 |
Benefits of Rubber Waterstop
The advantages of rubber waterstops are durability, corrosion resistance, good elasticity and tear resistance, easy to install and maintain, and can adapt to the seams of various shapes and sizes. At the same time, it can also be used with other waterproof materials such as waterproof coatings and coils to improve the overall waterproof effect of the building.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of Rubber Waterstop
| Item | index | Applicable test entry | |||||
| B、S | J | ||||||
| JX | JX | ||||||
| 1 | Hardness (Shar A)/degree | 60±5 | 60±5 | 40-708 | 5.3.2 | ||
| 2 | Stretching strength/MPA ≥ | 10 | 16 | 16 | 5.3.3 | ||
| 3 | Pulling elongation/% ≥ | 380 | 400 | 400 | - | ||
| 4 | Compression set/% | 70℃×24h, 25% ≤ | 35 | 30 | 30 | 5.3.4 | |
| 23℃×168h, 25% ≤ | 20 | 20 | 15 | ||||
| 5 | Tear intensity KN/M | 30 | 30 | 20 | 5.3.5 | ||
| 6 | Crispy temperature ℃ | -45 | -40 | -50 | 5.3.6 | ||
| 7 | Hot air aging (70°C×168h) |
Hardness changes (Shar A)/degree ≤ | +8 | +6 | +10 | 5.3.7 | |
| Tensile Strength MPa ≥ | 13 | 13 | |||||
| Stretch stretch % ≥ | 300 | 320 | 300 | ||||
| 8 | Ozone aging 50×10-8: 20%, (40±2)℃×48h | Crackless | 5.3.8 | ||||
| Rubber and metal bondingb | Rubber inter-rubber destruction | / | / | 5.3.9 | |||
| 10 | The strength of rubber and curtain adhesionc (N/mm) | / | / | 5.3.10 | |||
Performance Parameter Table for Rubber waterstop (ASTM Standard)
| REFERENCE | MEASUREMENTS | TEST CONDITION | |
| Shear strength (N/cm) | ≥10 | 11 | ASTM D3330-02 23℃ 300mm/min |
| Peel strength (N/cm) | ≥20 | 21 | GB/T12952-91 23℃ 250mm/min |
| Elongation Rate | ≥400 | 480 | ASTMC736-0 23℃ 250mm/min |
| Water Absorption (g/m2) | ≤3 | 0.6 | GB/T12952-03 0.3mpa 24h |
| Heat Resistance | No melting & breaking |
-40℃ to 90℃ | ASTM C792-93 90±2℃ 2h |
| Low Temperature Flexibility | No cracking | -40“C to 90 ℃ | ASTM C743-01 -40°C 72h |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
1. Rubber waterstop is used for water conservancy projects. For example: reservoir, hydropower stations, large water pipes, channels, etc. In these water conservancy projects, rubber water stops can be used for slope projects such as dams, flood discharge channels, and water plenty of water tunnels to ensure the safe and stable operation of water conservancy projects.
2. Rubber waterstop is used for underground engineering. Underground engineering includes underground tunnels, underground garages, underground malls, etc. The rubber water antipitrimating belt has good flexibility and corrosion resistance, which can effectively prevent groundwater leakage and improve the operating efficiency and safety of the project.
3. Rubber waterstop is used for waterproof projects. For example: roof waterproof, basement waterproof, bathroom waterproof, pool waterproof, etc. The rubber water stop has strong durability and anti -seepage performance, which can become an important part of waterproof materials.

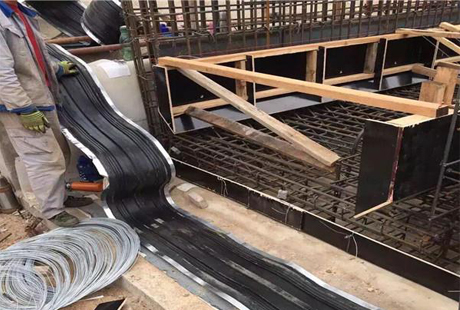

❖Rubber Waterstop for Construction Project & Transportation Facilities
1. Water and wastewater treatment facilities
2. Dam & culvert
3. Tunnel & subway
 |
 |

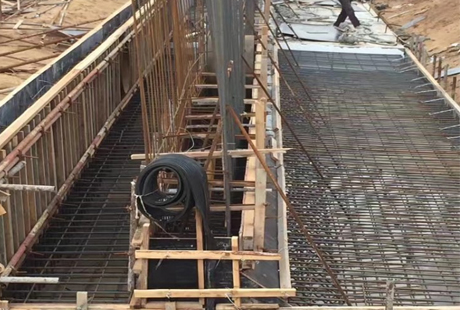

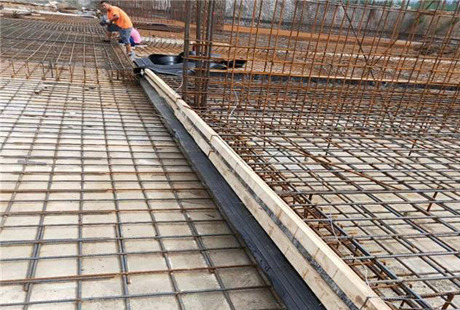

| Rubber Waterstop for Culvert | HDPE Waterstop for Pool Construction |
 |
 |

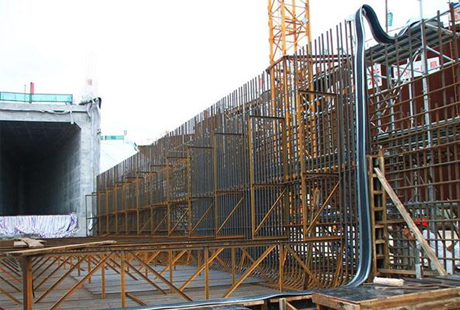

| Rubber Waterstop for Wastewater Treatment Plant | Rubber Waterstop for Subway |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Rubber Waterstop
- Below are the detailed information on Rubber waterstop for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- Rubber Waterstop
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
