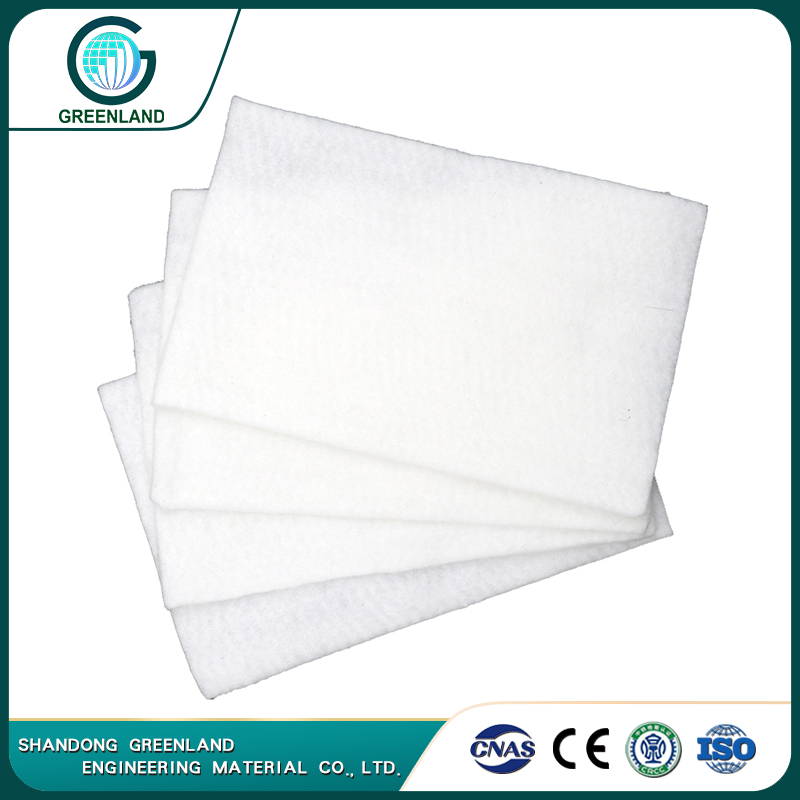

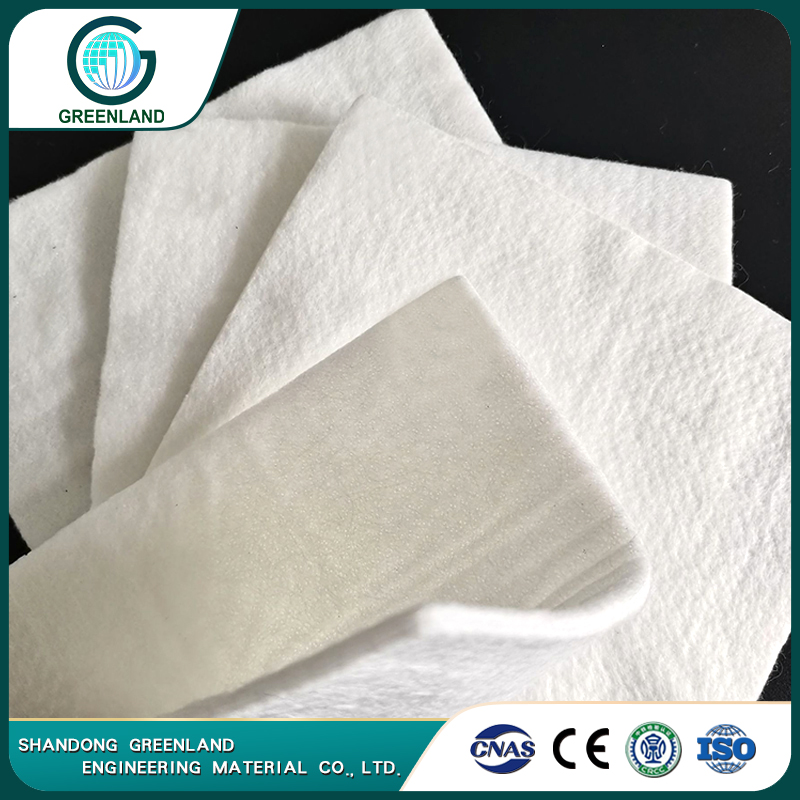

PP (Polypropylene) Short Fiber Nonwoven Geotextile
- 1.Tensile strength: 3.0-40.0kN/m
- 2.Width: Max. 8M
- 3.Raw material: PP. PET
- 4.Standards: GRI-GT12/GT13, ASTM, ISO, GB/T 17639-2023
- 5.Delivery period: stock, 5-10 days production date

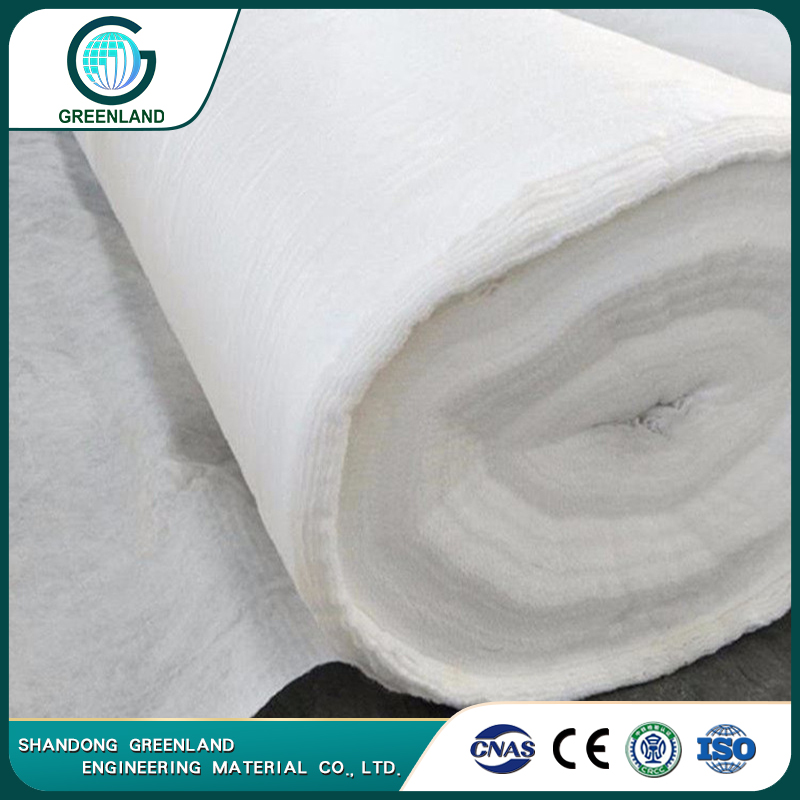

- 6.Packing: 50-100m length/roll
- 7.MOQ: Trial order is acceptable
- 8.Free Sample

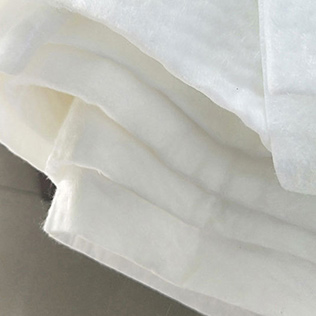

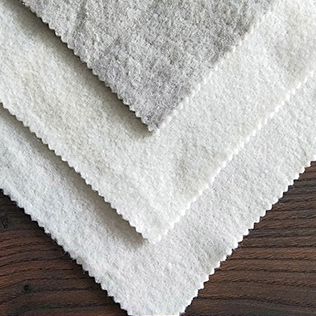

Polypropylene short fiber nonwoven geotextile is made of polypropylene as raw materials and is processed by combing network paving equipment and acupuncture equipment.
Polypropylene short fiber nonwoven geotextile is also known as "PP short fiber nonwoven geotextile". Polypropylene short fiber nonwoven geotextile has good breathability and water permeability, which can form drainage channels inside the soil, allowing water flow to pass through and effectively controlling the loss of sand and gravel. It is widely used in filtration, separation, protection, and drainage of civil environmental engineering and construction engineering.
Quick Details of PP (Polypropylene) Short Fiber Nonwoven Geotextile
| Products details information | |
| Product name | PP(Polypropylene) Short Fiber Nonwoven Geotextile |
| Brand | Greenland (OEM is available) |
| Tensile strength | 3.0-40.0kN/m |
| Raw material | PP, PET |
| Application | Hydropower, roads, railways, ports, airports, sports venues, tunnels, coastal mudflat, reclamation, environmental protection and other fields, and plays the role of isolation, filtration, drainage, reinforcement, protection, sealing, etc. |

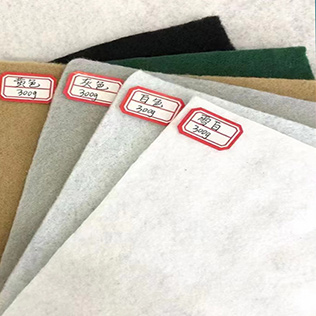

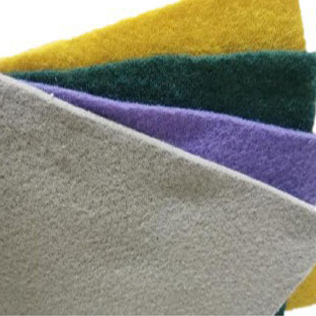

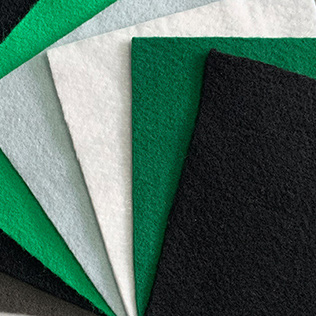

| Color | Black, White, Green, other colors |
| Standards | GRI-GT12/GT13, ASTM, ISO, GB/T 17639-2023 |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of PP (Polypropylene) Short Fiber Nonwoven Geotextile
PP short fiber nonwoven geotextile is a kind of solid and durable geotextile product with strong permeability and deformation resistance, which is used to increase ground support and soil stability. It has the characteristics of high tensile strength, high elongation, good UV stability, good filtration performance, good wear resistance, etc. It is mainly used in hydropower, roads, railways, ports, airports, sports venues, tunnels, coastal mudflat, reclamation, environmental protection and other fields, and plays the role of isolation, filtration, drainage, reinforcement, protection, sealing, etc.
 |
 |
 |
| Corrosion preventive | Good permeability | Good extension performance |
 |
 |
 |
| Good mechanical properties | Long usage time | Wide range of applications |
Benefits of PP (Polypropylene) Short Fiber Nonwoven Geotextile
- 1. High intensity and high breaks and elongation rates to ensure that they have excellent damage in the construction process.
- 2. Made of high intensity UV stable primitive polypropylene, these fibers have been extracted in large quantities to ensure that they have excellent long term durability in all soil types.
- 3. Made using a randomly oriented mesh, providing completely isotropic performance, ensuring high strength is not limited to a single direction.
- 4. Good uniformity, good permeability, small pore diameter, suitable for soil filtration.
- 5. Anti-ultraviolet rays, corrosion resistance, wear resistance, and biological degradation.
- 6. High temperatures to 230°C, maintain structural stability and original physical properties
- 7. High resistance to creep and degeneration.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of PP (Polypropylene) Short Fiber Nonwoven Geotextile
| Item | Performance Requirements | |
| The mass deviation rate of unit area | -5% | |
| thickness mm | 4 | |
| Thick deviation rate | ±10% | |
| Width deviation rate | -0.5% | |
| Breaking strength | Vertical kN/m | ≥48 |
| Horizontal kN/m | ||
| Fracture extension | Vertical kN/m | 70%±20% |
| Horizontal kN/m | ||
| Bursting Strength kN | ≥8.5 | |
| Topped strength of trapezoidal method | Vertical N | ≥900 |
| Horizontal N | ||
| Anticurly | Strong maintenance | ≥90% |
| Keeping and elongation maintenance rate | ≥90% | |
| Anti-abrasion performance (powerful loss rate) | Vertical | ≤25% |
| Horizontal | ||
PP (Polypropylene) Short Fiber Nonwoven Geotextile Technical Parameters（GB Standard）

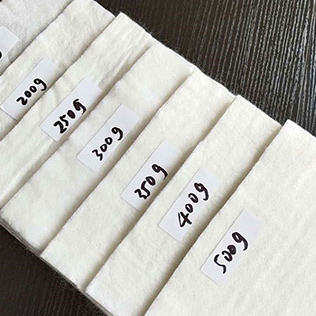

| Mass per unit area (g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Deviation of mass per unit area, % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
| Thickness, mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 |
| Width deviation, % | -0.5 | ||||||||||
| Breaking strength, kN/m≥ | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 |
| Elongation at break, % | 25~100 | ||||||||||
| CBR breaking force, kN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 |
| Equivalent aperture O90, mm | 0.07~0.2 | ||||||||||
| Vertical permeability coefficient, cm/s | K×(10-1~10-3) | ||||||||||
| Tearing strength, kN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 |
PP (Polypropylene) Short Fiber Nonwoven Geotextile Technical Parameters（ASTM Standard）
| Properties | Test Method | Unit | GXSF150 | GXSF200 | GXSF300 | GXSF400 | GXSF500 | GXSF600 | GXSF800 | GXSF1000 |
| Tensile Strength (MD/TD) |
ASTM D4595 | kN/m | 8 | 11 | 20 | 24 | 28 | 34 | 48 | 50 |
| Tensile Elongation (MD/TD) |
ASTM D4595 | % | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Grab Tensile Strength (MD/TD) |
ASTM D4632 | N | 520 | 700 | 1100 | 1500 | 1800 | 2200 | 2800 | 3000 |
| Grab Elongation (MD/TD) |
ASTM D4632 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 |
| Trapezoidal Tear Strenath (MD/TD) |
ASTM D4533 | N | 220 | 330 | 400 | 480 | 560 | 620 | 860 | 880 |
| CBR Burst Strength |
ASTM D6241 | N | 1700 | 2400 | 3200 | 4300 | 5300 | 6000 | 6800 | 7000 |
| Pore Size O90 | ASTM D4751 | μm | 90 | 85 | 80 | 75 | 70 | 60 | 55 | 50 |
| Water Flow Q100 |
ASTM D4491 | L/m2/s | 160 | 145 | 140 | 120 | 105 | 95 | 90 | 80 |
| Weight | ASTM D5261 | g/m2 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Roll Width | m | 5.95 | 5.95 | 5.95 | 5.95 | 5.95 | 3.95 | 3.95 | 3.95 | |
| Roll Length | m | 250 | 150 | 100 | 100 | 75 | 50 | 50 | 50 | |
| Notes (1) MD = Machine Direction; TD= Transverse Direction (2)Roll width can be 1m, 2m, 3m, 3.95m, 5.95m or as per customized. |
||||||||||
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

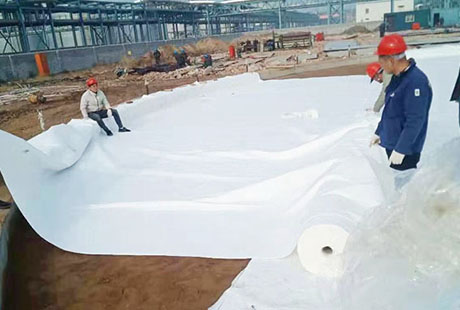

High strength PP short fiber nonwoven geotextile is mainly used in water and electricity, roads, railways, ports, airports, sports venues, tunnels, coastal mudflat, reclamation, environmental protection and other fields, playing the role of isolation, filtration, drainage, reinforcement, protection, sealing, etc.
- 1. Reinforcement effect: It is used for rock engineering such as highways, railways, airports, stone dams, slope embankments, retaining walls, dikes, etc., decentralized soil stress, increasing soil models, limiting soil slippery, and improving stability.
- 2. Protection function: Prevent the embankment from wind, waves, tide, and rain punching brush for shore protection, slope protection, bottom protection, and waterproof soil loss.
- 3. Anti-filtering: Filter layers used as dikes, dams, rivers, coast rocks, soil slopes, and retaining walls to prevent sand grains from passing, so that water or air freely pass.

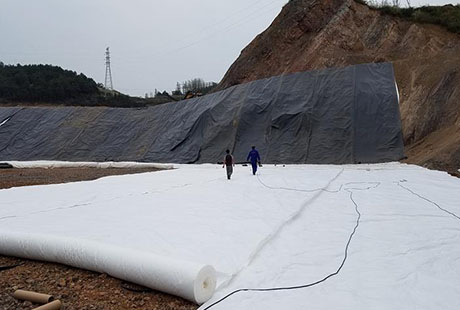

❖PP (Polypropylene) Short Fiber Nonwoven Geotextile for Reinforcement & Protect
1.Water and sewage treatment

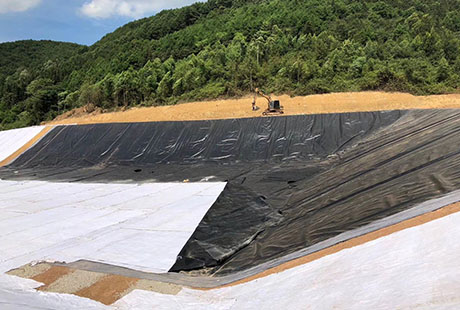

2.Landfill liner
3.Tailings dam ground protection
 |
 |
| PP Short Fiber Nonwoven Geotextile for Tailral Dam | PP Short Fiber Nonwoven Geotextile for Landfill |
 |
 |
| PP Short Fiber Nonwoven Geotextile for Reservoir | PP Short Fiber Nonwoven Geotextile for Wastewater Treatment Plant |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
PP (Polypropylene) Short Fiber Nonwoven Geotextile
- Below are the detailed information on PP short fiber nonwoven geotextile for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- PP Short Fiber Nonwoven Geotextile
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
