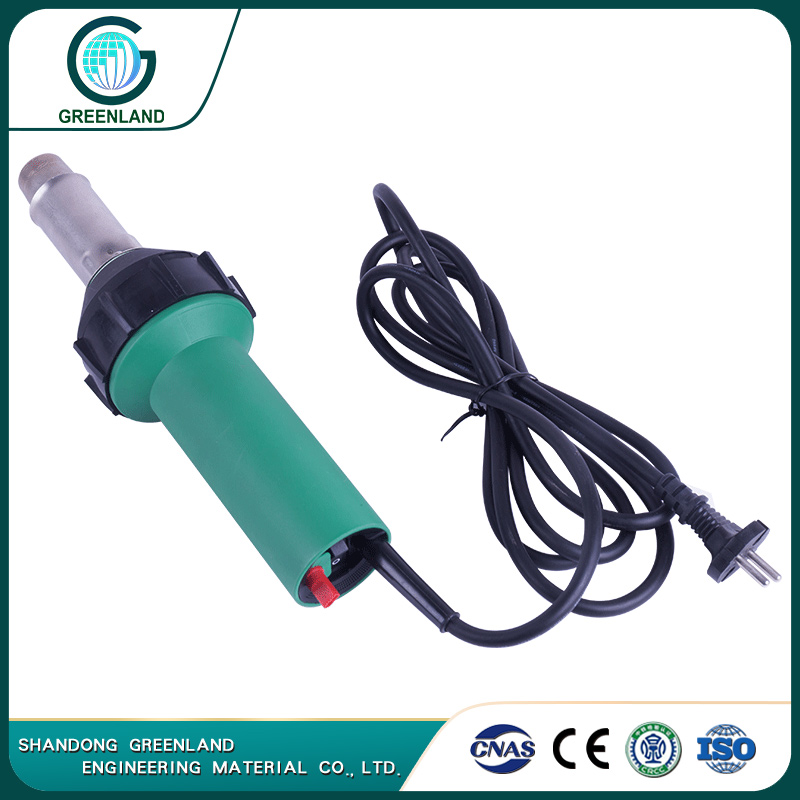

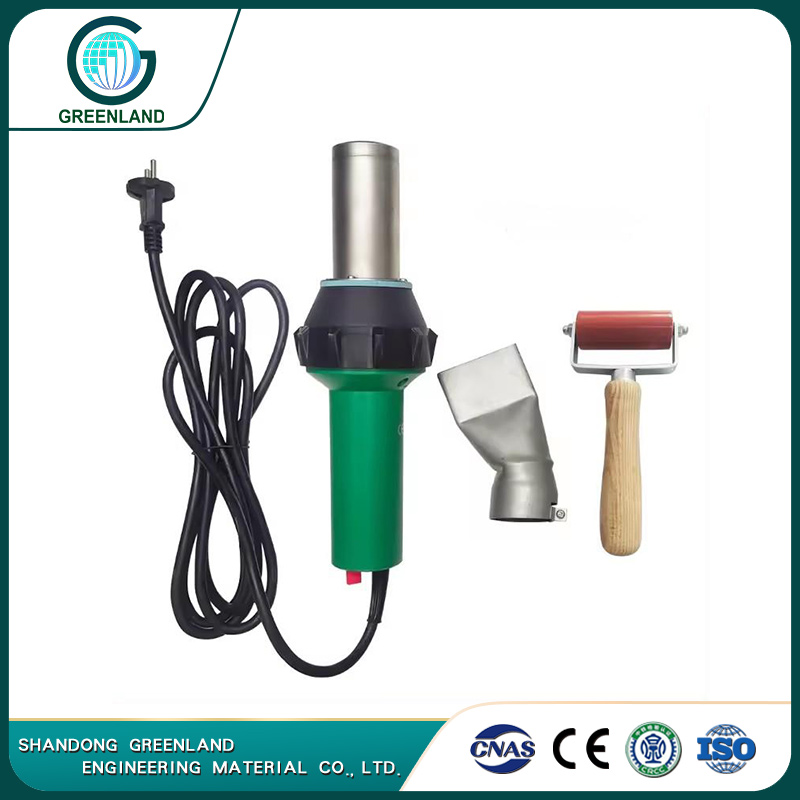

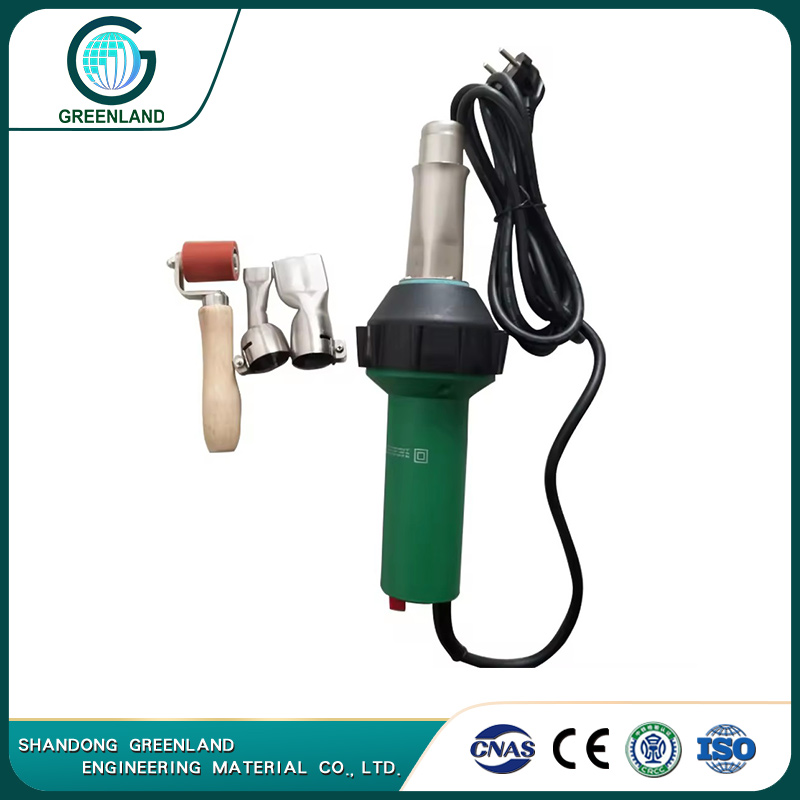

Hot Air Welding Gun
- 1. Input Voltage: 230V/120 V
- 2. Frequency: 50/60 Hz
- 3. Temperature Range: 20-620 ℃
- 4. Power: 1600W, 3400W
- 5. Model: 1600, 3400, 2000/2000D
- 6. Guarranty: 1 year
- 7. MOQ:Trial order is acceptable
The hot air welding gun is convenient, economical, and reliable for wedging into all different types of hot recycled materials, used for roofs, floors, waterproof fabrics, plastic manufacturing, etc. Especially suitable for sites with long-term continuous work.
The hot air welding gun is mainly used for plastic welding, industrial heating, plastic molding, surface drying, thermal shrinkage, ignition, baking, sterilization, etc. For example, hot air tools used for welding PVC, PE, PP, PA, EPDM, PS, TPO, EVA materials; Hot air tools for drying and activation; A hot air gun for shrinking plastic covers; A hot air tool used for welding plastic cans, plastic pipes, and plastic sheets.
Quick Details of Hot Air Welding Gun
| Products details information | |
| Product name | Hot Air Welding Gun |
| Brand | Greenland (OEM is available) |
| Input Voltage | 230V/120 V |
| Frequency | 50/60 Hz |
| Temperature Range | 20-620 ℃ |
| Model | 1600, 3400, 2000/2000D |
| Standards | CE |
| Application | Environmental protection equipment, anti-corrosion equipment, car liner, electroplating tank, plastic pipe, plastic film and other fields of production, splicing and repairment, worry-free choice in different welding fields. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Different Models of Hot Air Welding Gun
Hot Air Welding Gun-1600 Series: This hot air welding gun adopts ergonomic design, is more light weight and portable, practical and comfortable. It is widely used in the welding and processing of plastic films, plates, pipes, and plastic floors. It can also be used for thermoforming, heat shrinkage, drying, ignition, etc.

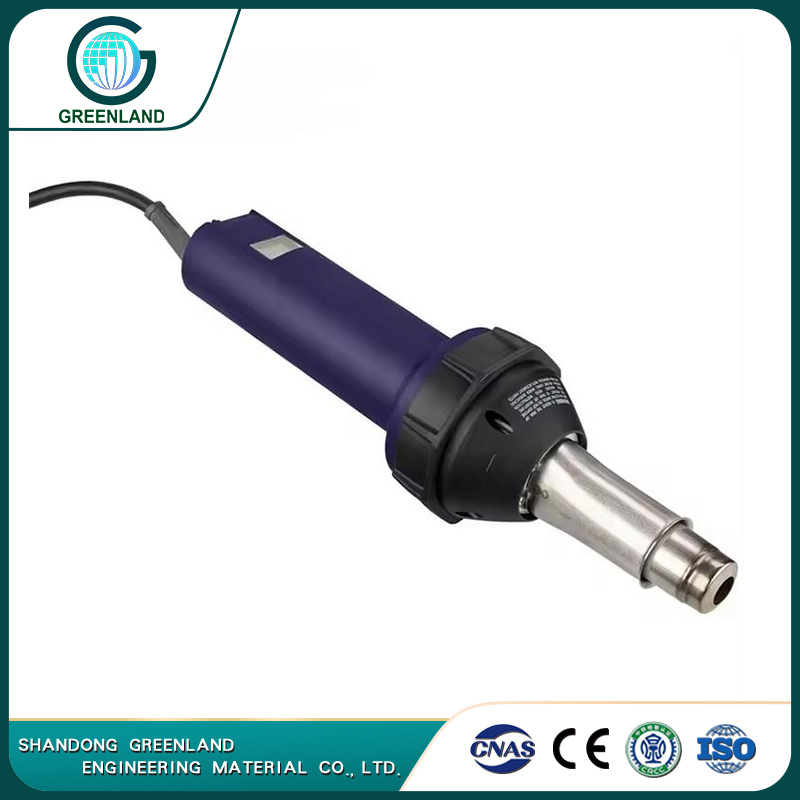

Hot Air Welding Gun-3400 Series: This hot air welding gun is double insulated,temperature constant and continuously adjustable,which used in welding hot melt plastic materials such as PE, PP, EVA, PVC, PVDF , TPO and so on. Also it is used in other works like hot forming, shrinking, drying, and igniting.

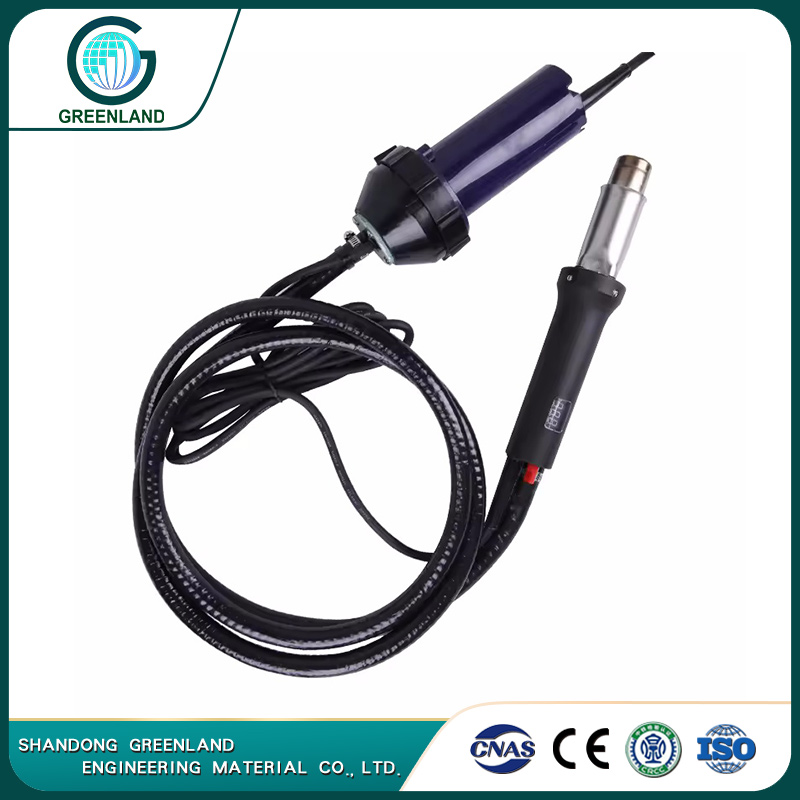

Hot Air Welding Gun-2000/2000D Series: The heating system of the hot air welding gun is separated from the gas source, making the handheld part smaller, more flexible, and more convenient to use; The welding gun also adopts dual insulation, constant temperature control, and continuous adjustability. Suitable for welding various thermoplastic plastics, such as PE, PP, PVC, etc. It can also be used for hot forming, thermal shrinkage, drying and other operations.
Though specific engineering and site conditions will determine which type of hot air welding gun is used for a particular application.
 |
 |
 |

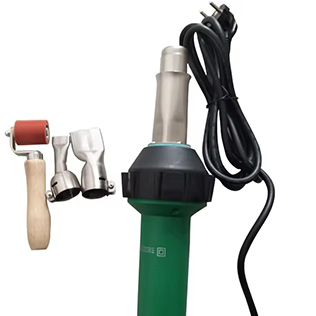

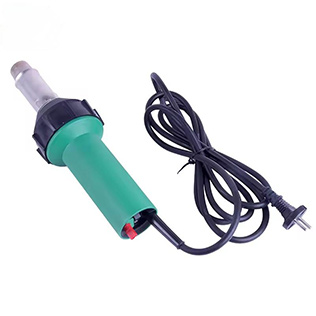

| Hot Air Welding Gun-1600A | Hot Air Welding Gun-1600D | Hot Air Welding Gun-1600S |
 |
 |
 |

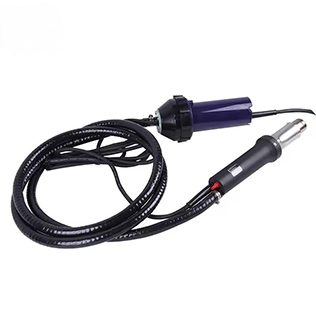

| Hot Air Welding Gun-2000 | Hot Air Welding Gun-3400E | Hot Air Welding Gun-3400S |
Benefits of Hot Air Welding Gun
1. With small size, light weight, easy to carry.
2. Welding high strength, good sealing effect, the weld width, the quantity, speed, a welding molding.
3. It is available for welding PE, PVDF, PVC, PP and other hot melt materials.
4. The temperature is adjustable from 20 to 620 ℃.
5. Own wind source, particularly suitable for field-site construction work.
6. Integrated welding machines and split welding machines can be selected according to the construction plan, which is convenient to operate.
7. A welding machine with dual independent heating system, digital display controller, 360 degree rotating welding head, and motor cold start protection function.
8. Professional technicians team can supply any customized demands.
Our Business Scope and What We Could Provide to You
 |
 |
 |
| R&D and Design | Solutions Provider | Production and Delivery |
 |
 |
 |

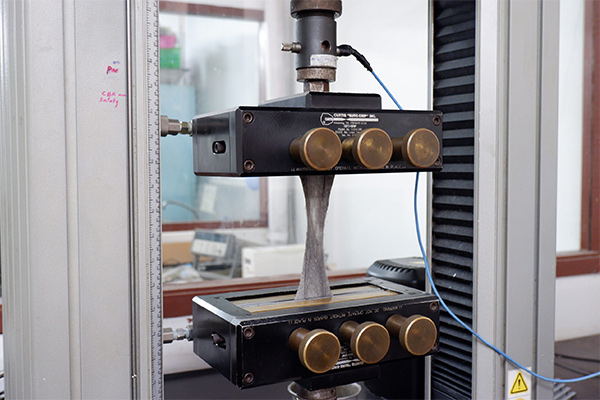

| Geosynthetics Testing | Industry Training | Construction Guidance |
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of Diifferent Model Hot Air Welding Gun

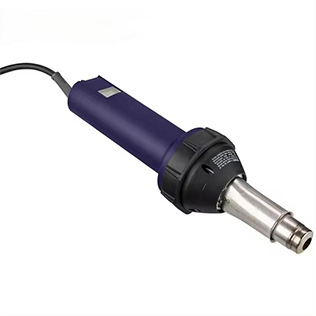

1. Hot Air Welding Gun - 1600 Series
| Model | 1600A | 1600S | 1600D | 1600E |
| Input Voltage | 230 V/120 V | 230 V/120 V | 230 V/120 V | 230 V/120 V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Power | 1600 W | 1600 W | 1600 W | 1600 W |
| Temperature Range | 20-620 ℃ | 20-620 ℃ | 20-620 ℃ | 20-620 ℃ |
| Air volume | Max 180 L/min | Max 180 L/min | Max 180 L/min | Max 180 L/min |
| Noise | ≤65 Db | ≤65 Db | ≤65 Db | 65 Db |
| Weight | 1.1 Kg | 1.05 Kg | 1.05 Kg | 1.05 Kg |
| Motor | With brush | With brush | With brush | With brush |
| Handle Size | φ65 mm | φ58 mm | φ58 mm | φ58 mm |
| Digital display function | No | No | Yes | No |
| Overheat protection | Yes | Yes | Yes | Yes |
| Temperature Control | Open loop | Open loop | Closed loop | Open loop |

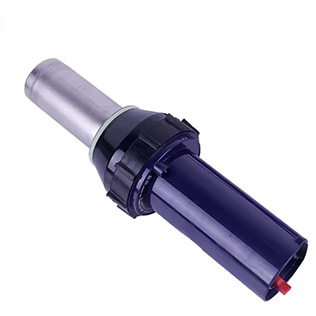

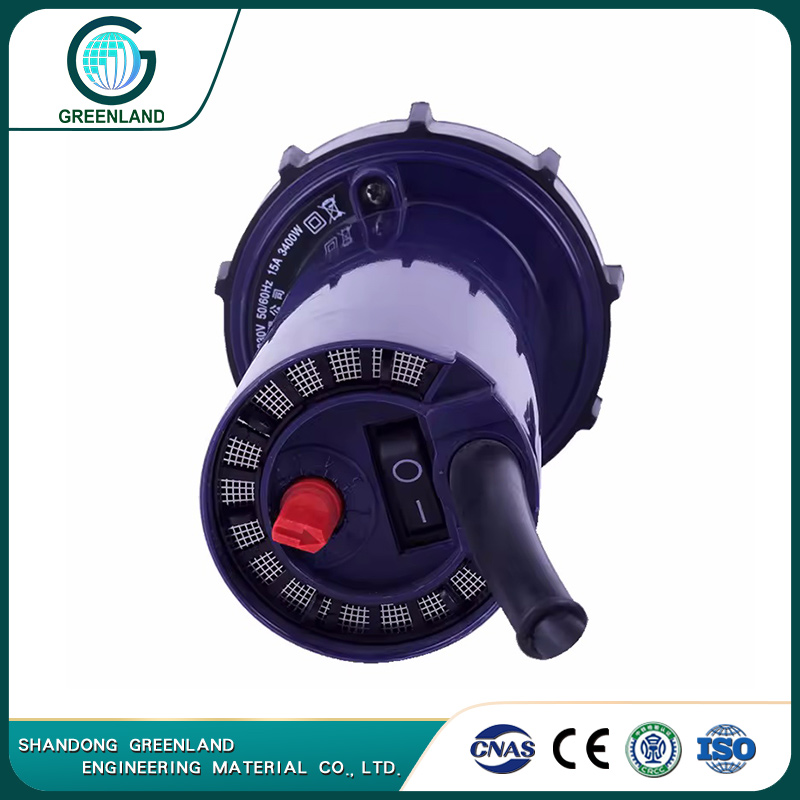

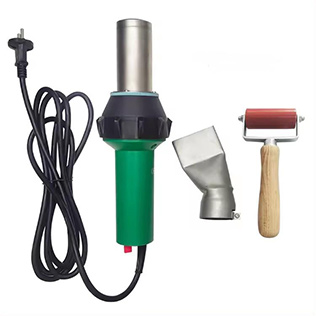

2. Hot Air Welding Gun - 3400 Series
| Model | 3400S | 3400E |
| Input Voltage | 230 V | 230 V |
| Frequency | 50/60 Hz | 50/60 Hz |
| Power | 3400 W | 3400 W |
| Temperature Range | 20-620 ℃ | 20-620 ℃ |
| Air volume | Max 360 L/min | Max 360 L/min |
| Noise | ≤65 Db | ≤65 Db |
| Weight | 1.2 Kg | 1.2 Kg |
| Motor | With brush | With brush |
| Handle Size | φ65 mm | φ58 mm |
| Overheat protection | Yes | Yes |
| Temperature Control | Open loop | Open loop |
3. Hot Air Welding Gun - 2000/2000D Series
| Model | 2000 | 2000-G | 2000D | 2000D-G | 2000-W |
| INPUT VOLTAGE | 230 V/120 V | 230 V/120 V | 230 V/120 V | 230 V/120 V | 230 V/120 V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Power | 1600 W | 1550 W | 1600 W | 1550 W | 50 W |
| Temperature Range | 20-620 ℃ | 20-620 ℃ | 20-620 ℃ | 20-620 ℃ | 20-620 ℃ |
| Air volume | Max 180 L/min | Max 180 L/min | Max 180 L/min | Max 180 L/min | Max 180 L/min |
| Noise | ≤65 Db | ≤65 Db | ≤65 Db | 65 Db | 65 Db |
| Weight | 2.4 Kg | 1.2 Kg | 2.4 Kg | 1.2 Kg | 1.05 Kg |
| Handle Size | φ42 mm | φ42 mm | φ42 mm | φ42 mm | φ65 mm |
| Digital display function | No | No | Yes | Yes | No |
| Overheat protection | Yes | Yes | Yes | Yes | No |
| Air duct | 3 m | 3 m | 3 m | 3 m | / |
| Temperature Control | Open loop | Open loop | Closed loop | Closed loop | / |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

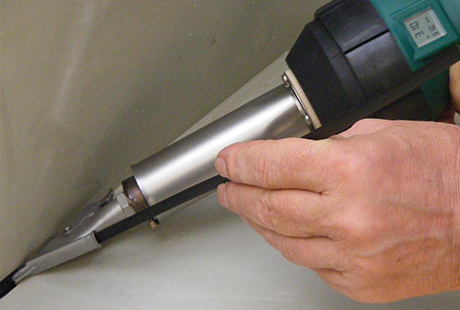

Applications of Hot Air Welding Gun
It is widely used in the welding of plate and membrane structures such as advertising cloth, tarpaulin, waterproof membrane, anti-seepage liner, waterproof coiled material, pipeline, electronic components, automobile bumper, sports floor, pearl cotton processing, electroplating tank, plastic pipe, PP / PE / PVC material plastic plate.
Heat Gun Alone Set: Heating parts, heat Shrinking, hot baking, drying and so on.
Plastic Sheets/Pipes Welding Set: To weld PP/PE/PVC hot melted pipes, flange, plastic sheets, water tanks, water tower, plating tanks and repair pipes.

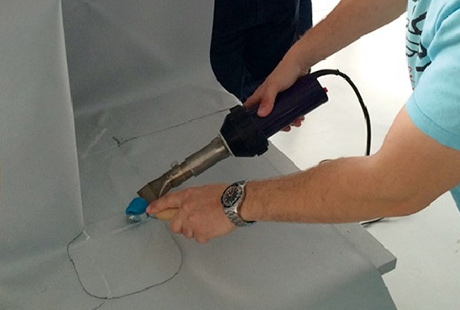

Membrane Welding Set: To weld hot melted membrane such as tarpaulin, geosynthics, waterproofing sheets, waterproofing membrane, banner and so on.
Plastic Rubber Floor Welding Set: To seam weld PVC plastic rubber floor such as floor in hospital, sports floor, and anti-dust floor and so on.
 |
 |
|
Hot Air Welding Gun for Line Plate In Carriage |
Hot Air Welding Gun for Roof TPO material |
 |
 |
|

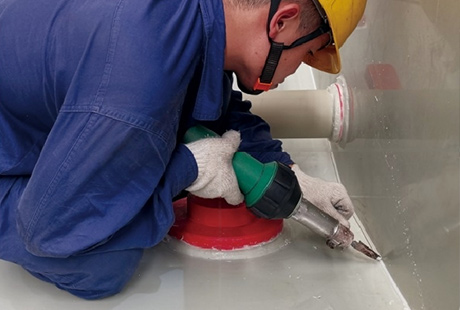

Hot Air Welding Gun for Plastic Container |
Hot Air Welding Gun for Floor |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Hot Air Welding Gun
-
- Below are the detailed information of Hot Air Welding Gun for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST of Geomembrane Liners now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- Hot Air Welding Gun
DownLoad
Documents Download of Hot Air Welding Gun
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
