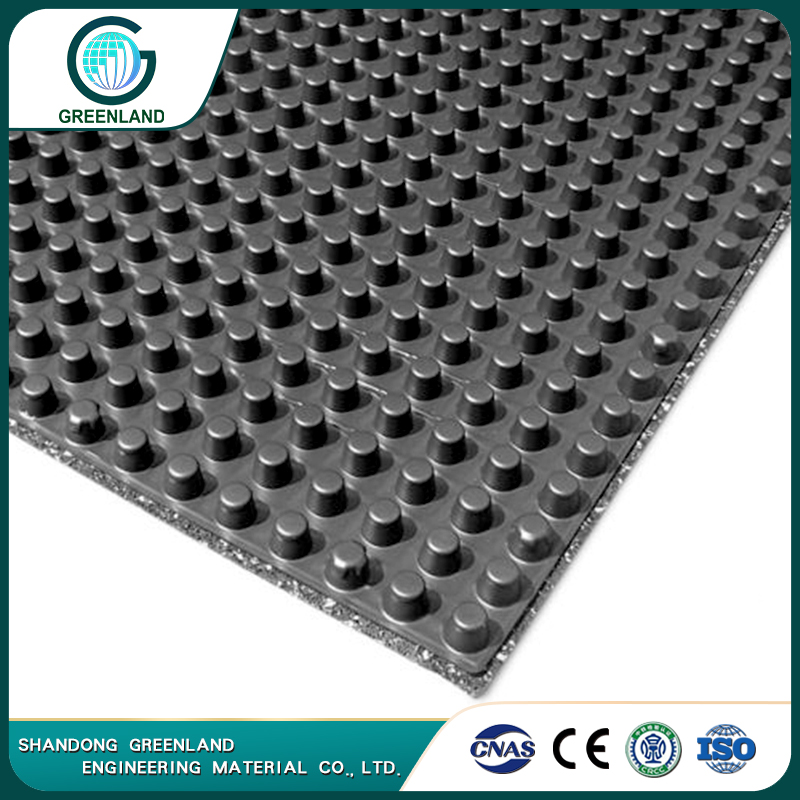

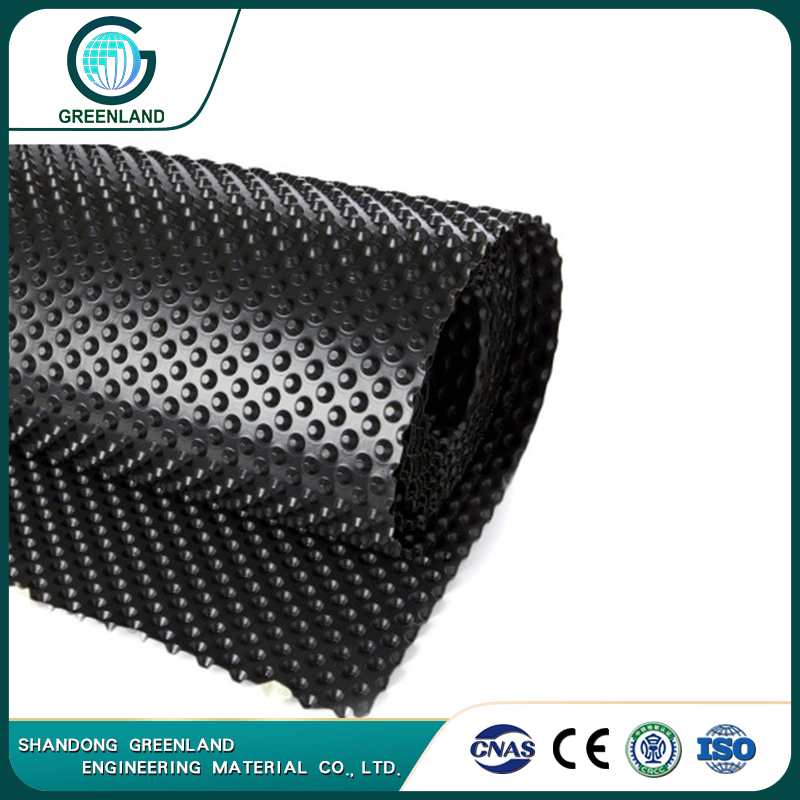

HIPS (High Impact Polystyrene) Drainage Board
- 1. Thickness: 0.75-1.5mm(0.029inch-0.059inch)
- 2. Width: Max.3M
- 3. Raw material: HDPE. HIPS. PP. PVC…
- 4. Standards: CE, ISO, ASTM, JC/T 2289-2014
- 5. Delivery period: stock, 5-10 days production date
- 6. Packing: 10-50m length/roll
- 7. MOQ: Trial order is acceptable
- 8. Free Sample
Polystyrene drainage board (HIPS drainage board) refers to the plastic bottom plate made of polystyrene resin as raw materials by stamping conical protruding table or stiffener convex points (or hollow cylindrical porous). HIPS drainage board replaces the traditional drainage method to save time, labor and energy, save investment, and reduce the load of the building. HIPS drainage board has a width of 1-3 meters and a length of 4-10 meters or more.
Quick Details of HIPS (High Impact Polystyrene) Drainage Board
| Products details information | |
| Product name | HIPS (High Impact Polystyrene) Drainage Board |
| Brand | Greenland (OEM is available) |
| Thickness | 0.75-1.5mm (0.029inch-0.059inch) |
| Raw material | HDPE. PP. HIPS. PVC... |
| Application | Garage roof greening, roof garden, football field, golf course and other greening projects, basement inside and outside wall, roof seepage prevention and heat insulation layer, waterproofing system for drainage of roads, tunnels, square decks, earth houses, commercial buildings, retaining walls, underground parking lots and other places. |

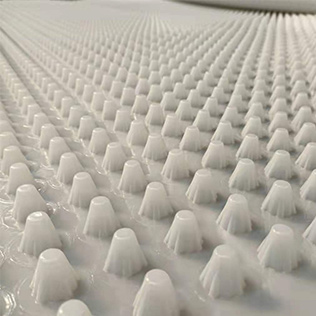

| Color | Black, White, other colors |
| Standards | CE, ISO, ASTM, JC/T 2289-2014 |
| Welding Tools | Docking machine, Hinge car, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of HIPS (High Impact Polystyrene) Drainage Board

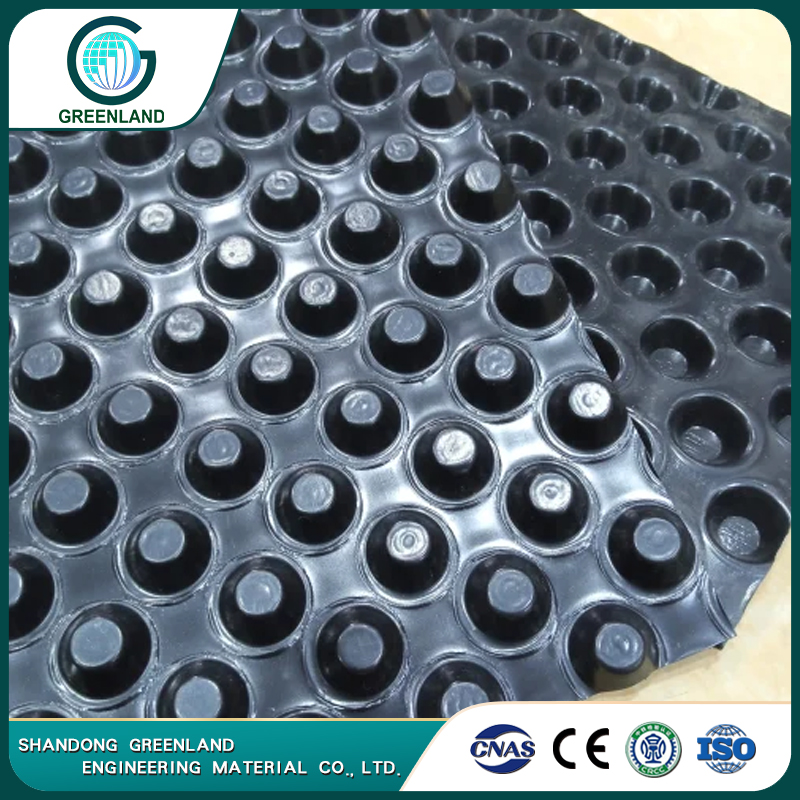

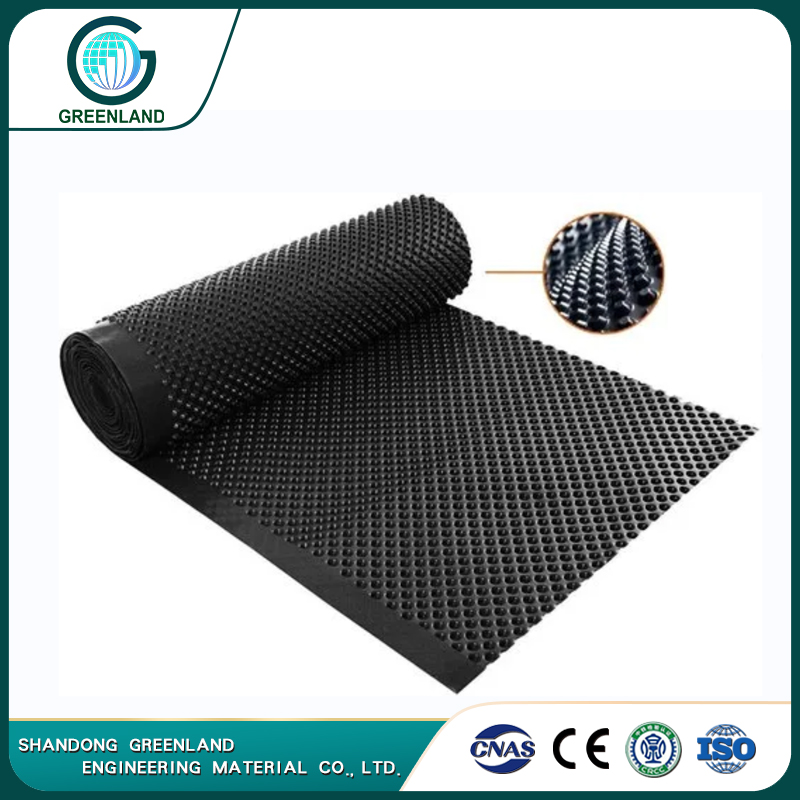

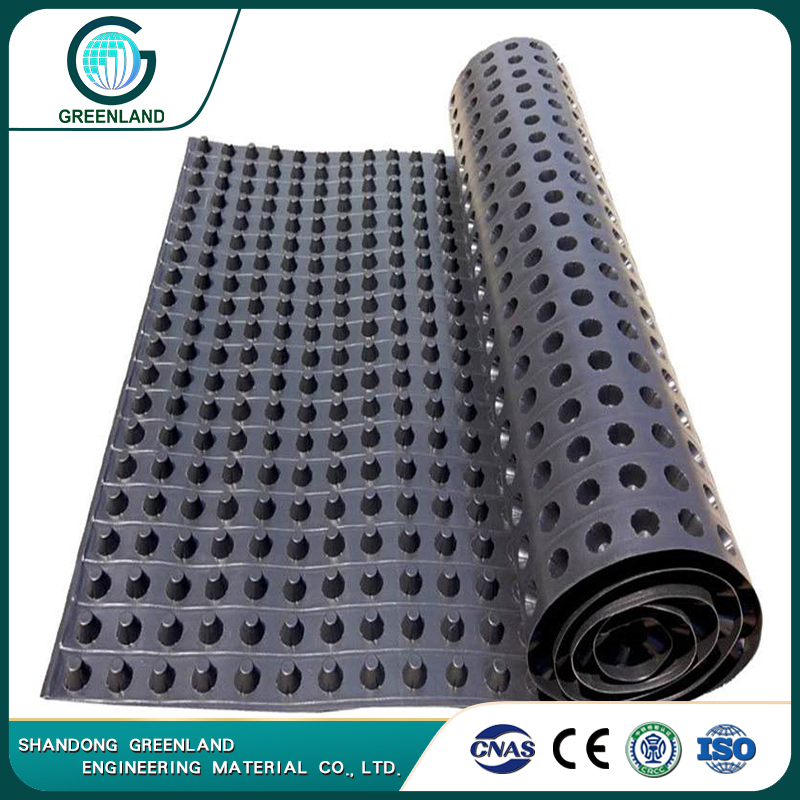

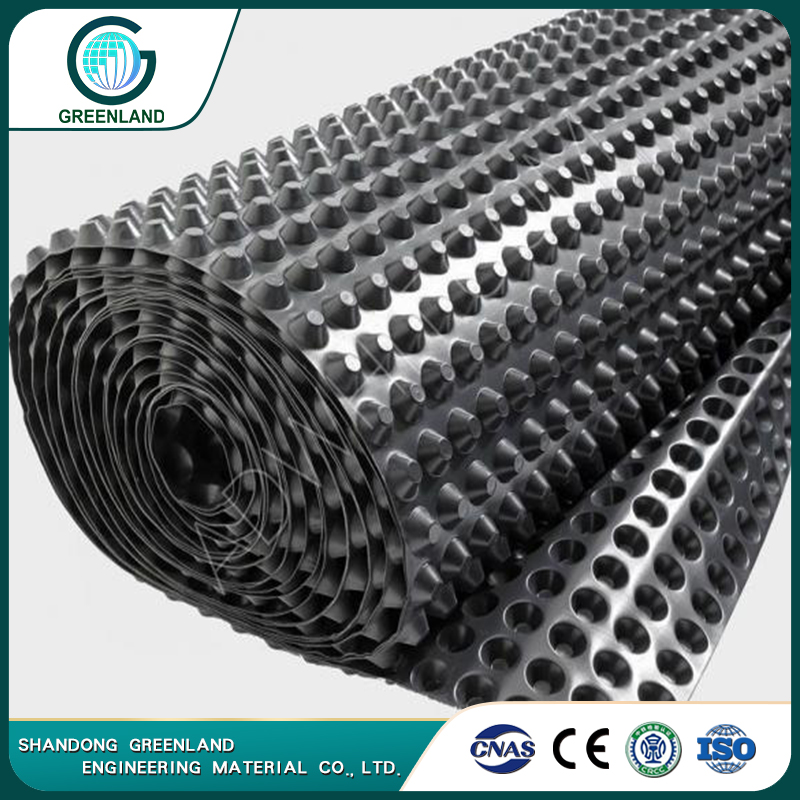

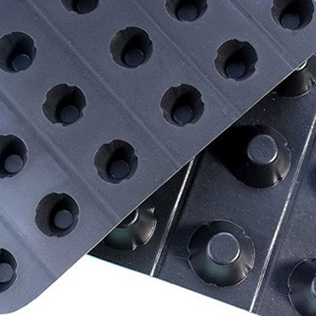

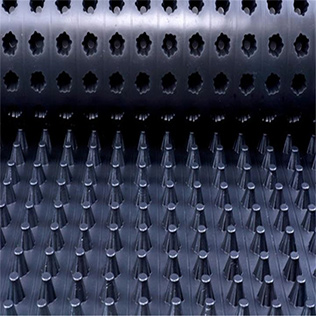

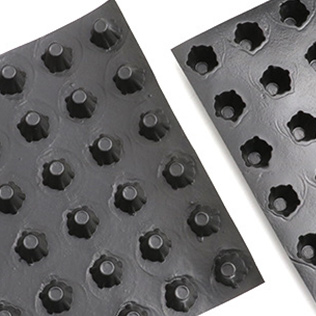

HIPS drainage board is made of polystyrene resin as the main raw material, and the surface is concave and convex shape of the protective drainage board, which plays a protective role in the building and waterproof layer.
 |
 |
 |
| Uniform drainage | Comprehensive water collection | Acid and alkali corrosion resistance |
 |
 |
 |
Benefits of HIPS (High Impact Polystyrene) Drainage Board
1. Water conduction and drainage
The concave and convex hollow rib structure of HIPS drainage plate can quickly and effectively derive rain water, greatly reduce the hydrostatic pressure of the waterproof layer, and the active waterproof effect can be achieved through this active water conduction principle. Polystyrene (HIPS) drainage plate material itself is a good waterproof material. By using a reliable connection method, the drainage plate becomes a good auxiliary waterproof material.
2. Protection and protection
HIPS drainage plate can effectively protect the structure and waterproof layer, and resist all kinds of acid and alkali in the soil and plant thorns. When backfilling the basement exterior wall, it can protect the building and waterproof layer from damage.
3. Sound insulation and ventilation moisture-proof function
HIPS drainage plate has obvious noise reduction and sound insulation function. When the drainage board is used on the ground or wall, it can also play a good role in ventilation and moisture-proof.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of HIPS (High Impact Polystyrene) Drainage Board
| Technical data | Unit | UltimateDrain 40 UltimateDrain 40 mm thick water retention and runoff-delay drainage board |
| Length | mm | 2102 |
| Width | mm | 980 |
| Area | m2 | 2.06 |
| Height | mm | 40 |
| Weight | kg/board | 4.65 |
| Weight per unit area | kg/m2 | 2.257 |
| Diameter of the perforations | mm | 2 |
| Colour | - | Black |
| Material | - | Recycled High Impact Polystyrene (HIPS) |
| Tensile strength - EN ISO 10319 | - | - |
| Warp (MD) | kN/m | 8.04 |
| Weft (CMD) | kN/m | 5.35 |
| Tensile extension - EN ISO 10319 | - | - |
| Warp (MD) | % | 43.9 |
| Weft (CMD) | % | 28.9 |
| Compressive strength - EN ISO 802 | - | - |
| Empty | kN/m2 | 345 |
| Infilled: 4 - 8 mm gravel | kN/m2 | 400 |
| CE marking | Affixed | |
| Boards stackable during delivery | Yes | |
| Packaging | Palletised | |
| Packaging unit | boards/pallet | 218 |
| Packaging unit | m2/pallet | 450 |
| Pallet size (L×W×H) | mm | 2100 x 1000 x 1650 |
| Pallets stackable during delivery | No | |
| Gross weight (full pallet) kg/pallet | 1055 | |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
☎Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
HIPS drainage plate is used for garage roof greening, roof garden, football field, golf course and other greening projects, basement inside and outside wall, roof seepage prevention and heat insulation layer, waterproofing system for drainage of roads, tunnels, square decks, earth houses, commercial buildings, retaining walls, underground parking lots and other places. Excellent drainage plays a key role in the construction period of civil construction and the normal operation and life of structures.
❖HIPS (High Impact Polystyrene) Drainage Board for Drain & Anti seepage and thermal insulation layer
1. Landscape engineering
2. Underground exterior wall anti-seepage and insulation layer
3. Drainage protection of highway and railway tunnels
 |
 |

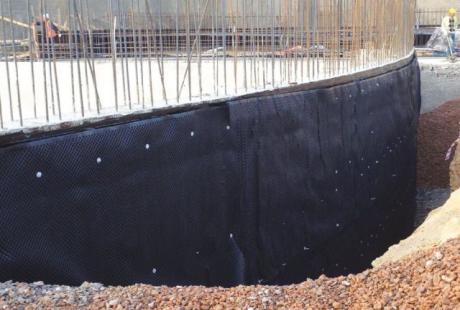

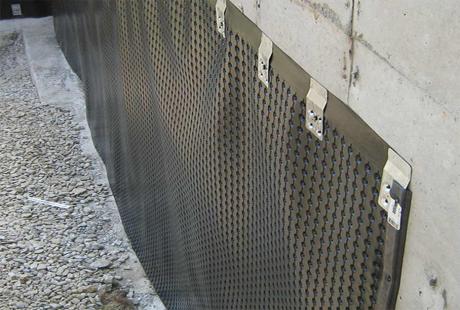

| HIPS Drainage Board for Basement Wall | HIPS Drainage Board for Retaining Wall |
 |
 |

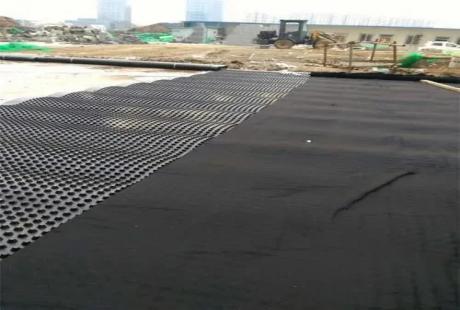

| HIPS Drainage Board for Landfill | HIPS Drainage Board for Roof Garden |
☎Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
HIPS (High Impact Polystyrene) Drainage Board
- Below are the detailed information on HIPS drainage board for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- HIPS (High Impact Polystyrene) Drainage Board
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
☎Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
