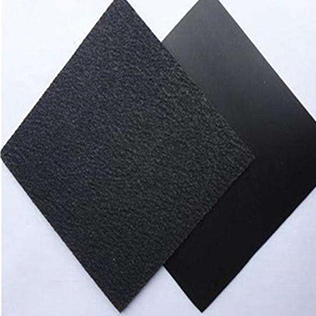

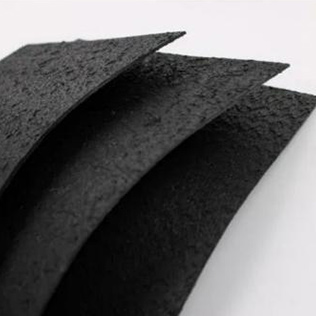

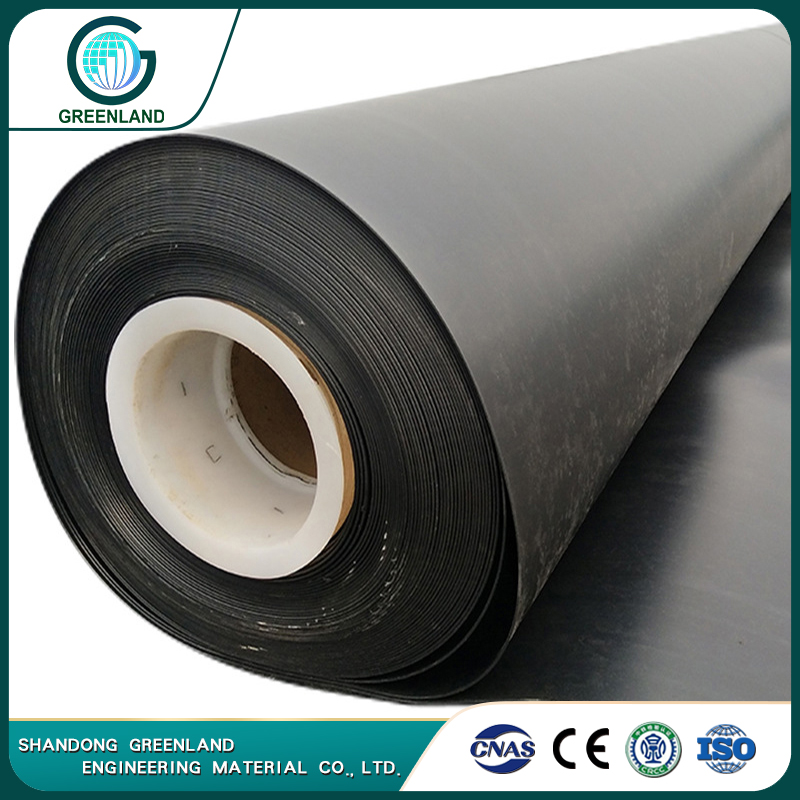

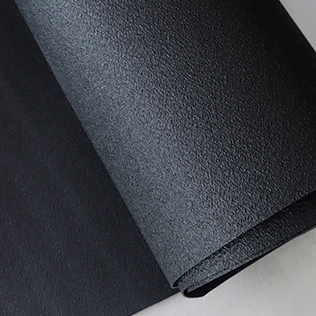

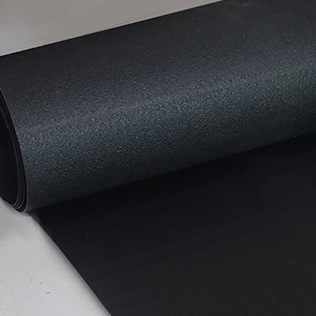

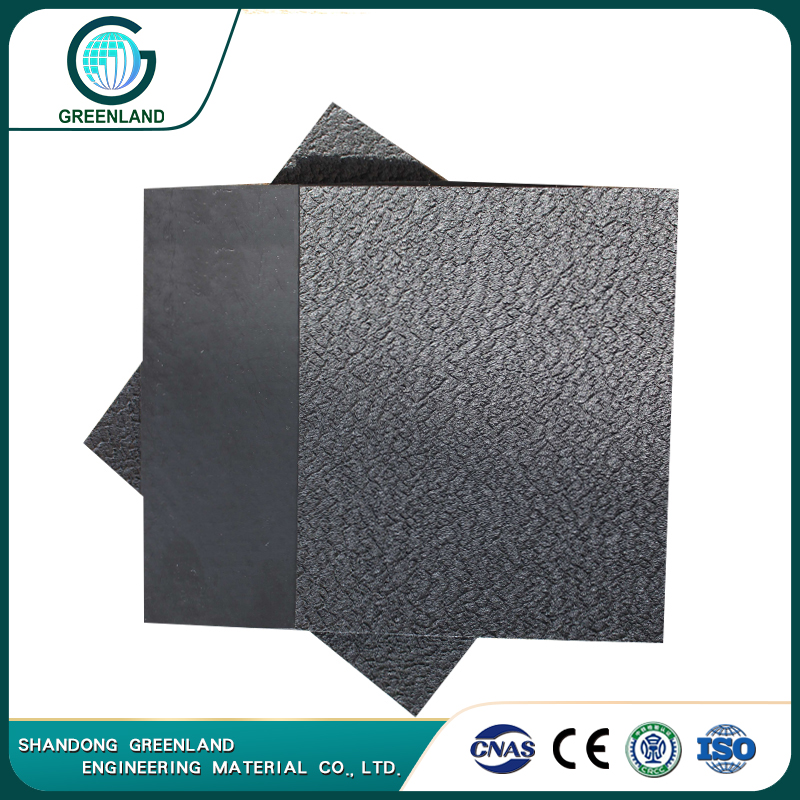

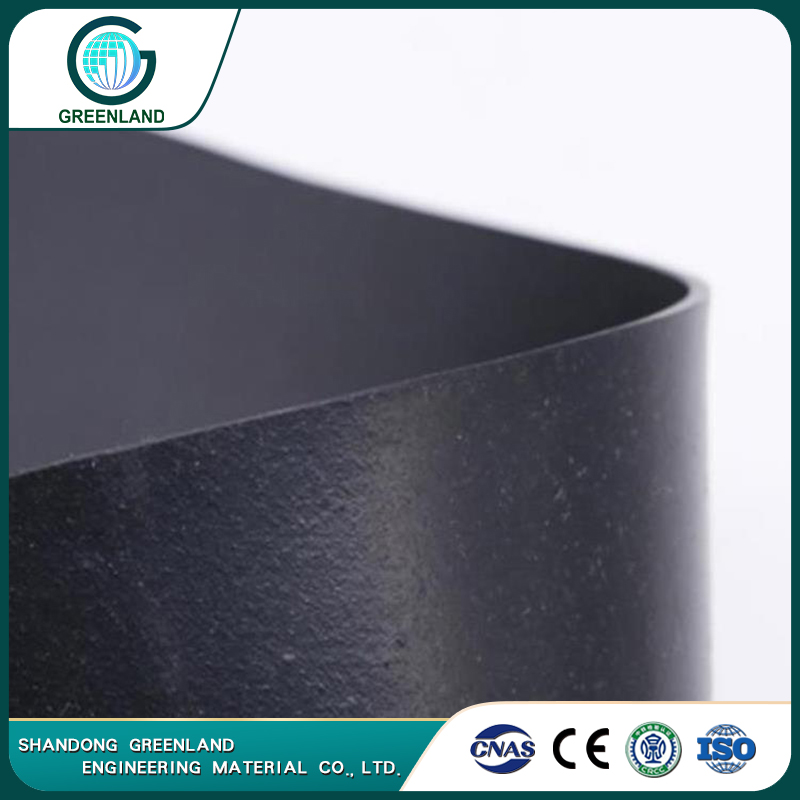

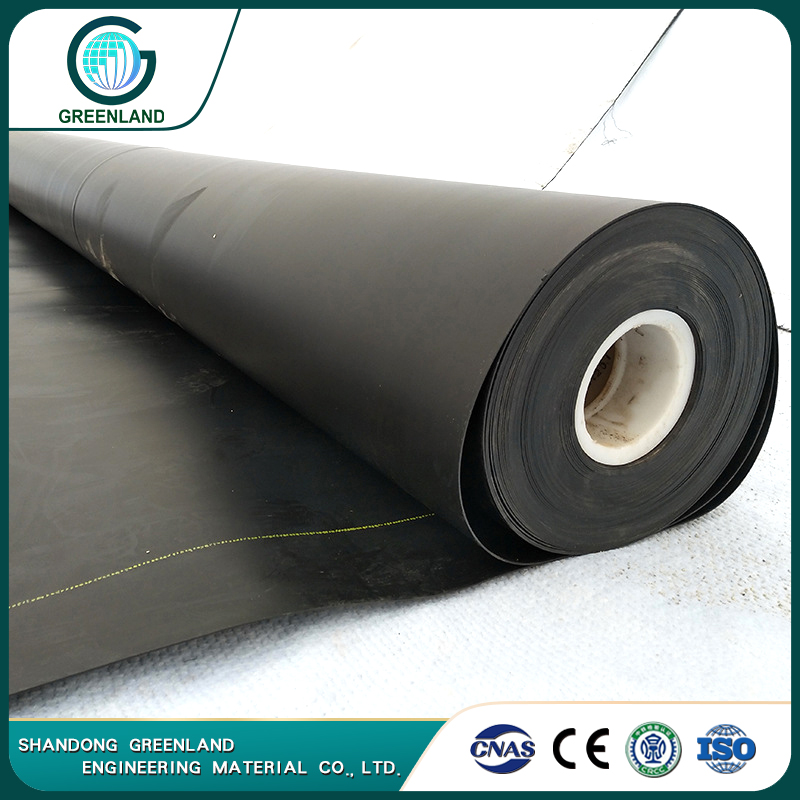

HDPE Single-Sided Textured Geomembrane
- 1.Thickness: 0.2-4.0mm (0.008inch-0.157inch)
- 2.Width: Max. 8M
- 3.Raw material: PE100, PE80, HDPE, LDPE, LLDPE, ECB, PVC, EVA…
- 4.Standards: ASTM GM13, ISO, GB/T17643-2011 GH-2T1、GH-2T2
- 5.Delivery period: stock, 5-10 days production date
- 6.Packing: 50-100m length/roll
- 7.MOQ: Trial order is acceptable
- 8.Free Sample
HDPE geomembrane is based on high density polyethylene resin as the raw material. The color is white and black. Membrane width: 1-8 meters. Membrane thickness: 0.2-4.0 mm. The textured geomembrane formed by the HDPE geomembrane sprayed with nitrogen pressure is HDPE textured geomembrane.
HDPE textured geomembrane is divided into HDPE single-sided textured geomembrane and HDPE double-sided textured geomembrane. The HDPE single-sided textured geomembrane is often rough in the construction of the slope anti-seepage engineering construction with the contact with the geofabric on the top to play a non-slip effect. HDPE single-sided textured geomembrane increases the friction coefficient and anti-slip function, and is widely used in the anti-landed field, mining, pile of ash, dissolved tank, sedimentation tank, tailing lining, anti-seepage engineering, slope prevention engineering, slope defense In the construction of the seepage project.
Quick Details of HDPE Single-Sided Textured Geomembrane
| Products details information | |
| Product name | HDPE Single-Sided Textured Geomembrane |
| Brand | Greenland (OEM is available) |
| Thickness | 0.2-4.0mm (0.008inch-0.157inch) |
| Raw material | HDPE, LDPE, LLDPE, EVA, PVC, ECB... |
| Application | Garbage landfills, sewage or waste residue treatment of defense seepage, rivers, lake dams, tailings dams, sewage dams and reservoir areas, channels, storage ponds (pit, mine) anti-seepage prevention seepage, metro, basement and tunnels, tunnel defense infiltration, road base and other foundation anti-seepage, horizontal anti-seepage coverage, construction coffee weeks, waste field prevention of highway, highway, railway foundation, expansion soil and wet trap waterproof layer. |
| Color | Black, White, other colors |
| Standards | ASTM GM13, ISO, GB/T17643-2011 GH-2T1、GH-2T2 |
| Welding Tools | Hot wind welding, roller welding machine, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of HDPE Single-Sided Textured Geomembrane

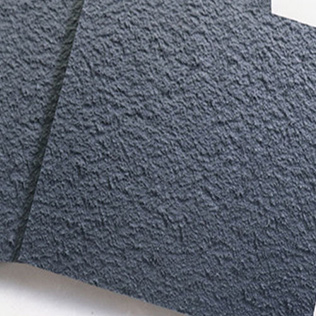

HDPE single-sided textured geomembrane is a new type of anti-seepage material. The single-sided textured HDPE geomembrane increases the friction coefficient and anti-slip function. It is more suitable for steep slopes and vertical anti-seepage, and improves engineering stability. HDPE single-sided textured geomembrane is an anti-seepage geomembrane with rough texture on the surface, which has greatly increased the friction between the anti-seepage geomembrane and the geofabric. HDPE single-sided textured geomembrane can be used in more convenient and fast use of garbage landfills, dam slopes and other anti-leakage items. At this stage, HDPE rough surface geomembrane are commonly used in various fields of the project, which is convenient for engineering construction to solve the difficulty and problem of engineering construction generated by the polish film sliding of the light surface.
 |
 |
 |
| Adapt to acidic and alkaline environments | Good tensile strength at break | Strong heat resistance |
 |
 |
 |
| Not prone to aging | Good extensibility | Good mechanical strength |
Benefits of HDPE Single-Sided Textured Geomembrane
HDPE single-sided textured geomembrane has excellent temperature adaptability, weldability, weather resistance and good anti-aging, chemical corrosion resistance, environmental stress cracking performance, and resistance. Therefore, it is particularly suitable for underground engineering, mining engineering, garbage landfills, sewage anti-seepage or waste residue treatment for anti-leakage materials.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of HDPE Single-Sided Textured Geomembrane
Environmentally Friendly HDPE Textured Geomembrane <GB/T17643-2011 GH-2T1 And GH-2T2 Technical Specifications
| Number | Item | Indicators | ||||||
| Thickness (mm) | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 | |
| 1 | Density (g/m³) | ≥0.940 | ||||||
| 2 | Roughness height (mm) | ≥0.25 | ||||||
| 3 | Tensile yield strength (longitudinal and transverse) N/mm | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| 4 | Tensile fracture strength (longitudinal and transverse) N/mm | ≥8 | ≥10 | ≥13 | ≥16 | ≥21 | ≥26 | ≥32 |
| 5 | Yield elongation (longitudinal and transverse) % | ≥12 | ||||||
| 6 | Elongation at break (longitudinal and transverse) % | ≥100 | ||||||
| 7 | Right angle tear load (longitudinal and transverse) N | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| 8 | Puncture resistance strength N | ≥200 | ≥270 | ≥335 | ≥400 | ≥535 | ≥670 | ≥800 |
| 9 | Tensile load stress cracking (notch constant load tensile method) h | ≥300 | ||||||
| 10 | Carbon black content % | 2.0~3.0 | ||||||
| 11 | Carbon black dispersibility | Out of 10 data points, there should be no more than 1 level 3, and levels 4 and 5 are not allowed. | ||||||
| 12 | oxidation induction time (OIT)(min) | Induction time of atmospheric pressure oxidation≥100 | ||||||
| Induction time of high-pressure oxidation≥400 | ||||||||
| 13 | 85 ℃ thermal aging (atmospheric pressure OIT retention rate after 90 days) | ≥55 | ||||||
| 14 | UV resistance (OIT retention rate after 1600 hours of UV irradiation) % | ≥50 | ||||||
| Note: The technical performance indicators for thickness specifications not listed in the table are required to be executed using interpolation method. | ||||||||
HDPE Textured Geomembrane ASTM GM13 Standard
| ASTM GM13 HDPE Geomembrane - Textured | |||||||
| Properties | Test Method (ASTM) |
Test Value | |||||
| 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50mm | 3.0mm | ||
| Asperity Height | D7466 | 0.25mm | 0.25mm | 0.25mm | 0.25mm | 0.25mm | 0.25mm |
| Density | D 792 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 |
| Tensile properties Streneth at Yield N/mm Strength at Break N/mm GElongation at Yield % Elongation at Break % |
D6693 Tvpe IV |
15 10 12 700 |
18 13 12 700 |
22 16 12 700 |
29 21 12 700 |
37 26 12 700 |
44 32 12 700 |
| Tear Resistance | D 1004 | 125 N | 156 N | 187N | 249 N | 311 N | 374 N |
| Puncture Resistance | D 4833 | 267N | 333N | 400N | 534 N | 667 N | 800N |
| Stress Crack Resistance | D 5397 | 500hr. | 500 hr. | 500 hr. | 500 hr. | 500hr. | 500 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2 0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Oxidative Induction Time (OIT) Standard OIT High Pressure OIT |
D 3895 D 5885 |
100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. |
| 400min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | ||
| Oven Aging at 85 ℃ Standard OIT retained after 90 days High Pressure OIT retained after 90 days |
D 5721 D 3895 D 3895 |
55% | 55% | 55% | 55% | 55% | 55% |
| 80% | 80% | 80% | 80% | 80% | 80% | ||
| UV Resistance Standard OIT High Pressure OIT |
D 3895 D 5885 |
50% | 50% | 50% | 50% | 50% | 50% |
| 50% | 50% | 50% | 50% | 50% | 50% | ||
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
HDPE single-sided textured geomembrane is mainly used in garbage landfills, sewage or waste residue treatment of defense seepage; rivers, lake dams, tailings dams, sewage dams and reservoir areas, channels, storage ponds (pit, mine) anti-seepage prevention seepage; metro, basement and tunnels, tunnel defense infiltration; road base and other foundation anti-seepage; horizontal anti-seepage coverage, construction coffee weeks, waste field prevention of highway, highway, railway foundation; expansion soil and wet trap waterproof layer.

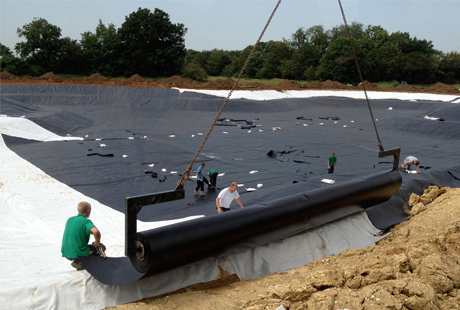

❖HDPE Single-Sided Textured Geomembrane for Aquaculture & Landscaping

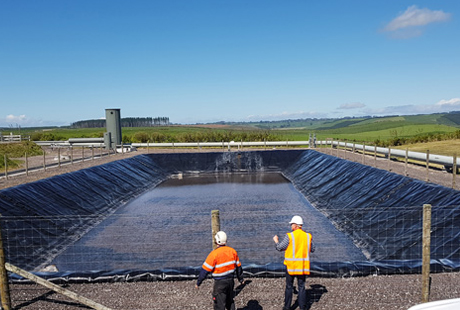

1.Seepage Prevention of Water Storage Pond
2.Foundation Anti-seepage
3.Dam & Road
 |
 |
| HDPE Single-Sided Textured Geomembrane for Pool | HDPE Single-Sided Textured Geomembrane for Reservoir |
 |
 |

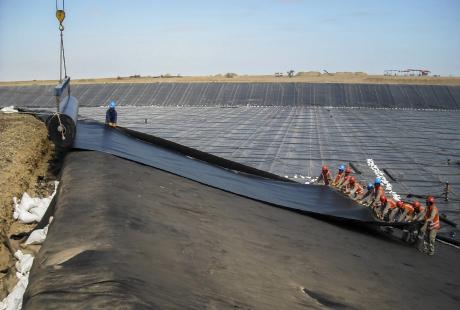

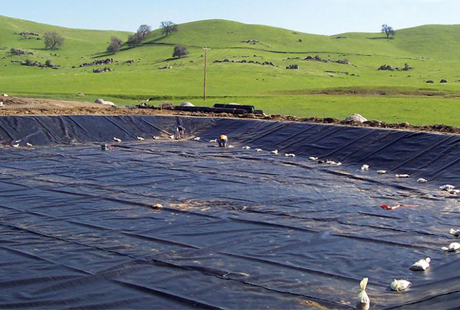

| HDPE Single-Sided Textured Geomembrane for Golf Training Ground Pond | HDPE Single-Sided Textured Geomembrane for Fish Ponds Pond Liner |
