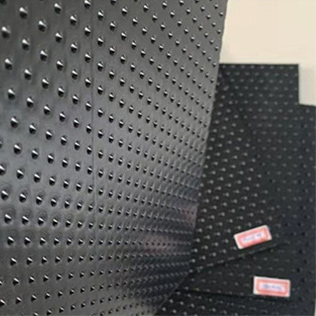

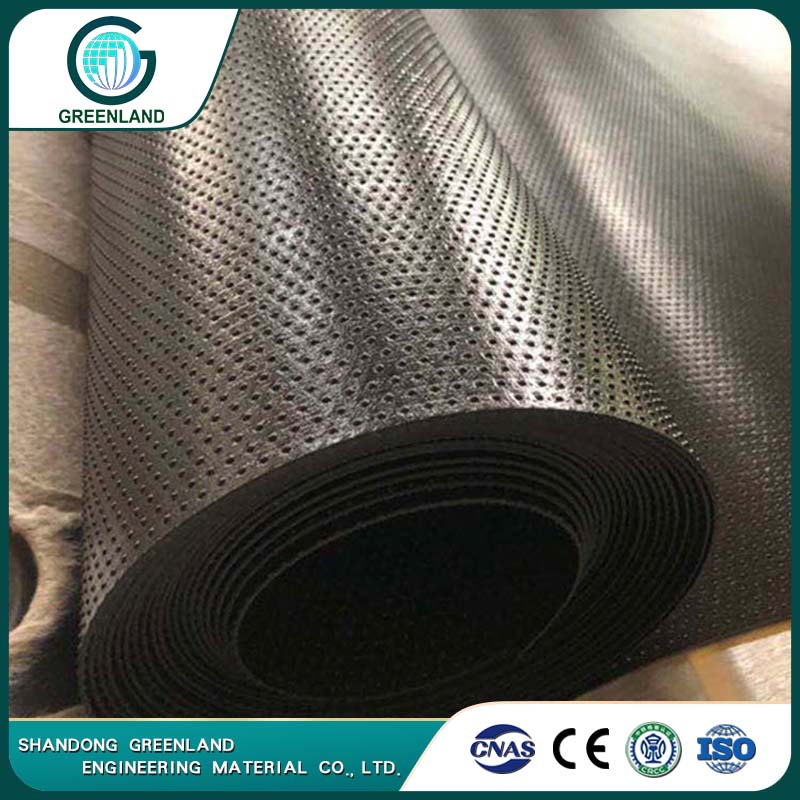

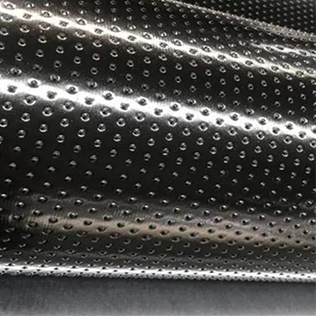

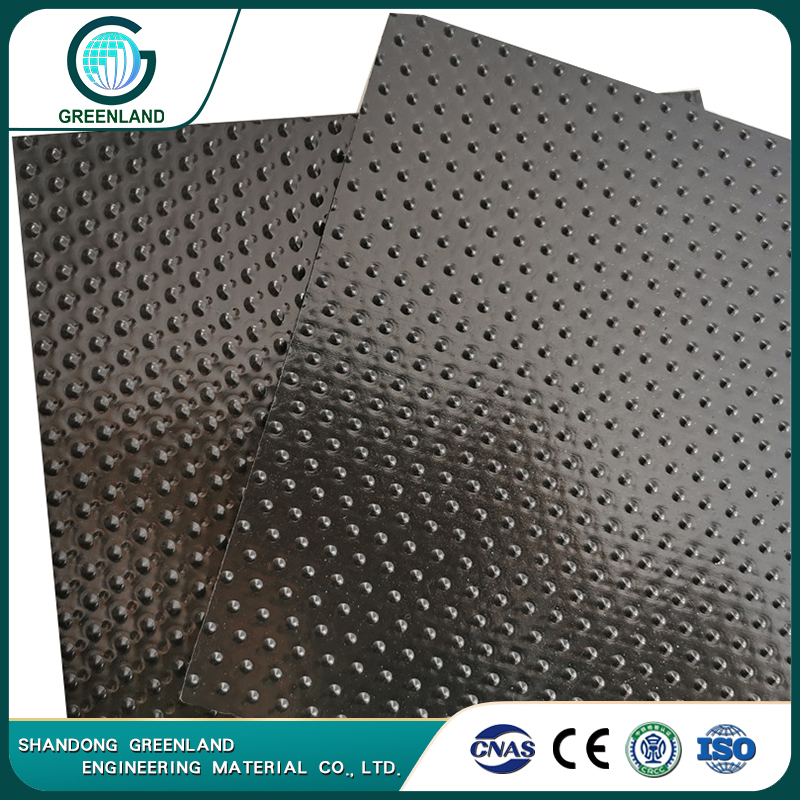

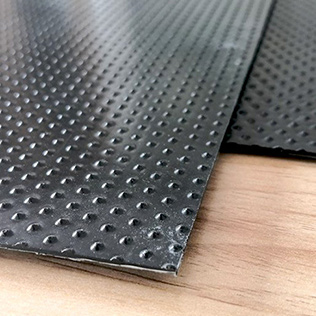

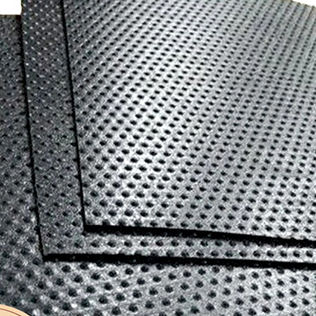

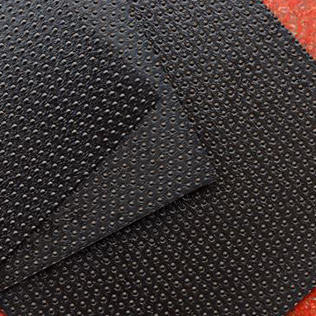

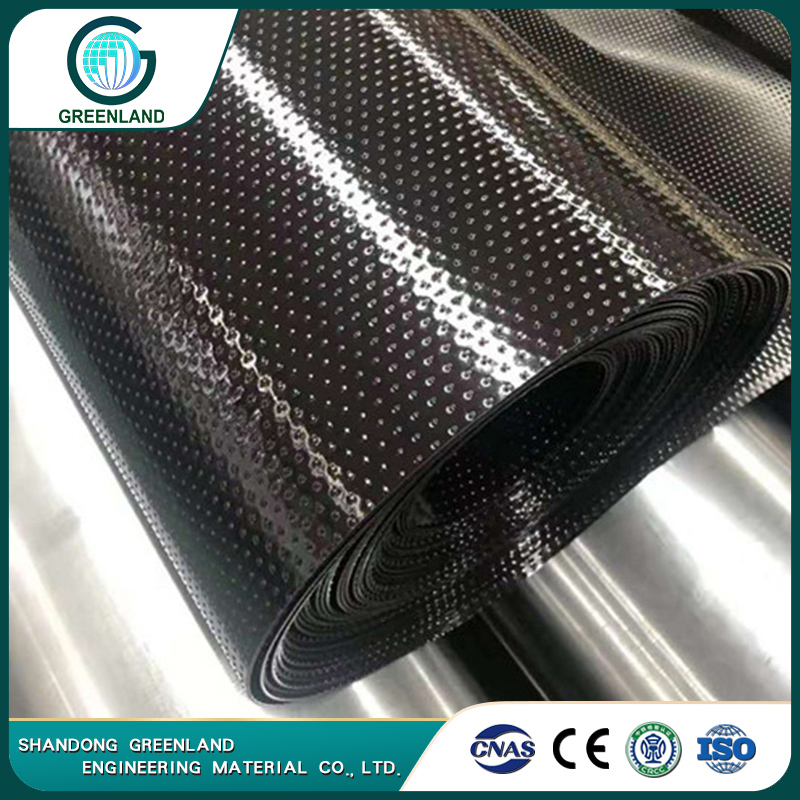

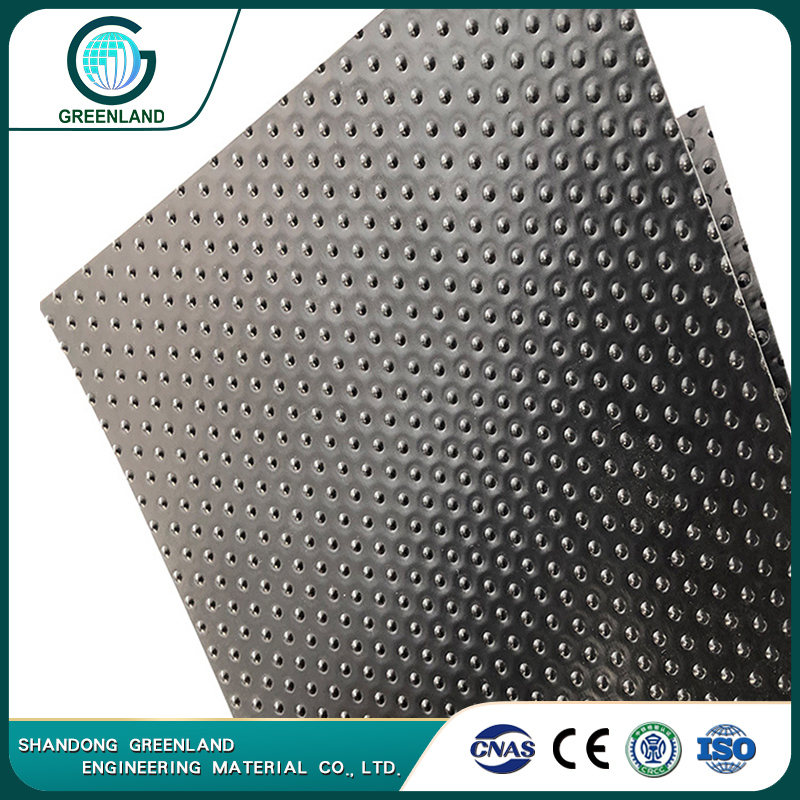

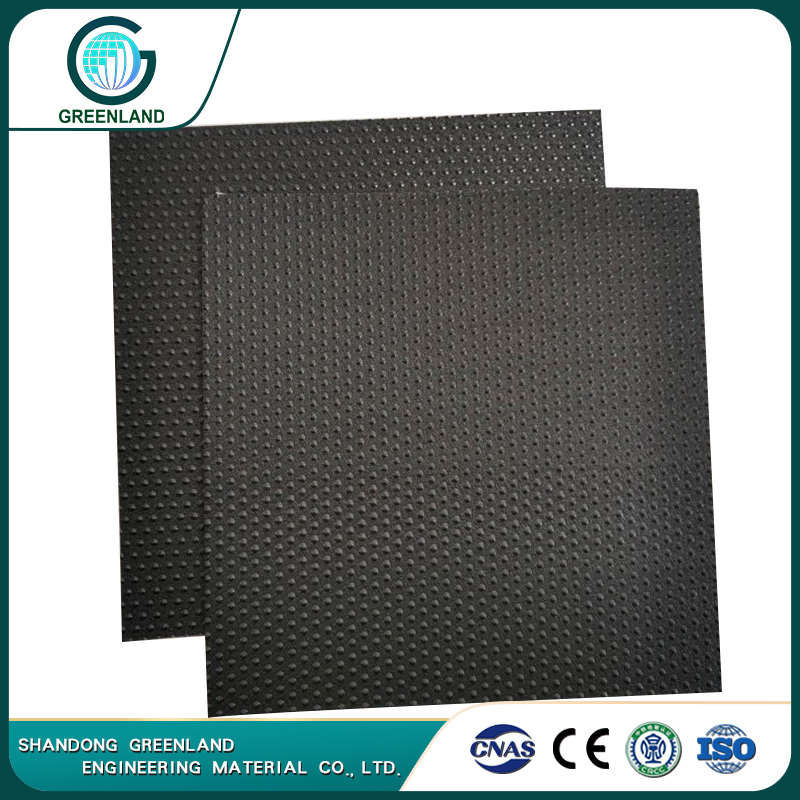

HDPE Column Point Textured Geomembrane
- 1.Thickness: 0.2mm-3.0mm(0.008inch-0.118inch)
- 2.Width: Max. 8M
- 3.Raw material: PE100, PE80, HDPE, LDPE, LLDPE, ECB, PVC, EVA…
- 4.Standards: ASTM GM13, ISO, GH-1 GB/T17643-2011
- 5.Delivery period: stock, 5-10 days production date
- 6.Packing: 50-100m length/roll
- 7.MOQ: Trial order is acceptable
- 8.Free Sample
HDPE column point textured geomembrane on the basis of retaining the original high density polyethylene resin itself and good extension rate and stable chemical performance. The processing and other process processing, reasonable control has enhanced the product's tensile, wear-resistant, puncture-resistant, acid-alkali, and corrosion resistance.
HDPE column point textured geomembrane has a beautiful appearance, uniform distribution, high friction coefficient, and convenient construction for anti-seepage, anti pollution, and anti slip functions. It is mainly used for anti-seepage of garbage landfills, sewage treatment plants, rivers, lakes, and reservoir dams, as well as slope protection projects such as reservoirs, fish ponds, and intensive plant breeding ponds.
Quick Details of HDPE (High Density Polyethylene) Column Point Textured Geomembrane
| Products details information | |
| Product name | HDPE (High Density Polyethylene) Column Point Textured Geomembrane |
| Brand | Greenland (OEM is available) |
| Thickness | 0.2mm-3.0mm (0.008inch-0.118inch) |
| Raw material | HDPE, LDPE, LLDPE, EVA, PVC, ECB... |
| Application | Anti-seepage treatment of landfill sites, sewage treatment plants, and power plant regulating ponds, canal anti-seepage, slope protection, industrial aquaculture ponds, fish ponds, shrimp ponds lining, and reservoir anti-seepage laying, golf pools, green lawns, chemical plants, refineries, storage tanks, chemical reaction tanks for anti-seepage, seepage control of sedimentation tank lining, reservoir, application tank, salt tank, irrigation system, etc. |
| Color | Black, White, other colors |
| Standards | ASTM GM13, ISO, GH-1 GB/T17643-2011 |
| Welding Tools | Hot wind welding, roller welding machine, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50-70 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of HDPE (High Density Polyethylene) Column Point Textured Geomembrane

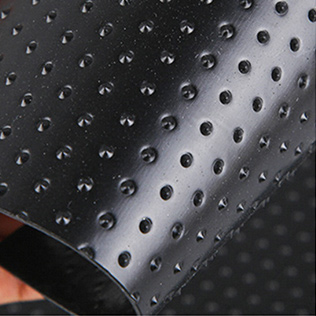

HDPE column point textured geomembrane is produced by using a coating equipment and squeezing it through a mold during the production process of HDPE geomembrane, which improves the friction performance of the surface of the geomembrane. In engineering laying, in addition to its functions of anti-seepage, anti fouling, and anti slip, it also has the function of enhancing the adhesion strength of geotextiles in secondary laying, and has the characteristics of convenient construction and high application efficiency. It is an ideal specialized material for anti-seepage and anti pollution engineering in landfill sites.
 |
 |
 |
| Excellent material | Good ductility | Large friction coefficient |
 |
 |
 |
| Good non-slip performance | Long service life | Support customization |
Benefits of HDPE (High Density Polyethylene) Column Point Textured Geomembrane
- 1. HDPE column point geomembrane has good flexibility and high damping coefficient, suitable for uneven deposition.
- 2. HDPE column point geomembrane has good heat and cold resistance and can be used over a wide temperature range.
- 3. HDPE column point geomembrane has good chemical properties and strong corrosion resistance.
- 4. HDPE column point geomembrane has strong weather resistance and excellent resistance to aging, ultraviolet radiation, and decomposition. The material's service life can reach 50-70 years, providing environmental anti-seepage.
- 5. HDPE column point geomembrane has high tensile strength and elongation at break, and can be used in various harsh environments.
- 6. HDPE column point geomembrane has good puncture resistance and can almost resist plant roots.
- 7. HDPE column point geomembrane has better efficiency, and new technologies have improved the membrane's anti-seepage performance, resulting in lower costs for additional materials. Through actual testing, geomembranes can save 50% of engineering costs.
- 8. The construction speed of HDPE column point geomembrane is fast, the geomembrane has high flexibility, multiple specifications, and various laying forms, which can meet different engineering needs.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of HDPE (High Density Polyethylene) Column Point Textured Geomembrane
HDPE (High Density Polyethylene) Column Point Textured Geomembrane
| Performance Parameter Table of Rough Geomembrane (Column Point Textured Geomembrane) (GB/T17643-2011 Standard) | ||||||||
| Number | Item | Indicators | ||||||
| Thickness (mm) | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 | |
| 1 | Density (g/m³) | ≥0.940 | ||||||
| 2 | Roughness height (mm) | ≥0.25 | ||||||
| 3 | Tensile yield strength (longitudinal and transverse) N/mm | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| 4 | Tensile fracture strength (longitudinal and transverse) N/mm | ≥8 | ≥10 | ≥13 | ≥16 | ≥21 | ≥26 | ≥32 |
| 5 | Yield elongation (longitudinal and transverse) % | ≥12 | ||||||
| 6 | Elongation at break (longitudinal and transverse) % | ≥100 | ||||||
| 7 | Right angle tear load (longitudinal and transverse) N | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| 8 | Puncture resistance strength N | ≥200 | ≥270 | ≥335 | ≥400 | ≥535 | ≥670 | ≥800 |
| 9 | Tensile load stress cracking (notch constant load tensile method) h | ≥300 | ||||||
| 10 | Carbon black content % | 2.0~3.0 | ||||||
| 11 | Carbon black dispersibility | Out of 10 data points, there should be no more than 1 level 3, and levels 4 and 5 are not allowed. | ||||||
| 12 | oxidation induction time (OIT)(min) | Induction time of atmospheric pressure oxidation≥100 | ||||||
| Induction time of high-pressure oxidation≥400 | ||||||||
| 13 | 85 ℃ thermal aging (atmospheric pressure OIT retention rate after 90 days) | ≥55 | ||||||
| 14 | UV resistance (OIT retention rate after 1600 hours of UV irradiation) % | ≥50 | ||||||
| Note: The technical performance indicators for thickness specifications not listed in the table are required to be executed using interpolation method. | ||||||||
HDPE (High Density Polyethylene) Column Point Textured Geomembrane
| ASTM GM13 HDPE Geomembrane - Textured | |||||||
| Properties | Test Method (ASTM) |
Test Value | |||||
| 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50mm | 3.0mm | ||
| Asperity Height | D7466 | 0.25mm | 0.25mm | 0.25mm | 0.25mm | 0.25mm | 0.25mm |
| Density | D 792 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 | 0.940 g/cm3 |
| Tensile properties Streneth at Yield N/mm Strength at Break N/mm GElongation at Yield % Elongation at Break % |
D6693 Tvpe IV |
15 10 12 700 |
18 13 12 700 |
22 16 12 700 |
29 21 12 700 |
37 26 12 700 |
44 32 12 700 |
| Tear Resistance | D 1004 | 125 N | 156 N | 187N | 249 N | 311 N | 374 N |
| Puncture Resistance | D 4833 | 267N | 333N | 400N | 534 N | 667 N | 800N |
| Stress Crack Resistance | D 5397 | 500hr. | 500 hr. | 500 hr. | 500 hr. | 500hr. | 500 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2 0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Oxidative Induction Time (OIT) Standard OIT High Pressure OIT |
D 3895 D 5885 |
100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. |
| 400min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | ||
| Oven Aging at 85 ℃ Standard OIT retained after 90 days High Pressure OIT retained after 90 days |
D 5721 D 3895 D 3895 |
55% | 55% | 55% | 55% | 55% | 55% |
| 80% | 80% | 80% | 80% | 80% | 80% | ||
| UV Resistance Standard OIT High Pressure OIT |
D 3895 D 5885 |
50% | 50% | 50% | 50% | 50% | 50% |
| 50% | 50% | 50% | 50% | 50% | 50% | ||
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
HDPE column point textured geomembrane is mainly used for anti-seepage treatment of landfill sites, sewage treatment plants, and power plant regulating ponds; Canal anti-seepage, slope protection, industrial aquaculture ponds, fish ponds, shrimp ponds lining, and reservoir anti-seepage laying; Golf pools, green lawns, chemical plants, refineries, storage tanks, chemical reaction tanks for anti-seepage; Seepage control of sedimentation tank lining, reservoir, application tank, salt tank, irrigation system, etc.
❖HDPE (High Density Polyethylene) Column Point Textured Geomembrane for Waterproof & Osmotic control
1.Embankment, slope anti-seepage
2.Landscape lake anti-seepage
3.Agricultural irrigation infiltration control
 |
 |

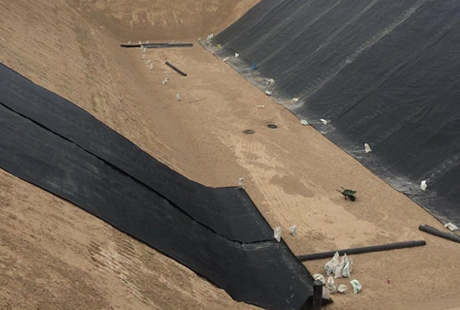

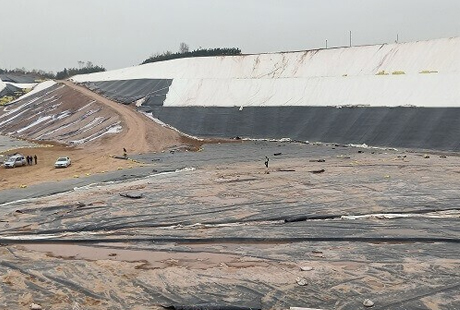

| HDPE Column Point Textured Geomembrane For Embankment | HDPE Column Point Textured Geomembrane For Slope |
 |
 |

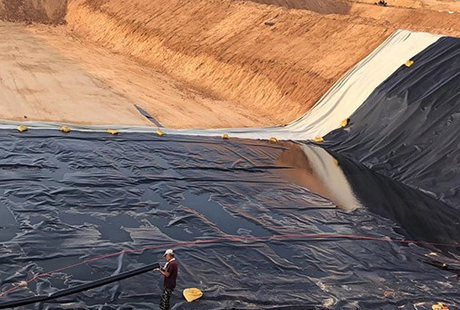

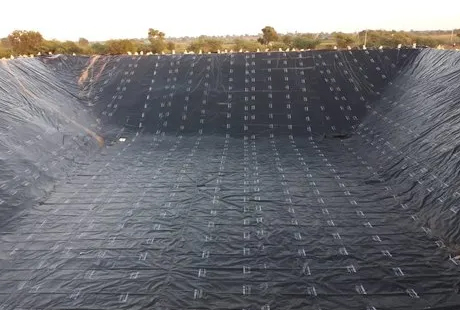

| HDPE Column Point Textured Geomembrane For Artificial Lake | HDPE Column Point Textured Geomembrane For Agricultural Irrigation System |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
