Geotube
- 1.Width: 2m or As your request
- 2.Length: As Your Requirement
- 3.Material: Polyester,PP,Nylon
- 4.Color: Black or Dark Green or as your request
- 5.Standards: CE/ISO/ASTM
- 6.Delivery time: Stock or 5-10 days after order confirmation

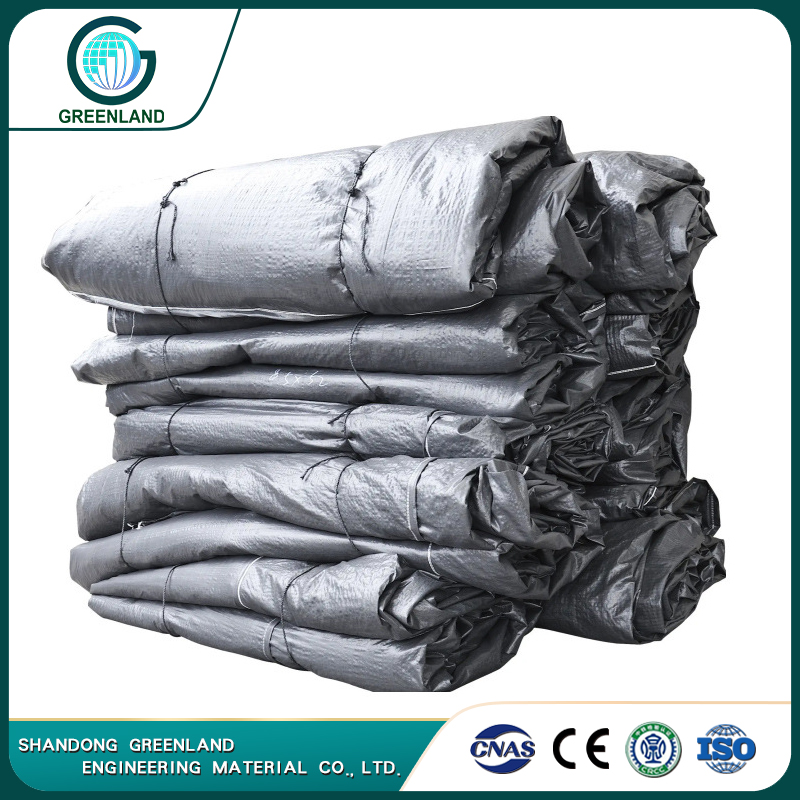

- 7.Packing: Roll Package
- 8.MOQ: Trial order is acceptable
- 9.Free Sample

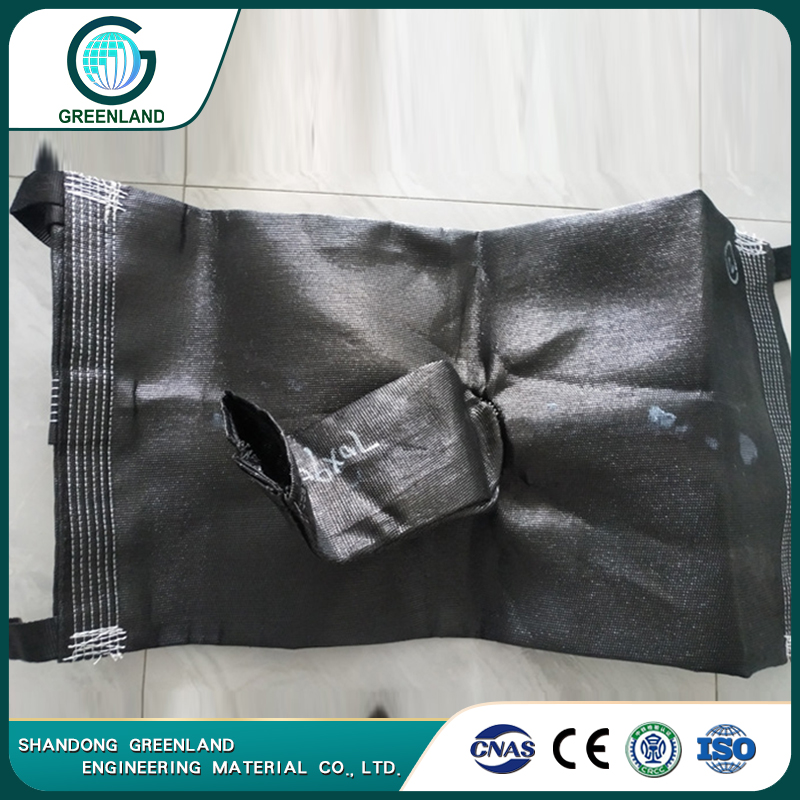

The geotube is made of high-strength polypropylene bags, and can also be made of woven cloth material. The product material is selected according to the actual needs of the project; ordinary black; common materials 400gsm can be adjusted according to products of different specifications; the length is not limited, and the width can be multiple images The splicing width is unrestricted, but it directly affects the material strength of the dewatering pipe bag. The wider the range, the higher the material strength required; the basic order filling height is two-thirds of the diameter of the pipe bag; customized according to the diameter of the grouting machine at the construction site, it can be According to the actual situation or add chemicals (increase the curing speed to accelerate overflow separation)
Quick Details of Geotube
| Products details information | |
| Product name | The plastic blind ditch |
| Brand | Greenland (OEM is available) |
| Color | Black or As your Requirement |
| Raw material | PP |
| Application | Hydraulic Project, Geotechnical Project, Environmental Project |
| Length | 50m,100m,or following your Requirement |
| Standards | ASTM/ISO |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | More than 5 years service life |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE, CRCC |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection, Test Report |
| Service | Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
❖Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of Geotube
The geotube is made of high-strength polypropylene bags, and can also be made of woven cloth material. The product material is selected according to the actual needs of the project; ordinary black; common materials 400gsm can be adjusted according to products of different specifications; the length is not limited, and the width can be multiple images The splicing width is unrestricted, but it directly affects the material strength of the dewatering pipe bag. The wider the range, the higher the material strength required; the basic order filling height is two-thirds of the diameter of the pipe bag; customized according to the diameter of the grouting machine at the construction site, it can be According to the actual situation or add chemicals (increase the curing speed to accelerate overflow separation)
 |
 |
 |
| Anti aging | Anti-UV | Corrosion preventive |
 |
 |
 |
| Selected raw materials | High temperature resistance | No water seepage |
Benefits of Geotube

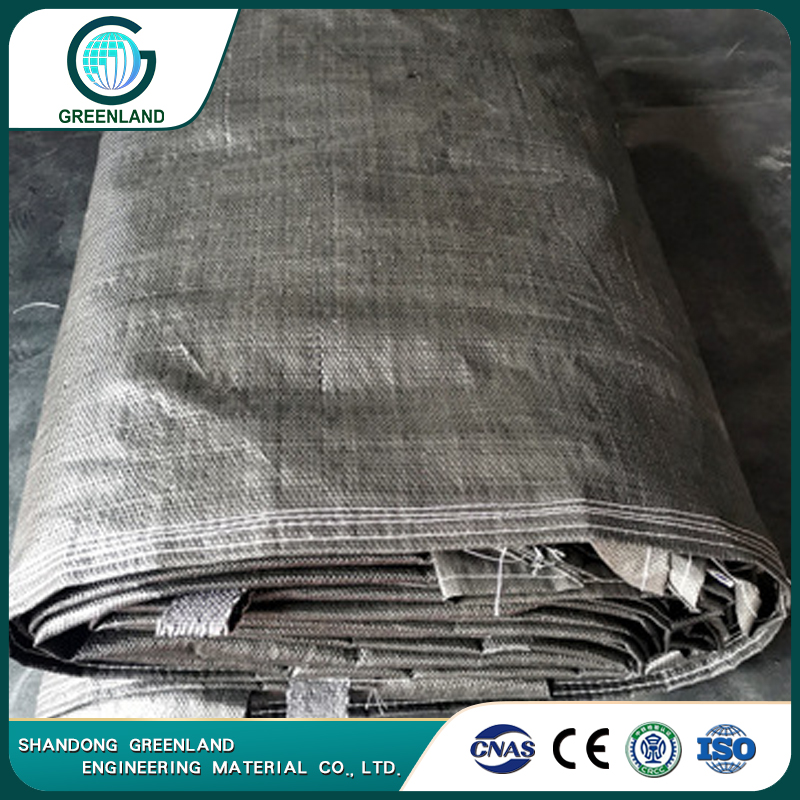

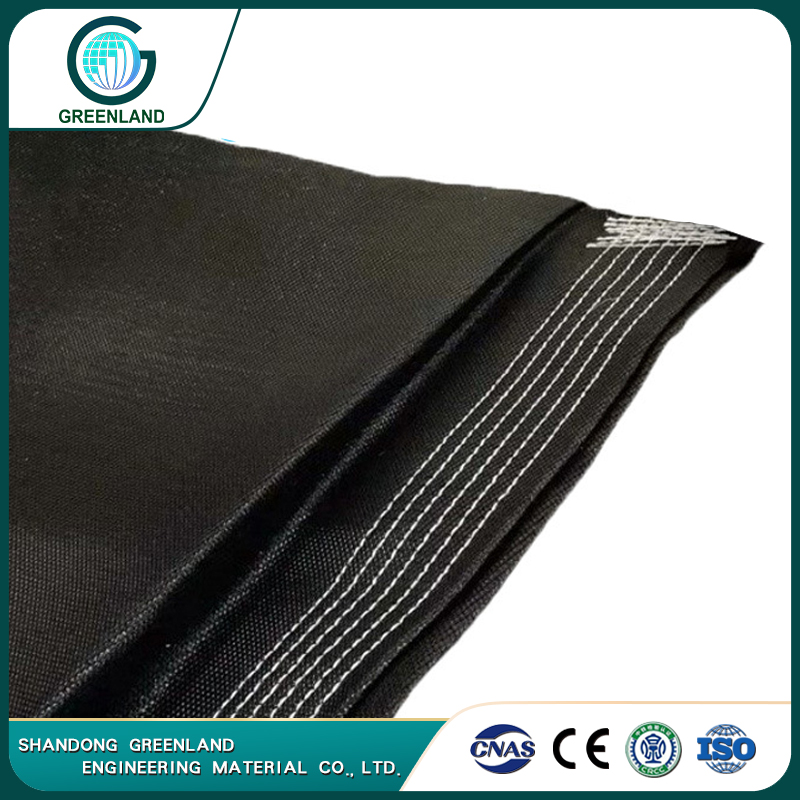

Geotextile tubes are made by PP woven fabric in a variety of sizes and lengths. They are in extra wide sizes with greater load distribution to resist punching and protect the embankment and foundation. Geotextile tubes are not only used to form shoreline structure including form temporary breakwaters, headlands, revetment on sand beach, also used in environment protection, like fill in the pollution silt, they let the water come out and retain the solid articles
- ◆1.Moisture-proof.
- ◆2.Chemical resistance.
- ◆3.Resistant to biodegradation and animal damage.
- ◆4.High temperature resistance.
- ◆5.Anti-UV.
Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
The geotube is made of high-strength polypropylene bags, and can also be made of woven cloth material. The product material is selected according to the actual needs of the project; ordinary black; common materials 400gsm can be adjusted according to products of different specifications; the length is not limited, and the width can be multiple images The splicing width is unrestricted, but it directly affects the material strength of the dewatering pipe bag. The wider the range, the higher the material strength required; the basic order filling height is two-thirds of the diameter of the pipe bag; customized according to the diameter of the grouting machine at the construction site, it can be According to the actual situation or add chemicals (increase the curing speed to accelerate overflow separation).
| SPECIFICATION OF GEOTUBE | |||||
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
The plastic blind ditch is composed of a plastic core wrapped with filter cloth. The plastic core is made of thermoplastic synthetic resin as the main raw material. Whose main function is to sieve sand and clay so as to avoid blockage.
This product has four shapes, including rectangular shape with many holes, rectangular shape with empty center, round shape with many holes, round shape with empty center.
Geotube bag dehydration technology reduces the water content in the filtration process, simplifies the water recycling process, and intercepts more than 90% of the suspended soild particles. It is an ideal choice for cleaning sludge storage tanks, clarification tanks and filtering waster projects
❖Geotube for landscape engineering
1.Sludge dewatering .
2.erosion control mechanism.
3.Primary and secondary lagoon cleanup.
4.Mining and mineral processing to remove railings.
5.DUrban sewage treatment plant.
6.Ocean restoration.
7.River regulation projects and seawall construction.
 |
 |

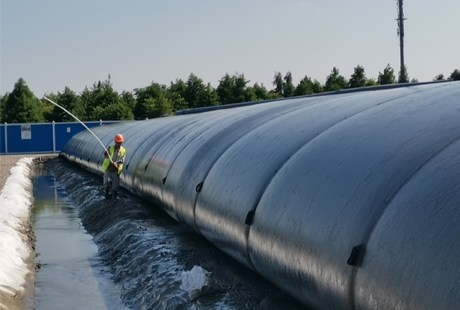

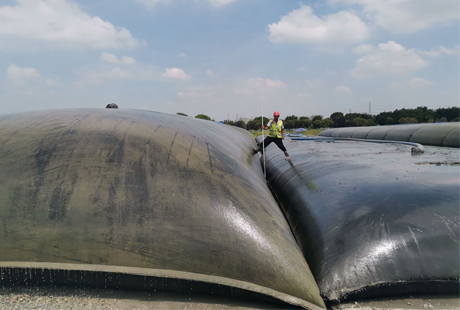

| Geotube For Shore protection and wave prevention | Geotube sewage treatment |
 |
 |

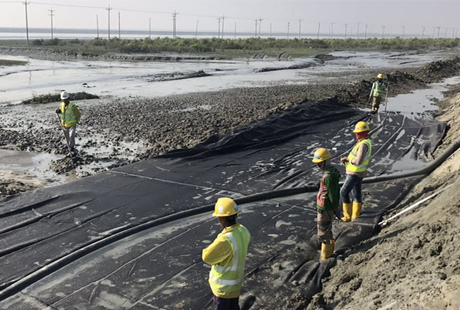

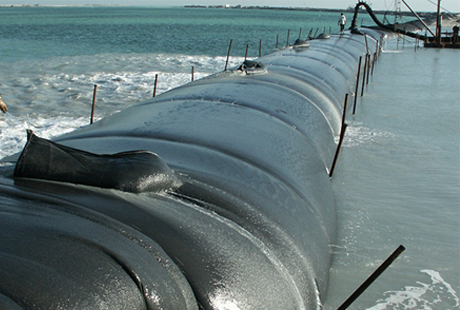

| Geotube For River dredging | Geotube FOR Marine Engineering |
Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
- Below are the detailed information on Geotube for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@glgeosynthetics.com. Mobile(WhatsApp): +86 155 15596408.
- 23.Geotube bags
DownLoad
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.
