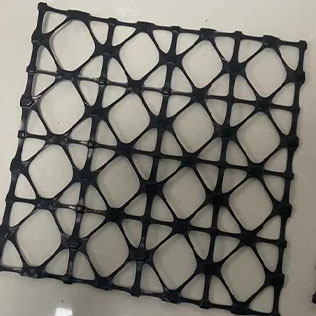

Four-way Tensile Geogrid

  • 1.Width: 1-6m or As your Requirement
  • 2.Length: 50-100m or following your Requirement
  • 3.Material: PP,PE,HDPE
  • 4.Color: Black or As your request
  • 5.Standards: ASTM,ISO
  • 6.Delivery time: Stock or 5-10 days after order confirmation
  • 7.Packing: Roll Package
  • 8.MOQ: Trial order is acceptable
  • 9.Free Sample
Send E-mail Get Price

Introduction

Specifications

Application

Download

Four-way stretched plastic geogrid is a geogrid with a mesh structure made of polymer that is plasticized, extruded, punched, heated and then stretched in four directions.Four-way stretched plastic geogrid is a geogrid with a mesh structure made of polymer that is plasticized, extruded, punched, heated and then stretched in four directions.

Four-way Tensile GeogridQuick Details of Four-way tensile geogrid

Products details information
Product name Four-way tensile geogrid
Brand Greenland (OEM is available)
Model No. Four-way tensile geogrid
Raw material HDPE
Application ground reinforcement at airports, highways, railways, ports
Color Black and other colors
Standards ASTM
Welding Tools Hot air welding gun,roller welding machine
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50-70 years service life
Certificates ISO9001, OHSAS 18001, ISO14001,CE, CRCC
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection, Test Report
Service Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training
Management Effective 8S Management System
No. of employees More than 300 people

❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

Four-way Tensile GeogridDescription of Four-way tensile geogrid

Four-way stretched plastic geogrid is a geogrid with a mesh structure made of polymer that is plasticized, extruded, punched, heated and then stretched in four directions.Four-way geogrids provide bearing capacity in four directions based on node locations and are more stable and efficient than other plastic geogrids.

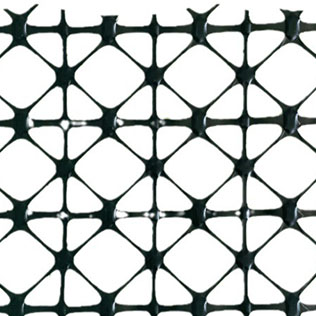

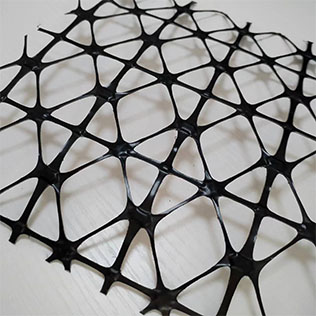

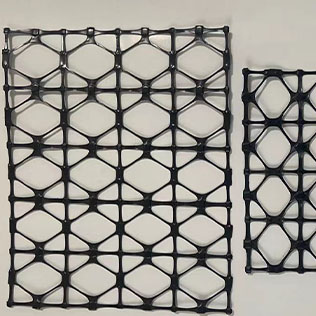

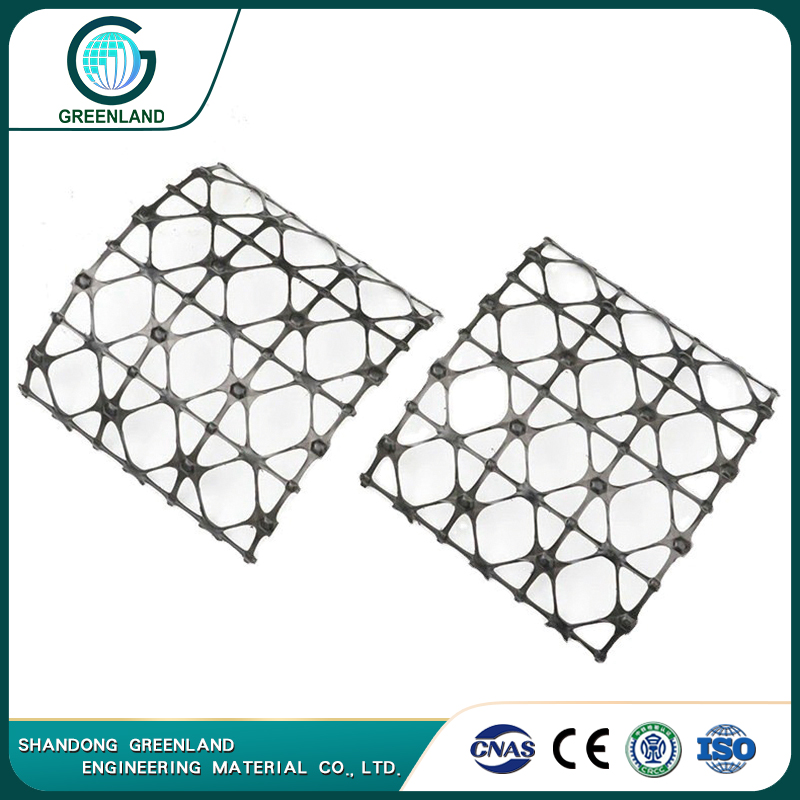

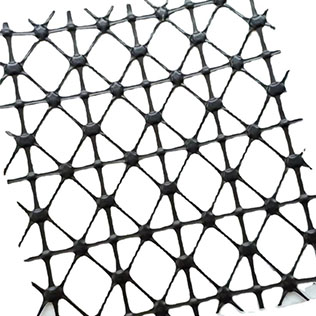

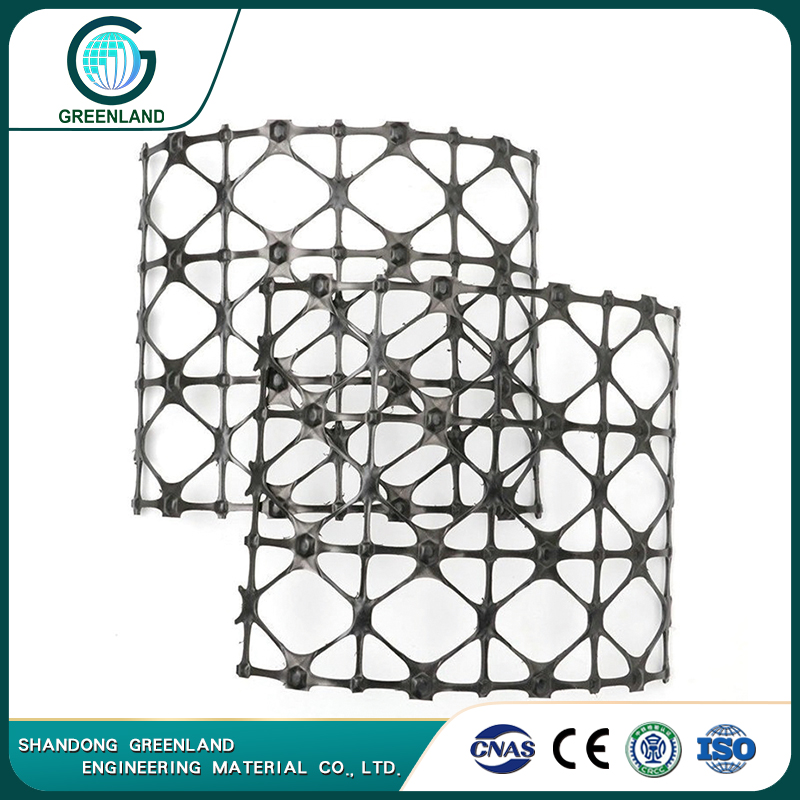

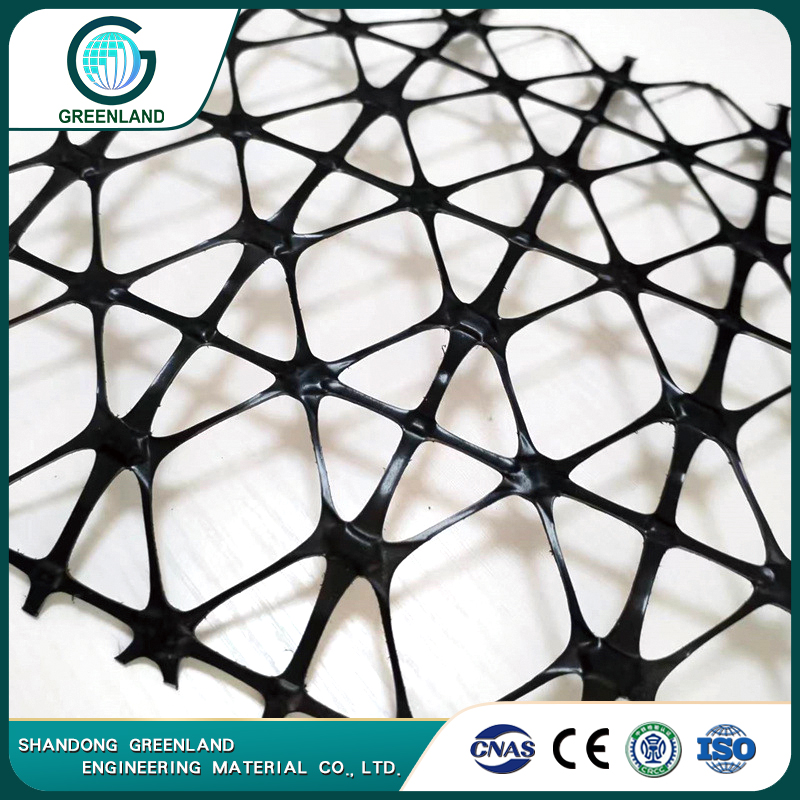

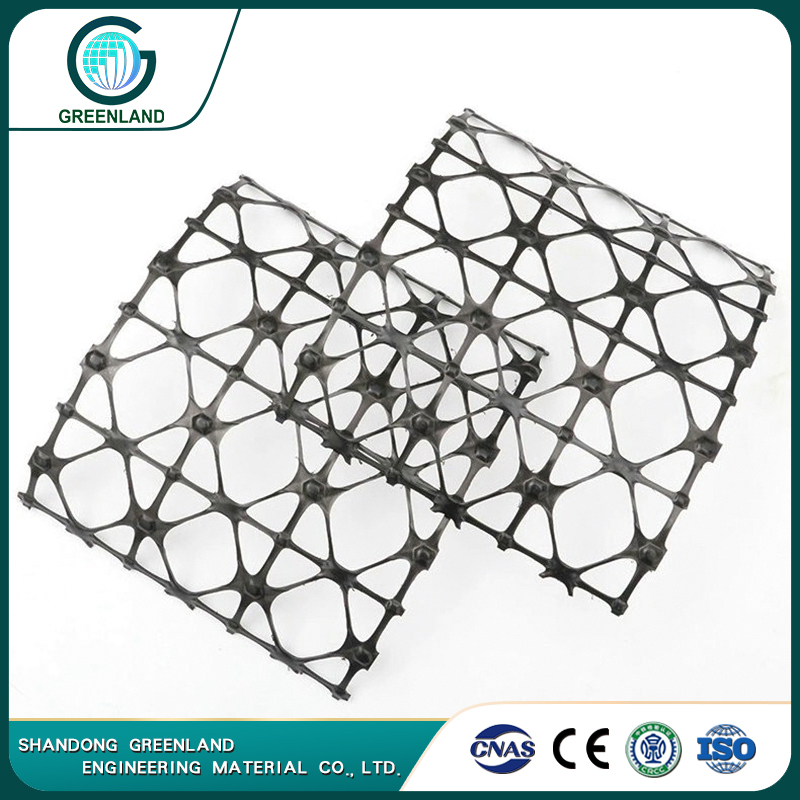

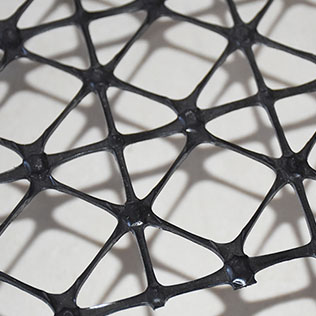

Four-way Tensile Geogrid Four-way Tensile Geogrid Four-way Tensile Geogrid

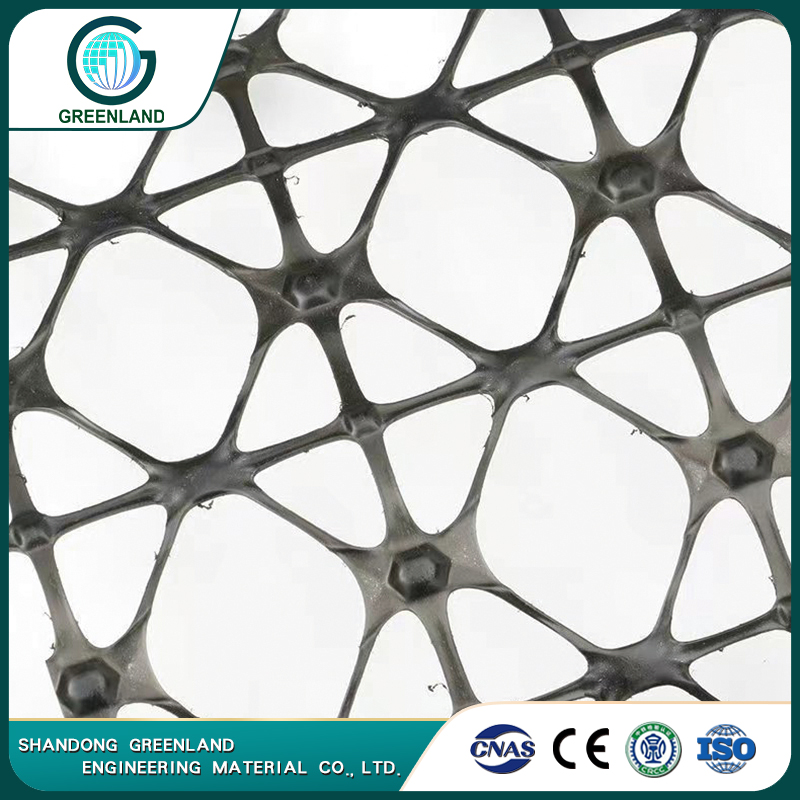

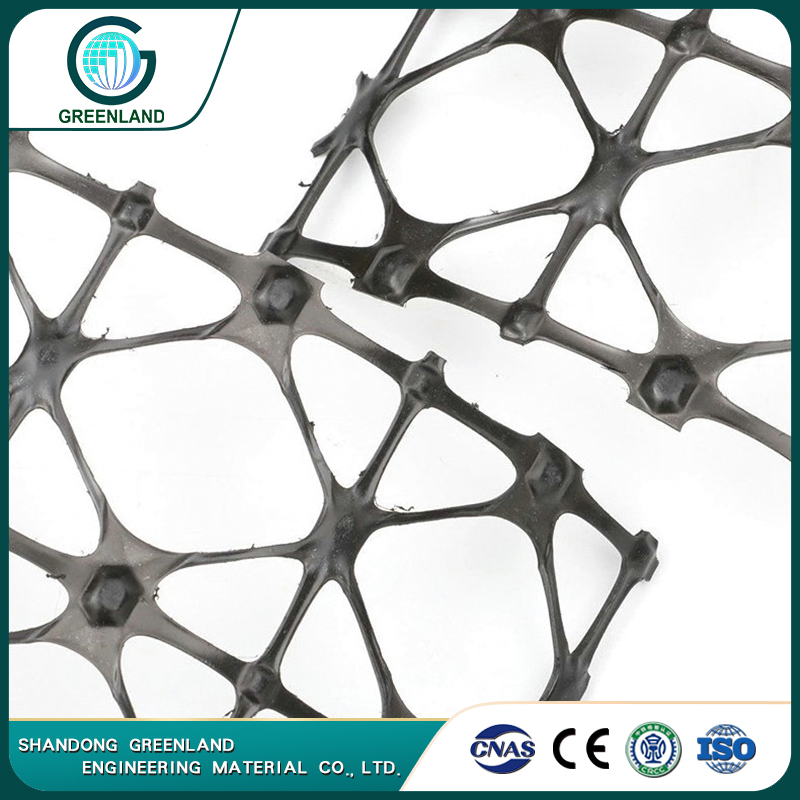

Four-way Tensile Geogrid Four-way Tensile Geogrid Four-way Tensile Geogrid

Four-way Tensile GeogridBenefits of Four-way stretched plastic geogrid

Four-way stretched plastic geogrid is a geogrid with a mesh structure made of polymer that is plasticized, extruded, punched, heated and then stretched in four directions.

  • ◆1.It has the most stable triangular structure and is not prone to structural deformation when subjected to force; .
  • ◆2.It can withstand multi-directional loads at the same time and is not prone to node torsion damage.
  • ◆3.Because it has a rectangular cross-section, it is less likely to slip with the soil and the reinforcement effect is better.
  • ◆4.Because the nodes are larger than the two-way grid, the nodes are more efficient and the nodes are not easily damaged.
  • ◆5.Because multiple ribs share nodes, it saves more materials and energy.

Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.

The products has high intensity, low elongation ratio, thermostable, high module, light weight, good toughness, anti-corrosive, long life and so on characteristics, and can be applied in the old cement road surface, runway's service, the dike, the river bank, the side slope protection, project domains and so on road bridge connection surface enhancement processing. .

Specifications of Four-way tensile geogrid
Item                           TGDXG10-10 TGDXG15-15 TGDXG20-20 TGDXG25-25 TGDXG30-30
Tensile Strength @ 2% Strain MD kN/m 125 175 225 300 350
（0°and 90°direction）
Tensile Strength @ 5% Strain MD kN/m≥（kN/m） 110 150 220 270 330
（0°and 90°direction）
Tensile Strength @ 2% Strain MD kN/m 75 125 150 200 225
(45° and 135°direction）
Tensile Strength @ 5% Strain MD kN/m 70 110 150 180 230
（45° and 135°direction）
Tensile Strength ≥(kN/m) 10 15 20 25 30
(0° and 90°direction)
Nominal elongation≤（%） 15
(0°and 90°direction）
Carbon black content（%） 2
Width(m) 1~6
Remark 0° is portrait，90° is Horizontal

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

Four-way stretched plastic geogrids are used extensively for road and railway construction, landfills, airports and hydraulic engineering and also to provide crack control and pavement reinforcement of roads.

❖Four-way stretched plastic geogrid for Anti-seepage and protection of infrastructure projects

1.Increase the bearing capacity of the road (ground) foundation and extend its service life.

2.Prevent road (ground) collapse or cracks, and maintain a beautiful and tidy ground.

3.Convenient construction, time-saving, labor-saving, shortened construction period, and reduced maintenance costs.

4.Prevent cracks in culverts.

5. Strengthen soil slopes to prevent soil erosion.

6.Reduce the thickness of the cushion layer and save costs.

Four-way Tensile Geogrid Four-way Tensile Geogrid

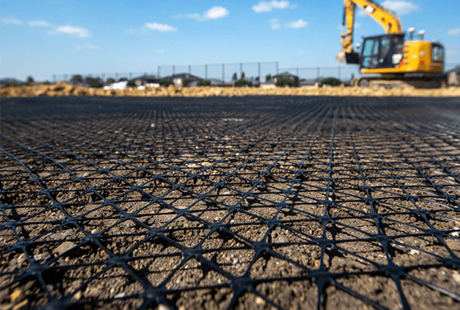

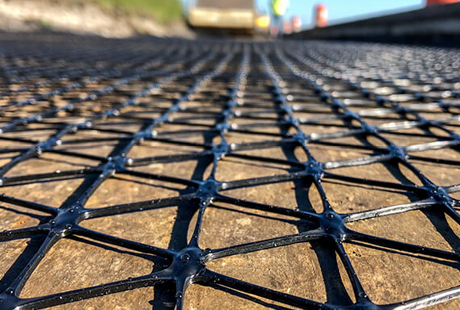

Geogrid for Airport foundation enhancement Geogrid for railway foundation enhancement
Four-way Tensile Geogrid Four-way Tensile Geogrid

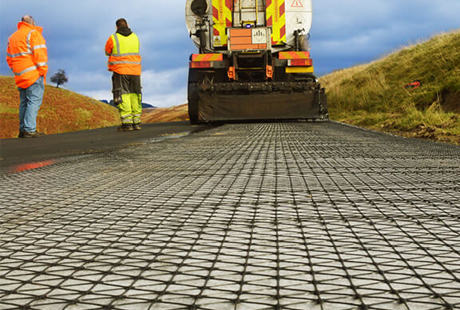

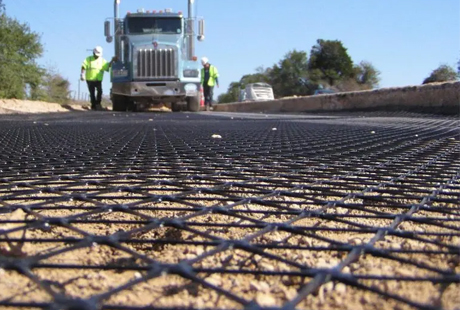

Geogrid for Highway foundation enhancement Geogrid for Port foundation enhancement

Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
