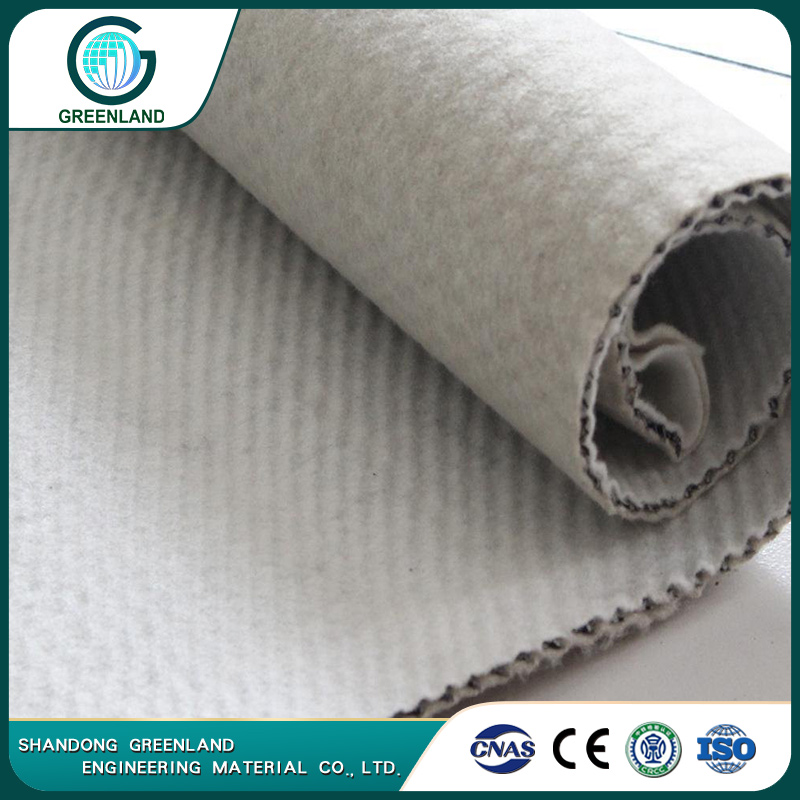

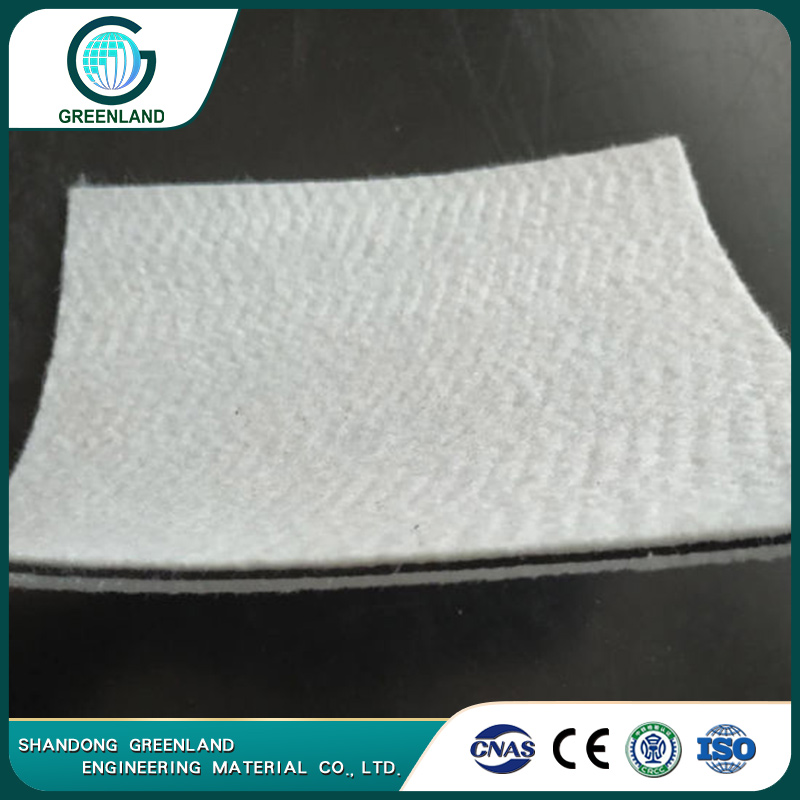

3D Composite Drainage Network

  • 1. Thickness: 5.0-8mm(0.197inch-0.315inch)
  • 2. Width: 2-4M
  • 3. Raw material: HDPE
  • 4. Standards: ASTM, ISO, GB/T17690
  • 5. Delivery period: stock, 5-10 days production date
  • 6. Packing: 50-100m length/roll
  • 7. MOQ: Trial order is acceptable
  • 8. Free Sample
Send E-mail Get Price

Introduction

Specifications

Application

Download

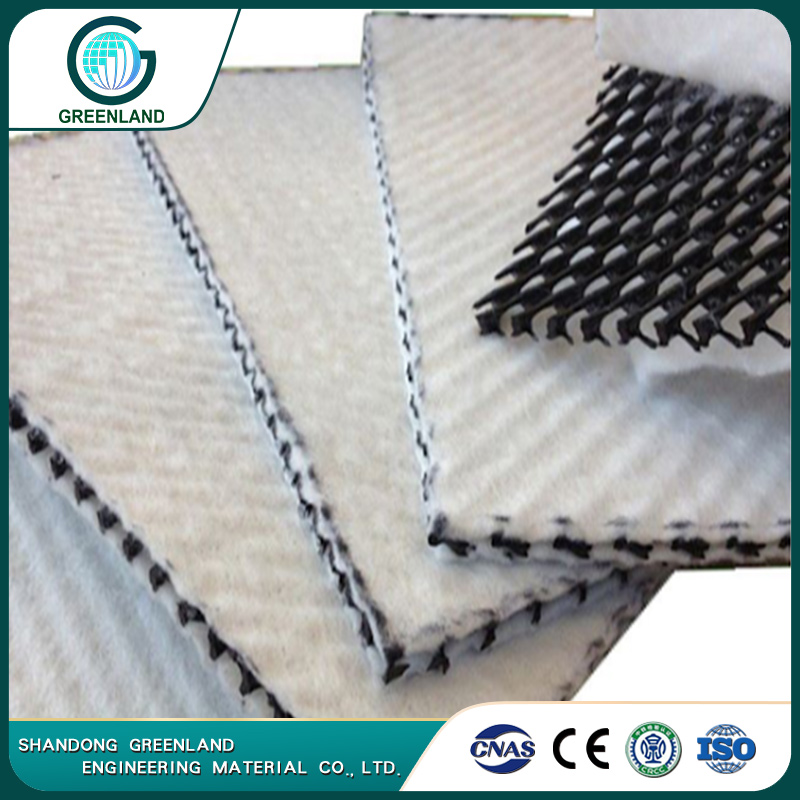

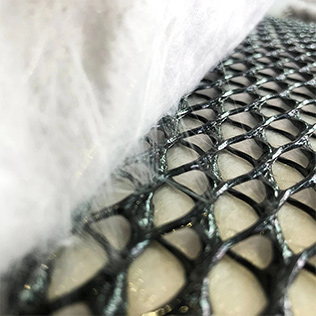

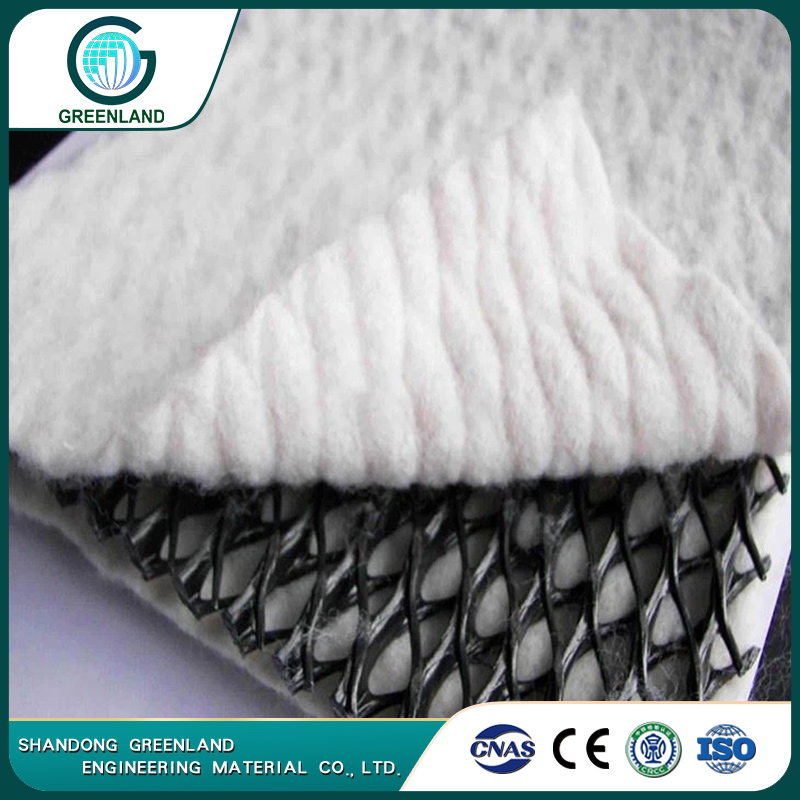

3D composite drainage network is a new type of geosynthetic material, which consists of a three-dimensional geosynthetic core with needle punched non-woven geotextile adhered to both sides. Due to the combination of geotextile (anti filtration effect) and geotextile mesh (drainage and reinforcement protection effect), it can provide a complete "anti filtration drainage protection" effect.

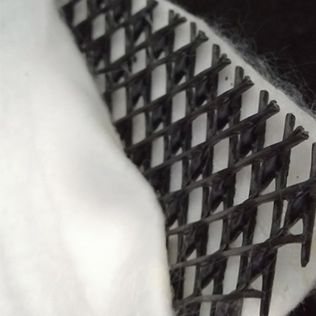

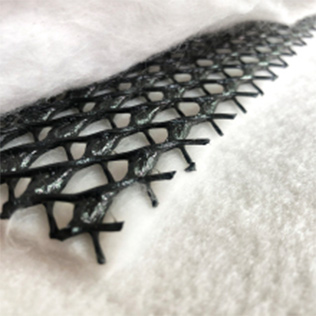

The geotextile core of the composite drainage network itself includes a thick vertical rib, as well as one diagonal rib at the top and one diagonal rib at the bottom. It can quickly discharge groundwater from roads and has a pore maintenance system that can block capillary water under high loads. Moreover, it can withstand high compressive loads throughout the entire usage process and maintain a considerable thickness, providing excellent hydraulic conductivity.

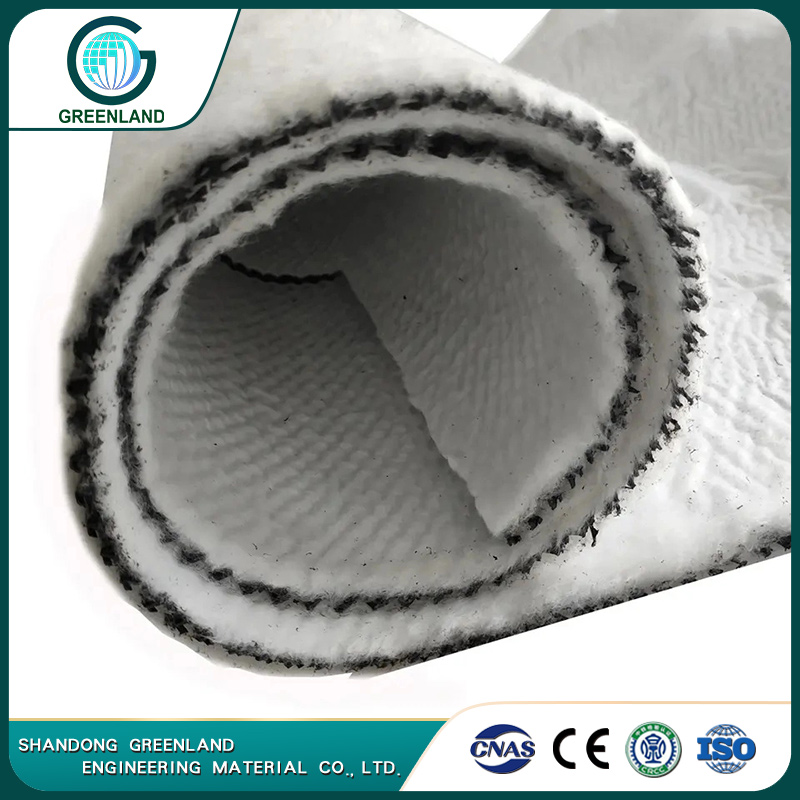

3D Composite Drainage NetworkQuick Details of 3D Composite Drainage Network

Products details information
Product name 3D Composite Drainage Network
Brand Greenland (OEM is available)
Thickness 5.0-8mm (0.197inch-0.315inch)
Raw material HDPE
Application Railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage works
Color Black, White, other colors
Standards ASTM, ISO, GB/T 17690
Welding Tools Hot air welding gun, geomembrane welding machine, etc
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50-70 years service life
Certificates ISO9001, OHSAS 18001, ISO14001,CE, CRCC
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection, Test Report
Service Research, Design, Manufacture, Test, Sales, Solution Providing, After-sale service, Training
Management Effective 8S Management System
No. of employees More than 300 people

❖Welcome customers to visit the factory, or third party factory inspection is acceptable.

3D Composite Drainage NetworkDescription of 3D Composite Drainage Network

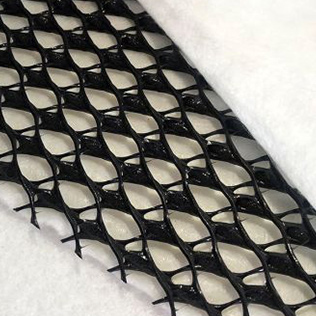

3D composite drainage network is a new type of drainage geotextile. Made from high-density polyethylene (HDPE) as raw material and processed through a special extrusion molding process, it has a three-layer special structure. The middle reinforcement has high rigidity and is arranged longitudinally to form a drainage channel. Cross arranged reinforcement forms support to prevent geotextiles from being embedded in drainage channels, maintaining high drainage performance even under high loads. The composite use of double-sided adhesive permeable geotextile has the comprehensive performance of "reverse filtration, drainage, breathability and protection". It is currently an ideal drainage material. Mainly used in railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage works, and the effect is remarkable.

3D Composite Drainage Network 3D Composite Drainage Network 3D Composite Drainage Network

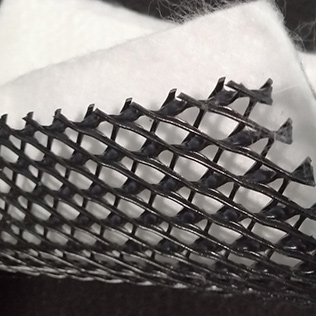

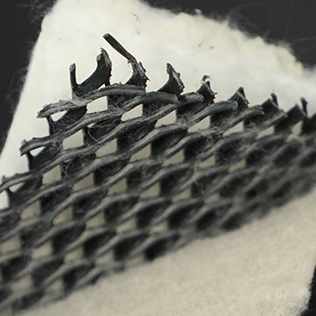

High tensile strength Withstand high pressure loads Corrosion preventive
3D Composite Drainage Network 3D Composite Drainage Network 3D Composite Drainage Network

3D Composite Drainage NetworkBenefits of 3D Composite Drainage Network

The pore maintenance system of 3D composite drainage network can drain underground water quickly, block the capillary water under high load in construction, keep certain thickness and provide good water conductivity property. At the same time, it can also play the role of isolation and foundation reinforcement.

(1) Good flexibility and permeability: In coastal engineering, use its traits of appropriate flexibility and permeability to buffer the influence power of waves.

(2) Strong excessive strain load: Can stand up to a compression load of about 3000A for a lengthy time.

(3) Good performance: Made with three-layer specific structure, bendy and durable, sturdy acid and alkali resistance, now not perishable, and lengthy carrier life.

(4) Reduce bloodless expansion: Laying a 3-dimensional composite drainage internet can assist limit the influence of frost heave.

(5) Uniform mixing: It can hydrate the concrete evenly, whether or not it is for inflexible roads or bendy street structures.

(6) Uniform mixing: It can hydrate the concrete evenly, whether or not it is for inflexible roads or bendy street structures.

(7) Easy installation, cost and time effective (compare to traditional construction material such as sand, gravel and stone).

3D Composite Drainage NetworkOur Business Scope and What We Could Provide to You

3D Composite Drainage Network 3D Composite Drainage Network 3D Composite Drainage Network
R&D and Design Solutions Provider Production and Delivery
3D Composite Drainage Network 3D Composite Drainage Network 3D Composite Drainage Network
Geosynthetics Testing Industry Training Construction Guidance

Please Contact us to Get More Details, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.

3D Composite Drainage NetworkSpecifications of 3D Composite Drainage Network

1. Technical Specifications of 3D Composite Drainage Network (GB/T17690)
No. Item Unit Spec./Standard value
      1200g/m2 1400g/m2 1600g/m2 1800g/m2 2000g/m2
1 Unit weight of compond production g/m2 ≥1200 ≥1400 ≥1600 ≥1800 ≥2000
2 Thickness of compond production mm ≥6.0 ≥7.0 ≥8.0 ≥9.0 ≥10.0
3 Longitudinal tensile strength of KN/m ≥16.0
compond productiong
4 water diversion ration of compond production m2/s ≥1.2×10-4
5 peel strength of network core and geotextile KN/m ≥0.3
6 Thickness of network core mm ≥5.0 ≥5.0 ≥6.0 ≥7.0 ≥8.0
7 Tensile strength of network core KN/m ≥13.0 ≥15.0 ≥15.0 ≥15.0 ≥15.0
8 Unit weight of geotextile g/m2 ≥200
9 Seepage coefficient of geotextile cm/s ≥0.3
10 Width m 2.1
11 Length of one roll m 30
2. Technical Specifications of 3D Composite Drainage Network (ASTM)
Property Unit BC50/D200 BC63/D200 BC70/D200 BC80/D200 Test Standard
Geocomposite Specification
Hydraulic
conductivity (MD)		 M²/s 2.8×10-3 3.2×10-3 4.0×10² 5×10-3 ASTM D4716
Puncture KN/m 0.17 0.17 0.17 0.17 ASTM D7005
Resistance
Core Material Geonet Specification
Thickness mm 6.3 7 8 9 ASTM D5199
Density g/cm³ 0.94 0.94 0.94 0.94 ASTM D1505
Carbon Black Content % 2 2 2 2 ASTM D1603
Tensile strength (MD) KN/m 8 10 12 14 ASTM D7179
Geotextile Specification
Unit weight g/m2 200 200 200 200 200
Geotextile type    Continuous filament non-woven geotextile

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@glgeosynthetics.com or Mobile:(WhatsApp): +86 155 15596408.

3D Composite Drainage NetworkApplications of 3D Composite Drainage Network

3D composite drainage network is a drainage system with excellent performance, widely used in urban roads, car parks, parks, squares and other places.

Anti seepage and anti-corrosion: Composite drainage networks can prevent the loss of soil particles, protect soil stability, and prevent fine particles from infiltrating the drainage system, avoiding clogging of drainage holes.

Strengthening soil: Composite drainage networks can closely integrate with soil, enhance the tensile and shear strength of soil, improve the stability and bearing capacity of soil, and be used for slope and slope reinforcement to slow down soil erosion and landslide occurrence.

Plant growth: Composite drainage networks can serve as the bottom layer of vegetation coverage systems, providing good drainage and ventilation conditions, promoting plant growth and root development, and are used for greening, landscape, and ecological engineering.

Retaining walls drainage, underground structure drainage, garden and playground drainage.

Drainage of highway subgrade and pavement, railway subgrade drainage, tunnel drainage.

Landfill leachate collection in landfill liners, leak detection, caps and closures.

Methane gas collection, pond leak detection, erosion control.

3D Composite Drainage Network 3D Composite Drainage Network

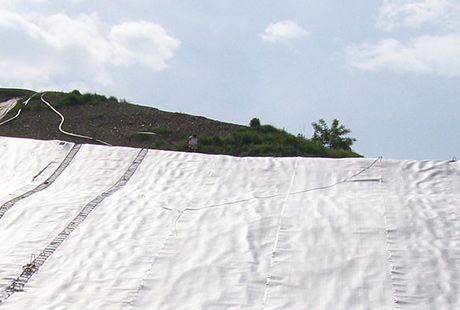

3D Composite Drainage Network for Playgroud

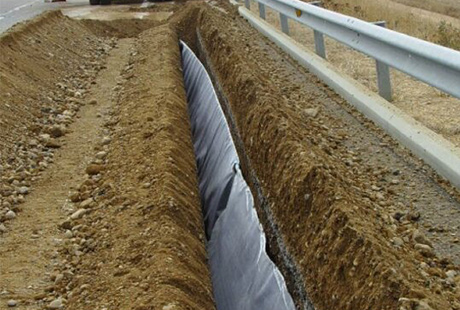

 3D Composite Drainage Network for Highway
3D Composite Drainage Network 3D Composite Drainage Network

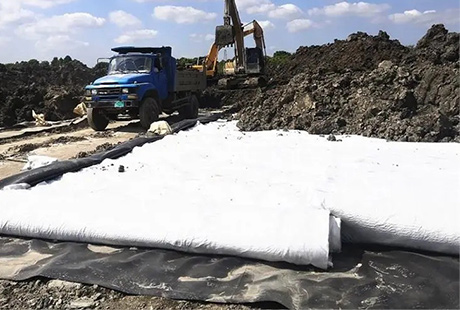

3D Composite Drainage Network for Landfill

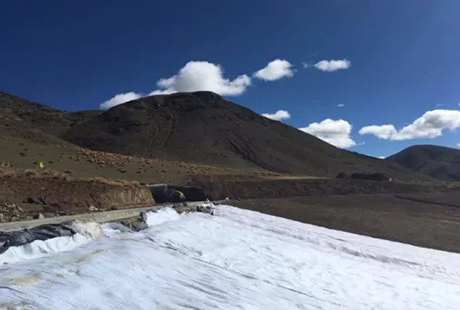

3D Composite Drainage Network for Agricultural Pond
3D Composite Drainage Network 3D Composite Drainage Network

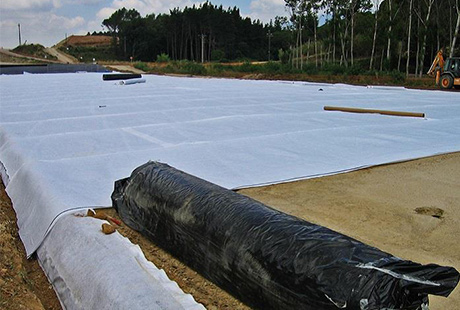

3D Composite Drainage Network for Roadway

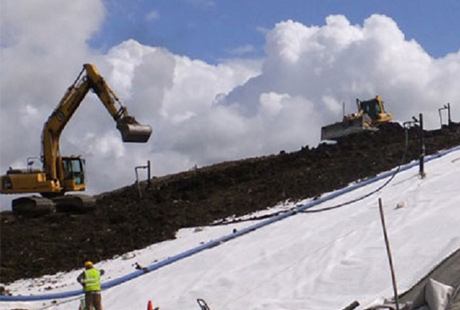

 3D Composite Drainage Network for Slope

Please Contact us to Get More Projects Cases, Send Email: sales@glgeosynthetics.com. or Mobile:(WhatsApp): +86 155 15596408.
